LC Bandpass Filter IFL04510
Features
LC bandpass filter
50Ω single-ended operation
Surface Mounted Package ( 13mm
×
12mm
×
5.5mm )

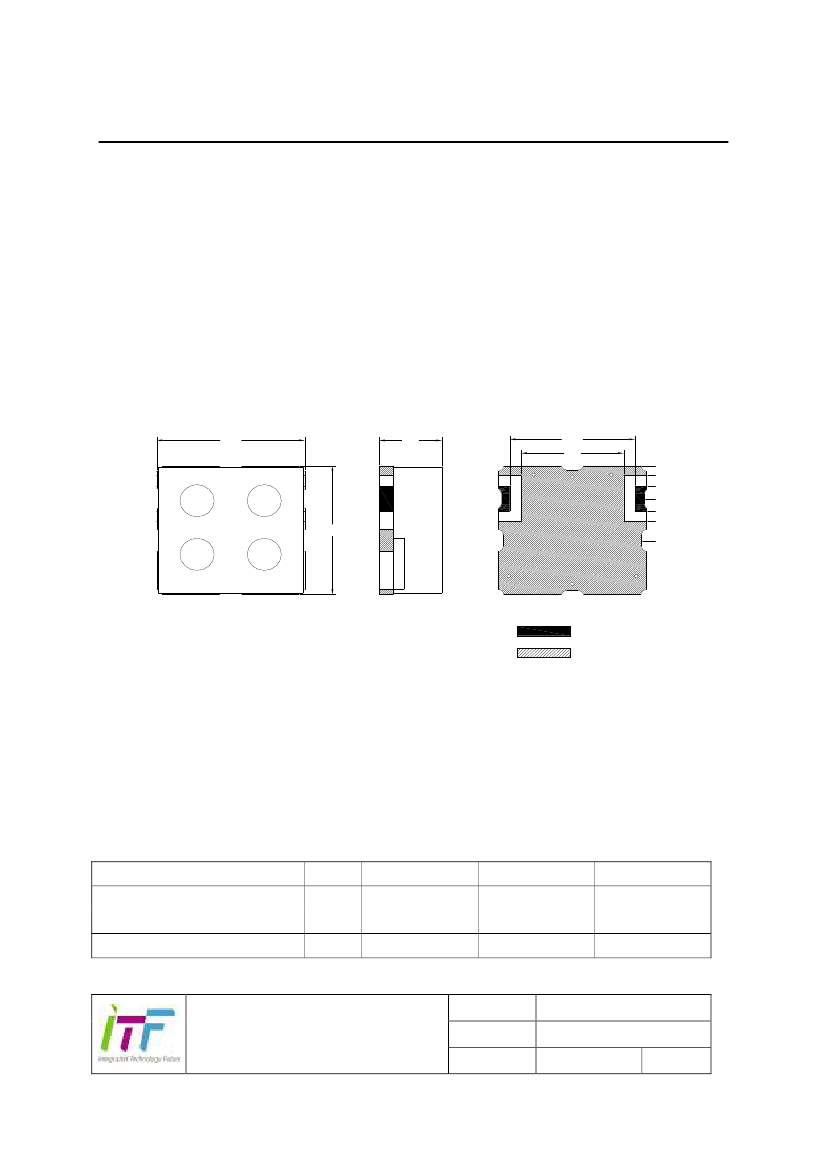

Package Dimensions
TOP VIEW
13.0
SIDE VIEW
5.5
BOTTOM VIEW
11.0
9.0
0.0
0.9
1.9
3.1
4.2
5.2
12.0
7.0
I/O PORT
GROUND
TOLERANCE : ÷ 0.20
UNIT: mm
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Power Handling Capability
Electrostatics Sensitive Device (ESD)
Unit
℃
℃
Watt
Minimum
-40
-40
-
Typical
25
25
-
Maximum
85
85
3
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL04510
2014-08-26
AS 01
1/4
LC Bandpass Filter IFL04510
Specifications
Fo = 455 MHz
Minimum
Center Frequency (
Fo
)
-
-
-
15
Typical
455
2.5
0.3
20
Maximum
-
3.0
0.5
-
Unit
MHz
dB
dB
dB
Insertion Loss (454~ 456MHz)
Amplitude Ripple (454~ 456MHz)
Return Loss (454~ 456MHz)
Relative Attenuation
@ 910 MHz
35.0
40.0
-
dB
Input/Output Impedance
50
Ohm
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 2 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured relative to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL04510
2014-08-26
AS 01
2/4
LC Bandpass Filter IFL04510
Matching Schematic
( Actual matching values may vary due to PCB layout and parasitics )
Input
50
Ω
Output
50
Ω
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL04510
2014-08-26
AS 01
3/4
LC Bandpass Filter IFL04510

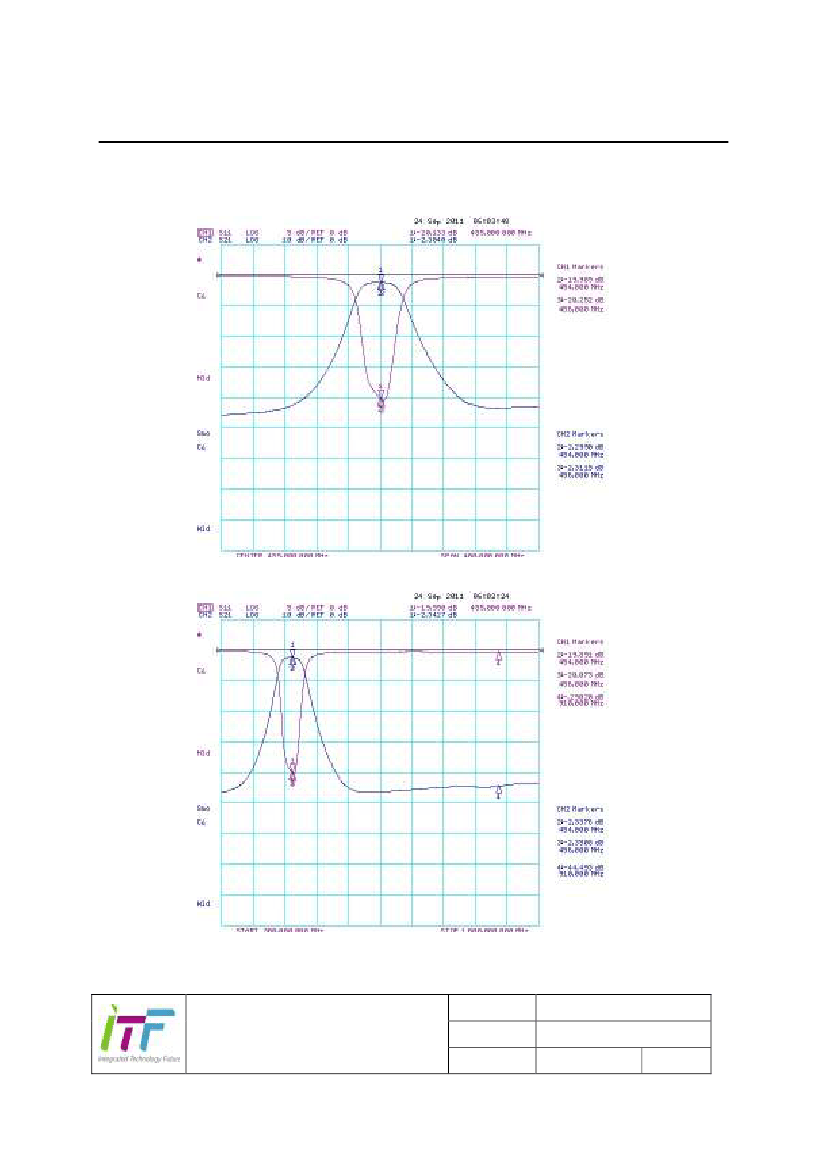

Typical Performance ( at 25℃ )
℃
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IFL04510
2014-08-26
AS 01
4/4
