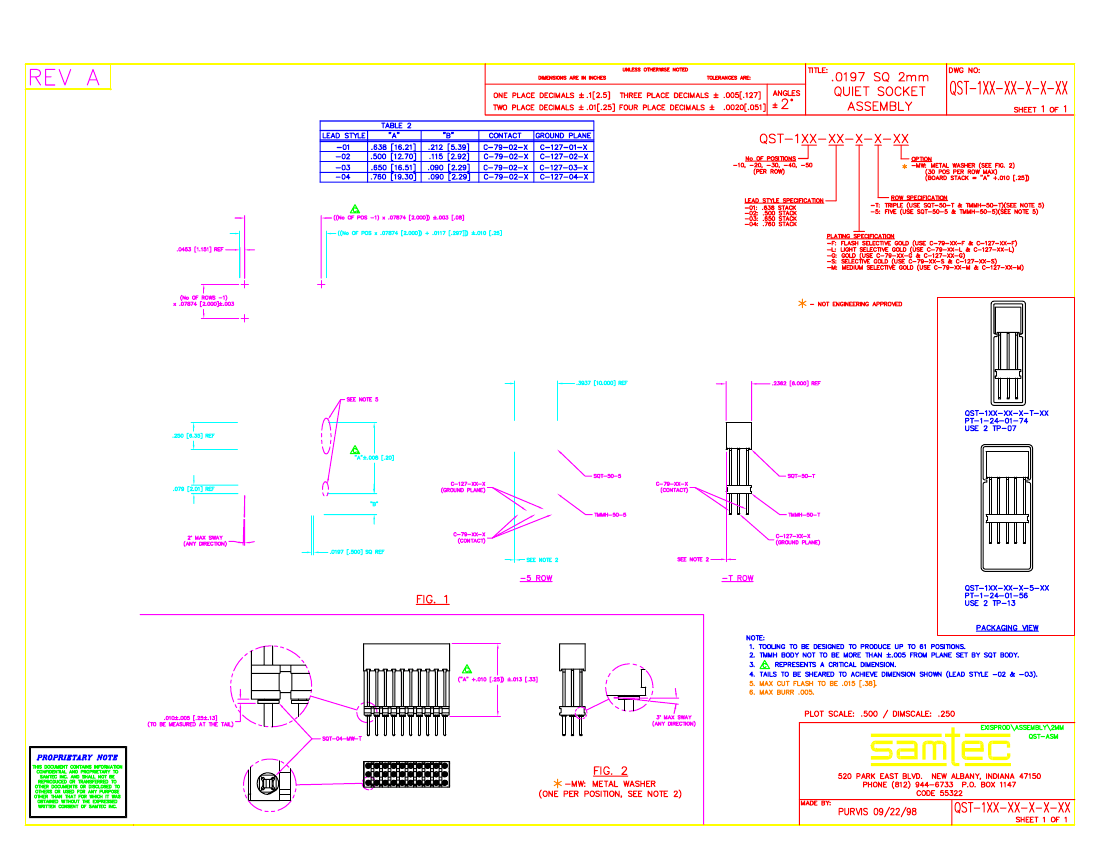

QST-130-03-M-T-MW datasheet, PDF

QST-130-03-M-T-MW: DescriptionBoard Connector, 90 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

QST-130-03-M-T-MW Overview

Board Connector, 90 Contact(s), 3 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.236 inch
subject depth	0.65 inch
body length	2.382 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	QST
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	90
