BB1020DT: DescriptionSCSI Termination Resistor network Low Voltage Differential (LVD); File Size348KB，2 Pages; ManufacturerWelwyn (TT Electronics plc); Websitehttp://www.welwyn-tt.com/index.asp

Download Datasheet Compare View All

BB1020DT Overview

SCSI Termination Resistor network Low Voltage Differential (LVD)

Preview

Download Datasheet

View All

Resistors

SCSI Termination Resistor network

Low Voltage Differential (LVD)

BB1020DT Series

SPI-2 (Ultra2) and SPI-3 (Ultra3) compliant

Each network contains LVD termination for up to 9 lines

Superior high frequency performance

Minimal stray capacitance and inductance

Surface mountable with automatic pick and place equipment

Make Possible

All Pb-free parts comply with EU Directive 2011/65/EU (RoHS2)

Description

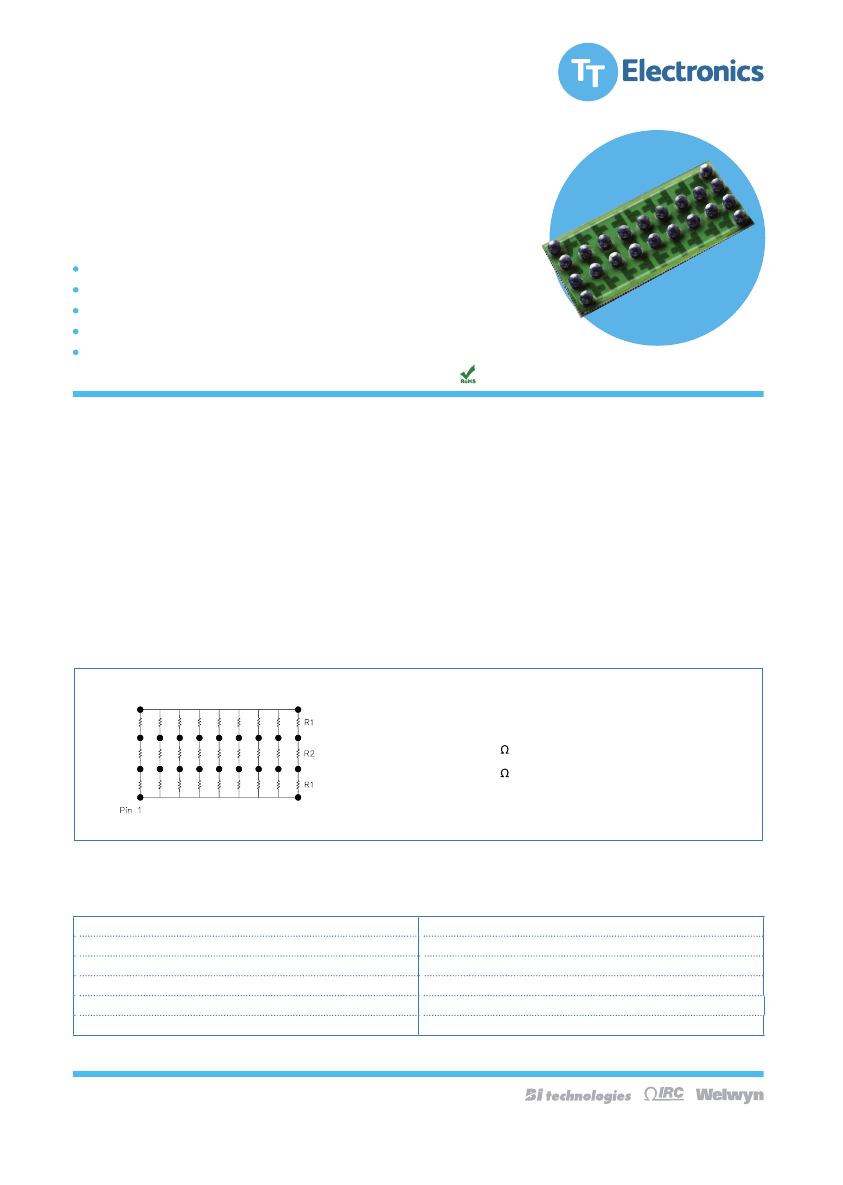

Model BB1020DT is a SCSI LVD termination network designed to terminate high performance SPI-2 (Ultra2) and

SPI-3 (Ultra3) bussed applications. Wide SCSI bus applications can be terminated with three BB1020DT net-

works and a linear regulator IC.

For use in high-speed SCSI bus applications, the BB1020DT utilizes thick film resistors on a ceramic substrate

with ball grid array (BGA) terminals. Resistors and solder balls reside on the same side of the ceramic substrate,

resulting in the absolute minimum stray capacitance and inductance.

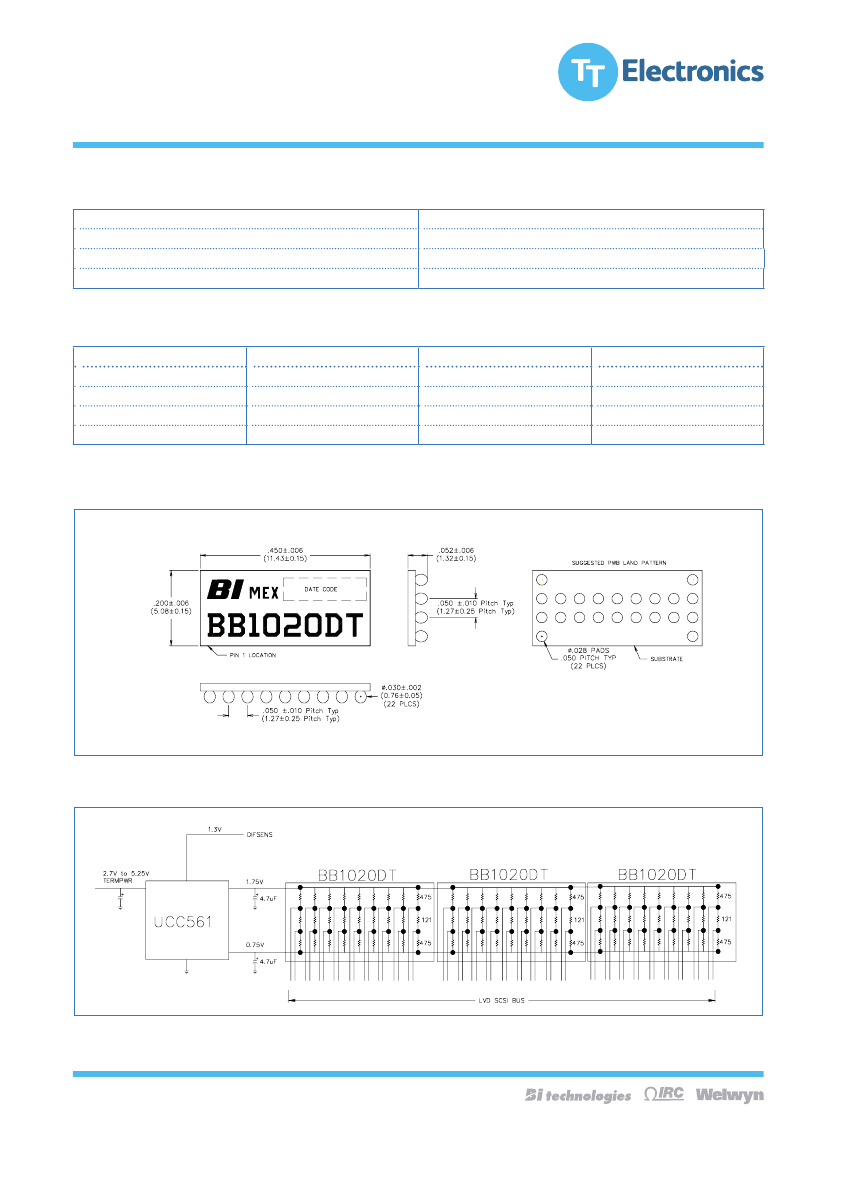

Schematics

R1 = 475

R2 = 121

(18 places)

(9 places)

Electrical

1

Resistance Nominal (R1 & R2)

Absolute Tolerance

Temperature Coefficient of Resistance

Interlead Capacitance, Maximum

Operating Temperature Range

Power Rating (per network @ 70°C)

1 Specification subject to change without notice.

General Note

TT Electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.

www.ttelectronicsresistors.com

475Ω, 121Ω

±1%

±100 ppm/°C

0.1 pF

-55°C to +125°C

1 Watt

07.14

BB1020DT Related Products

	BB1020DT	BB1020DT13	BB1020DT7	BB1020DTLF13	BB1020DTLF7
Description	SCSI Termination Resistor network Low Voltage Differential (LVD)	SCSI Termination Resistor network Low Voltage Differential (LVD)	SCSI Termination Resistor network Low Voltage Differential (LVD)	SCSI Termination Resistor network Low Voltage Differential (LVD)	SCSI Termination Resistor network Low Voltage Differential (LVD)
