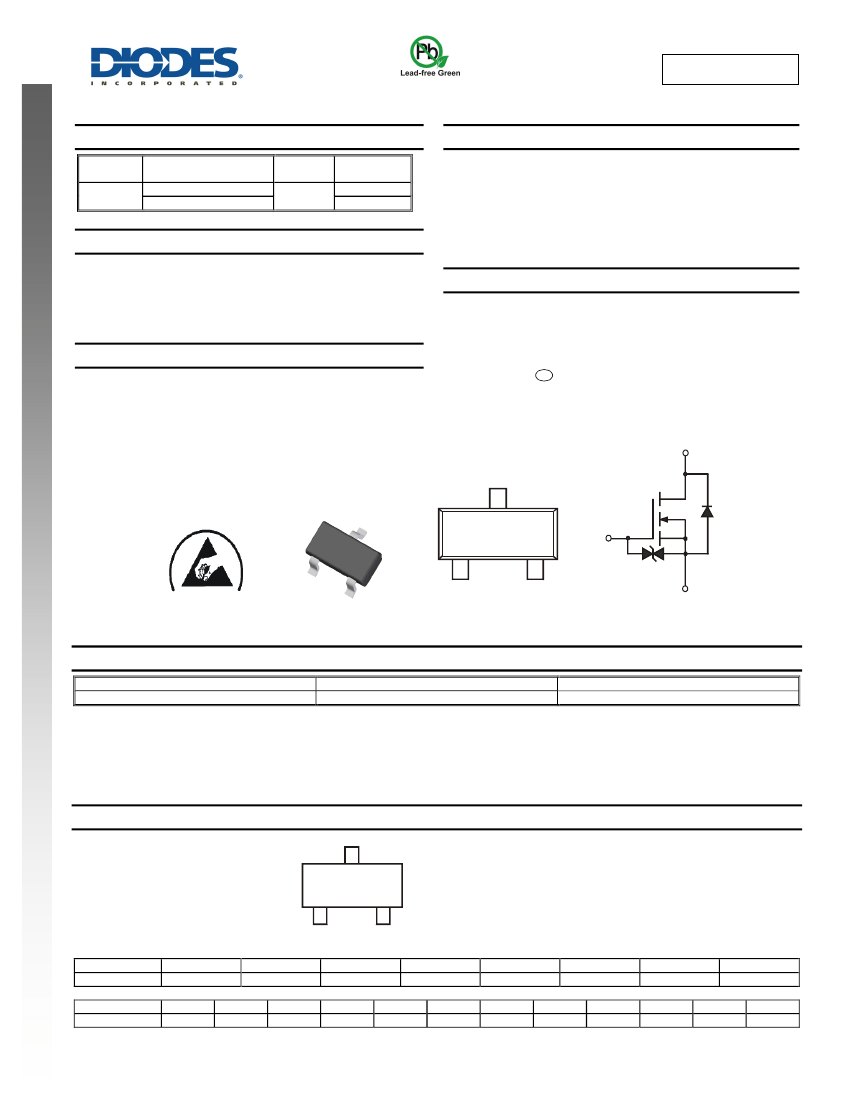

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
NEW PRODUCT
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Mechanical Data
Drain
Case: SC59
Case Material – Molded Plastic. UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Solderable per MIL-STD-202,
Method 208
e3
Terminal Connections: See Diagram
Weight: 0.014 grams (approximate)
Applications
Load Switch
DC-DC Converters
Power Management Functions
2kV
SC59
D
Gate
Body
Diode
G
S
ESD PROTECTED
TOP VIEW
Gate
Protection
Diode
Source
TOP VIEW
Pin Configuration
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMN3070SSN-7
Notes:
Case
SC59
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html
