SMB1N-D520-02
v 1.0 22.09.2014

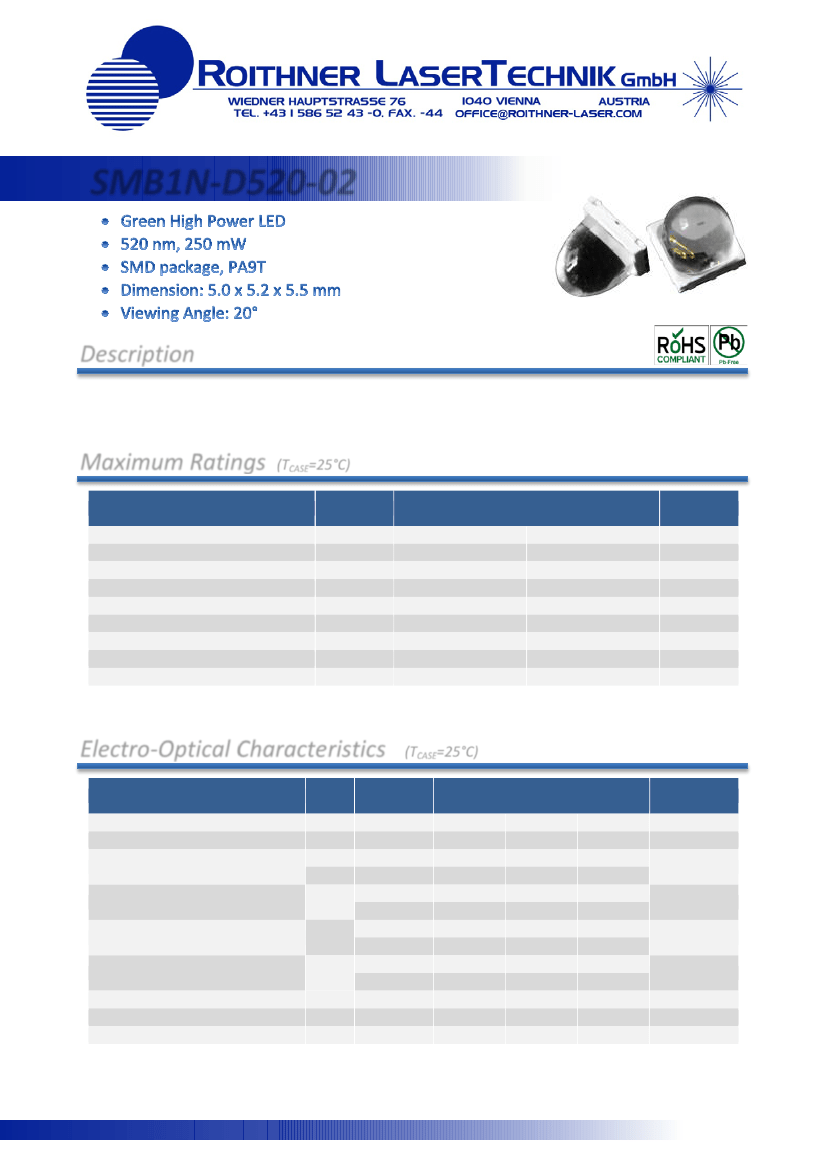

Description
SMB1N-D520-02
is a surface mount InGaN High Power LED with a typical peak wavelength of
520 nm
and radiation of
250 mW.
It comes in SMD package (PA9T) with silver plated soldering pads (lead free
solderable), copper heat sink, and molded with silicone resin.
Maximum Ratings
Parameter
Power Dissipation
Forward Current
1
Pulse Forward Current *
Reverse Voltage
Thermal Resistance
Junction Temperature
Operating Temperature
Storage Temperature
2
Lead Solder Temperature *
(T
CASE
=25°C)
Symbol
P
D
I
F
I
FP
V
F
R
THJA
T
J
T
CASE
T
STG
T
SLD
Values
Min.
Max.
1300
350
500
5
10
120
+ 100
+ 100
+ 250
Unit
mW
mA
mA
V
K/W
°C
°C
°C
°C
- 40
- 40
* duty=1%, pulse width = 10 µs
2
* must be completed within 5 seconds
1
Electro-Optical Characteristics
Parameter
Peak Wavelength
Half Width
Forward Voltage
Radiated Power *
1
(T
CASE
=25°C)
Values
Typ.
520
30
3.4
3.7
250
320
340
450
85
110
20
220
200
Unit
nm
nm
V
mW
mW/sr
lm
deg.
ns
ns
Symbol Conditions
λ
P
∆λ
V
F
V
FP
P
O
I
E
Φ
V
φ
t
R
t
F
I
F
=350mA
I
F
=350mA
I
F
=350mA
I
FP
=500mA
I
F
=350mA
I
FP
=500m A
I
F
=350mA
I
FP
=500m A
I
F
=350mA
I
FP
=500m A
I
F
=100mA
I
F
=350mA
I
F
=350mA
Min.
510
Max.
530
3.8
Radiant Intensity *
Luminous Flux
Viewing Angle
Rise Time
Fall Time
1
2
* measured by S3584-08
2
* measured by CIE127-2007 Condition B
www.roithner-laser.com
1

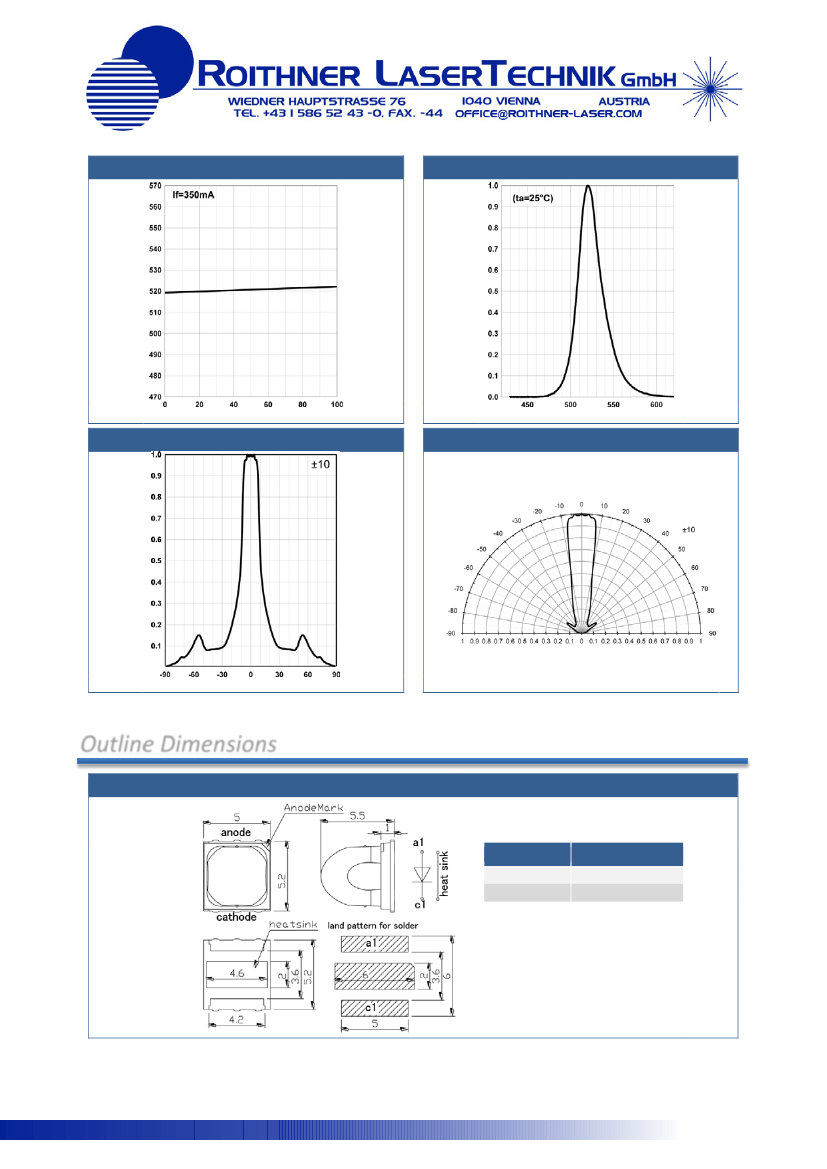

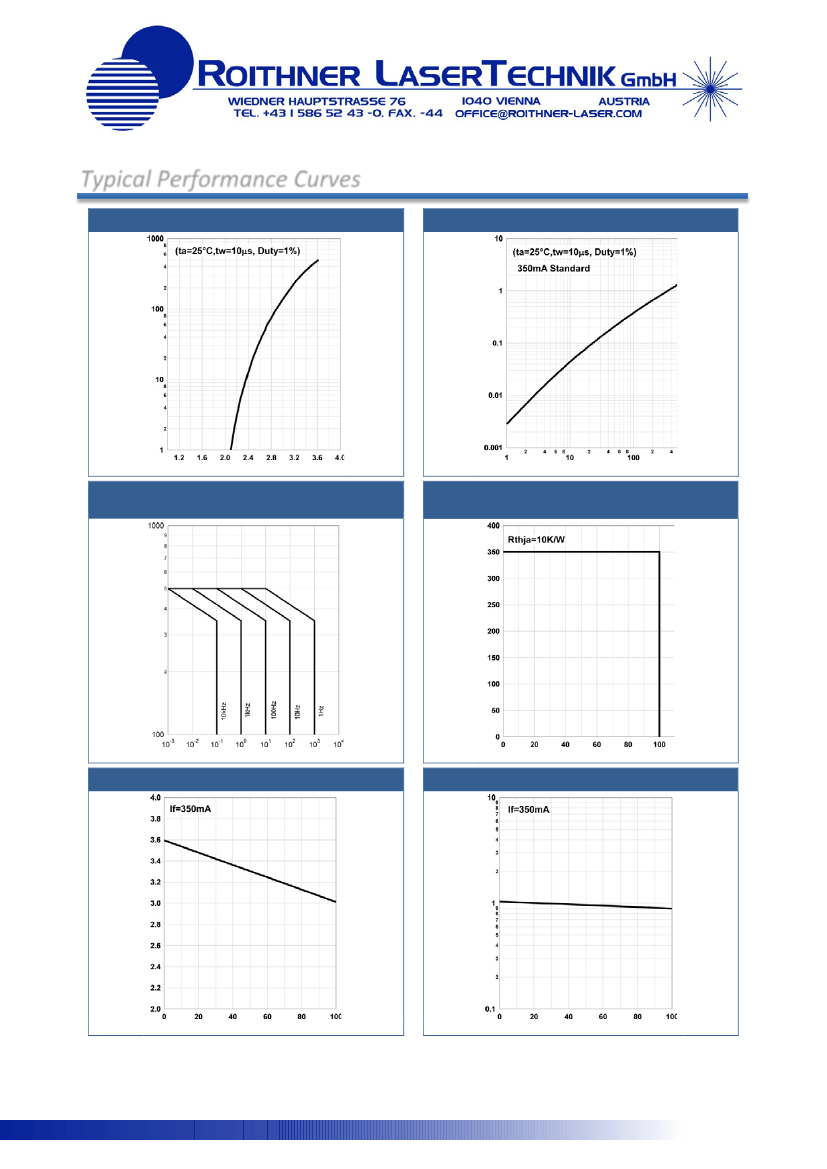

Typical Performance Curves
Forward Current vs. Forward Voltage
Rel. Radiant Intensity vs. Forward Current
Forward Voltage [V]
Relative Radiant Intensity [A.U.]
Forward Current [mA]
Forward Current [mA]
Forward Current vs. Pulse Duration
Allowed Forward Current vs. Ambient
Temperature
Duration tw [ms]
Allowable Forward Current [mA]
Forward Current [mA]
Ambient Temperature [°C]
Forward Voltage vs. Ambient Temperature
Rel. Radiant Intensity vs. Ambient Temperature
Ambient Temperature [°C]
Relative Radiant Intensity [A.U.]
Forward Voltage [V]
Ambient Temperature [°C]
www.roithner-laser.com
2
Peak Wavelength vs. Ambient Temperature
Relative Spectral Emission
Ambient Temperature [°C]
Relative Radiant Intensity [A.U.]
Peak Wavelength [nm]
Wavelength [nm]
Radiation Characteristics
Radiation Characteristics
Relative Radiant Intensity [A.U.]
Angle (deg.)
Relative Radiant Intensity (A.U.)
Angle [edg.]
Outline Dimensions
SMB1N
lens
Lead
Pin a1
Pin c1
Description
LED Anode
LED Cathode
All Dimensions in mm
www.roithner-laser.com
3
Precautions
Soldering:
•
•
•
•
•
Do avoid overheating of the LED
Do avoid electrostatic discharge (ESD)
Do avoid mechanical stress, shock, and vibration
Do only use non-corrosive flux
Do not apply current to the LED until it has cooled down to room temperature after soldering
Recommended soldering conditions:
This LED is designed to be reflow soldered on to a PCB. If dip soldered or hand soldered, its
reliability cannot be guarantee.
Nitrogen reflow soldering is recommended. Air flow soldering conditions can cause optical
degradation, caused by heat and/or atmosphere.

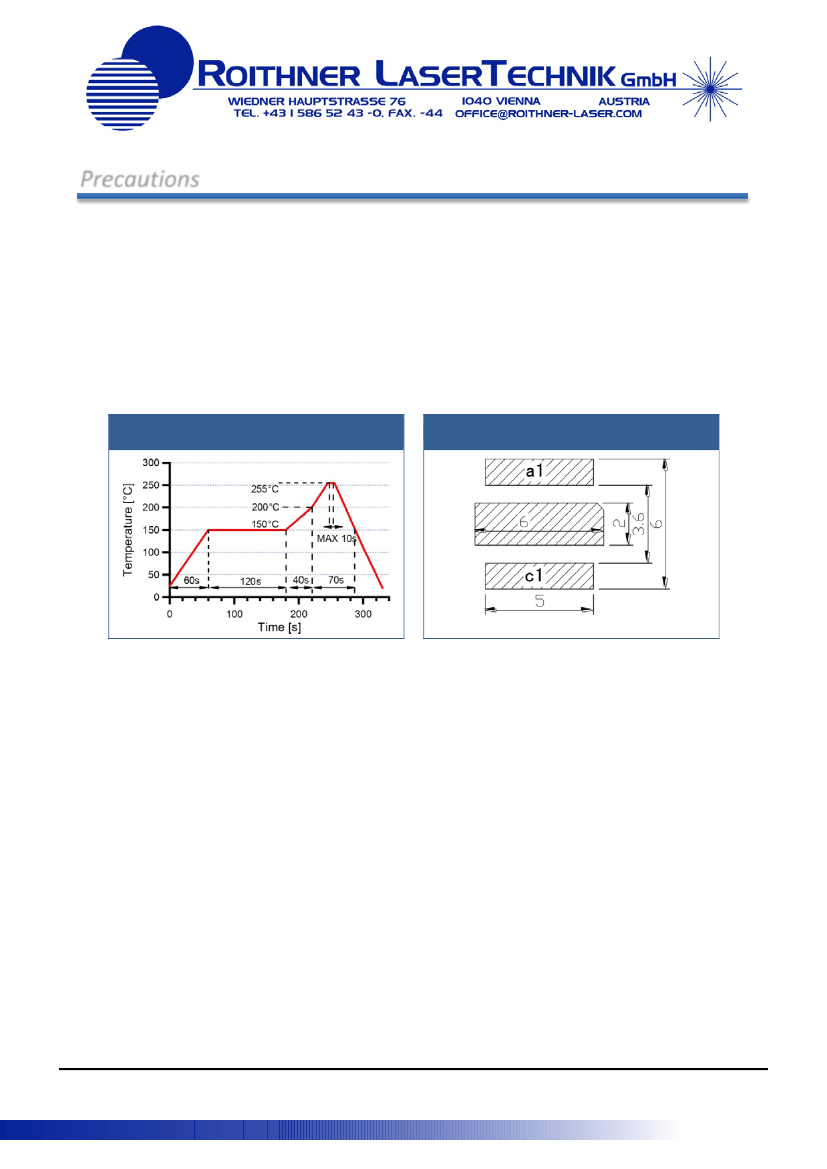

IR Reflow Soldering Profile
(Lead-free Solder)
Recommended Soldering Patterns
Unit: mm
Above table specifies the maximum allowed duration and temperature during soldering. It is
strongly advised to perform soldering at the shortest time and lowest temperature possible.
Cleaning:
Cleaning with isopropyl alcohol, propanol, or ethyl alcohol is recommended
DO NOT USE acetone, chloroseen, trichloroethylene, or MKS
DO NOT USE ultrasonic cleaners
Static Electricity:
LEDs are sensitive to electrostatic discharge (ESD).
Precautions against ESD must be taken
when handling or operating these LEDs. Surge voltage or electrostatic discharge can result in
complete failure of the device.
Radiation:
During operation these LEDs do emit
high intensity light,
which is hazardous to skin and eyes,
and may cause cancer. Do avoid exposure to the emitted light.
Protective glasses are
recommended.
It is further advised to attach a warning label on products/systems.
Operation:
Do
only
operate LEDs with a current source.
Running these LEDs from a voltage source will result in complete failure of the device.
Current of a LED is an exponential function of the voltage across it. Usage of current regulated
drive circuits is mandatory.
© All Rights Reserved
The above specifications are for reference purpose only and subjected to change without prior notice
www.roithner-laser.com
4
