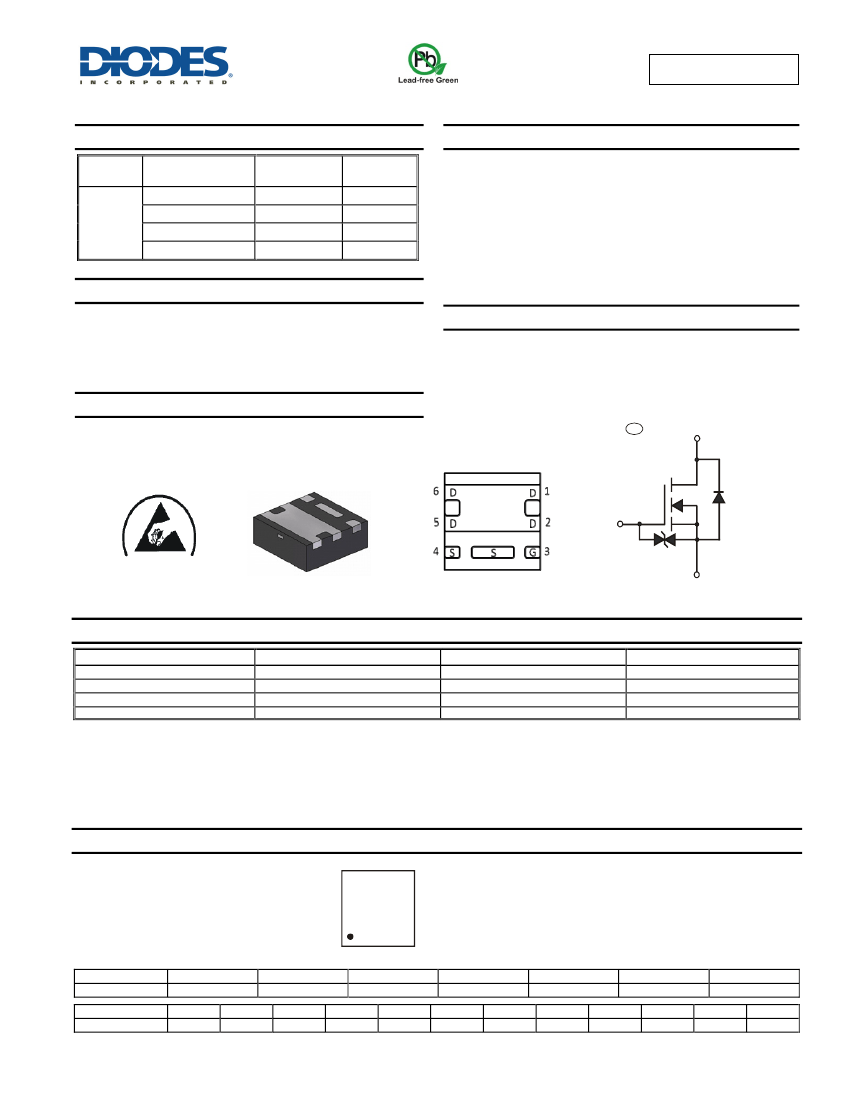

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
2
Low Gate Threshold Voltage

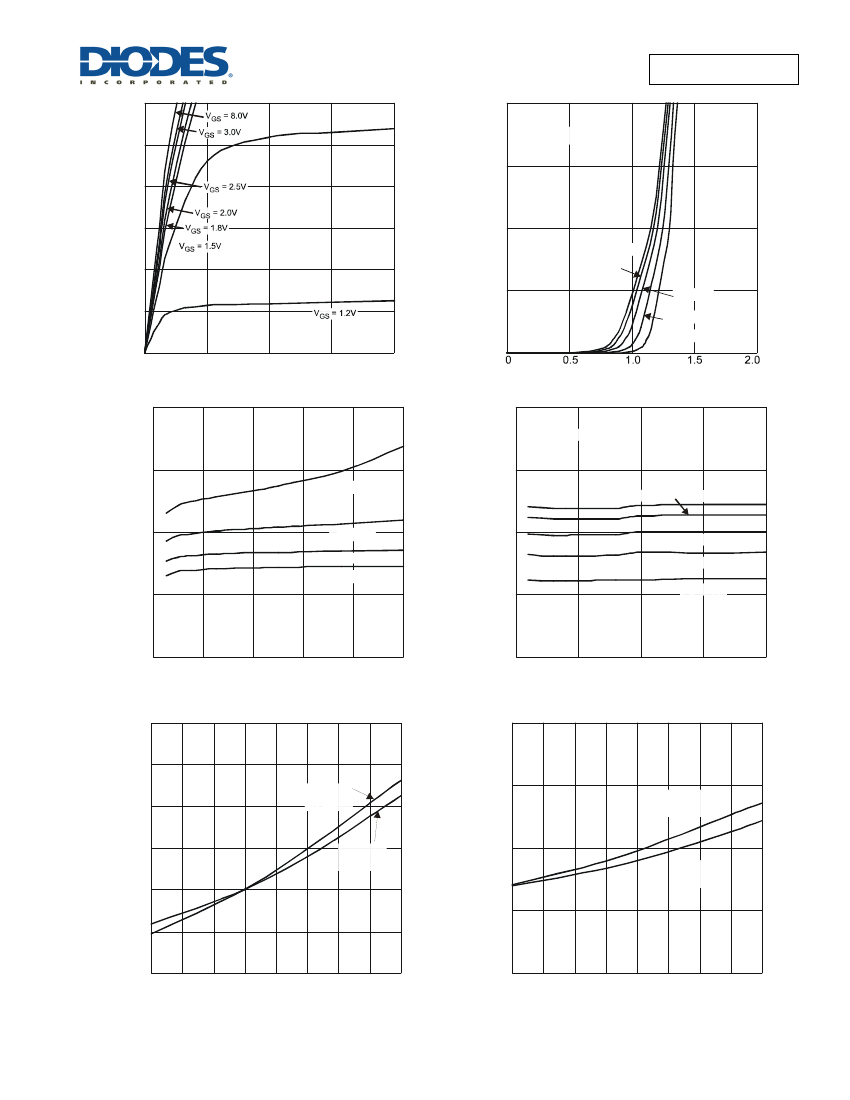

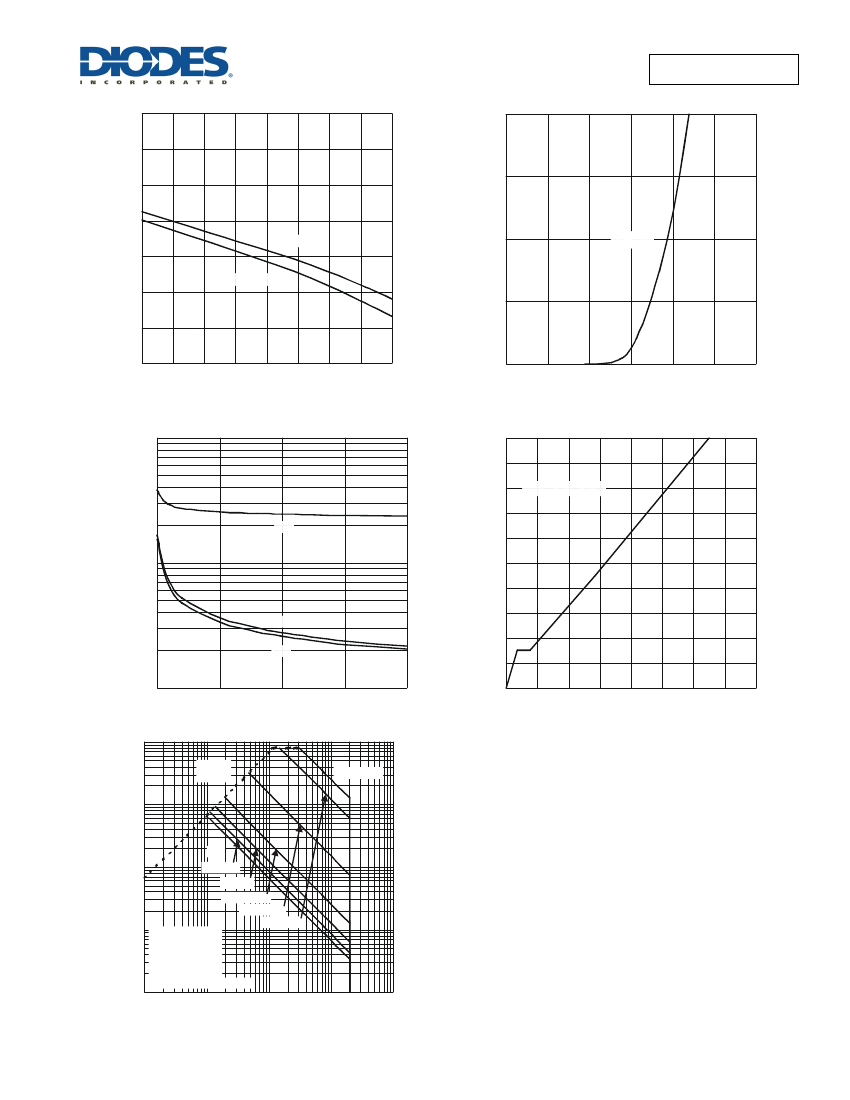

Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Mechanical Data

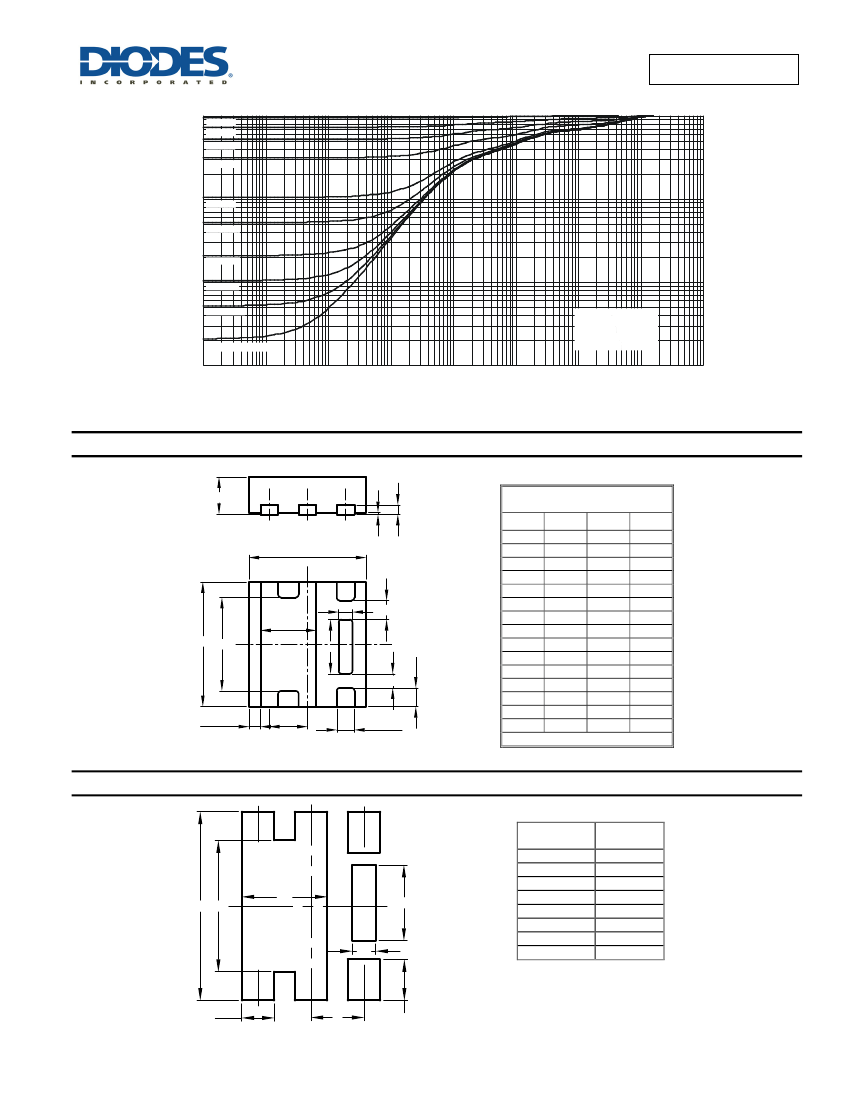

Case: U-DFN2020-6
Case Material: Molded Plastic, “Green” Molding Compound.
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
Drain
per MIL-STD-202, Method 208
e4
Weight: 0.0065 grams (approximate)
UL
Applications
General Purpose Interfacing Switch
Power Management Functions
U-DFN2020-6
Gate
Gate
Protection
Diode
ESD PROTECTED
Bottom View
Pin Out
Source
Equivalent Circuit
Ordering Information
(Note 5)
Part Number
DMN2013UFDE-7
DMN2013UFDEQ-7
DMN2013UFDE-13
DMN2013UFDEQ-13
Notes:
Compliance
Standard
Automotive
Standard
Automotive
Case
U-DFN2020-6
U-DFN2020-6
U-DFN2020-6
U-DFN2020-6
Quantity per reel
3,000
3,000
10,000
10,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
5. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
