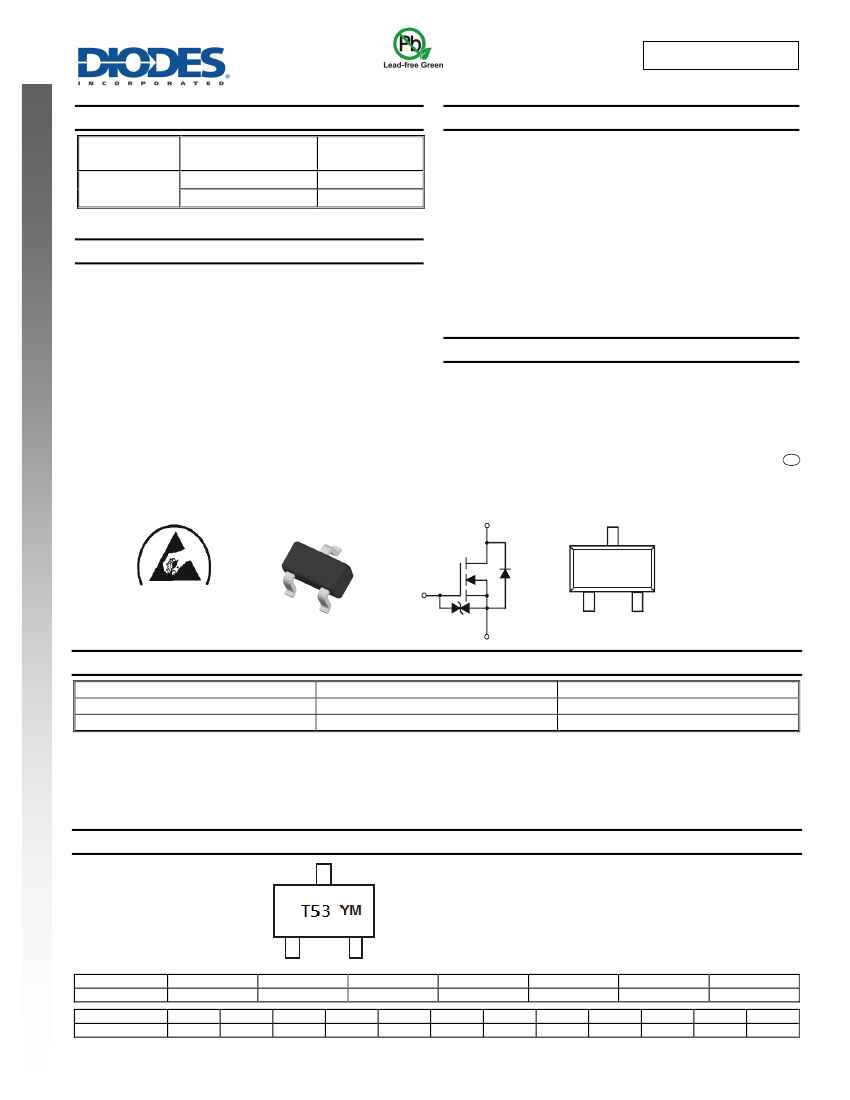

DMN53D0LT

N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR

Product Summary

(BR)DSS

50V

DS(ON)

1.6Ω @ V

= 10V

2.5Ω @ V

= 4.5V

= +25°C

350 mA

200 mA

Features and Benefits

•

N-Channel MOSFET

Low On-Resistance

Very Low Gate Threshold Voltage

Low Input Capacitance

Fast Switching Speed

Low Input/ Output Leakage

Ultra-Small Surface Mount Package

ESD Protected to 2KV

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description and Applications

NEW PRODUCT

This MOSFET has been designed to minimize the on-state resistance

DS(ON)

) and yet maintain superior switching performance, making it

ideal for high efficiency power management applications.

Mechanical Data

•

SOT523

Case: SOT523

Case Material: Molded Plastic. “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Terminal Connections: See Diagram

Weight: 0.002 grams (approximate)

Drain

Gate

ESD PROTECTED

Top View

Gate

Protection

Diode

Source

Top View

Ordering Information

Part Number

DMN53D0LT-7

DMN53D0LT-13

Notes:

(Note 4)

Case

SOT-523

Packaging

3000/Tape & Reel

10000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

T53 = Product Type Marking Code

YM = Date Code Marking

Y = Year ex: B = 2014

M = Month ex: 9 = September

Date Code Key

Year

Code

Month

Code

2014

Jan

Feb

2015

Mar

Apr

2016

May

Jun

2017

Jul

2018

Aug

Sep

2019

Oct

Nov

2020

Dec

June 2014

DMN53D0LT

Document number: DS37073 Rev. 2 - 2

1 of 5

www.diodes.com

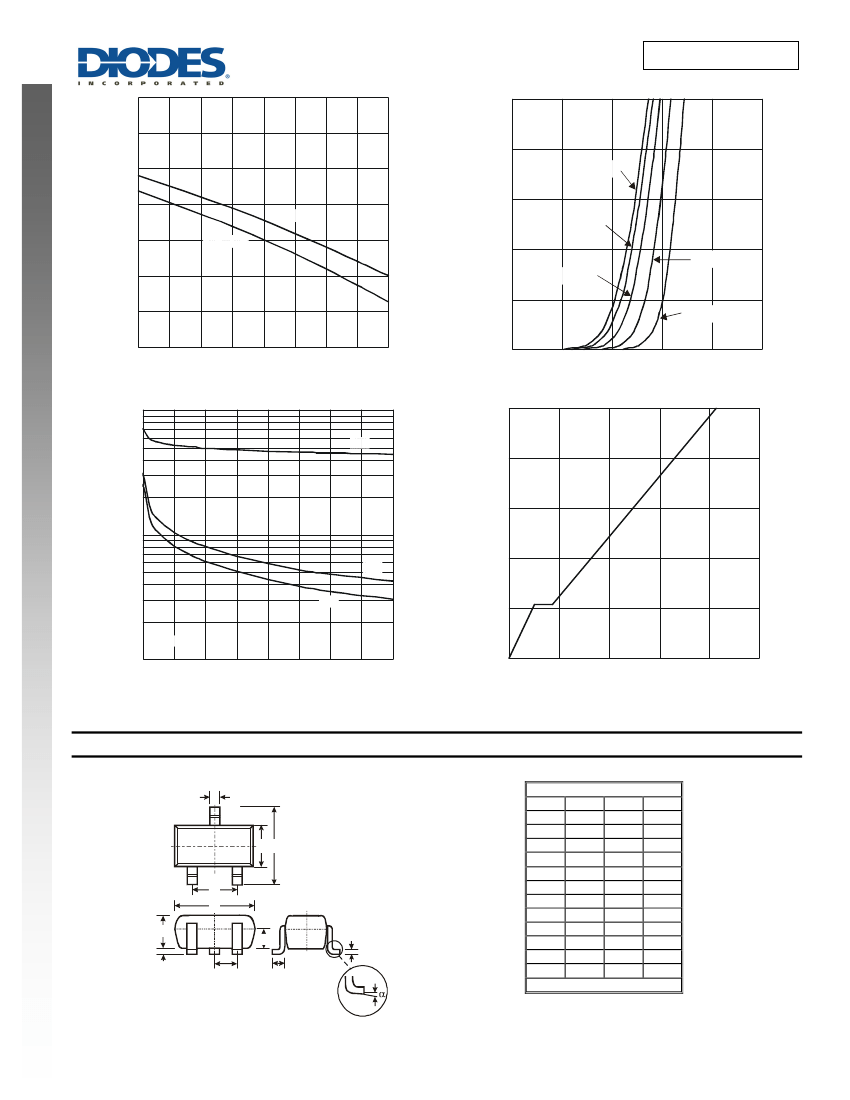

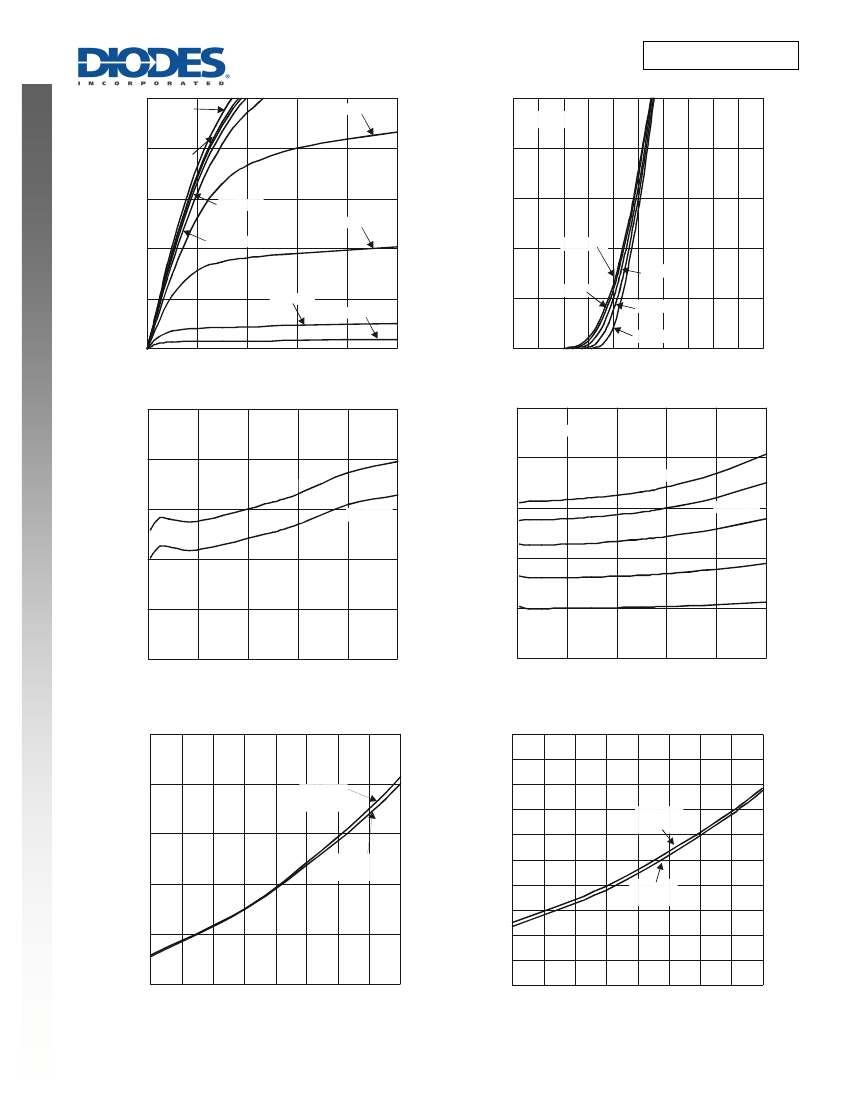

DMN53D0LT

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for latest version.

Dimensions Value (in mm)

1.8

0.4

0.51

1.3

0.7

NEW PRODUCT

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DMN53D0LT

Document number: DS37073 Rev. 2 - 2

5 of 5

www.diodes.com

June 2014
