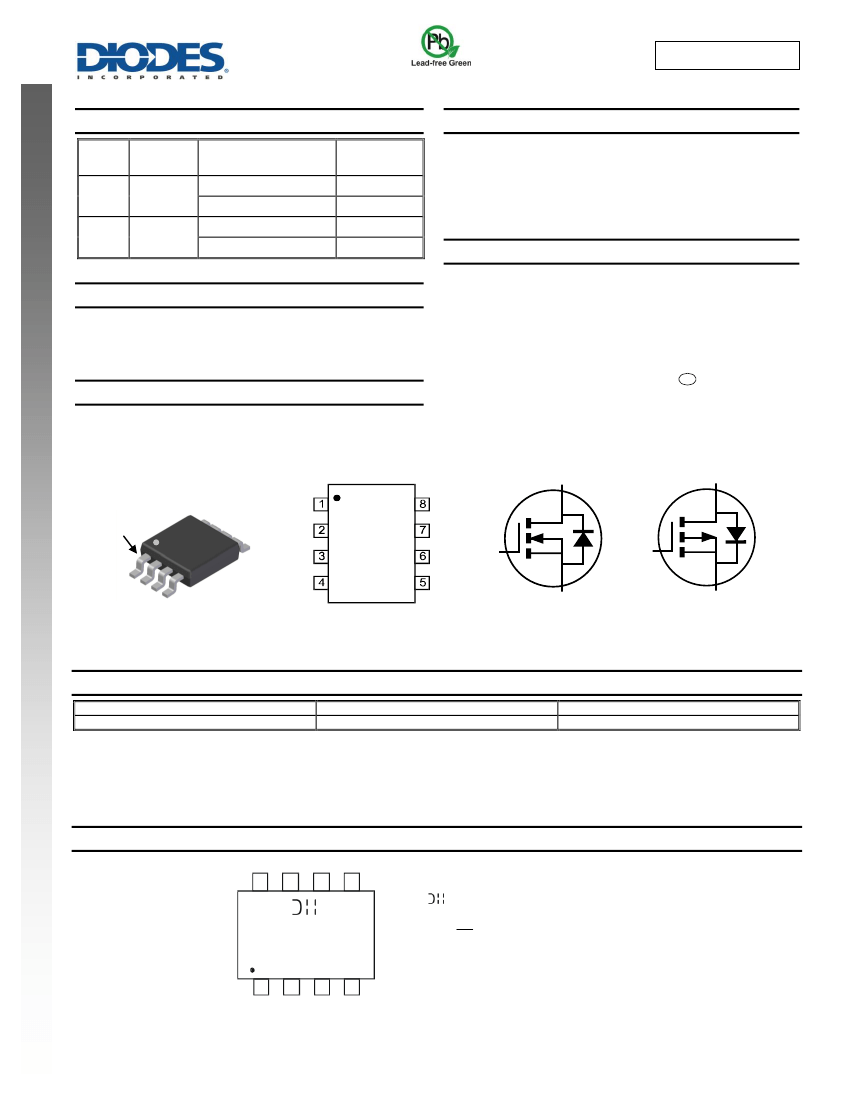

Halogen and Antimony Free. “Green” Device (Note 3)
ADVANCE INF ORMATION
NEW PRODUCT
Q1
Q2
-40V
Mechanical Data
Case: SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin Annealed over Copper Leadframe
Solderable per MIL-STD-202, Method 208
e3
Weight: 0.074 grams (Approximate)
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
Applications
DC-DC Converters
Power Management Functions
Backlighting
SO-8
D1
D1
D1
D2
D2
D2
S1
Pin1
G1
S2
G2
Top View
Top View
Pin Configuration
G1
S1
Q N-Channel MOSFET
G2
S2
Q2 P-Channel MOSFET
Ordering Information
(Note 4)
Part Number
DMC4015SSD-13
Notes:
Case
SO-8
Packaging
2,500/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
