UFT14005 thru UFT14060
Silicon Super Fast
Recovery Diode
Features
• High Surge Capability
• Types from 50 V to 600 V V
RRM
• Non Isolated to plate
• Not ESD Sensitive
TO-249AB Package
V
RRM
= 50 V - 600 V
I
F(AV)
= 140 A
Maximum ratings, at T
j
= 25 °C, unless otherwise specified
Parameter
Repetitive peak reverse voltage
RMS reverse voltage
DC blocking voltage
Operating temperature
Storage temperature
Symbol
V
RRM
V
RMS
V
DC
T
j
T
stg
Conditions
UFT14005 UFT14010
50
35
50
-55 to 150
-55 to 150
100
70
100
-55 to 150
-55 to 150
UFT14020 UFT14040 UFT14060 Unit
200
140
200
-55 to 150
-55 to 150
400
280
400
-55 to 150
-55 to 150
600
420
600
-55 to 150
-55 to 150
V
V
V
°C
°C
Electrical characteristics, at Tj = 25 °C, unless otherwise specified
Parameter
Average forward current (per
pkg)
Peak forward surge current
(per leg)
Maximum instantaneous forward
voltage (per leg)
Maximum reverse current at
rated DC blocking voltage (per
leg)
Maximum reverse recovery time
(per leg)
Symbol
I
F(AV)
I
FSM
V
F
I
R
T
rr
Conditions
T
C
≤
125 °C
t
p
= 8.3 ms, half sine
I
F
= 70 A, T
j
= 25 °C
T
j
= 25 °C
T
j
= 125 °C
I
F
=0.5 A, I
R
=1.0 A,
I
RR
= 0.25 A
UFT14005 UFT14010
140
1300
1.0
25
3
75
140
1300
1.0
25
3
75
UFT14020 UFT14040 UFT14060 Unit
140
1300
1.0
25
3
75
140
1300
1.3
25
3
85
140
1300
1.7
25
3
90
A
A
V
μA
mA
ns
Thermal characteristics
Maximum thermal resistance,
junction - case (per leg)
R
ΘJC
0.60
0.60
0.60
0.60
0.60
°C/W
www.genesicsemi.com/silicon-products/super-fast-recovery-rectifiers/
1
UFT14005 thru UFT14060

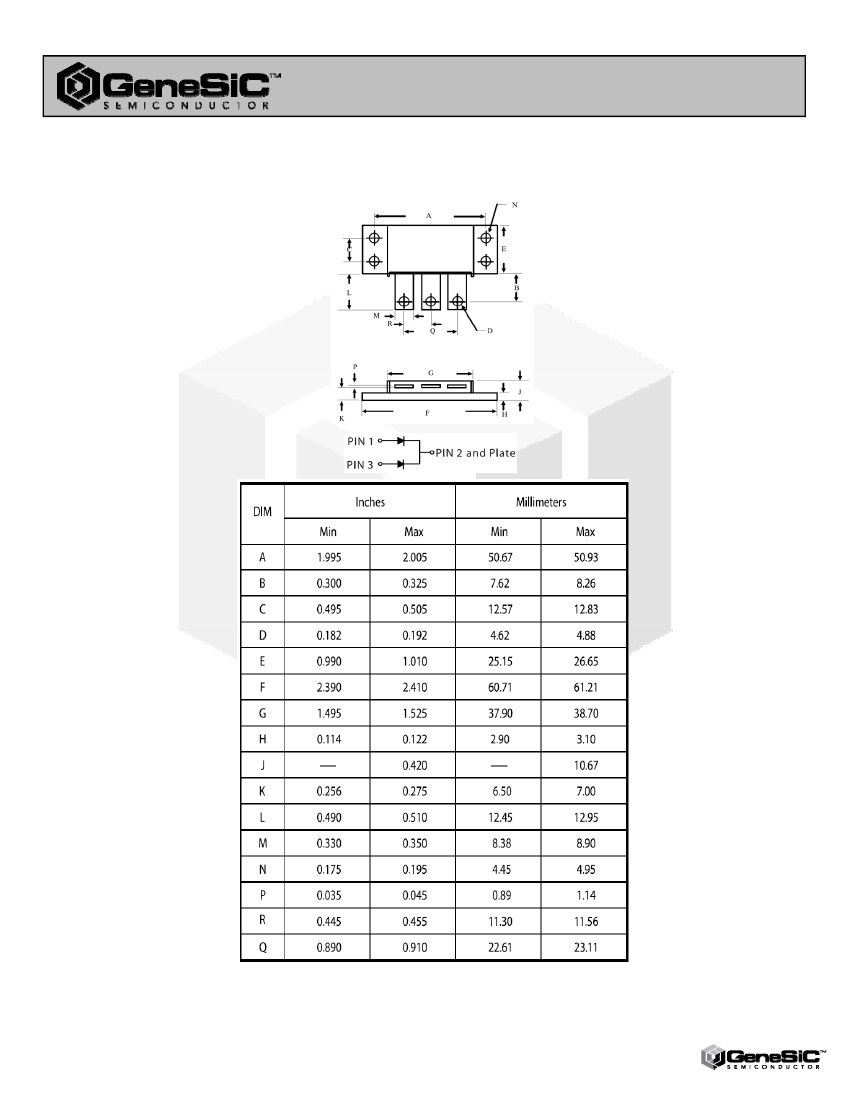

Package dimensions and terminal configuration
Product is marked with part number and terminal configuration.
www.genesicsemi.com/silicon-products/super-fast-recovery-rectifiers/
3
