FMMT589
30V PNP MEDIUM POWER HIGH PERFORMANCE TRANSISTOR IN SOT23
Features
BV
CEO
> -30V
I
C
= -1A Continuous Collector Current
I
CM
= -2A Peak Pulse Current
Low saturation voltage V
CE(sat)
< -350mV @ -1A
R
SAT
= 250mΩ for a low equivalent on-resistance
Complementary NPN type: FMMT489
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT23
Case Material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.008 grams (approximate)
C
SOT23
E
C
B
Top View
Pin-Out
B
E
Top View
Device Symbol
Ordering Information
(Note 4)
Product
FMMT589TA
Notes:
Marking
589
Reel size (inches)
7
Tape width (mm)
8
Quantity per reel
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
589
589 = Product Type Marking Code
FMMT589
Document number: DS33103 Rev. 7 - 2
1 of 7
www.diodes.com
November 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT589
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current
Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
Value
-50
-30
-7
-1
-2
-200
Unit
V
V
V
A
A
mA
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
(Note 5)
(Note 5)
(Note 6)
Symbol
P
D
R
θJA
R
θJL
T
J,
T
STG
Value
500
250
197
-55 to +150
Unit
mW
C/W
C/W
C
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Lead
Operating and Storage Temperature Range
ESD Ratings
(Note 7)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Notes:
Symbol
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
5. For a device mounted with the collector lead on 15mm x 15mm 1oz copper that is on a single-sided FR4 PCB; device is measured under still air
conditions whilst operating in a steady-state.
6. Thermal resistance from junction to solder-point (at the end of the collector lead).
7. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
FMMT589
Document number: DS33103 Rev. 7 - 2
2 of 7
www.diodes.com
November 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT589

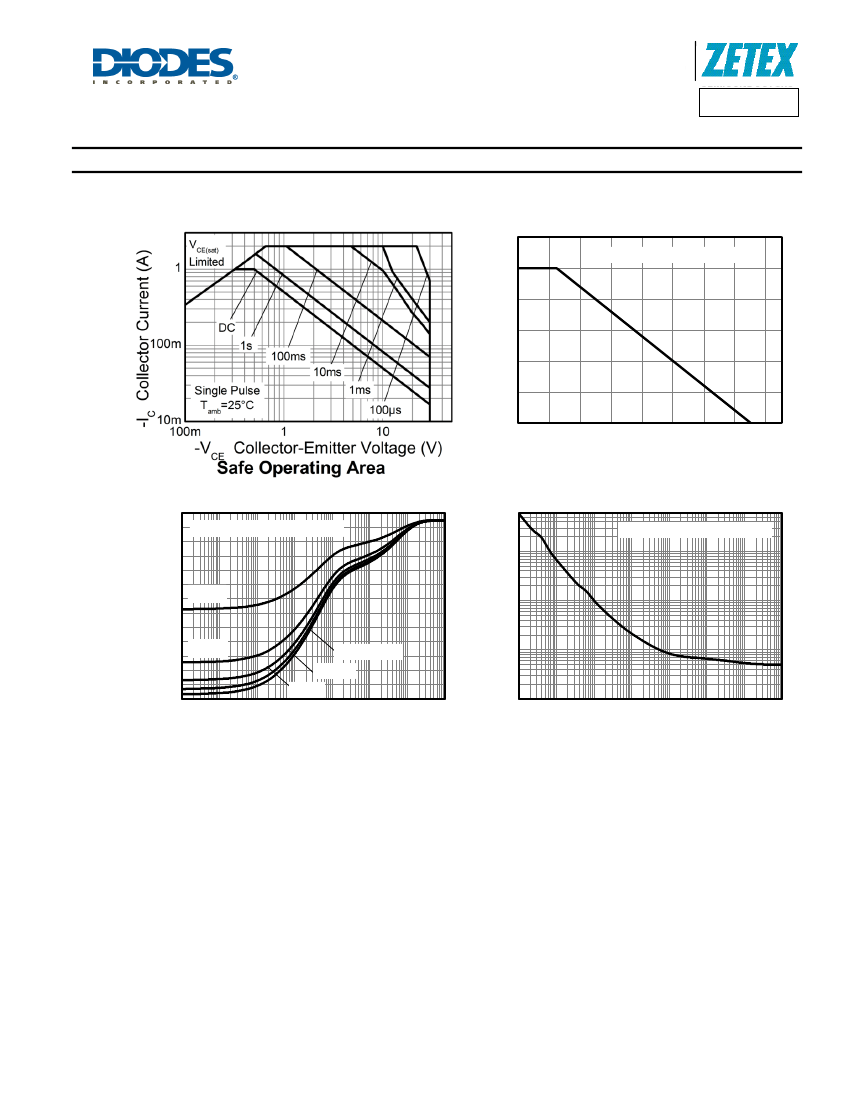

Thermal Characteristics and Derating Information
1
0.6
Max Power Dissipation (W)
-I
C
Collector Current (A)
V
CE(sat)
Limit
0.5
0.4
0.3
0.2
0.1
0.0
0
20
40
15 x 15mm FR4 1oz Copper
100m
DC
1s
100ms
10ms
15 x 15mm FR4
1oz Copper
1ms
100µs
10m
1m
-V
CE
Collector-Emitter Voltage (V)
1
10
100
Temperature (°C)
60
80
100 120 140 160
Safe Operating Area
240
200
160
120
80
40
0
100µ
1m
10m 100m
D=0.2
Single Pulse
D=0.05
D=0.1
D=0.5
15 x 15mm FR4 1oz Copper
Derating Curve
15 x 15mm FR4 1oz Copper
Thermal Resistance (°C/W)
Max Power Dissipation (W)
100
10
1
Pulse Width (s)
1
10
100
1k
0.1
100µ
1m
10m 100m
Pulse Width (s)
1
10
100
1k
Transient Thermal Impedance
Pulse Power Dissipation
FMMT589
Document number: DS33103 Rev. 7 - 2
3 of 7
www.diodes.com
November 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT589
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
OFF CHARACTERISTICS
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 8)
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Collector-Emitter Cutoff Current
Emitter Cutoff Current
ON CHARACTERISTICS (Note 8)
DC Current Gain
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
CES
I
EBO
Min
-50
-30
-7
100
100
80
40
100
Typ
Max
-100
-100
-100
300
-0.25
-0.35
-0.65
-1.2
-1.1
15
Unit
V
V
V
nA
nA
nA
Test Condition
I
C
= -100μA
I
C
= -10mA
I
E
= -100μA
V
CB
= -30V
V
CES
= -30V
V
EB
= -5.6V
I
C
= -1mA, V
CE
= -2V
I
C
= -500mA, V
CE
= -2V
I
C
= -1A, V
CE
= -2V
I
C
= -2A, V
CE
= -2V
I
C
= -0.5A, I
B
= -50mA
I
C
= -1A, I
B
= -100mA
I
C
= -2A, I
B
= -200mA
I
C
= -1A, I
B
= -100mA
I
C
= -1A, V
CE
= -2V
V
CB
= -10V, f = 1MHz
V
CE
= -5V, I
C
= -100mA,
f = 100MHz
h
FE
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Base-Emitter Turn-On Voltage
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
Current Gain-Bandwidth Product
Notes:
V
CE(sat)
V
BE(sat)
V
BE(on)
C
obo
f
T
V
V
V
pF
MHz
8. Measured under pulsed conditions. Pulse width
300µs. Duty cycle
2%
FMMT589
Document number: DS33103 Rev. 7 - 2
4 of 7
www.diodes.com
November 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
FMMT589

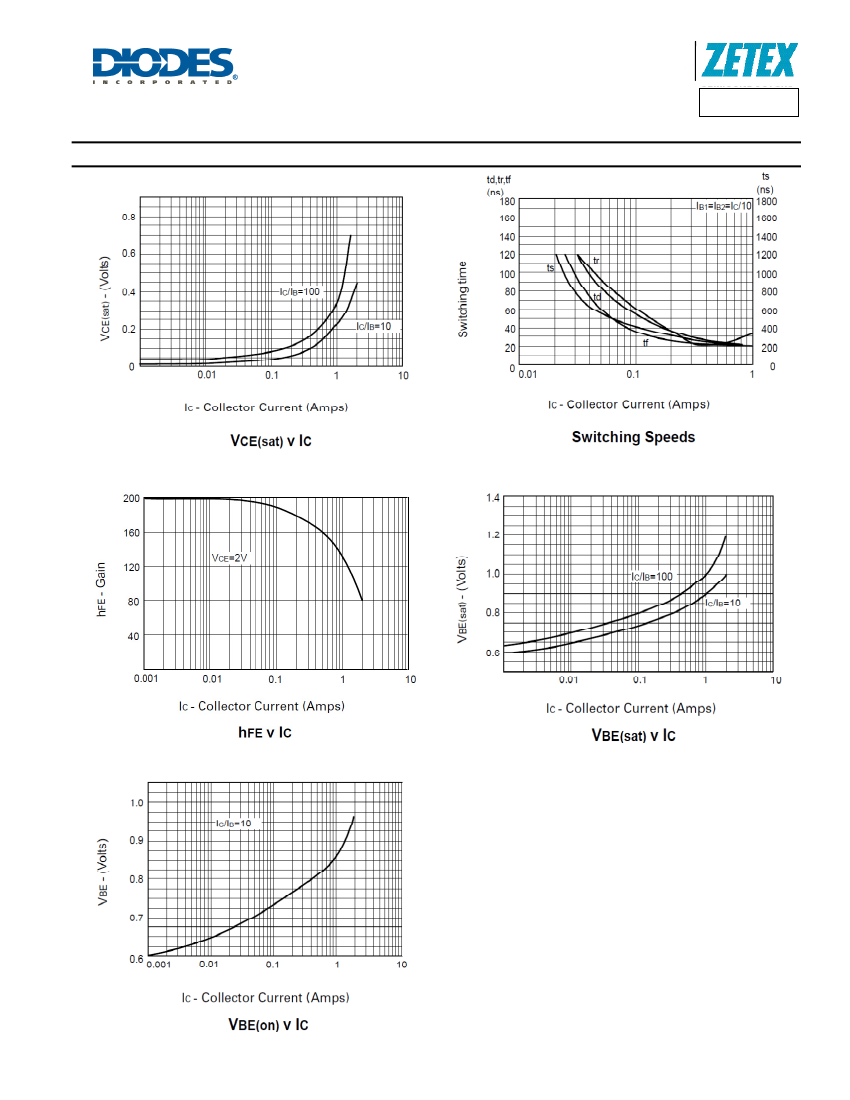

Typical Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
FMMT589
Document number: DS33103 Rev. 7 - 2
5 of 7
www.diodes.com
November 2013
© Diodes Incorporated
