AZ8462
MICROMINIATURE
POLARIZED RELAY
FEATURES
•
SMT and DIP mounting available
•
Microminiature size: up to 50% less board area than
previous generation telecom relays
•
High dielectric and surge voltage:
2.5 kV surge (per Bellcore TA-NWT-001089)
1.5 kV surge (per FCC Part 68)
1,000 Vrms, open contacts
2,000 Vrms, coil to contacts
•
Monostable and bistable (latching) versions available
•
Minimum switching load 10 mV, 10 µA
•
Low power consumption: 79 mW pickup
•
Stable contact resistance for low level signal switching
•
Epoxy sealed
•
UL, CUR file E43203
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 10
8
5 x 10
5
at 1 A 30 VDC, resistive
1 x 10
5
at 2 A 30 VDC, resistive
1 x 10
5
at 0.5 A 120 VAC, resistive
4 ms at nominal coil voltage
4 ms at nominal coil voltage
(with no coil suppression)
2000 Vrms coil to contact
1500 Vrms between contact sets
1000 Vrms between open contacts
2500 V (at 2/10 µs)
1500 V (at 10/160 µs)
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 105°C (221°F)
3.3 mm DA at 10–55 Hz
75 g operating, 100 g damage
P.B.T. polyester
Tinned copper alloy, P.C.

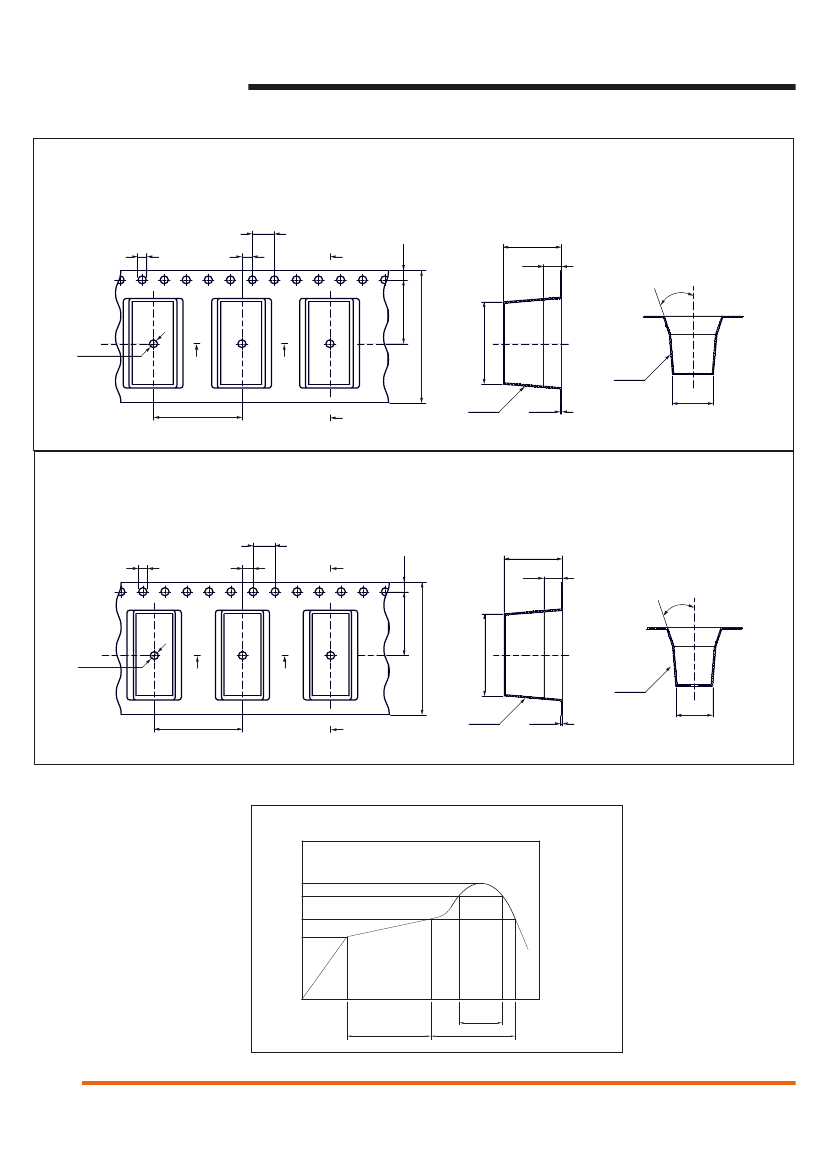

see soldering profile
see soldering profile
80°C (176°F)
30 seconds
2.3 grams
40 per plastic tube
400 per reel
CONTACTS
Arrangement
Ratings
DPDT (2 Form C)
Bifurcated crossbar contacts
Resistive load:
Max. switched power: 60 W or 62.5 VA
Max. switched current: 2 A
Max. switched voltage: 220 VDC* or 250 VAC
*
Note: If switching voltage is greater than 30 VDC,
Operate Time (max.)
Release Time (max.)
Dielectric Strength
(at sea level for 1 min.)
Surge Voltage
Coil to contacts
Open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Monostable: 79 mW (1.5 - 24 VDC coil)
Monostable: 152 mW (48 VDC coil)
Bistable latching (single coil): 57 mW
Bistable latching (dual coil): 114 mW
special precautions must be taken.
Please contact the factory.
Rated Load
UL
3 A at 30 VDC, resistive, 85°C, 100k cycles
2 A at 30 VDC resistive, 105°C, 100k cycles *
0.3 A at 110 VDC, resistive, 85°C, 100k cycles
0.5 A at 125 VAC, general use, 85°C
*
not approved for 48 VDC coil or latching versions.
Material
Resistance
Silver nickel gold plated
< 50 milliohms initially
COIL
Power
At Pickup Voltage
(typical)
Max. Immersion Time
Weight
Packing unit in pcs
Max. Continuous
Dissipation
Temperature Rise
(at nominal voltage)
Temperature
0.39 W at 20°C (68°F) ambient
NOTES
1.
2.
3.
4.
All values at 20°C (68°F)
Relay may pull in with less than “Must Operate” value.
Relay has fixed coil polarity.
Specifications subject to change without notice.
-
A ZETTLER
GROUP
Company
25°C (45°F) at nominal coil voltage
Max. 155°C (311°F) Class F
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
This product specification to be used only together with the application notes
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
fax:
+49 89 800 97-200 www.ZETTLERelectronics.com
2014-09-26
AZ8462

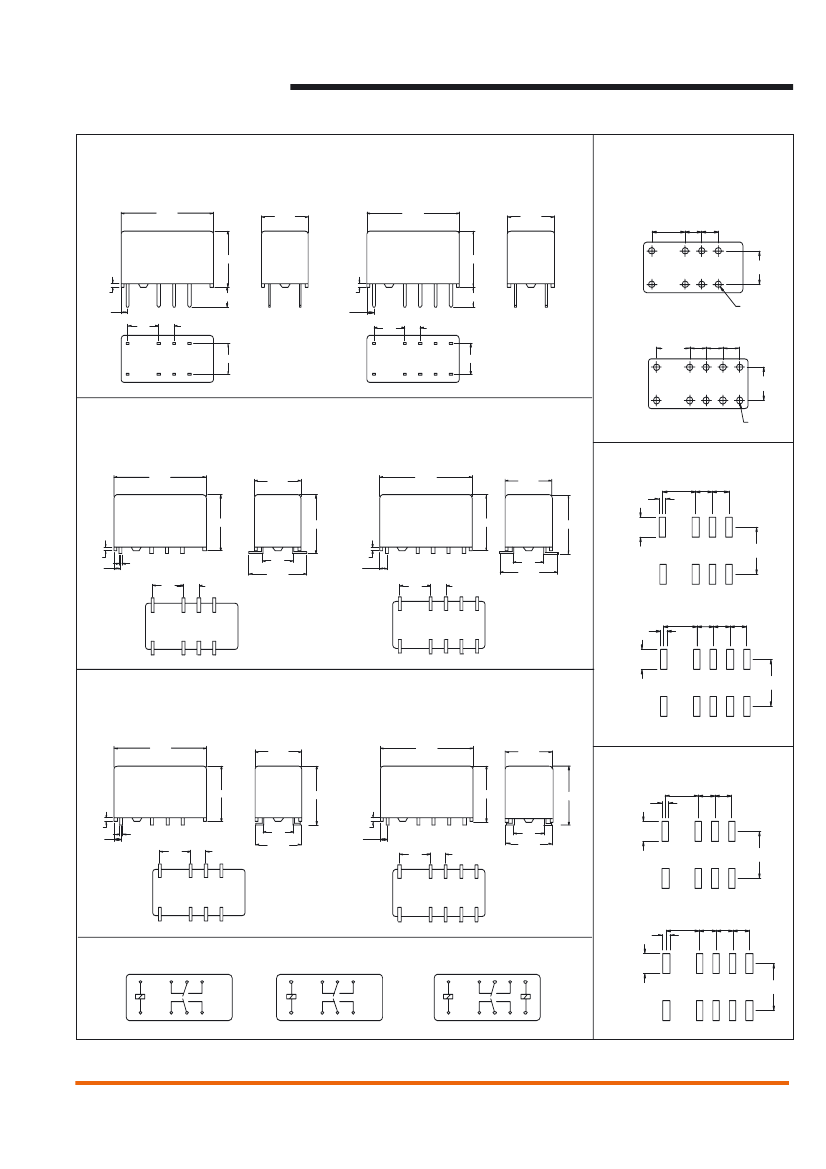

MECHANICAL DATA
Outline Dimensions(DIP type)
Viewed Toward Terminals
SINGLE SIDE STABLE
& 1 COIL LATCHING
.598MAX
[15.20]
.303MAX
[7.70]
2 COIL LATCHING
.598MAX
[15.20]
.303MAX
[7.70]
PC Board Layout (DIP type)
.200
[5.08]
.100 .100
[2.54] [2.54]
.362MAX
[9.20]
.362MAX
[9.20]
.024
[0.60]
.045
[1.15]
.200
[5.08]
.024
[0.60]
.045
[1.15]
.200 .100
[5.08] [2.54]
.130
[3.30]
.130
[3.30]
.100
.200
[5.08] [2.54]
SINGLE SIDE STABLE
& 1 COIL LATCHING
.200 .100 .100 .100
[5.08] [2.54] [2.54] [2.54]
8-Ø0.039
[Ø1.00]
.200
[5.08]
.200
[5.08]
.200
[5.08]
Outline Dimensions(SMT Type )
SINGLE SIDE STABLE
& 1 COIL LATCHING
.598MAX
[15.20]
.303MAX
[7.70]
2 COIL LATCHING
10-Ø0.039
[Ø1.00]
2 COIL LATCHING
PC Board Layout (SMT type)
.598MAX
[15.20]
.303MAX
[7.70]
.039
[1.00]
.200
[5.08]
.100 .100
[2.54] [2.54]
.362MAX
[9.20]
.024
[0.60]
.045
[1.15]
.382MAX
[9.70]
.024
[0.60]
.045
[1.15]
.362MAX
[9.20]
.382MAX
[9.70]
.122
[3.11]
.283
[7.19]
.020
[0.50]
.200 .100
[5.08] [2.54]
.200
[5.08]
.374MAX
[9.50]
.200 .100
[5.08] [2.54]
.200
[5.08]
.374MAX
[9.50]
SINGLE SIDE STABLE
& 1 COIL LATCHING
.039
[1.00]
.200
[5.08]
.100 .100 .100
[2.54] [2.54] [2.54]
0.122
[3.11]
.283
[7.19]
Outline Dimensions(S1 type: Short SMT)
SINGLE SIDE STABLE
& 1 COIL LATCHING
.598MAX
[15.20]
.303MAX
[7.70]
2 COIL LATCHING
.598MAX
[15.20]
.303MAX
[7.70]
2 COIL LATCHING
PC Board Layout (Type S : Short SMT)
.362MAX
[9.20]
.024
[0.60]
.045
[1.15]
.362MAX
[9.20]
.382MAX
[9.70]
.200
[5.08]
.100 .100
[2.54] [2.54]
.382MAX
[9.70]
.024
[0.60]
.045
[1.15]
.039
[1.00]
.020
[0.50]
.200 .100
[5.08] [2.54]
.200
[5.08]
.295MAX
[7.50]
.200 .100
[5.08] [2.54]
.200
[5.08]
.295MAX
[7.50]
.122
[2.21]
.247
[6.29]
.039
[1.00]
SINGLE SIDE STABLE
& 1 COIL LATCHING
.100 .100 .100
.200
[5.08] [2.54] [2.54] [2.54]
Wiring Diagram
+ 1
3
4
5
SET
0.122
[2.21]
+ 1-
RESET
3
4
5
SET
+1
3
4
5
6+
RESET
.247
[6.29]
-
12
10
9
8
-
+
12
10
9
8
-
12
10
9
8
7
-
SINGLE SIDE STABLE
1 COIL LATCHING
2 COIL LATCHING
2 COIL LATCHING
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
This product specification to be used only together with the application notes
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
-
A ZETTLER
GROUP
Company
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
fax:
+49 89 800 97-200 www.ZETTLERelectronics.com
2014-09-26
