Data sheet
PAC
PAC-CTLX-SD25-V0-1M5
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

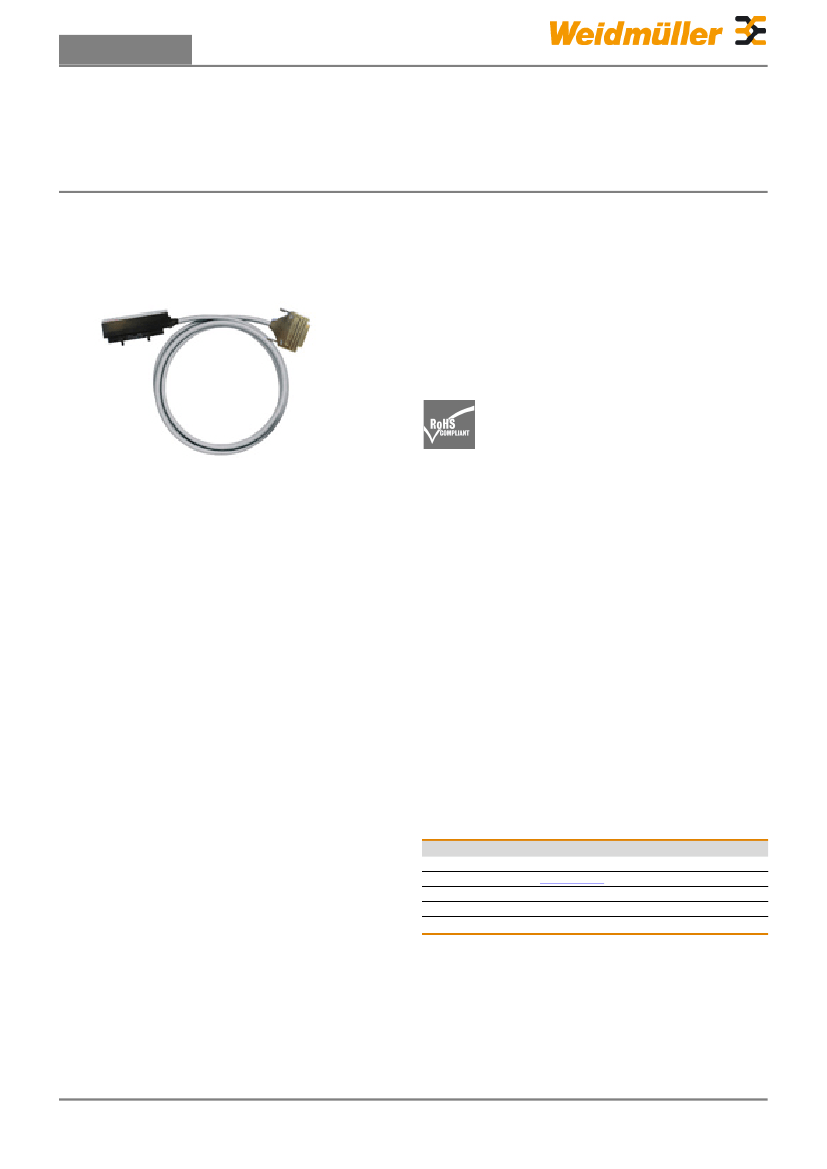

Similar to illustration
The pre-assembled PAC cables establish an electrical
and logical connection between the PLC and the
PLC interfaces. These cables consist of the following
components:
• Manufacturer’s PLC connector.
• Multi-pole LIYY or LY YCY cable (shielded) with a cross-
section of 0.14 mm² or 0.25 mm².
• Flat cable connector, SUB-D or RSV, for connection to
the interface.
The cables are tested automatically for their continuity
and insulation to guarantee the functionality for which
they have been designed.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
PAC-CTLX-SD25-V0-1M5
7789035015
Pre-assembled cable, PAC, Cable LiYCY, 0.25 mm²
4032248113576
1 pc(s).
Creation date May 15, 2019 12:29:17 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
1
Data sheet
PAC
PAC-CTLX-SD25-V0-1M5
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
450 g
Dimensions and weights
Net weight
Temperatures
Operating temperature, max.
Storage temperature, max.
Operating temperature
50 °C
60 °C
-10...50 °C
Operating temperature, min.
Storage temperature, min.
Storage temperature
-10 °C
-10 °C
-10...60 °C
General Data
Connector PLC side
Number of poles, min.
Cable
Material
ROCKWELL CONTROL
LOGIX 1756-TBCH 36P
25-pole
Cable LiYCY
PVC
Interface connector
Outer diameter
Cable length
Wire cross-section
SUB-D FEMALE 25P
10.15 ± 1 mm
1.5 m
0.25 mm²
Electrical Data
Rated voltage (text)
Total current, max.
High voltage test
≤ 60 Vdc ≤ 25 Vac
3A
1 KV/1s
Permissible current strength per path,
max.
Resistance
1A
≤ 80 mΩ/m
Classifications
ETIM 4.0
ETIM 6.0
eClass 7.1
eClass 9.1
EC000237
EC000237
27-24-92-05
27-24-22-20
ETIM 5.0
eClass 6.2
eClass 9.0
EC000237
27-06-03-90
27-24-22-20
Approvals
Approvals
ROHS
Conform
Creation date May 15, 2019 12:29:17 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
2
