RAH-S-148D-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RAH-S-148D-F

RAH-S-148D-F: DescriptionPower/Signal Relay; CategoryMechanical and electronic products relay; File Size2MB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RAH-S-148D-F Overview

Power/Signal Relay

RAH-S-148D-F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	RAH
Relay type	POWER/SIGNAL RELAY

Preview

Download Datasheet

View All

RAH SERIES

INDUSTRIAL RELAYS

UL & CUL File #E256619

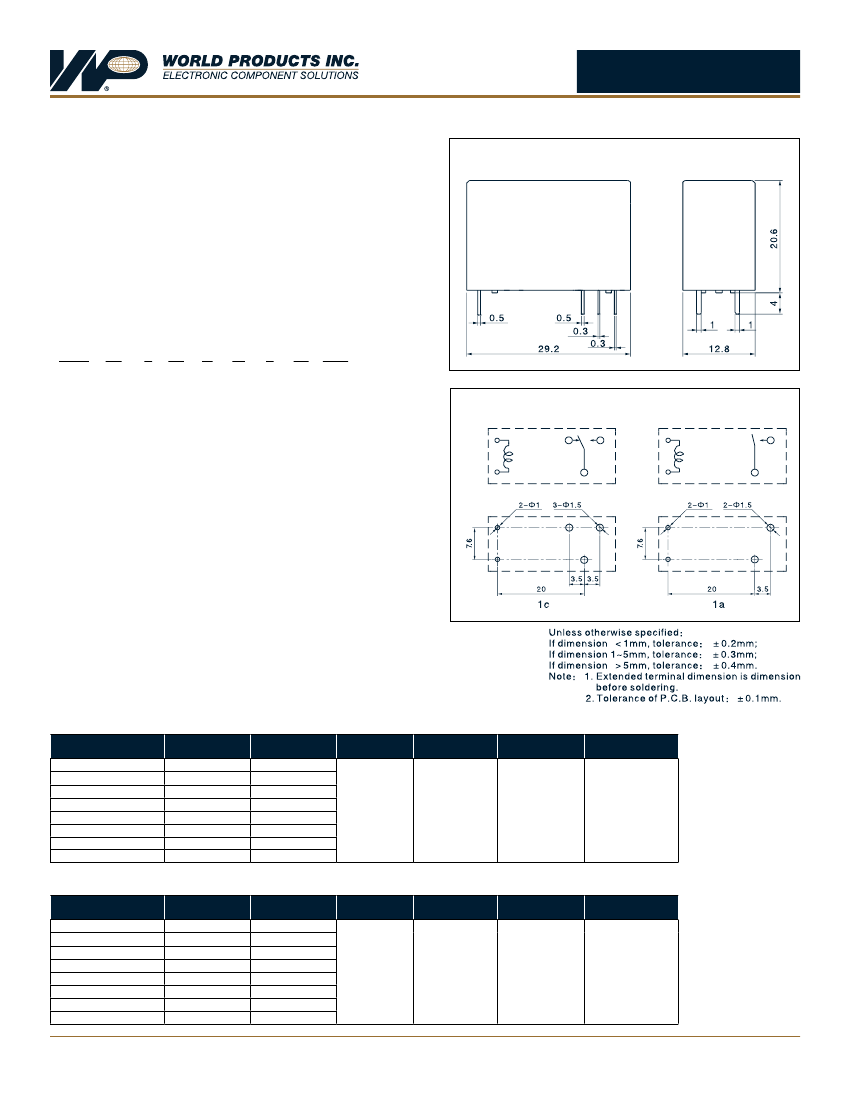

DIMENSIONS

Unit: mm

FEATURES

• High switching capability: 16A

• Small size for high density PCB Mounting.

• Dielectric strength: 5000V.

TYPICAL APPLICATIONS

Home Appliances, Air Conditioner, Microwave Oven, Audio Equipment,

Monitor, Industrial Control, Instrument, etc.

ORDERING INFORMATION

RAH

(1)

–S

(2)

–1

(3)

(4)

(5)

(6)

(7)

–F

(8)

–XX

(9)

WIRING DIAGRAM & PCB LAYOUT

Bottom view

Type Designation

RAH

= RAH Series

Protective Construction

= Flux proofed

SH = Sealed type washable

Number of Poles

= 1 pole

Coil Voltage (VDC)

03, 05, 06, 09, 12, 18, 24, 48

Coil Power

= 0.72W

= 0.54W

Contact Form

Nil

= Form C

= Form A

Contact Material

Nil = AgSnO2

1 = AgCdO

Insulation System

Nil

= Standard

= Class B

(1)

= Class F

(2)

Special Parameter

Nil = Standard type

Letter or Number

= Special

Requirement

(2)

(7)

(3)

(8)

(4)

(5)

(9)

Note 1: Heat resistivity = -40ºC to +130ºC.

Note 2: Heat resistivity = -40ºC to +155ºC.

COIL DATA (AT 20ºC)

Nominal Voltage (VDC)

Nominal Current

(mA)

240.00

144.00

120.00

80.00

60.00

40.00

30.00

15.00

Coil Resistance

± 10% (Ω)

12.5

112

200

450

820

3300

Max. Allowable Pick–up Voltage

Voltage

(Max.)

Drop–Out Volt-

age (VDC)

Nominal Operating

Power

130% of

Nominal

Voltage

80% of Nominal

Voltage

5% of Nominal

Voltage

Approx. 0.72W

COIL DATA (AT 20ºC)

Nominal Voltage (VDC)

Nominal Current

(mA)

180.00

108.00

90.00

60.00

45.00

30.00

22.50

11.25

Coil Resistance

± 10% (Ω)

150

270

600

1100

4400

Max. Allowable Pick–up Voltage

Voltage

(Max.)

Drop–Out Volt-

age (VDC)

Nominal Operating

Power

130% of

Nominal

Voltage

80% of Nominal

Voltage

5% of Nominal

Voltage

Approx. 0.54W

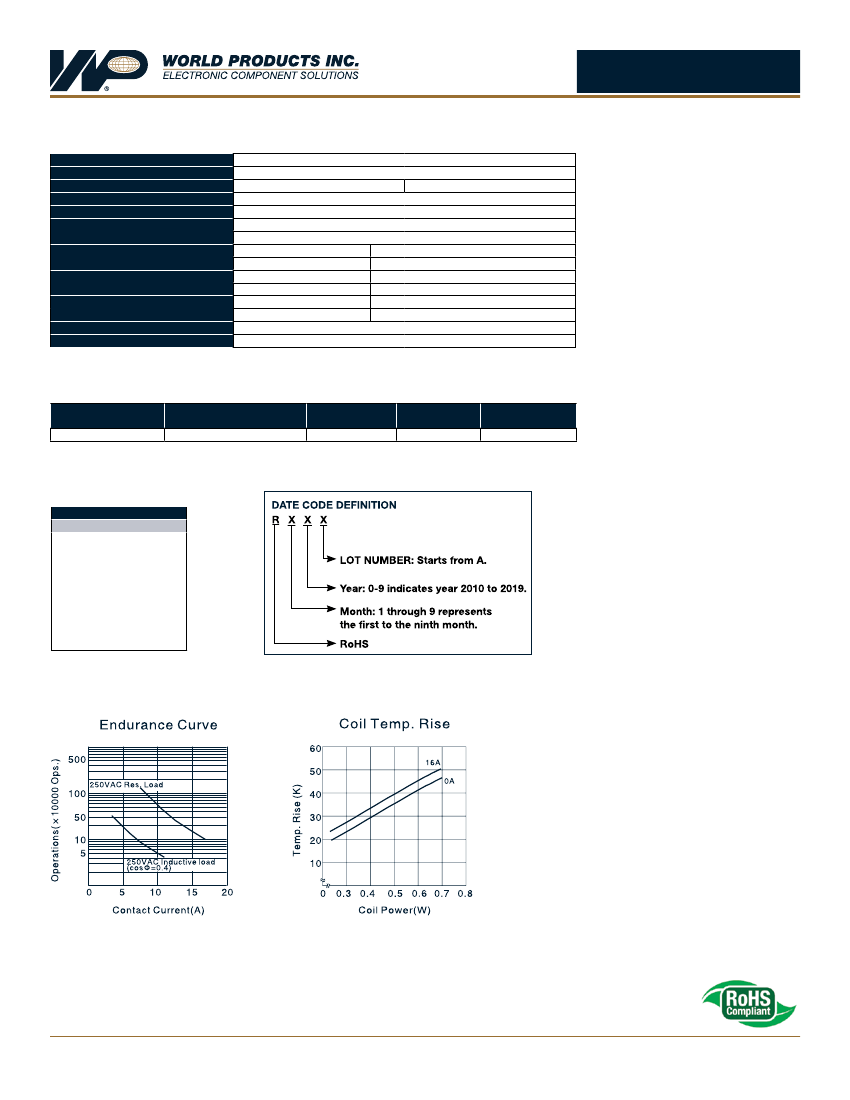

WORLD PRODUCTS INC.

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

| Industrial Relays Catalog

Rev. 1.2 - 03.04.13
