Z861404VSC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z861404VSC

Preview

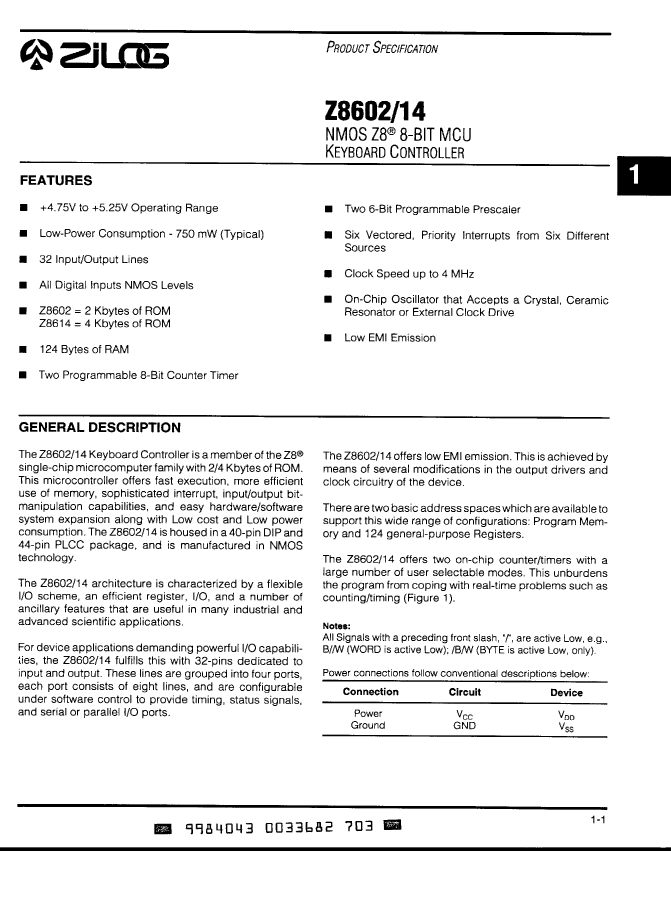

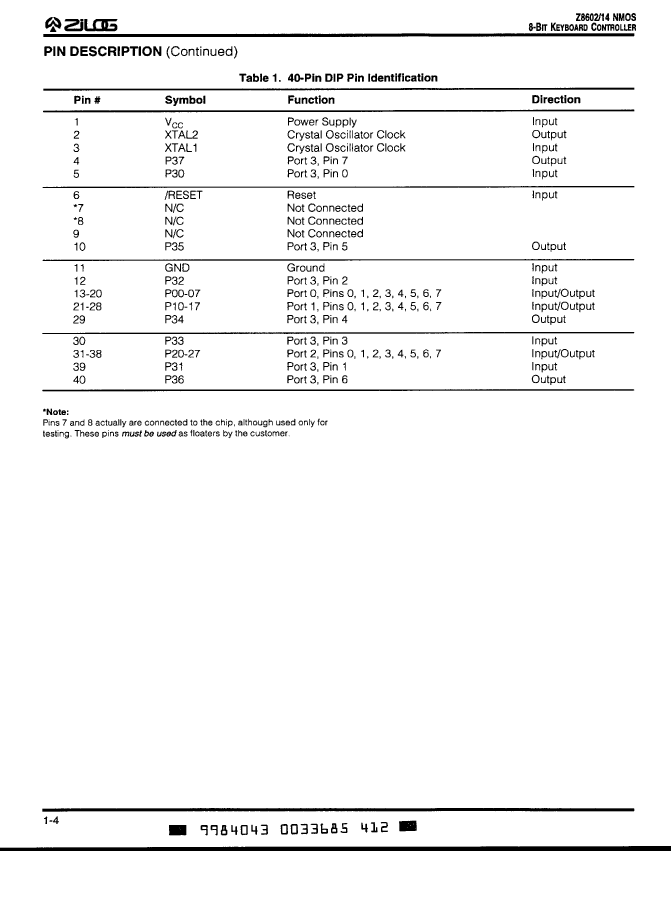

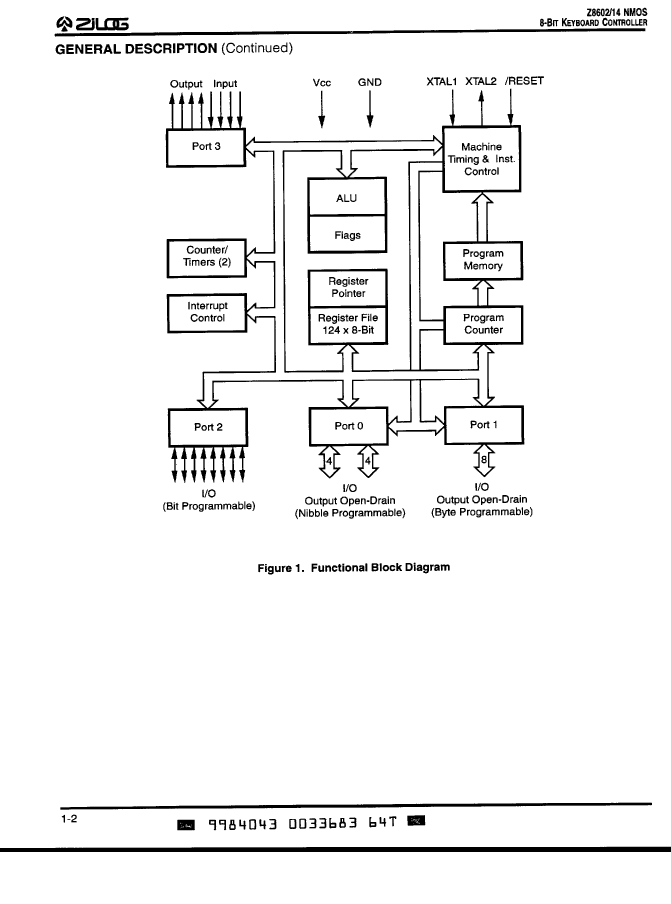

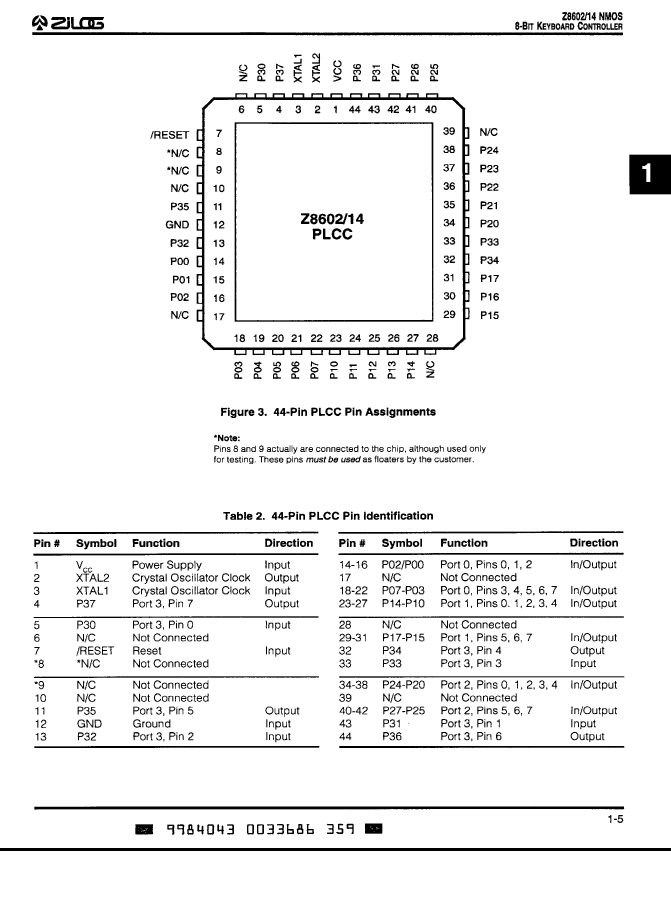

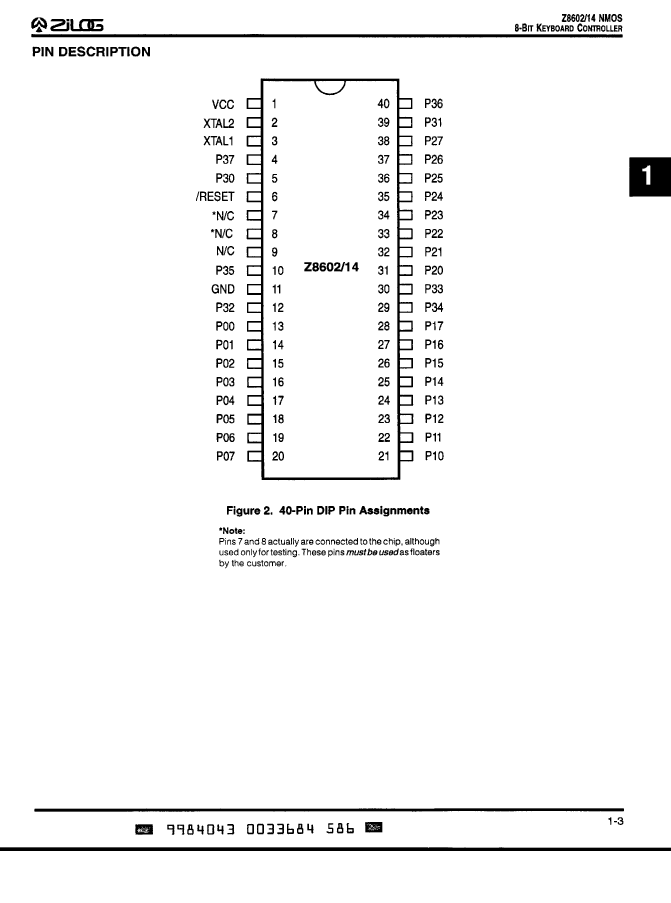

Z861404VSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 4MHz, NMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size558KB，27 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z861404VSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, NMOS, PQCC44, PLASTIC, LCC-44

Z861404VSC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os
Number of terminals	44
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	124
RAM (number of words)	124
rom(word)	4000
ROM programmability	MROM
Maximum seat height	4.57 mm
speed	4 MHz
Maximum slew rate	150 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

Z861404VSC Related Products

	Z861404VSC	Z861404PSC	Z860204VSC	Z860204PSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, NMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, NMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, NMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	DIP	LCC	DIP
package instruction	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6
Contacts	44	40	44	40
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO
bit size	8	8	8	8
boundary scan	NO	NO	NO	NO
CPU series	Z8	Z8	Z8	Z8
maximum clock frequency	4 MHz	4 MHz	4 MHz	4 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0
length	16.5862 mm	52.325 mm	16.5862 mm	52.325 mm
low power mode	NO	NO	NO	NO
Number of external interrupt devices	4	4	4	4
Number of I/O lines	32	32	32	32
Number of terminals	44	40	44	40
Number of timers	2	2	2	2
On-chip data RAM width	8	8	8	8
On-chip program ROM width	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	QCCJ	DIP
Encapsulate equivalent code	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	DIP40,.6
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	240	240	240	240
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	124	124	124	124
RAM (number of words)	124	124	124	124
rom(word)	4000	4000	2000	2000
ROM programmability	MROM	MROM	MROM	MROM
Maximum seat height	4.57 mm	4.96 mm	4.57 mm	4.96 mm
speed	4 MHz	4 MHz	4 MHz	4 MHz
Maximum slew rate	150 mA	150 mA	150 mA	150 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	NMOS	NMOS	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	16.5862 mm	15.24 mm	16.5862 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
