Z86C0408SSG datasheet, PDF - EEWORLD Datasheet

Z86C0408SSG: DescriptionIC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PDSO18, SOIC-18, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1000KB，33 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

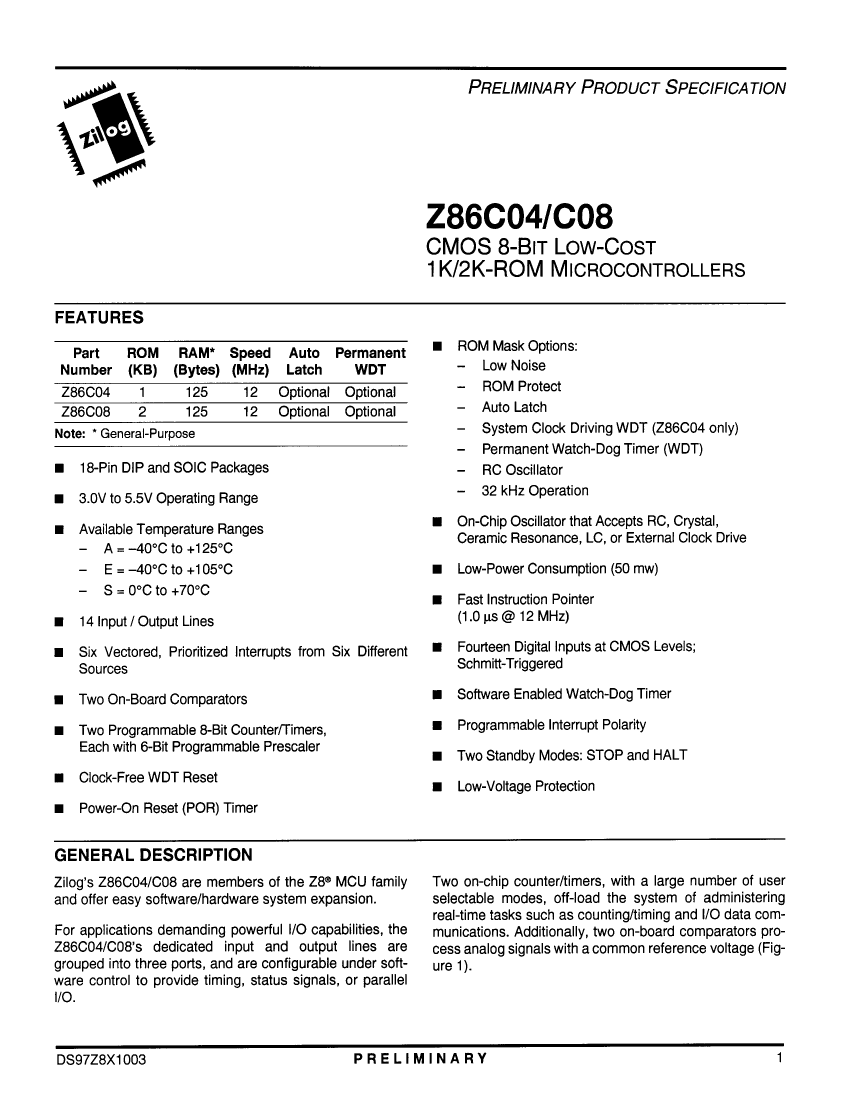

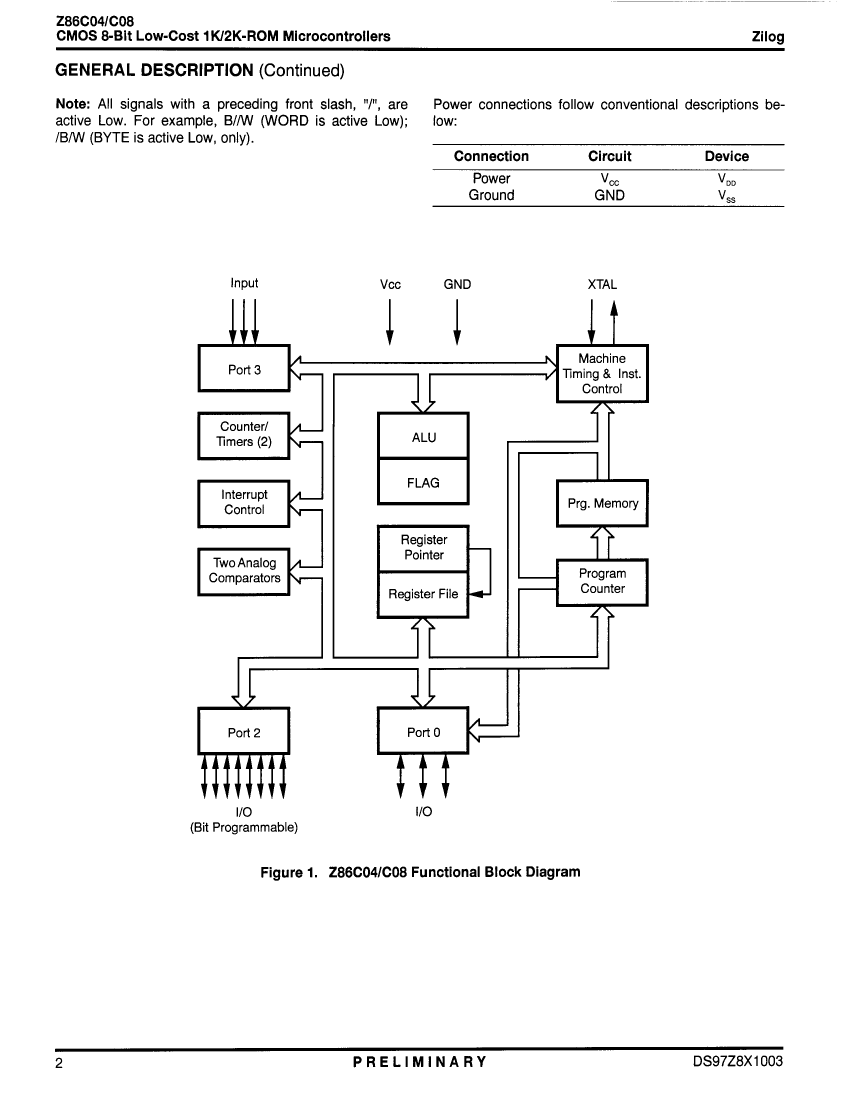

Z86C0408SSG Overview

IC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PDSO18, SOIC-18, Microcontroller

Parameter Name	Attribute value
Is it lead-free?	Lead free
Parts packaging code	SOIC
package instruction	SOP,

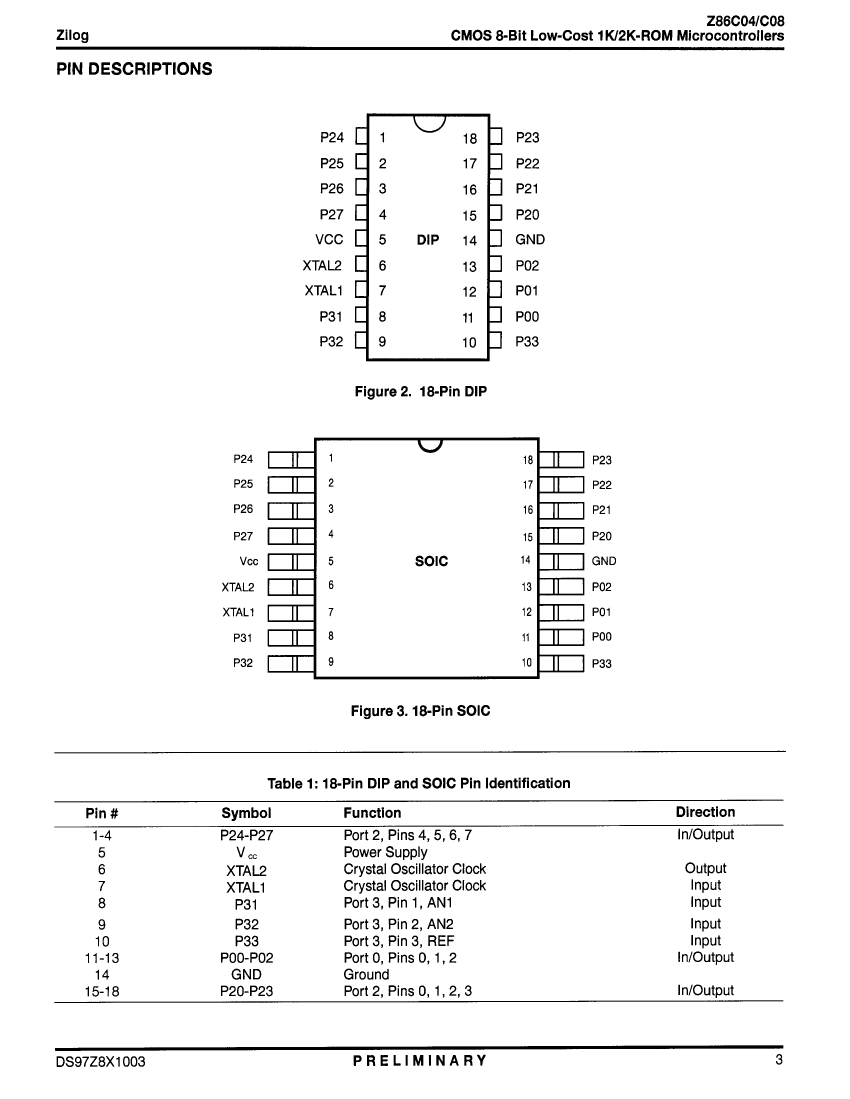

Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Other features	OPTIONAL LOW EMI MODE; ROM PROTECT; TWO STANDBY MODES
Address bus width
bit size	8
boundary scan	NO
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDSO-G18
JESD-609 code	e3
length	11.55 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of I/O lines	14
Number of serial I/Os
Number of terminals	18
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8

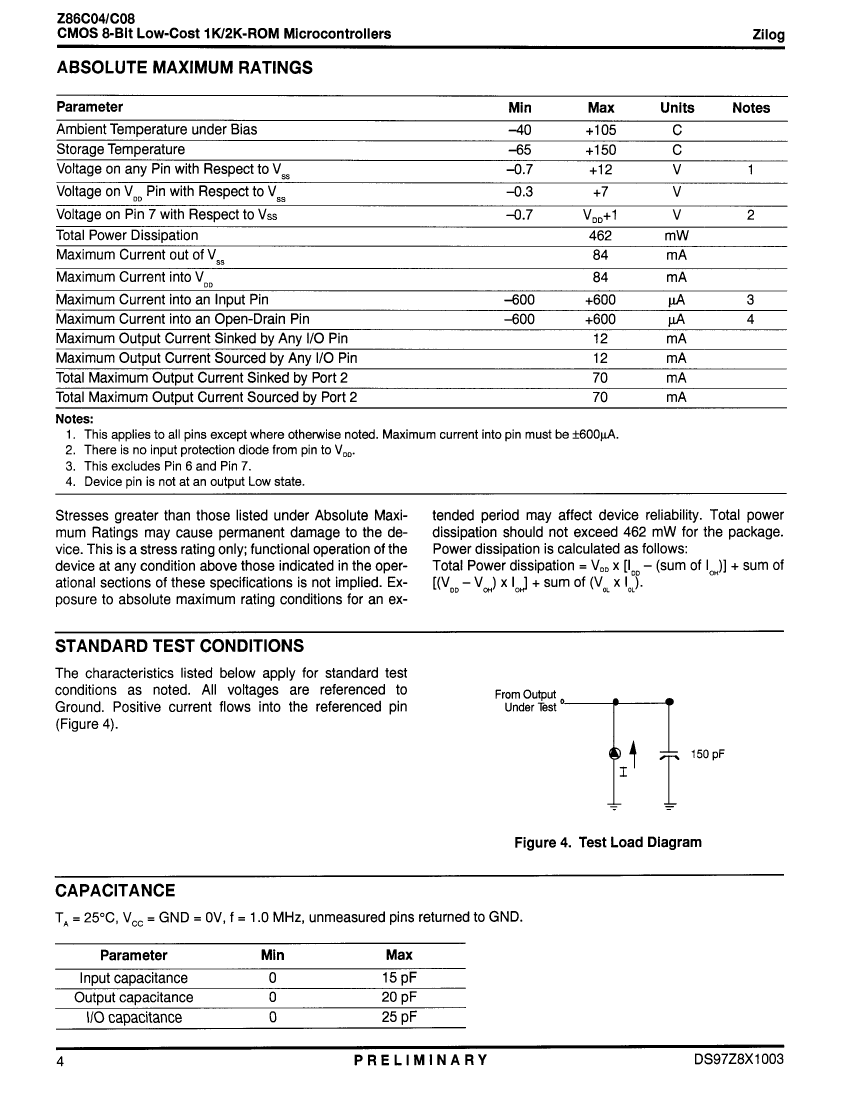

Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
RAM (number of words)	124
rom(word)	1024
ROM programmability	MROM
Maximum seat height	2.65 mm
speed	8 MHz
Maximum slew rate	11 mA

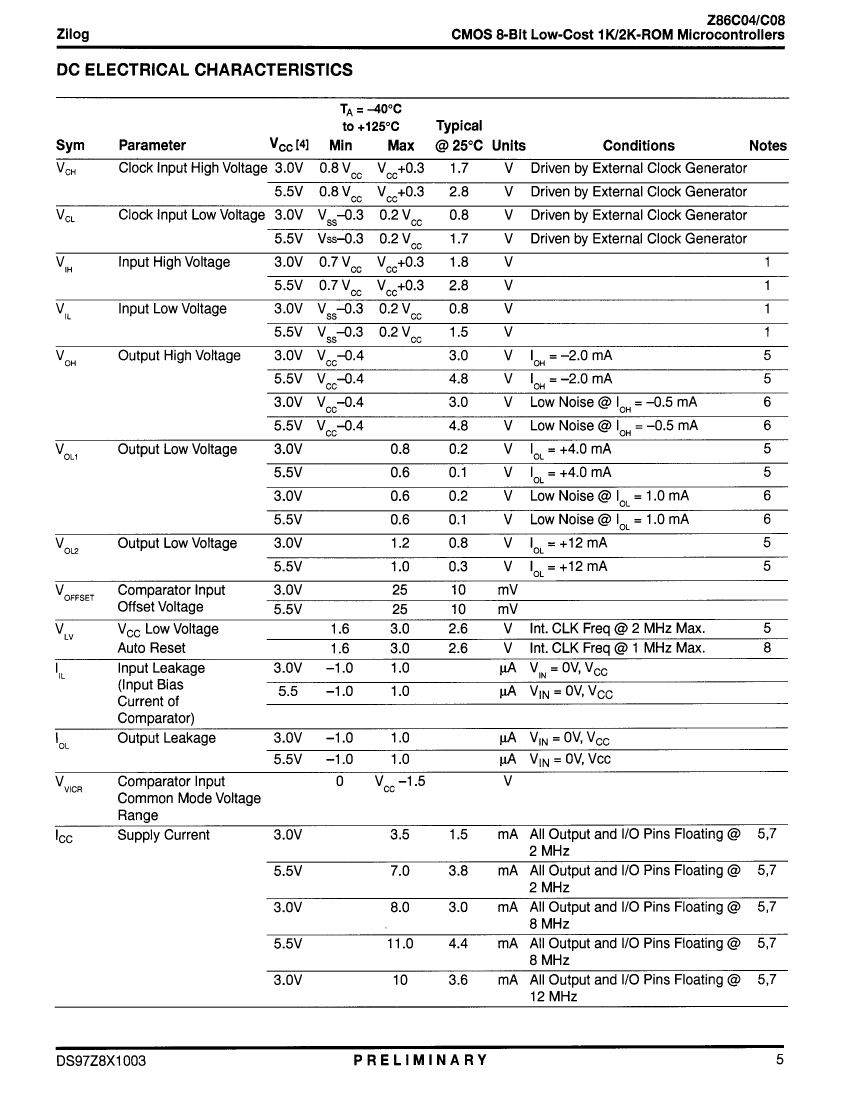

Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	Z86C0408SSG	Z86C0412PEG
Description	IC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PDSO18, SOIC-18, Microcontroller	IC 8-BIT, MROM, 12 MHz, MICROCONTROLLER, PDIP18, DIP-18, Microcontroller
Is it lead-free?	Lead free	Lead free
Parts packaging code	SOIC	DIP
package instruction	SOP,	DIP,
Contacts	18	18
Reach Compliance Code	unknown	unknow
Has ADC	NO	NO
bit size	8	8
maximum clock frequency	8 MHz	12 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDSO-G18	R-PDIP-T18
JESD-609 code	e3	e3
length	11.55 mm	22.86 mm
Number of I/O lines	14	14
Number of terminals	18	18
Maximum operating temperature	70 °C	105 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	225	225
Certification status	Not Qualified	Not Qualified
rom(word)	1024	1024
ROM programmability	MROM	MROM
Maximum seat height	2.65 mm	4.24 mm
speed	8 MHz	12 MHz
Maximum slew rate	11 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL
Terminal surface	TIN	Tin (Sn)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
width	7.5 mm	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
