DUV265-CHIP
•
•
•
•
•
Deep Ultraviolet Light Emission Source
265 nm, 0.9 mW
Naked Bare Die
Flip chip type
Beam angle 144 deg.

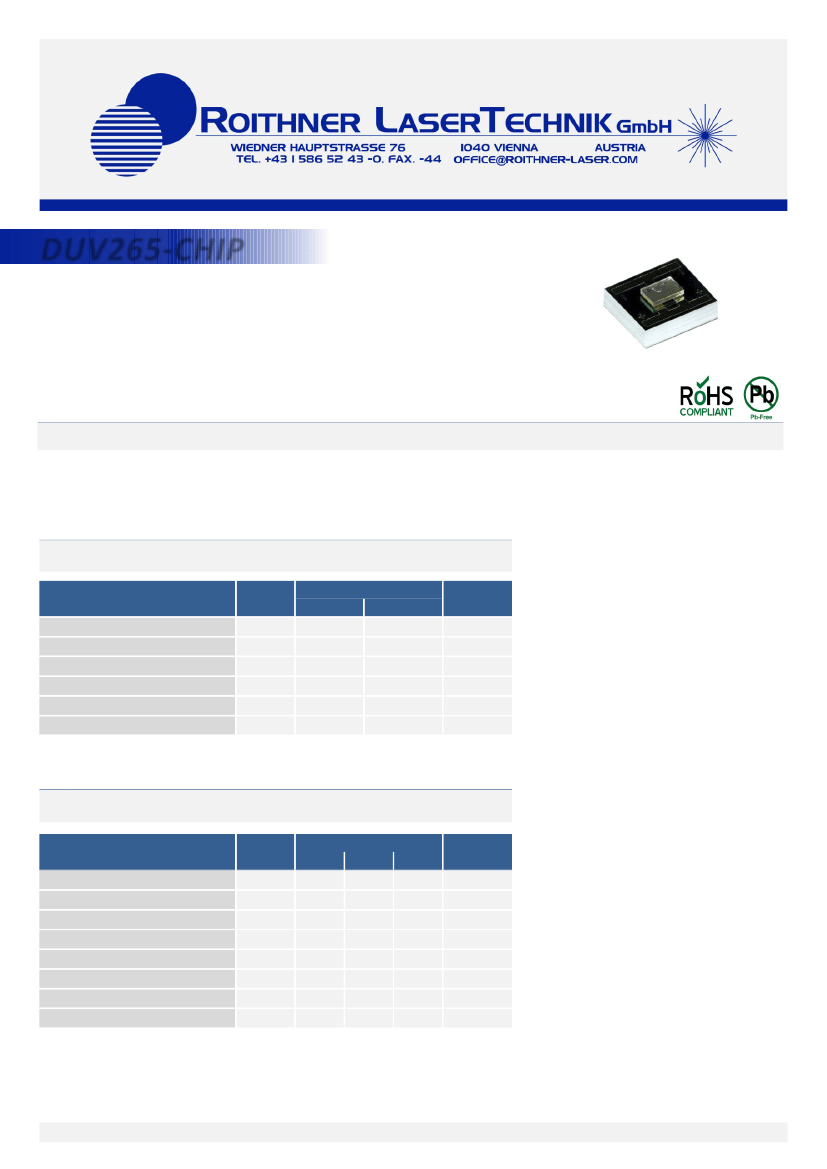

Description
DUV265-CHIP
is an
AlGaN
based DEEP-UV LED emission source, that is available as bare chip die, and in two different
submount configurations.
DUV265-CHIP
is of
Flip Chip
type without any bonding wires obscuring the emitting area.
Maximum Rating
(T
Parameter
Forward Current
(T
A
=25°C)
Reverse Current
(V
R
=5V)
Reverse Voltage
(I
R
=10µA)
Operating Temperature
Storage Temperature
CASE
= 25°C)
Symbol
I
F
I
R
V
R
T
OPR
T
STG
T
SOL
- 30
- 40
Values
Min.
Max.
40
100
5
+ 80
+ 100
+ 300
Unit
mA
µA
V
°C
°C
°C
Soldering Temperature (max. 5s)
Electro-Optical Characteristics
(T
Parameter
Peak Wavelength
Radiated Power
Spectral Width (FWHM)
Forward Voltage
Viewing Angle
Thermal resistance
Rise time*
Fall time*
Symbol
λ
P
P
O
∆λ
V
F
2Ө
1/2
RӨ
J-REF
t
R
t
F
260
0.6
CASE
=
25°C, I
F
=20 mA)
Unit
nm
mW
nm
10.5
V
deg.
°C/W
ns
ns
min.
Values
Typ.
265
0.9
10
10
144
190
/
/
Max.
270
* frequency=100kHz, duty cycle=1%, I
FP
=200mA
www.roithner-laser.com
1

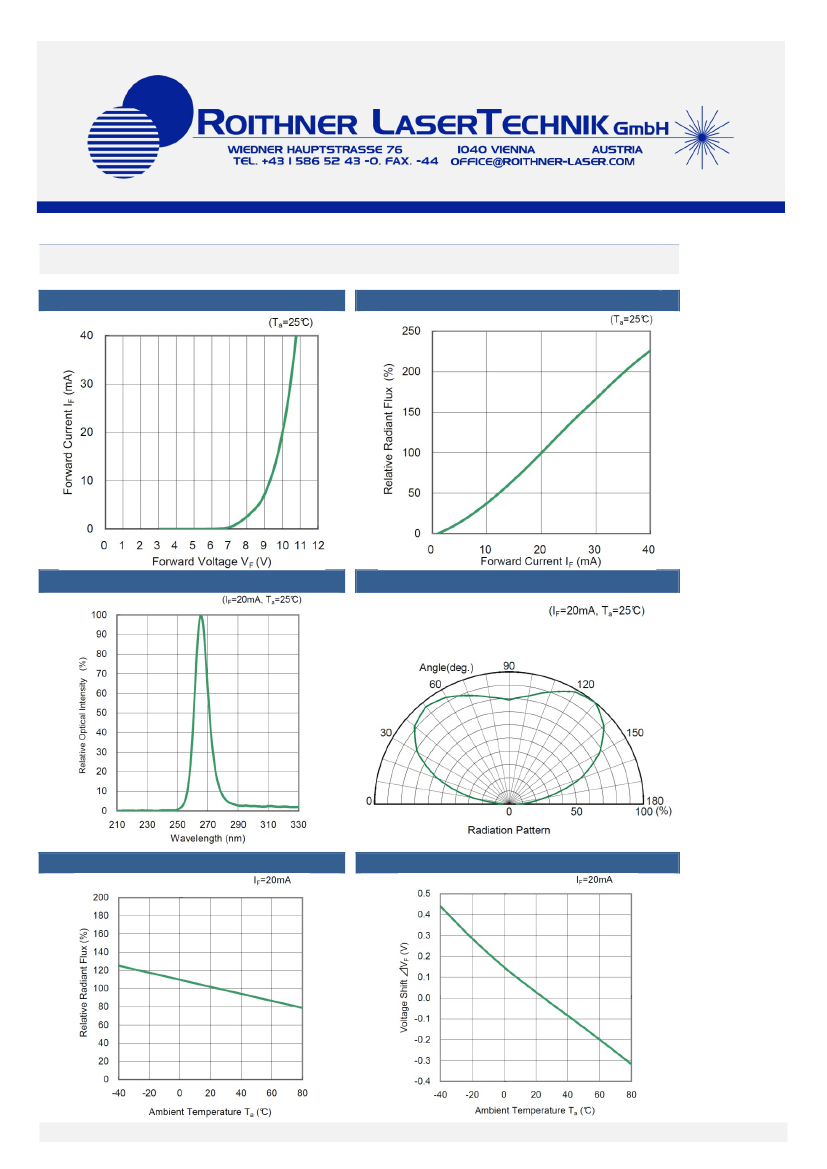

Performance Characteristics
Forward Current vs. Forward Voltage
Forward Current vs. Relative Radiant Flux [%]
Relative Intensity vs. Peak Wavelength
Radiation Pattern
Radiant Flux vs. Ambient Temp.
Voltage Shift vs. Ambient Temperature
www.roithner-laser.com
2

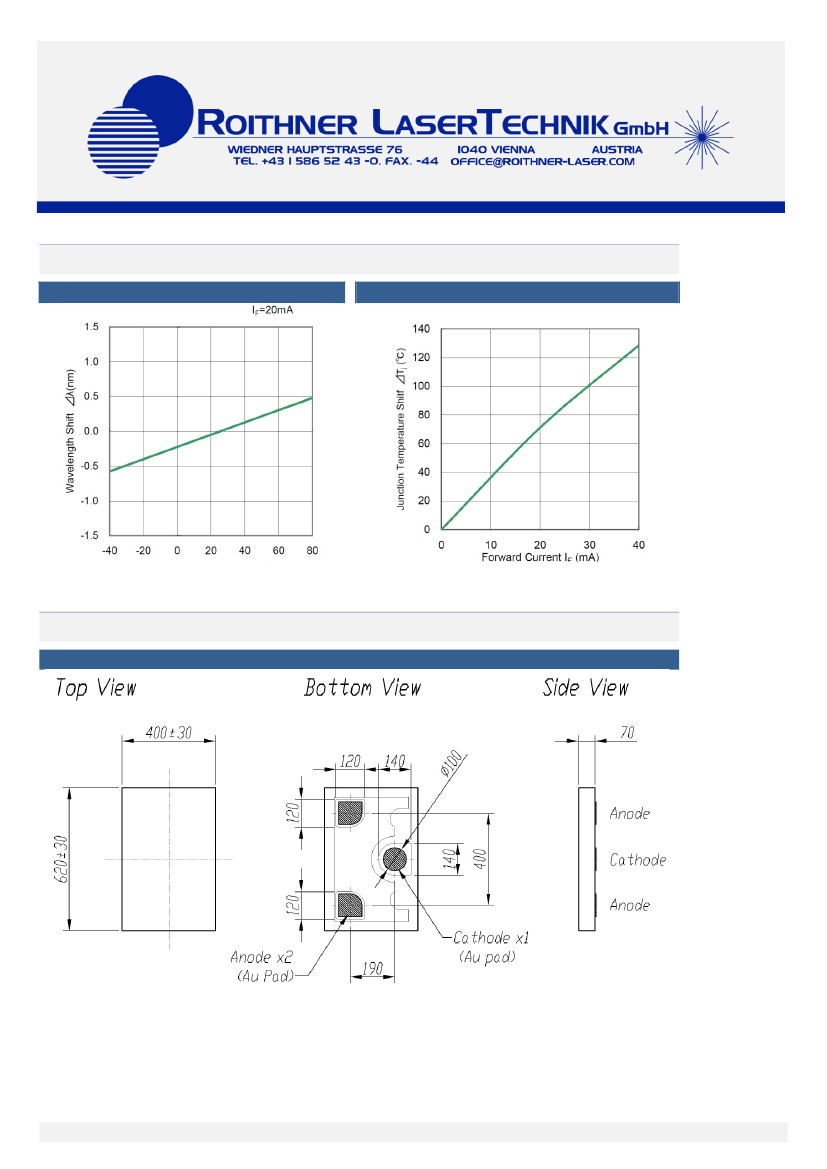

Performance Characteristics
Wavelength Shift vs. Ambient Temperature
Junction Temp. vs. Forward Current
Outline Dimensions
DUV265-CHIP
all dimensions in mm
www.roithner-laser.com
3

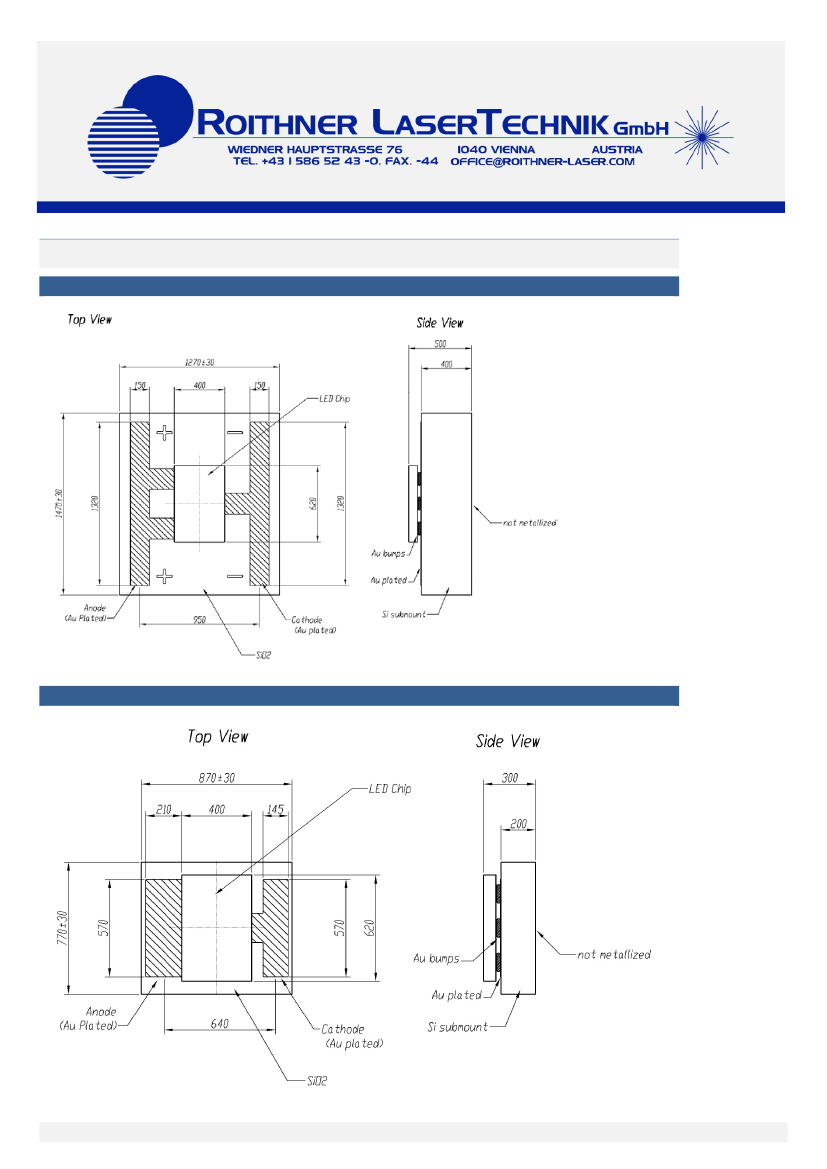

Outline Dimensions
DUV265-CS1
all dimensions in mm
DUV265-CS2
all dimensions in mm
www.roithner-laser.com
4
Device Materials
Pin #
Material
-
Anode
Cathode
Submount
-
Au plated
Au plated
Si
Precautions
Static Electricity:
LEDs are sensitive to electrostatic discharge (ESD).
Precautions against ESD must be taken when handling or
operating these LEDs. Surge voltage or electrostatic discharge can result in complete failure of the device.
UV-Radiation:
During operation these LEDs do emit
high intensity ultraviolet light,
which is hazardous to skin and eyes, and may
cause cancer. Do avoid exposure to the emitted UV light.
Protective glasses are recommended.
It is further advised
to attach a warning label on products/systems that do utilize UV-LEDs:
Class 1
Operation:
Do
only
operate LEDs with a current source.
Running these LEDs from a voltage source
will
result in complete failure of the device.
Current of a LED is an exponential function of the voltage across it. Usage of current regulated drive circuits is
mandatory
© All Rights Reserved
The above specifications are for reference purpose only and subjected to change without prior notice
www.roithner-laser.com
5
