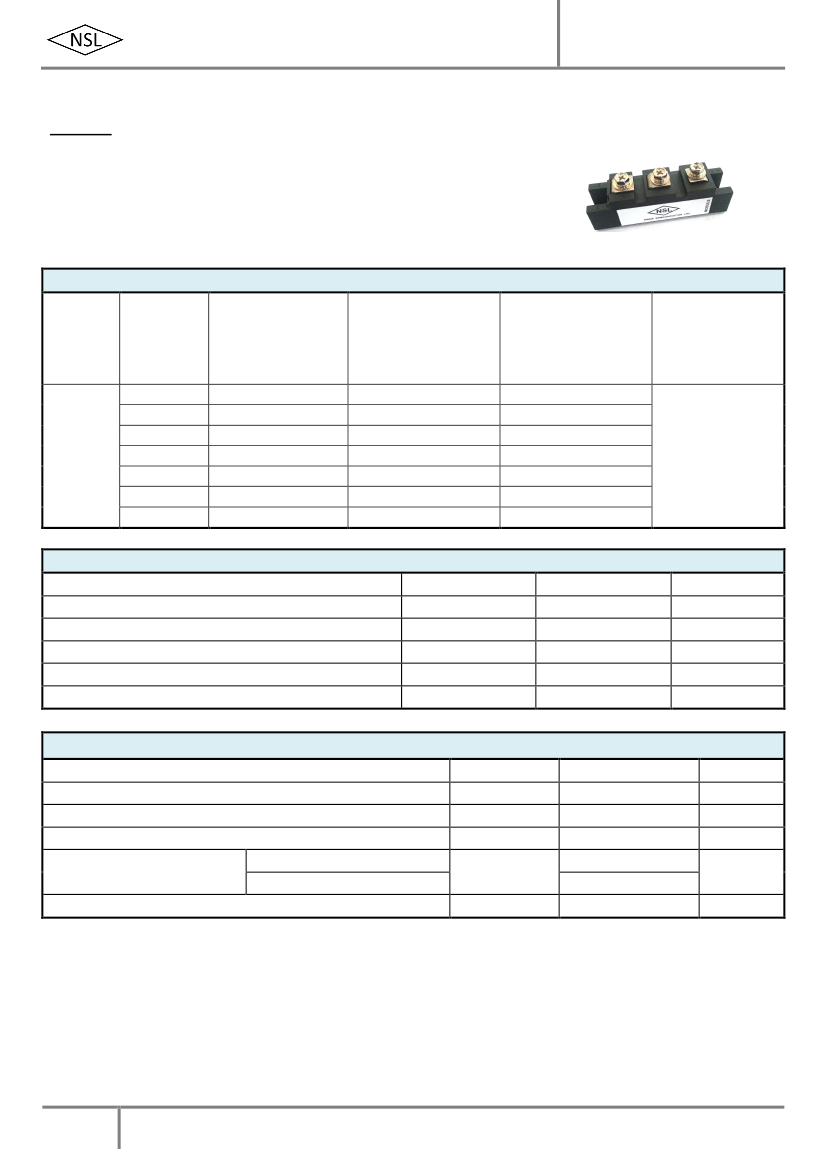

Naina Semiconductor Ltd.
Non-isolated Diode Module, 100A
Features
•
•
•
•
Low voltage three-phase
Easy construction
High surge current capability
Non-isolated
DWF100A
Voltage Ratings
(T
A
= 25
o
C, unless otherwise noted)
Type
number
Voltage
Code
20
40
60
80
100
120
160
V
RRM,
Maximum
repetitive peak
reverse voltage
(V)
200
400
600
800
1000
1200
1600
V
RSM,
Maximum non-
repetitive peak reverse
voltage
(V)
300
500
700
900
1100
1300
1700
V
DRM,
Maximum
repetitive peak off-
state voltage
(V)
200
400
600
800
1000
1200
1600
I
RRM,
Maximum
reverse leakage
current @ T
JMAX
(mA)
DWF106A
15
Electrical Characteristics
(T
C
= 25
0
C unless otherwise noted)
Parameter
Maximum average forward current @ T
J
= 85
0
C
Maximum average RMS forward current
Maximum non-repetitive surge current
Maximum I
2
t for fusing
Forward voltage drop
Symbol
I
F(AV)
I
FRMS)
I
FSM
I
2
t
V
FM
Values
100
157
2000
16500
1.3
Units
A
A
A
A
2
s
V
Thermal & Mechanical Specifications
(T
C
= 25
0
C unless otherwise noted)
Parameter
Operating junction temperature range
Storage temperature
Thermal resistance, junction to case
to heatsink
Mounting torque
to terminals
Weight
Symbol
T
J
T
stg
R
th(JC)
F
W
Values
-30 to +150
-30 to +125
0.25
2.7
2.7
240
Units
0
C
0
C
0
C/W
Nm
g
1
D-95, Sector 63, Noida – 201301, India • Tel: 0120-4205450 • Fax: 0120-4273653
sales@nainasemi.com • www.nainasemi.com
Naina Semiconductor Ltd.

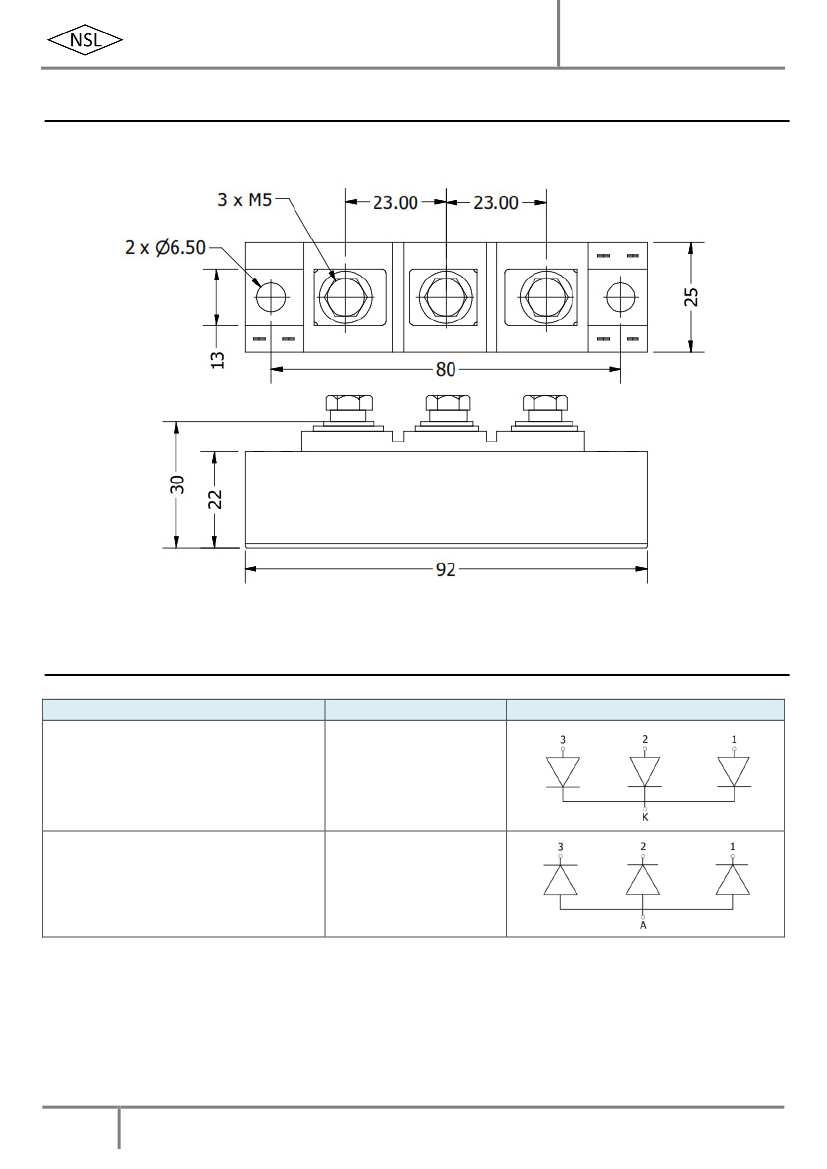

Package Outline
(All dimensions in mm)
DWF100A
Circuit Configuration
Circuit Description
Configuration Code
Circuit Drawing
Common cathode (base plate cathode)
N
Common anode (base plate anode)
R
2
D-95, Sector 63, Noida – 201301, India • Tel: 0120-4205450 • Fax: 0120-4273653
sales@nainasemi.com • www.nainasemi.com
Naina Semiconductor Ltd.
Ordering Table
DWF
1
100
2
A
3
160
4
N/R
5
DWF100A
1 – Non-isolated Diode Module
2 – Current Rating =
I
F (AV)
3 – Package Type
4 – Voltage Code (see Voltage Ratings table)
5 – Circuit (see Circuit Configuration table)
3
D-95, Sector 63, Noida – 201301, India • Tel: 0120-4205450 • Fax: 0120-4273653
sales@nainasemi.com • www.nainasemi.com
