TS1117B
1A Low Dropout Positive Voltage Regulator
TO-252
(DPAK)
SOT-223
Pin Definition:
1. Fixed / Adj
2. Output (Tab)
3. Input
SOP-8
Pin Definition:
1. Fixed / Adj
2. Output
3. Output
4. Input
8. N/C
7. Output
6. Output
5. N/C
General Description
TS1117B are high performance positive voltage regulators are designed for use in applications requiring low
dropout performance at full rated current, Additionally, TS1117B provides excellent regulation over variations due
to changes in line, load and temperature. Outstanding features include low dropout performance at rated current,
fast transient response, internal current limiting and thermal shutdown protection of the output device. TS1117B
are three terminal regulators with fixed and adjustable voltage options available in popular packages.
Features
●
●
●
●
●
●
●
●
Low Dropout Performance 1.5V max.
Fill Current Rating Over Line and Temperature
Fast Transient Response
Built-in thermal shutdown
Output Current Limit
Line Regulation Typical 0.2%
Load Regulation Typical 0.05%
Low-ESR Ceramic Capacitor (MLCC) Required
for Stability.
●
Good Ripple Rejection
Ordering Information
Part No.
Package
Packing
TS1117BCPxx ROG
TO-252
2.5kpcs / 13” Reel
TS1117BCWxx RPG
SOT-223
2.5kpcs / 13” Reel
TS1117BCSxx RLG
SOP-8
2.5kpcs / 13” Reel
Note: Refer to detail ordering information table.
“G” denotes Halogen Free Products

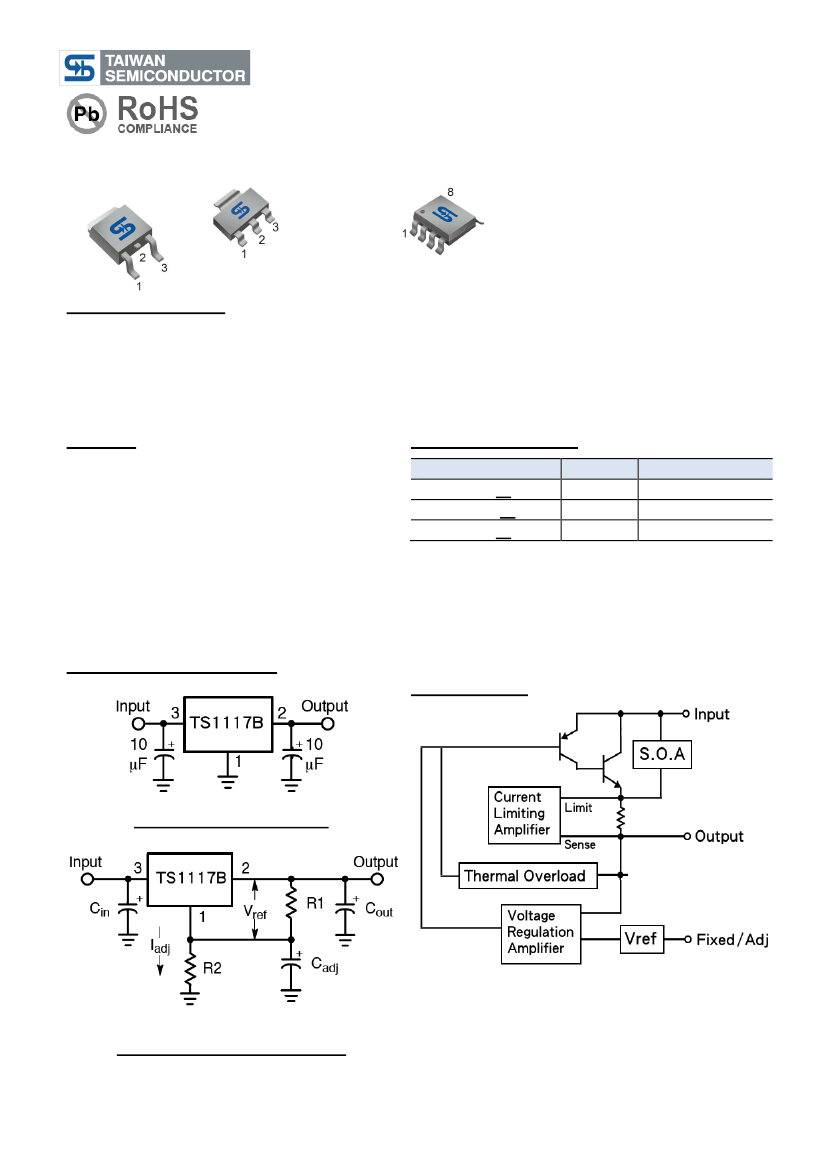

Typical Application Circuit
Block Diagram
Fixed Output Voltage Version
V
OUT
= V
REF
(1+R2/R1) + I
adj
R2
Adjustable Output Voltage Version
1/8
Version: F14
TS1117B
1A Low Dropout Positive Voltage Regulator
Absolute Maximum Ratings
(Note 1)
Parameter
Input Supply Voltage
Recommend Operation Input Supply Voltage
Power Dissipation (Note 2)
TO-252
Thermal Resistance
SOT-223
Junction to Ambient
SOP-8
Operating Temperature Range
Junction Temperature Range
Storage Temperature Range
TO-252 / SOT-223
o
Lead Soldering Temperature (260 C)
SOP-8
Symbol
V
IN
V
IN
(Opr. Typ.)
P
D
R
ӨJA
T
OPER
T
J
T
STG
Limit
15
12
Internal limited
105
130
160
-40 ~ +125
+150
-65 ~ +150
5
2
Unit
V
V
o
C/W
o
C
s
Electrical Specification
(
T
A
=25
o
C, unless otherwise specified.)
Parameter
Reference Voltage
Conditions
V
IN
= 2.75, Io=1A
V
IN
= 2.7V~12V, Io=1A
V
IN
= 3V~12V, Io=1A
V
IN
= 3.3V~12V, Io=1A
V
IN
= 4V~12V, Io=1A
V
IN
= 4.8V~12V, Io=1A
V
IN
= 6.5V~12V, Io=1A
Min
1.225
1.176
1.470
1.764
2.450
3.235
4.900
--
--
--
--
--
1.1
--
Typ
1.25
1.2
1.5
1.8
2.5
3.3
5.0
0.2
0.05
1.3
5
90
--
0.5
Max
1.275
1.224
1.530
1.836
2.550
3.366
5.100
0.5
1.0
1.5
10
--
--
--
Unit
V
V
V
V
V
V
V
%
%
V
mA
µA
A
%
Output Voltage (Note 4)
Line Regulation
Load Regulation (Note 1,2)
Dropout Voltage
Quiescent Current
Adjustable Pin Current
Output Current Limit
Temperature Stability
Ripple Rejection
Vo+1.5V
≤
V
IN
≤
12V, Io= 10mA
V
IN
= V
OUT
+1.5V, Io = 10mA~1A
Io=1A,
∆V
OUT
= 1% V
OUT
V
IN
= 5V
V
IN
- V
OUT
= 1.5V
Io=10mA,
F= 120Hz, Io= 1A, C
OUT
=25uF, V
IN
--
60
70
dB
= Vout+3V
Note 1: See thermal regulation specification for changes in output voltage due to heating effects. Line and load
regulation are measured at a constant junction temperature by low duty cycle pulse testing. Load
regulation is measured at the output lead = 1/18” from the package.
Note 2: Line and load regulation are guaranteed up to the maximum power dissipation of 15W. Power dissipation
is determined by the input / output voltage difference and the output current. Guaranteed maximum power
dissipation will not be available over the full input / output voltage range.
Note 3: Quiescent current is defined as the minimum output current required to maintain the regulation.
Note 4: The Output Capacitor does not have a theoretical upper limit and increasing its value will increase stability
C
OUT
=100uF or more is typical for high current regulator design.
2/8
Version: F14
TS1117B
1A Low Dropout Positive Voltage Regulator

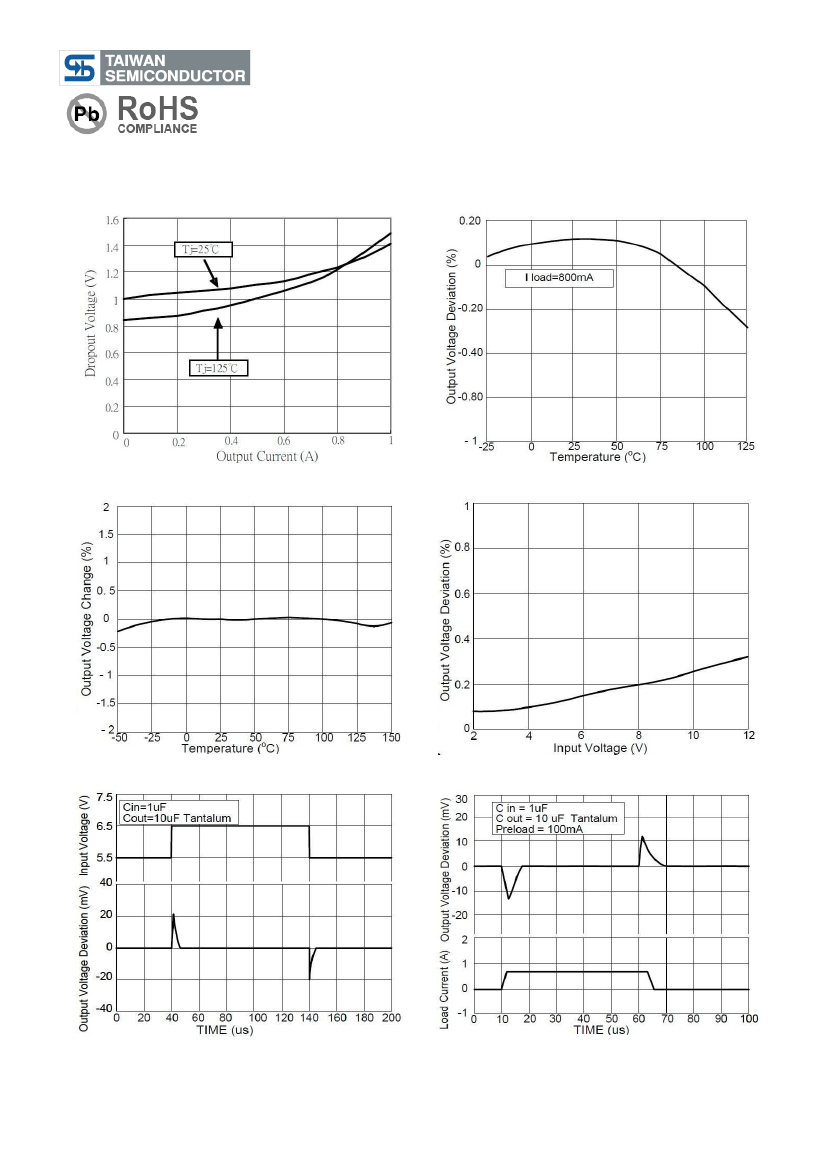

Electrical Characteristics Curve
Figure 1. Vdrop vs. Output Current
Figure 2. Load Regulation vs. Temperature
Figure 3. Vout Change vs. Temperature
Figure 4. Vout Deviation vs. Temperature
Figure 5. Line Transient Response
Figure 6. Load Transient Response
3/8
Version: F14
TS1117B
1A Low Dropout Positive Voltage Regulator
Ordering information
Voltage
ADJ
1.2V
1.8V
2.5V
3.3V
5V
TS1117BCP33 ROG
TS1117BCP50 ROG
TO-252
TS1117BCP ROG
SOT-223
TS1117BCW RPG
TS1117BCW12 RPG
TS1117BCW18 RPG
TS1117BCW25 RPG
TS1117BCW33 RPG
TS1117BCW50 RPG
SOP-8
TS1117BCS33 RLG
Packing code information
Packing
2.5kpcs / 13" Reel
2.5kpcs / 13" Reel
2.5kpcs / 13" Reel
4/8
Version: F14
TS1117B
1A Low Dropout Positive Voltage Regulator

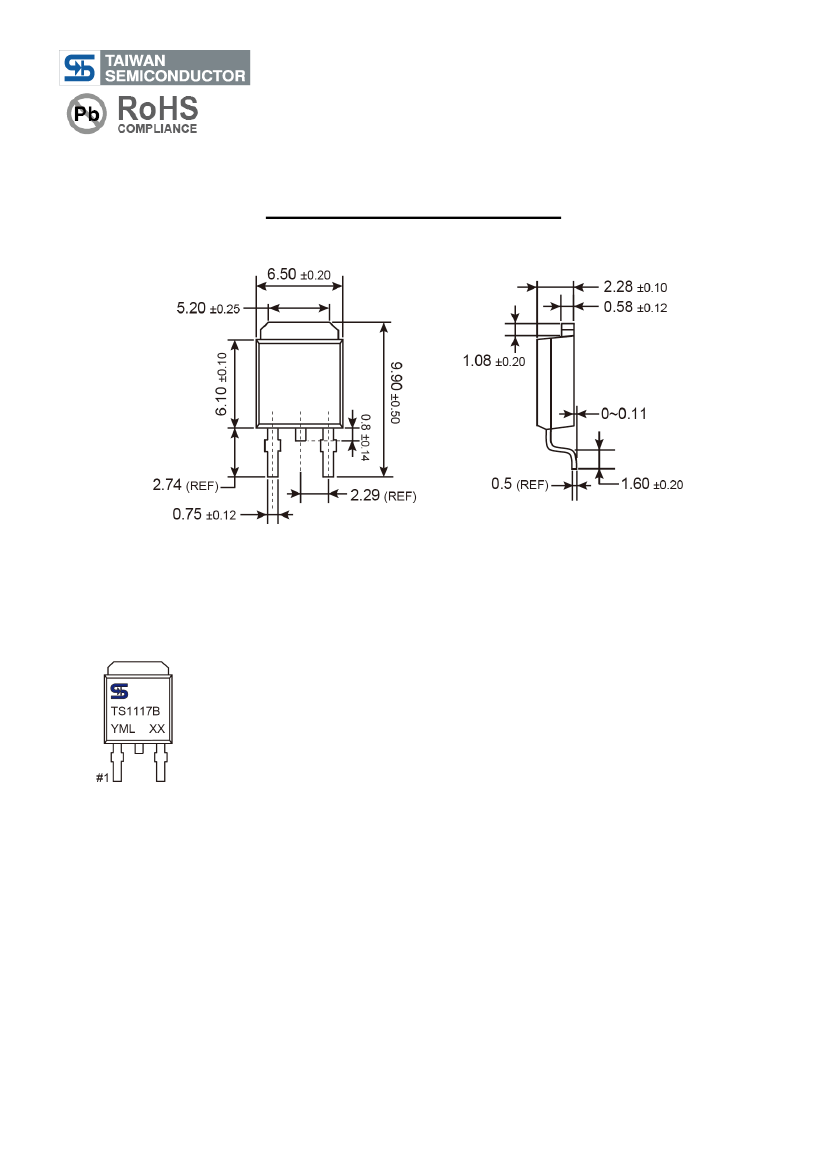

TO-252 Mechanical Drawing
Unit: Millimeters
Marking Diagram
Y
M
= Year Code
= Month Code for Halogen Free Product
(O=Jan,
P=Feb, Q=Mar, R=Apl, S=May, T=Jun, U=Jul, V=Aug, W=Sep,
X=Oct, Y=Nov, Z=Dec)
= Lot Code
= Output Voltage
(3.3=3.3V,
5.0=5V)
= Adjustable Voltage
L
XX
CP
5/8
Version: F14
