BAW56W
DUAL SURFACE MOUNT SWITCHING DIODE
Features
•
•
•
•
•
Fast Switching Speed
Small Surface Mount Package
For General Purpose Switching Applications
Lead Free/RoHS Compliant (Note 1)
"Green" Device (Notes 2 and 3)
Mechanical Data
•
•
•
•
•
•
Case: SOT323
Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating) Solderable per MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.006 grams (approximate)
SOT323
Top View
Top View
Internal Schematic
Ordering Information
(Notes 3 & 4)
Part Number
BAW56W-7-F
BAW56WQ-7-F
Notes:
Qualification
Commercial
Automotive
Case
SOT323
SOT323
Packaging
3000/Tape & Reel
3000/Tape & Reel
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com.
3. Product manufactured with Date Code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
KJC
KJC = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2005
S
Jan
1
2006
T
Feb
2
2007
U
Mar
3
2008
V
Apr
4
YM
2009
W
May
5
2010
X
Jun
6
2011
Y
Jul
7
2012
Z
2013
A
Aug
8
2014
B
Sep
9
2015
C
Oct
O
2016
D
Nov
N
2017
E
Dec
D
BAW56W
Document number: DS30064 Rev. 12 - 2
1 of 4
www.diodes.com
November 2011
© Diodes Incorporated
BAW56W
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 5)
Average Rectified Output Current (Note 5)
Non-Repetitive Peak Forward Surge Current
(Note 5)
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
@ t = 1.0μs
@ t = 1.0s
I
FSM
Value
100
75
53
300
150
2.0
1.0
Unit
V
V
V
mA
mA
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 6)
Forward Voltage
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
Min
75
⎯
Max
⎯
0.715
0.855
1.0
1.25
2.5
50
30
25
2.0
4.0
Unit
V
V
μA
μA
μA
nA
pF
ns
Test Condition
I
R
= 2.5μA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= 150°C
V
R
= 25V, T
J
= 150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Reverse Current (Note 6)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
⎯
⎯
⎯
5. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com.
6. Short duration pulse test used to minimize self-heating effect.
Note 5
200
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
250
1
P
D
, POWER DISSIPATION (mW)
0.1
150
100
0.01
50
0
0
120
160
40
80
200
T
A
, AMBIENT TEMPERATURE (
°
C)

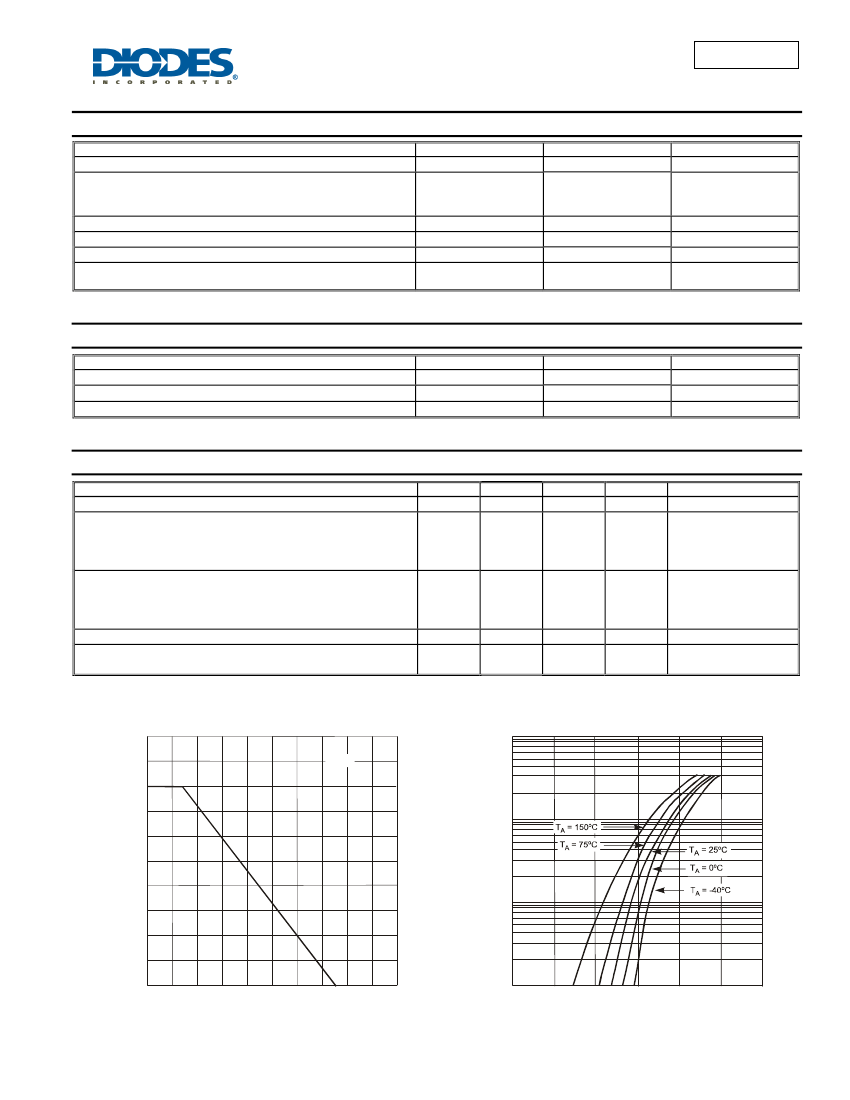

Fig. 1 Power Derating Curve, Total Package

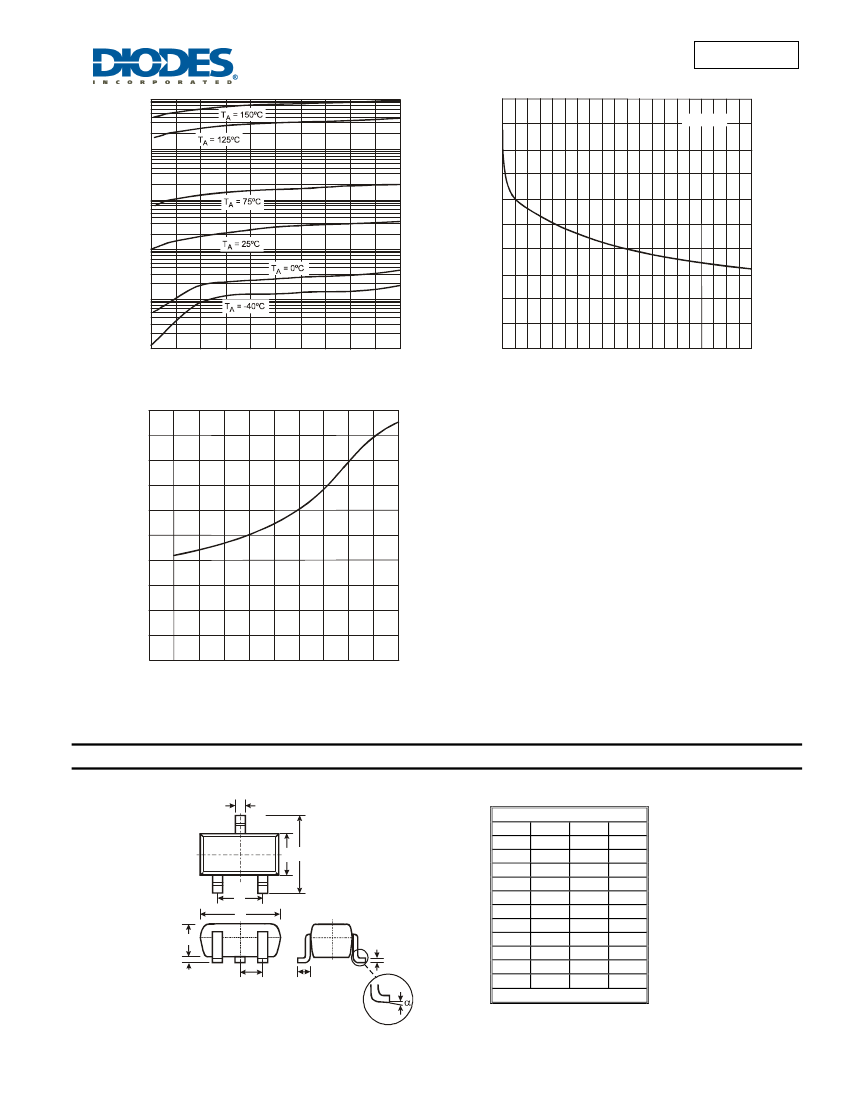

0.001
0
0.5
1.0
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, Per Element
BAW56W
Document number: DS30064 Rev. 12 - 2
2 of 4
www.diodes.com
November 2011
© Diodes Incorporated
BAW56W
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
2.0
1.8
f = 1.0MHz
1,000
C
T
, TOTAL CAPACITANCE (pF)
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, Per Element
0
0
8
4
6
10
I
F
, FORWARD CURRENT (mA)
Fig. 5 Reverse Recovery Time vs. Forward Current,
Per Element
2
A
B C
G
H
K
M
J
D
L
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
100
10
1
0.1
0.0
10
20
30
40
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage, Per Element
0
2.5
t
rr
, REVERSE RECOVERY TIME (nS)
2.0
1.5
1.0
0.5
0
Package Outline Dimensions
SOT323
Dim
Min
Max
Typ
A
0.25
0.40
0.30
B
1.15
1.35
1.30
C
2.00
2.20
2.10
D
-
-
0.65
G
1.20
1.40
1.30
H
1.80
2.20
2.15
J
0.0
0.10
0.05
K
0.90
1.00
1.00
L
0.25
0.40
0.30
M
0.10
0.18
0.11
0°
8°
-
α
All Dimensions in mm
BAW56W
Document number: DS30064 Rev. 12 - 2
3 of 4
www.diodes.com
November 2011
© Diodes Incorporated
BAW56W
Suggested Pad Layout
Y
Z
C
Dimensions Value (in mm)
Z
2.8
X
0.7
Y
0.9
C
1.9
E
1.0
X
E
