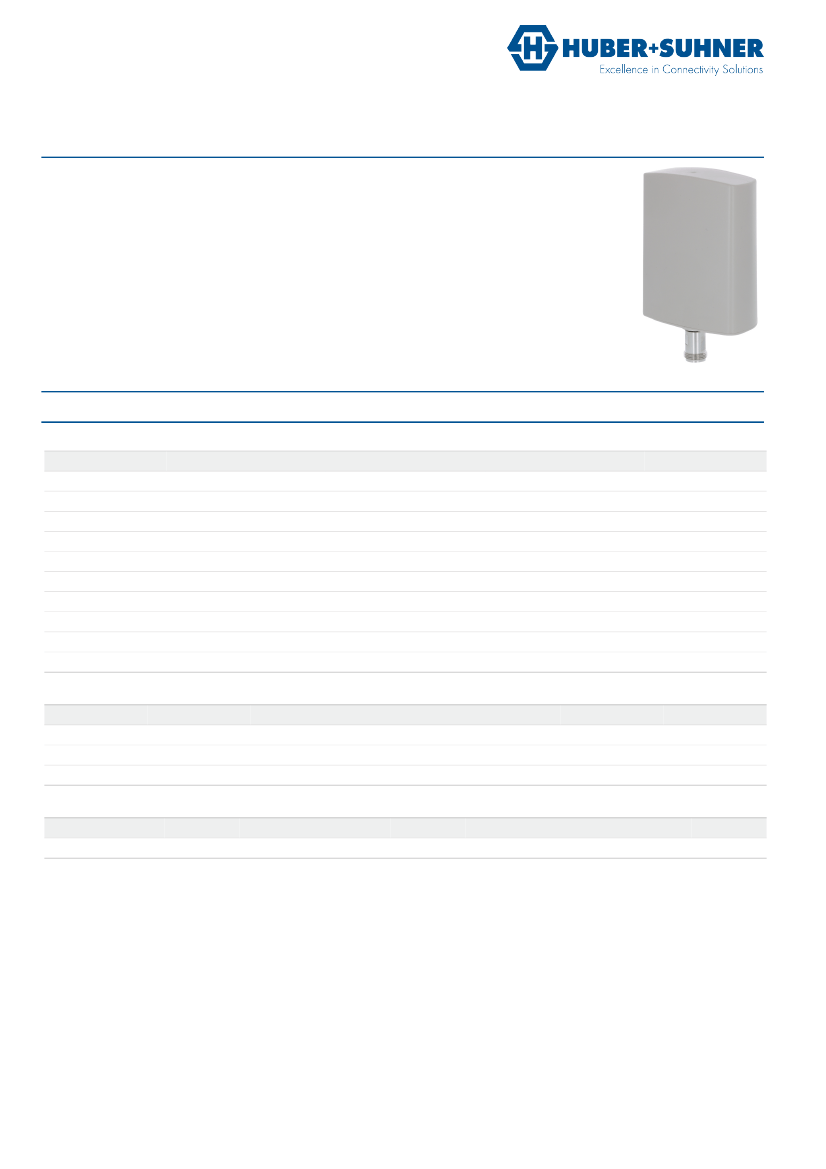

Data Sheet
SENCITY® Spot-S Railway Cellular Antenna
1318.17.0015
Description
Small directional, planar, linear vertical polarized antenna with 8 dBi Gain (max.)
Cellular and DECT bands between 1710 and 1950 MHz
Rugged design, meets EN 50155, EN 50125-3 railway and EN 60068 standards
Fire retardant acc. to EN 45545-2, DIN 5510-2 and BS 6853
For outdoor and indoor applications
Ingress protection IP 66 and IP 67
Wall mounting material included
Product Configuration
Technical Data
Electrical Data
Band 1
Frequency (MHz)
VSWR
Impedance (Ohm)
Gain (dBi)
3dB beamwidth (h) (°)
3dB beamwidth (v) (°)
1710 - 1755
2
50
6.5
87
72
Band 2
1755 - 1880
1.5
50
8
85
70
50
25
15
0
Band 3
1880 - 1930
2
50
7
90
65
50
25
15
0
Band 4
1930 - 1950
2.5
50
6.5
90
67
50
25
15
0
Composite power max (W) 50
Ambient temperature (°C)
Front to back ratio (dB)
Vertical electrical tilt (°)
25
15
0
Ports
Port 1
Connector
Polarization
DC grounded
N, jack (female)
vertical
No
Connections
Band 1
Port 1
X
Band 2
X
Band 3
X
Band 4
X
General Data
Mechanical Data
Dimensions (mm)
Weight (kg)
Windload
Included mounting material
101 x 81 x 36 (Heigth x Width x Depth)
0.11
frontal: 15 N at 160 km/h , Wind speed survival: 220 km/h
Wall mounting material
Environmental Data
Environmental conditions
Operation temperature (°C)
Storage temperature (°C)
Transport temperature (°C)
Flammability rating
Solar radiation
RoHS 2011/65/EU
Lead-free soldered
REACH 2006/1907/EC
indoor/outdoor
-40 to 85
-40 to 85
-40 to 85
EN 45545-2
UL 746C, F1
compliant
yes
compliant
Page 1/2
Document: DOC-0000760944 O / PDO F / date of publication: 01.11.2018 17:16:05 / uncontrolled copy
Data Sheet
SENCITY® Spot-S Railway Cellular Antenna
1318.17.0015
FLAMMABILITY: EN 45545-2 (2013) HL3, BS 6853 and DIN 5510-2
ENVIRONMENT: EN 50155 (2016) and EN 50125-3 (2003), also EN 60068 related
IP RATING: IP 66 / IP 67 (IEC 60529)
SOLAR RADIATION: EN 50125-3:2004 §4.9, 1120 W/m² for 20h
AIR PRESSURE: EN 50125-3:2004 §4.2, Altitude Class A1 (up to 1400m)
AIR PULE PRESSURE: EN 50125-3:2004 §4.2, 1 kPa/s
RAIN: EN 50125-3:2004 §4.6, delivery rate: 6 mm/min
VIBRATION / SHOCK: EN 50125-3:2004 §4.13, position profile: "outside the track"
POLLUTION: EN 50125-3:2004 §4.11, pollution levels: 4B1, 4S1
CORROSION: MIL-F-14072 E Type 1 "exposed"
MECHANICAL IMPACT (HAMMER IMPACT): EN 60068-2-75 (IEC 62262/2002-02 IK06)
Material Data
Radome colour
Radome material
RAL 7044 (grey)
PC (Polycarbonate)
Related Products
9091.99.0238 Outdoor Spot-S Antenna Down-Sidetilt Bracket
9091.99.0237 L-Bracket for SPOT-S antennas
Related Documents
Mounting instruction
Painting instruction
Security instruction
Outline drawing
3D-model
DOC-0000287053
DOC-0000256180
DOC-0000278984
DOU-00328107
DOC-0000796424
Additional Information
Following Declaration of Conformity for SENCITY Spot-S antennas are available on request: * Industrial standards EN 60068 / EN 60529
/ IEC 61373: Ref. DOC-0000318049 * Railway rolling stock, environmental standards EN 50155 and fire behaviour EN 45545-2: Ref.
DOC-0000813010 * Railway trackside, environmental standards EN 50125-3 and fire behaviour EN 45545-2: Ref. DOC-0000411396
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000760944 O / PDO F / date of publication: 01.11.2018 17:16:05 / uncontrolled copy
Page 2/2
