Z86C0408SEC datasheet, PDF - EEWORLD Datasheet

Z86C0408SEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDSO18,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size644KB，12 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

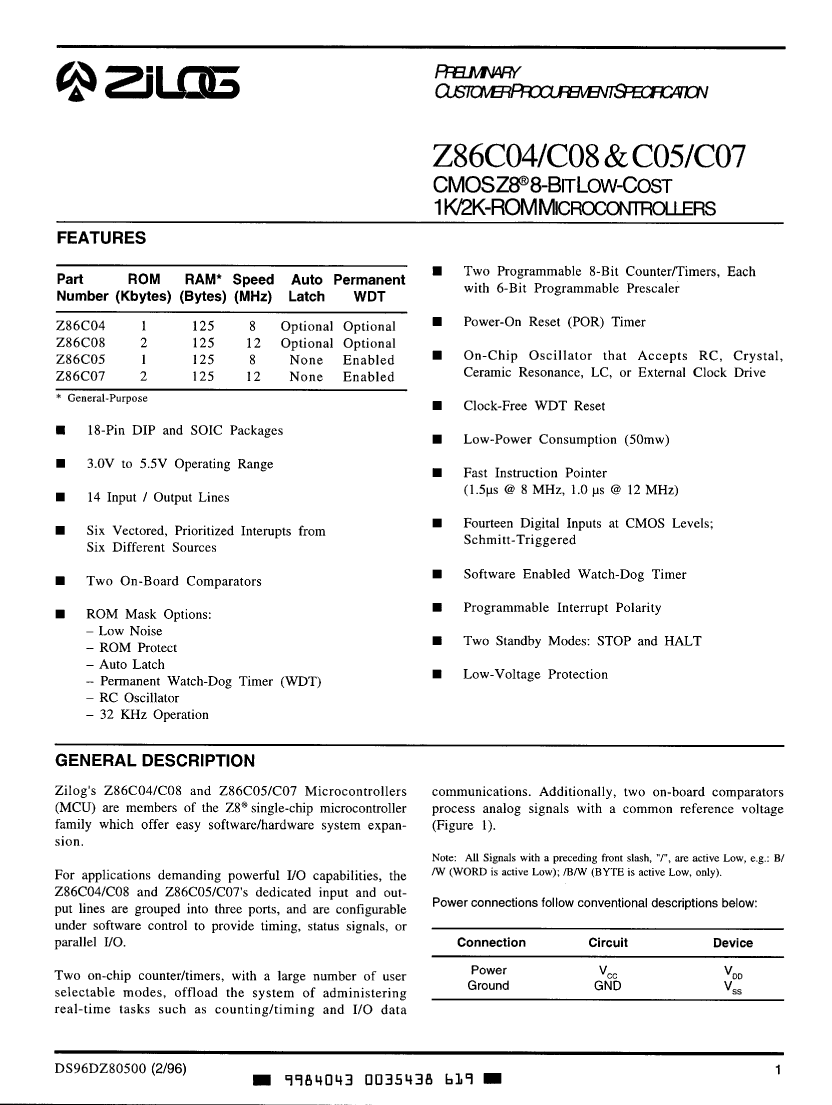

Z86C0408SEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDSO18,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
CPU series	Z8
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G18
length	11.55 mm
Number of I/O lines	14
Number of terminals	18
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	124
rom(word)	1024
ROM programmability	MROM
speed	8 MHz
Maximum slew rate	11 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

	Z86C0408SEC	Z86C0712PEC	Z86C0712SEC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDSO18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 6MHz, CMOS, PDIP18,	Microcontroller, 8-Bit, MROM, Z8 CPU, 6MHz, CMOS, PDSO18,
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Has ADC	NO	NO	NO
bit size	8	8	8
CPU series	Z8	Z8	Z8
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	R-PDSO-G18	R-PDIP-T18	R-PDSO-G18
length	11.55 mm	22.86 mm	11.55 mm
Number of I/O lines	14	14	14
Number of terminals	18	18	18
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Encapsulate equivalent code	SOP18,.4	DIP18,.3	SOP18,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	124	124	124
rom(word)	1024	2048	2048
ROM programmability	MROM	MROM	MROM
speed	8 MHz	12 MHz	12 MHz
Maximum slew rate	11 mA	15 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.5 mm	7.62 mm	7.5 mm
