UGA15120
Taiwan Semiconductor
CREAT BY ART

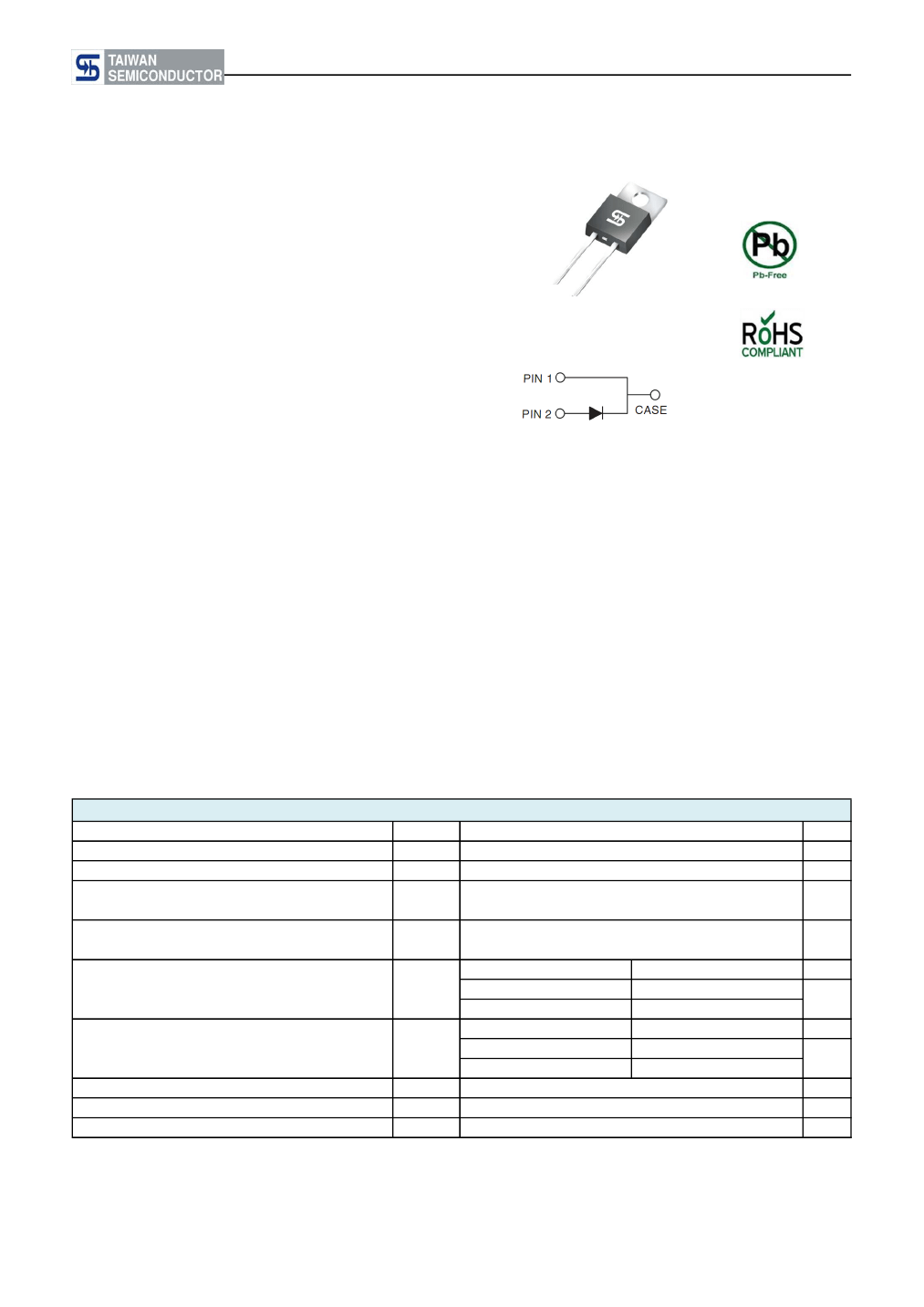

15A, 1200V Ultrafast Power Rectifier
FEATURES
- Ultrafast, soft recovery characteristics
- High junction temperature up to 175°C
- Negligible leakage sustain the high operation temperature
- Planar passivated for voltage ruggedness and reliability
- Very low stored charge and its soft recovery minimize ringing and
electronical noise to reduce power loss in associated MOSFET or IGBT
- High capability for high di/dt operation.
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
- AEC-Q101 qualified
1
2
TO-220AC
TYPICAL APPLICATIONS
Ideal solution used as freewheeling diodes , features extremely low peak recovery current helping to significantly reduce
snubbing, and lower switching losses in IGBT, especially as heavy duty applications demanding long term reliability.
Such as inverters , Uninterrupted Power Supply, motor drive and other mission-critical systems
where the high frequency and high efficiency is needed.
The series with negligible leakage, is an immediately competitive advantage for high temperature environment.
MECHANICAL DATA
Case:
TO-220AC
Molding compound, UL flammability classification rating 94V-0
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD 22-B102
Meet JESD 201 class 1A whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm
Weight:
1.7g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum average forward rectified current
Non-repetitive peak forward surge current
8.3ms single sine-wave
Maximum instantaneous forward voltage (Note 1)
IF= 15 A
Maximum reverse current @ Rated VR
T
J
=25 °C
T
J
=125 °C
Reverse Recovery Time
T
J
=25
℃,
I
F
=0.5A, I
R
=1A, I
RR
=0.25A
T
J
=25
℃,
I
F
=1A, dI
F
/dt= -100A/µs, V
R
=30V
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300
μs,
1% duty cycle
R
θJC
T
J
T
STG
t
rr
I
R
SYMBOL
V
RRM
I
F(AV)
I
FSM
V
F
TYP
1
5
TYP
48
-
2
- 55 to +175
- 55 to +175
UGA15120
1200
15
200
2.9
MAX
5
100
MAX
58
65
ns
°C/W
°C
°C
μA
UNIT
V
A
A
V
Document Number: DS_D1501012
Version: A15
UGA15120
Taiwan Semiconductor
ORDER INFORMATION (EXAMPLE)
UGA15120 C0G
Green compound code
Packing code
Part no.

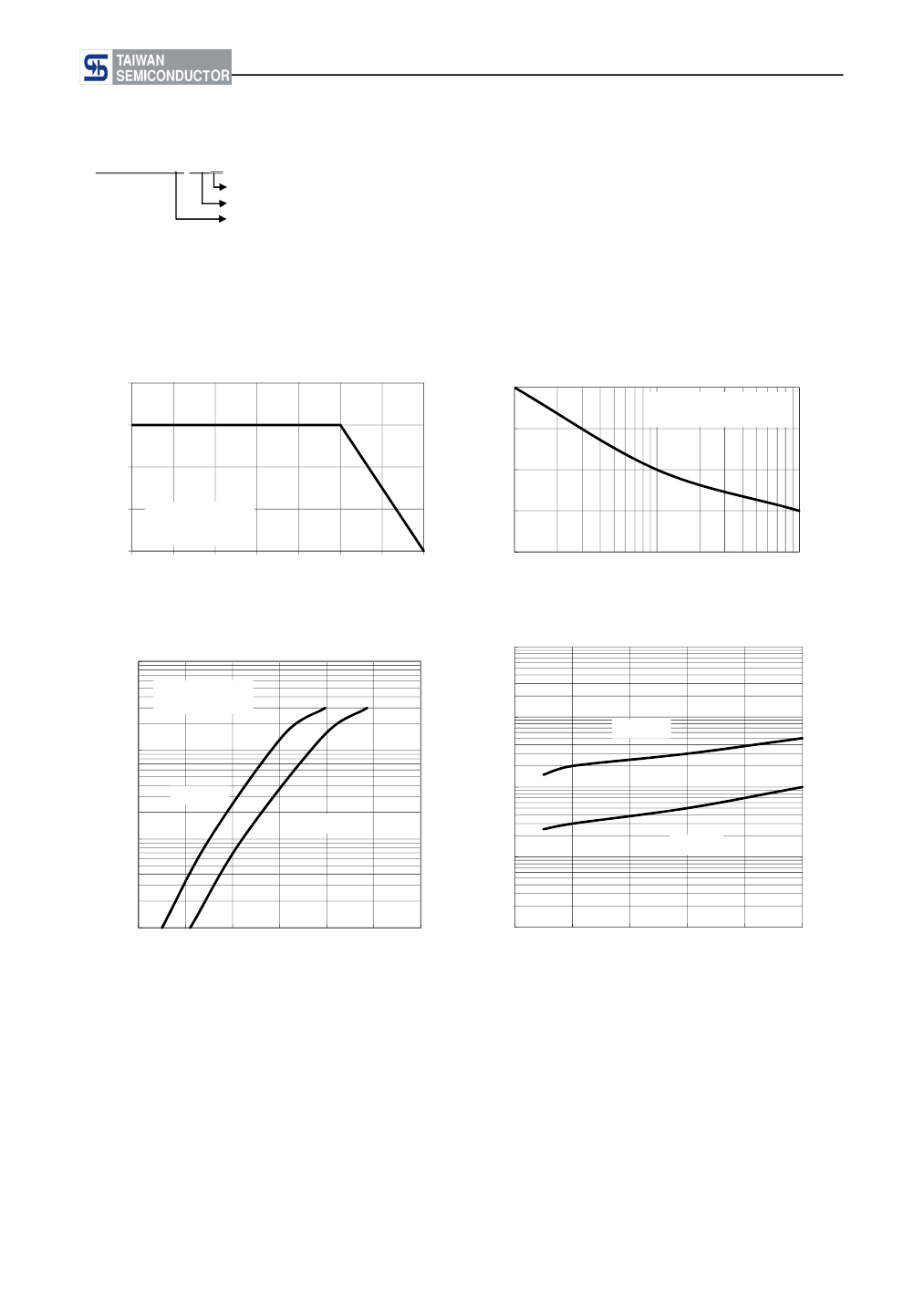

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
200
8.3ms Single Half Sine Wave
150
FIG.1- FORWARD CURRENT DERATING CURVE
20
AVERAGE FORWARD
A
CURRENT (A)
15
10
100
5
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
0
25
50
75
100
125
150
175
50
0
CASE TEMPERATURE (
o
C)
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
100
Pulse Width=300μs
1% Duty Cycle
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT (μA)
10
T
J
=125°C
10
T
J
=125°C
T
J
=25°C
1
1
0.1
T
J
=25°C
0.1
0
0.5
1
1.5
2
2.5
3
FORWARD VOLTAGE (V)
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1501012
Version: A15

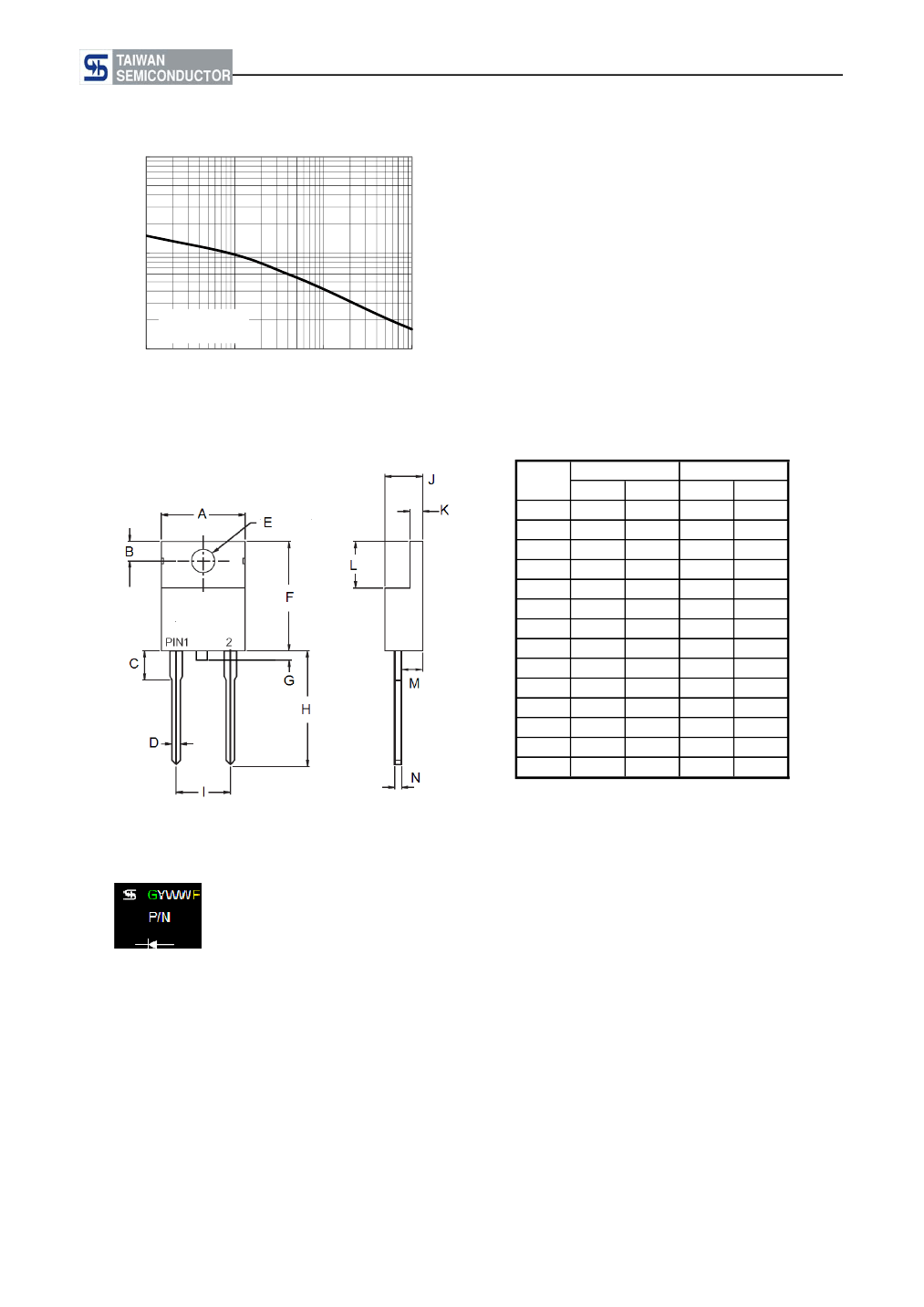

UGA15120
Taiwan Semiconductor
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1501012
Version: A15
