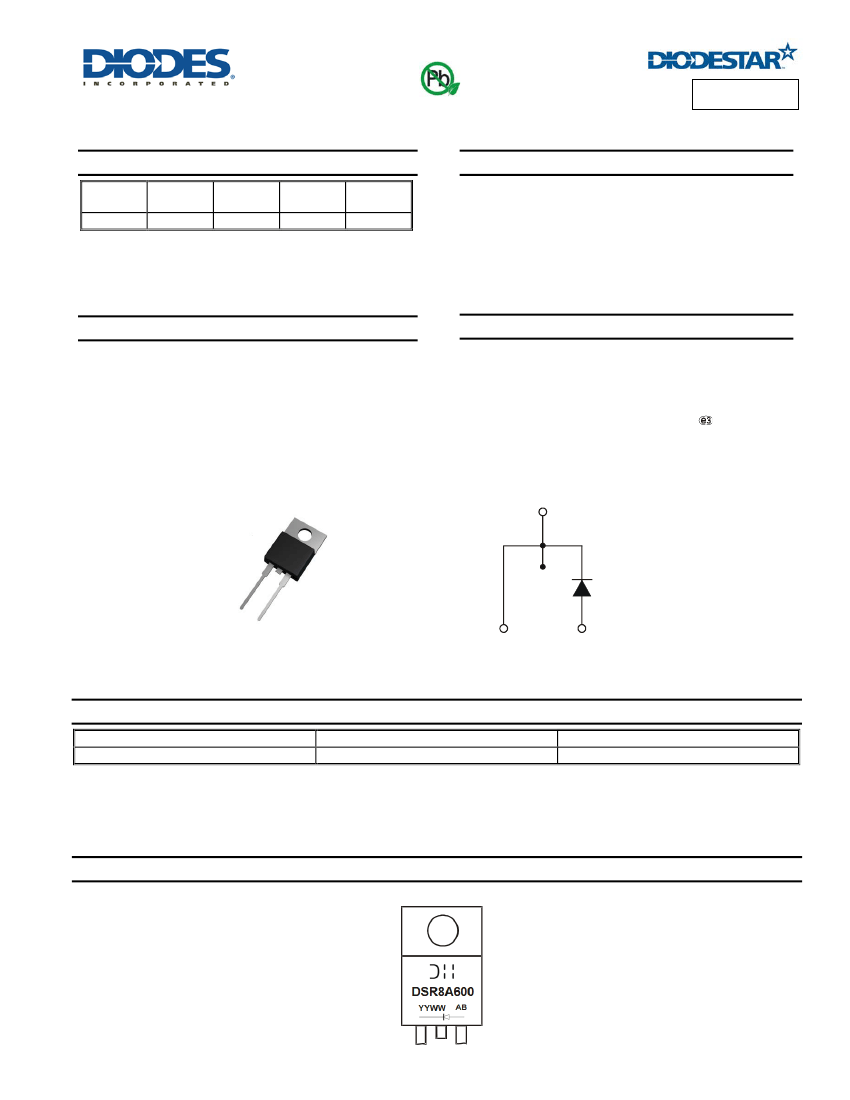

DSR8A600
8A DIODESTAR RECTIFIER
Product Summary
V
RRM
(V)
600
I
O
(A)
8
V
F typ
(V)
@ +25°C
2.3
t
rr typ
(nS)
@ +25°C
20
I
RM typ
(A)
@ +25°C
6.9
Features and Benefits
•
•
•
•
•
•
•
Low V
F
minimises Boost Diode conduction loses
Very fast trr reduces MOSFET PFC switching losses
Soft switching ensures ringing and EMI are reduced
Low Q
rr
and I
RM
minimize boost diode recovery losses
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
NEW PRODUCT
Description and Application
The DIODESTAR
TM
DSR8A600 is designed specifically for use as a
boost diode in Power Factor Correction (PFC) applications. Its soft
fast switching characteristics make it ideal for use in hard switching
and Continuous Conduction Mode (CCM) PFC circuits.
Mechanical Data
•
•
•
•
•
•
Cathode
Case: TO220AC
Case Material: Molded Plastic, “Green” Molding compound.
UL Flammability Classification Rating 94V-0
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram Below
Weight: 1.75 grams (approximate)
Base
Cathode
1
Cathode
Anode
TO220AC Package
1
Cathode
3
Anode
Package Pin Out
Configuration
Ordering Information
(Note 4)
Part Number
DSR8A600
Notes:
Case
TO220AC
Packaging
50 pieces/tube
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
DSR8A600 = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 14 = 2014)
WW = Week (01 - 53)
DSR8A600
Document number: DS36247 Rev. 3 - 2
1 of 6
www.diodes.com
July 2014
© Diodes Incorporated
DSR8A600
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current T ≤ +101°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
I
FSM
Value
600
8
65
60
Unit
V
A
A
A
NEW PRODUCT
Non-Repetitive Peak Forward Surge Current 10ms
Single Half Sine-Wave Superimposed on Rated Load
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Lead (Note 4)
Typical Thermal Resistance, Junction to Ambient (Note 5)
Storage Temperature Range
Maximum Operating Junction Temperature
Symbol
R
θJL
R
θJA
T
STG
T
J
Value
2
62
-55 to +150
+150
Unit
°C/W
°C/W
°C
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage Drop
Leakage Current (Note 6)
Symbol
V
F
I
R
Min
—
—
—
—
—
—
—
—
—
—
—
—
Typ
2.3
1.6
<1
100
25
20
6.9
85
37
8.3
161
7.7
—
—
—
Max
3.2
—
20
—
30
—
—
—
Unit
V
µA
Test Condition
I
F
= 8A, T
J
= +25°C
I
F
= 8A, T
J
= +125°C
V
R
= 600V, T
J
= +25°C
V
R
= 600V, T
J
= +125°C
I
F
= 1A, I
R
= 0.5A, I
RR
= 0.25A , RG1
Reverse Recovery Time
Reverse Recovery Time
Reverse Recovery Current
Reverse Recovery Charges
Reverse Recovery Time
Reverse Recovery Current
Reverse Recovery Charges
Junction Capacitance
Notes:
t
rr
t
rr
I
RM
Q
rr
t
rr
I
RM
Q
rr
C
J
ns
ns
A
nC
ns
A
nC
pF
I
F
= 8A, dl/dt = 500A/µs,
V
R
= 390V, T
J
= +25°C
I
F
= 8A, dl/dt = 500A/µs,
V
R
= 390V, T
J
= +125°C
100.0V, 1MHz
4. Measured from Cathode Tab.
5. Device free standing with no Heat sink.
6. Short duration pulse test used to minimize self-heating effect.
DSR8A600
Document number: DS36247 Rev. 3 - 2
2 of 6
www.diodes.com
July 2014
© Diodes Incorporated

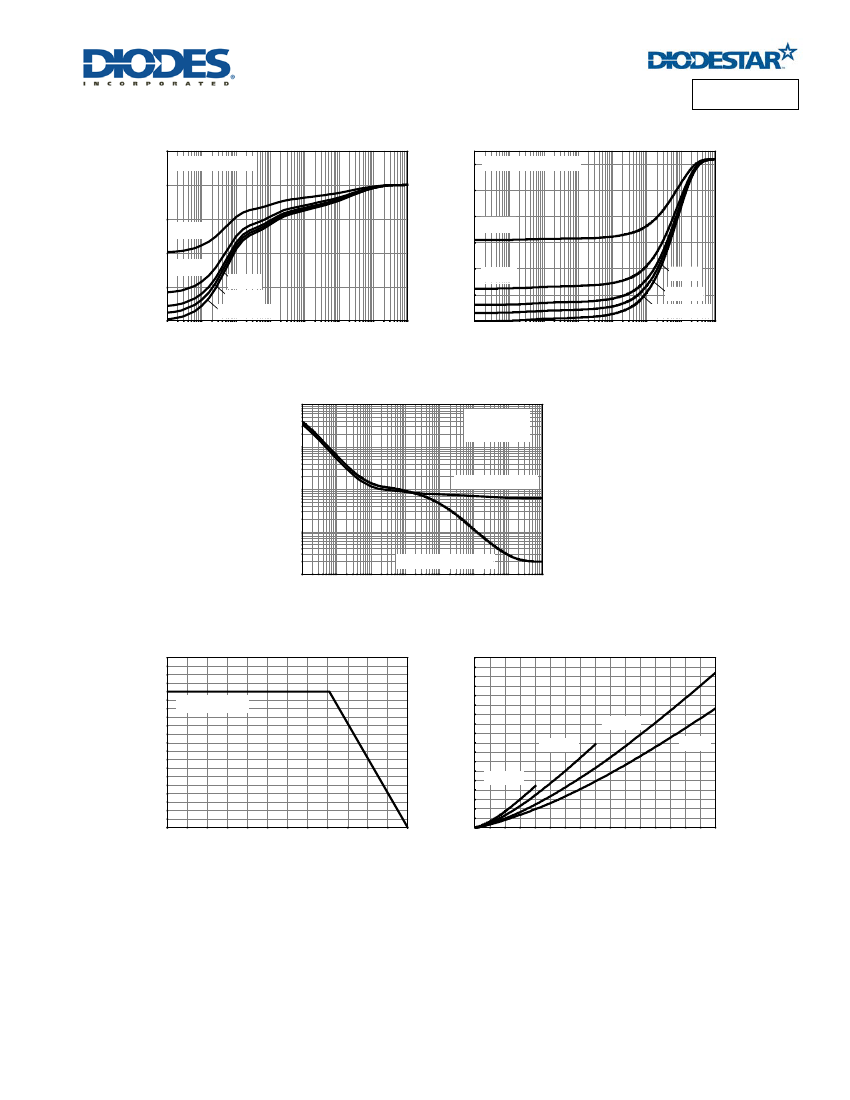

DSR8A600
Thermal Resistance (°C/W)
2
Thermal Resistance (°C/W)
Junction to Lead
60
Junction to Ambient
40
D=0.5
D=0.5
1
D=0.2
D=0.1
D=0.05
Single Pulse
NEW PRODUCT
20
D=0.2
D=0.1
D=0.05
Single Pulse
100µ 1m
10m 100m
1
10
100
1k
100µ 1m
10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
10000
Transient Thermal Impedance
Single Pulse
T
amb
=25°C
Max Power Dissipation (W)
1000
100
10
Junction to Ambient
Junction to Lead
1
100µ 1m
10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Power Dissipation
Average Forward Current - I
F
(A)
10
9
8
7
R
th(J-L)
= 2°C/W
6
5
4
3
2
1
0
0
25
50
Average Power Loss (W)
75
100
125
150
18
16
14
12
10
8
6
4
2
0
(AV)
D = 0.5
D = 0.2
D = 0.1
D=1
0
1
2
3
4
5
6
(AV)
7
8
Allowed Lead Temperature (°C)
Forward Current Rating Curve
Average Forward Current - I
F
(A)
Forward Power Loss
DSR8A600
Document number: DS36247 Rev. 3 - 2
3 of 6
www.diodes.com
July 2014
© Diodes Incorporated

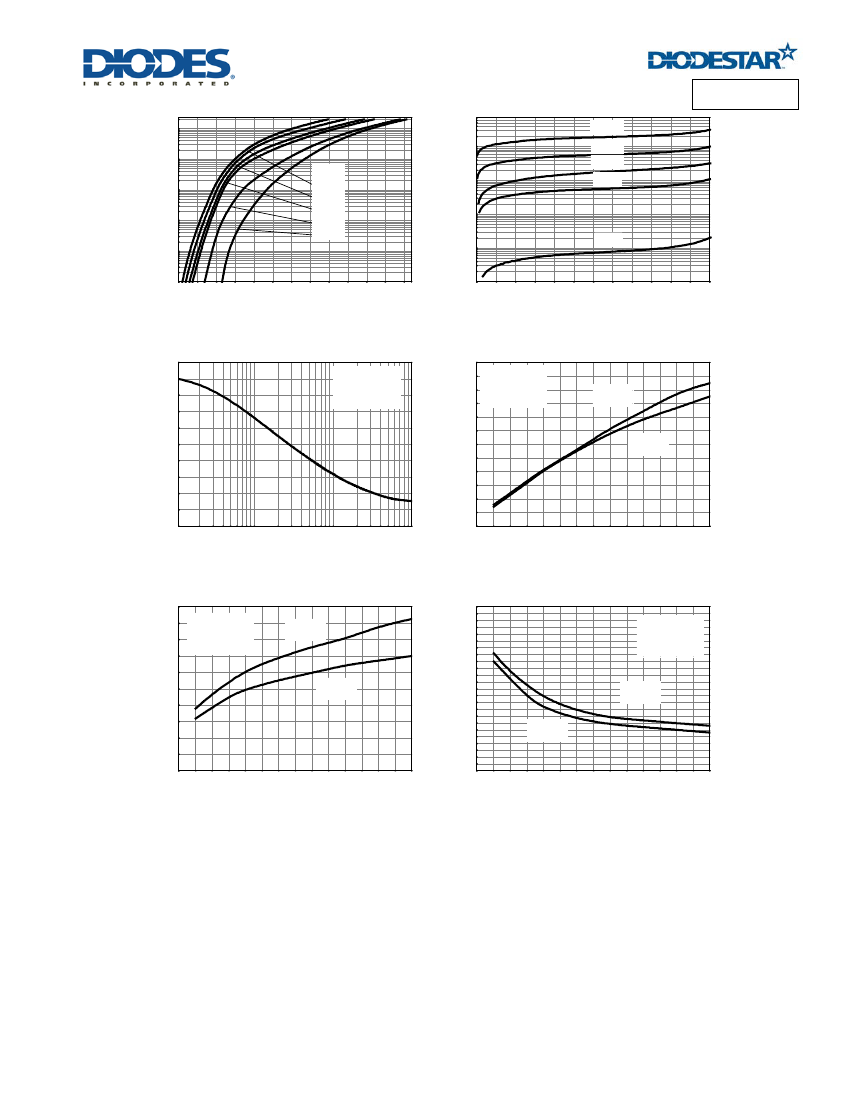

DSR8A600
10
150°C
I
F
- Forward Current (A)
1
100m
10m
1m
100µ
0.0
0.5
1.0
1.5
2.0
2.5
3.0
150°C
125°C
100°C
85°C
25°C
-55°C
I
R
Reverse Current (A)
100µ
10µ
1µ
100n
10n
0
125°C
100°C
85°C
25°C
NEW PRODUCT
V
F
- Forward Voltage (V)
100
200
300
400
500
600
Instantaneous Forward Voltage (V)
50
12
= 390V
VT
J
= 25°C
R
T
J
= 1MHz
f = 125°C
Reverse Leakage Current
V
R
= 390V
T
J
= 125°C
V
R
- Reverse Voltage (V)
C Capacitance (pF)
40
30
10
8
I
F
= 8A
I
RM
(A)
6
4
2
I
F
= 4A
20
10
0
1
10
100
0
V
R
- Reverse Voltage (V)
0
100
200
dI
F
/dt (A/µs)
300
400
500
600
700
Capacitance vs Reverse Voltage
200
160
V
R
= 390V
T
J
= 125°C
I
F
= 8A
Peak reverse current vs dI
F
/dt
120
110
100
90
80
70
60
50
40
30
20
10
0
V
R
= 390V
T
J
= 125°C
Qrr (nC)
120
I
F
= 4A
t
rr
(ns)
80
40
0
0
100
200
300
400
500
600
700
I
F
= 8A
I
F
= 4A
Reverse recovery charge vs dI
F
/dt
dI
F
/dt (A/µs)
0
100
200
dI
F
/dt (A/µs)
300
400
500
600
700
Reverse Recovery Time vs dI
F
/dt
DSR8A600
Document number: DS36247 Rev. 3 - 2
4 of 6
www.diodes.com
July 2014
© Diodes Incorporated
DSR8A600

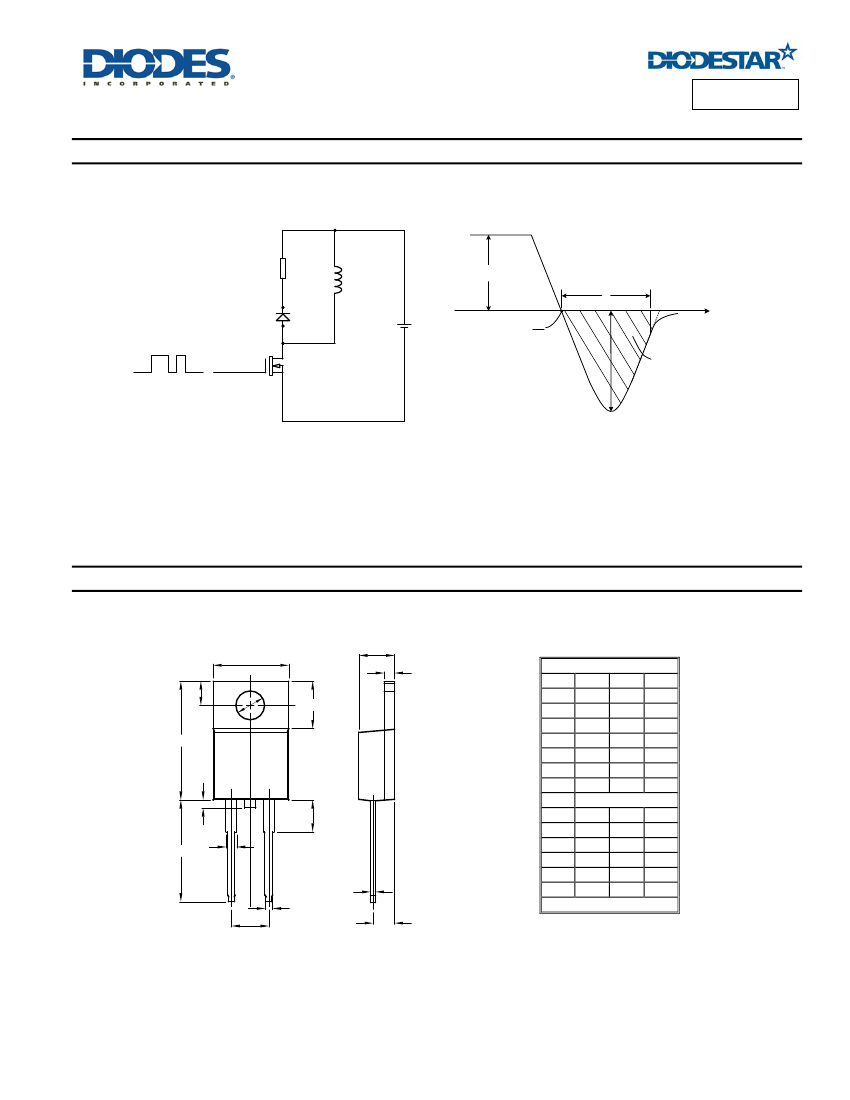

Test Circuit and Waveform definitions
R
sense
NEW PRODUCT
L
I
F
t
rr
DUT
+
-
dI
F
dt
Q
rr
0.25I
RM
t
D
G
S
I
RM
t
rr
Test Circuit
t
rr
Waveform and definitions
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
E
Q
A
A1
H1
P
D
L2
L1
b2
L
c
b
e1
A2
TO220AC
Dim Min Typ Max
A
4.40
-
4.82
A1
1.1
-
1.40
A2
2.05
-
2.92
b
0.72
-
1.00
b2
1.16
-
1.45
c
0.36
-
0.68
D
14.70
-
15.87
e1
5.08
E
9.80
-
10.26
H1
5.80
-
6.40
L
12.70
-
13.96
L1
3.56
-
4.50
P
3.70
-
3.90
Q
2.54
-
3.30
All Dimensions in mm
DSR8A600
Document number: DS36247 Rev. 3 - 2
5 of 6
www.diodes.com
July 2014
© Diodes Incorporated
