TSF30U100C thru TSF30U120C
Taiwan Semiconductor
Trench Schottky Rectifier
FEATURES
- Patented Trench Schottky technology
- Excellent high temperature stability
- Low forward voltage
- Lower power loss/ High efficiency
- High forward surge capability
- Compliant to RoHS directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition

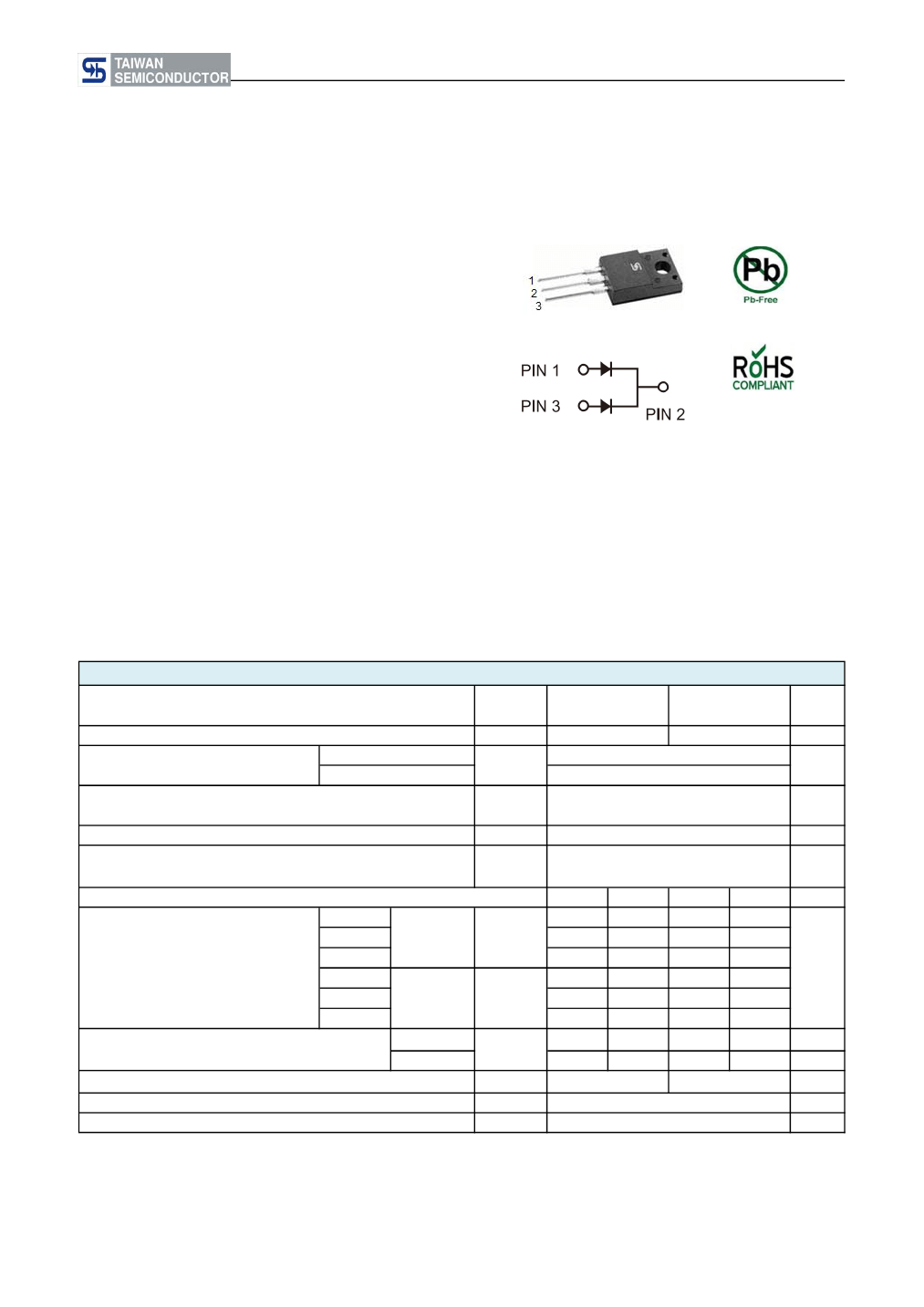

ITO-220AB
TYPICAL APPLICATIONS
Trench Schottky barrier rectifier are designed for high frequency
miniature switched mode power supplies such as adapters, lighting
and on-board DC/DC converters.
MECHANICAL DATA
Case:
ITO-220AB
Molding compound meets UL 94 V-0 flammability rating
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.7 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum average forward rectified
current
per device
per diode
SYMBOL
V
RRM
I
F(AV)
I
FSM
dV/dt
V
AC
Typ.
I
F
= 5A
I
F
= 7.5A
Instantaneous forward voltage per diode
( Note1 )
I
F
= 15A
I
F
= 5A
I
F
= 7.5A
I
F
= 15A
Instantaneous reverse current per diode at rated
reverse voltage
Typical thermal resistance per diode
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with Pulse Width=300μs, 1% Duty Cycle
Document Number: DS_D1411051
Version: D14
T
J
= 25°C
T
J
= 125°C
I
R
R
θJC
T
J
T
STG
T
J
= 125°C
V
F
T
J
= 25°C
V
F
0.52
0.56
0.66
0.44
0.51
0.60
12
7.0
2.5
- 55 to +150
- 55 to +150
Max.
-
-
0.74
-
-
0.67
500
35
TSF30U
100C
100
30
15
160
10000
1500
Typ.
0.56
0.65
0.78
0.49
0.56
0.65
15
5
3.5
Max.
-
-
0.88
-
-
0.75
500
35
μA
mA
°C/W
°C
°C
V
TSF30U
120C
120
UNIT
V
A
A
V/μs
V
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load per diode
Voltage rate of change (Rated V
R
)
Isolation voltage from terminal to heatsink t = 1 min
TSF30U100C thru TSF30U120C
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
TSF30UXXXC
(Note 1)
PACKING CODE
C0
PACKING CODE
SUFFIX
G
PACKAGE
ITO-220AB
PACKING
50 / Tube
Note 1: "xxx" defines voltage from 100V (TSF30U100C) to 120V (TSF30U120C)
EXAMPLE
PREFERRED
PART NO.
TSF30U100C C0G
PART NO.
TSF30U100C
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
Green compound

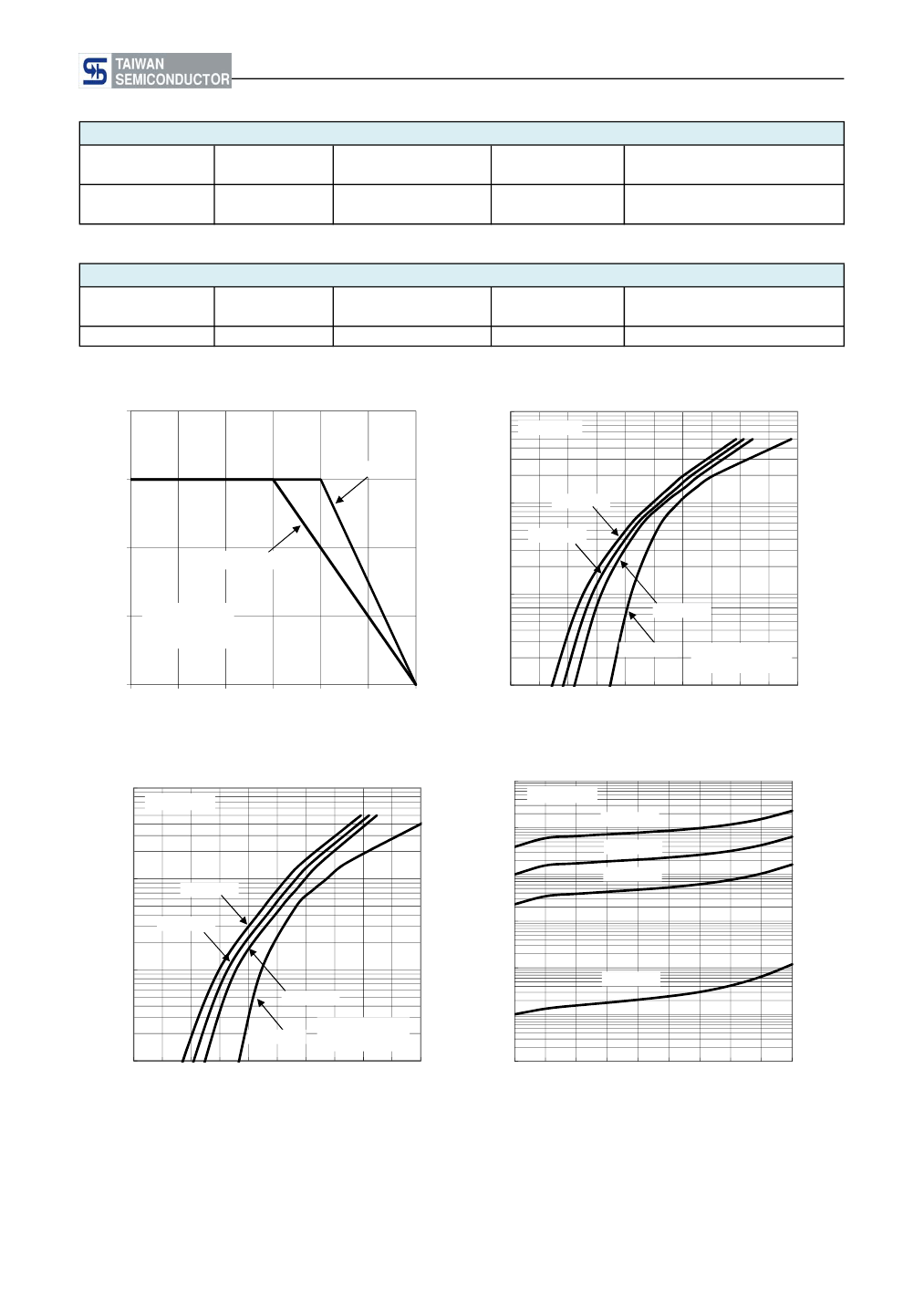

FIG.1 FORWARD CURRENT DERATING CURVE
40
100
FIG. 2 TYPICAL FORWARD CHARACTERISTICS PER
LEG
TSF30U100
AVERAGE FORWARD CURRENT (A)
30
TSF30U100C
INSTANTANEOUS FORWARD CURRENT (A)
10
T
J
=150
o
C
T
J
=125
o
C
20
TSF30U120C
1
10
WITH HEATSINK
3in x 5in x 0.25in
Al-Plate
T
J
=100
o
C
T
J
=25
o
C
0.1
Pulse Width=300μs
1% Duty Cycle
0.6
0.7
0.8
0.9
1
0
0
25
50
75
100
CASE TEMPERATURE (
o
C)
125
150
0
0.1
0.2
0.3
0.4
0.5
FORWARD VOLTAGE (V)
100
FIG. 3 TYPICAL FORWARD CHARACTERISTICS PER
LEG
TSF30U120C
INSTANTANEOUS REVERSE CURRENT (mA)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS PER LEG
100
TSF30U100C
10
T
J
=150
o
C
T
J
=125
o
C
INSTANTANEOUS FORWARD CURRENT (A)
10
1
T
J
=100
o
C
T
J
=150
o
C
T
J
=125
o
C
0.1
1
0.01
T
J
=25
o
C
T
J
=100
o
C
T
J
=25
o
C
0.1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
FORWARD VOLTAGE (V)
Pulse Width=300μs
1% Duty Cycle
0.001
0.0001
10
20
30
40
50
60
70
80
90
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1411051
Version: D14
TSF30U100C thru TSF30U120C
Taiwan Semiconductor

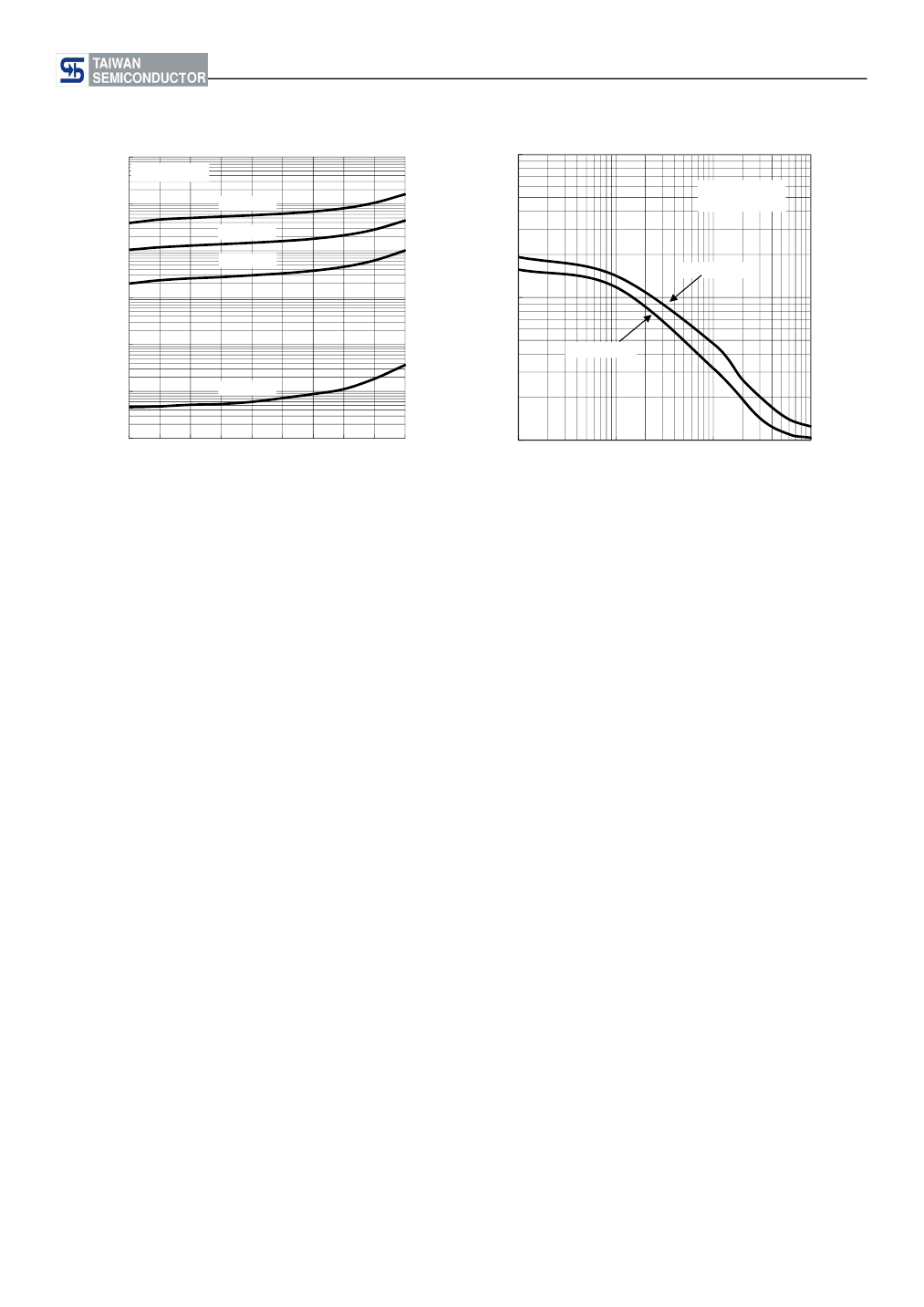

FIG. 5 TYPICAL REVERSE CHARACTERISTICS PER LEG
100
TSF30U120C
10
INSTANTANEOUS REVERSE CURRENT (mA)
FIG. 6 TYPICAL JUNCTION CAPACITANCE PER LEG
10000
T
J
=125
o
C
1
T
J
=100
o
C
JUNCTION CAPACITANCE (pF)
A
T
J
=150
o
C
f=1.0MHz
Vsig=50mVp-p
TSF30U100C
0.1
1000
0.01
TSF30U120C
0.001
T
J
=25
o
C
0.0001
10
20
30
40
50
60
70
80
90
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
100
0.1
1
10
100
REVERSE VOLTAGE (V)
Document Number: DS_D1411051
Version: D14
TSF30U100C thru TSF30U120C
Taiwan Semiconductor

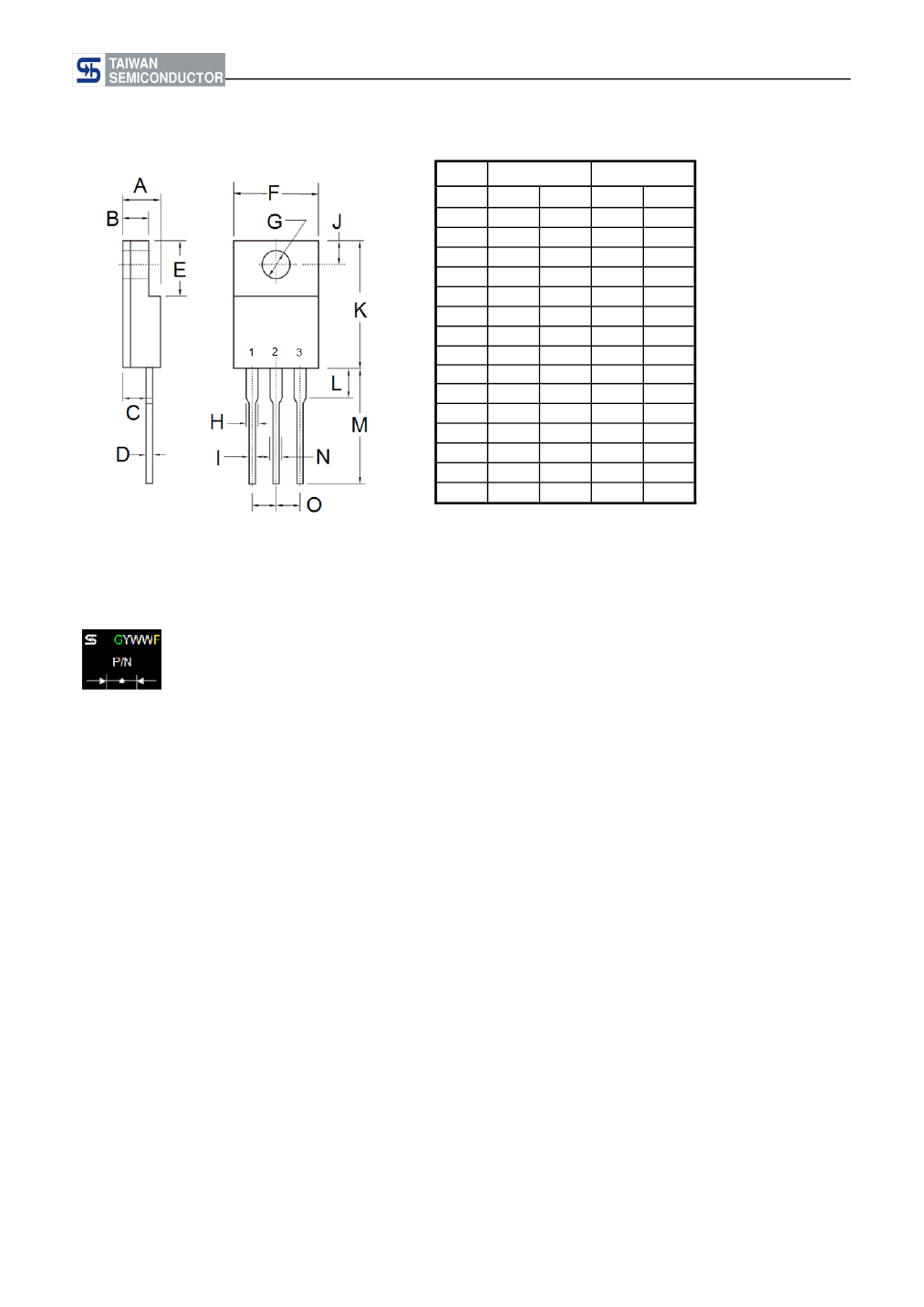

PACKAGE OUTLINE DIMENSIONS
ITO-220AB
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.95
0.50
2.40
14.80
-
12.60
-
2.41
Max
4.70
3.16
2.96
0.76
6.90
10.30
3.40
1.45
0.90
3.20
15.50
4.10
13.80
1.80
2.67
Unit (inch)
Min
0.17
0.10
0.09
0.02
0.25
0.38
0.12
0.04
0.02
0.09
0.58
-
0.50
-
0.09
Max
0.19
0.12
0.12
0.03
0.27
0.41
0.13
0.06
0.04
0.13
0.61
0.16
0.54
0.07
0.11
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1411051
Version: D14
TSF30U100C thru TSF30U120C
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1411051
Version: D14
