TS15PL05G - TS15PL06G
Taiwan Semiconductor
CREAT BY ART

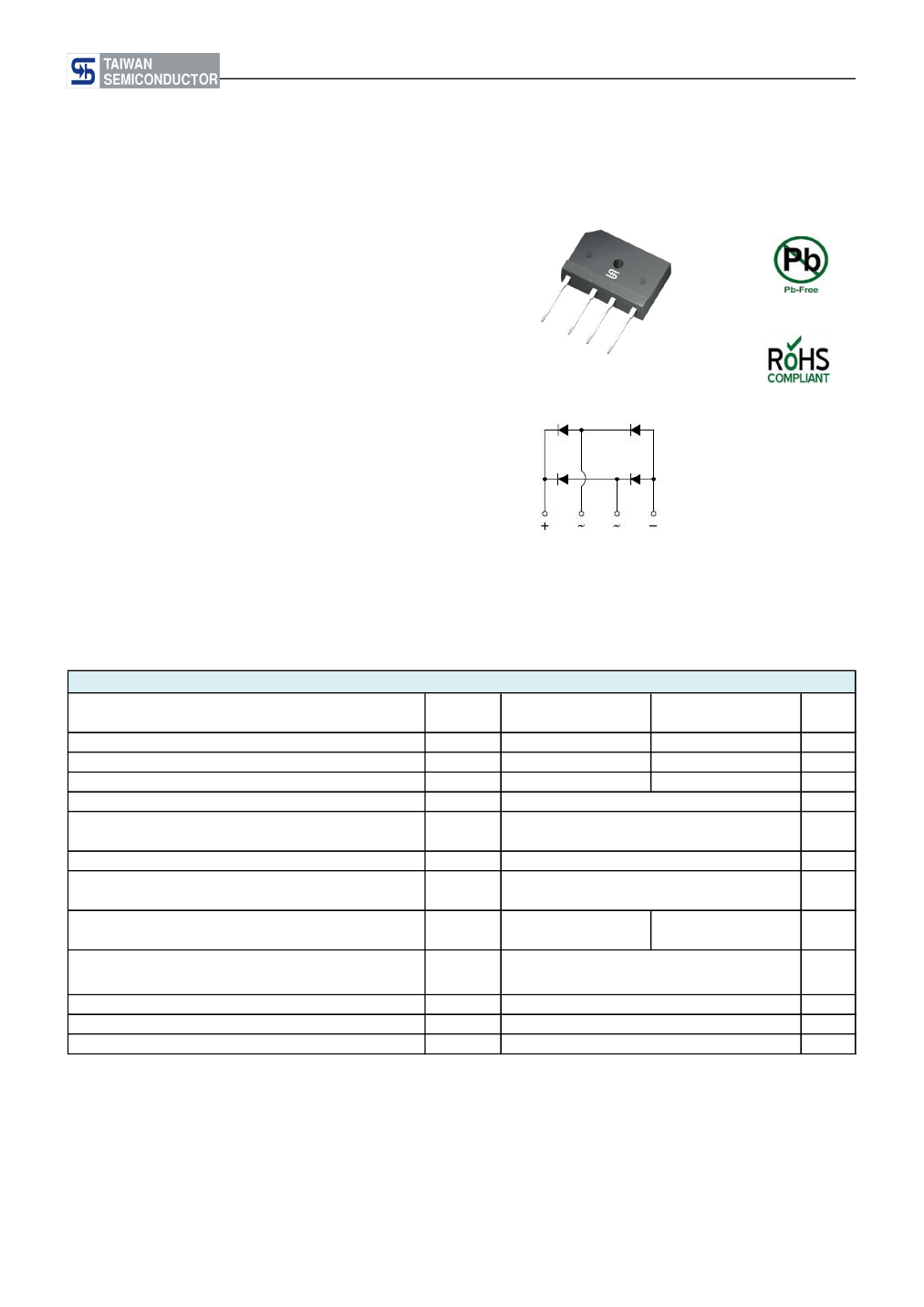

15A, 600V - 800V
Low VF- Low Noise Single-Phase Single In-Line Bridge Rectifier
FEATURES
- Low Forward drop enhance the efficiency
- Oxide Planar chip junction
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
+
~
~
-
TS-6P
TYPICAL APPLICATIONS
General purpose use in AC/DC bridge full wave rectification.
Especially for high efficiency desktop, telecom, server,
white goods, home appliances, TV game console SMPS.
MECHANICAL DATA
Case:
TS-6P
Molding compound, UL flammability classification rating 94V-0
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
Polarity as marked on the body
Mounting torque:
Maximum 0.8Nm; 0.5Nm is recommended
Weight:
7.15g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Peak forward surge current, 1 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 7.5A
Maximum DC reverse current
at rated DC blocking voltage
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
I
FSM
V
F
I
R
R
θJC
T
J
T
STG
0.90
5
150
2
- 55 to +150
- 55 to +150
TS15PL05G
600
420
600
15
200
166
630
0.93
TS15PL06G
800
560
800
UNIT
V
V
V
A
A
A
2
s
A
V
μA
°C/W
°C
°C
Document Number: DS_D1411010
Version: D15
TS15PL05G - TS15PL06G
Taiwan Semiconductor
ORDER INFORMATION (EXAMPLE)
TS15PL05G D2G
Green compound code
Packing code
Part no.
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)

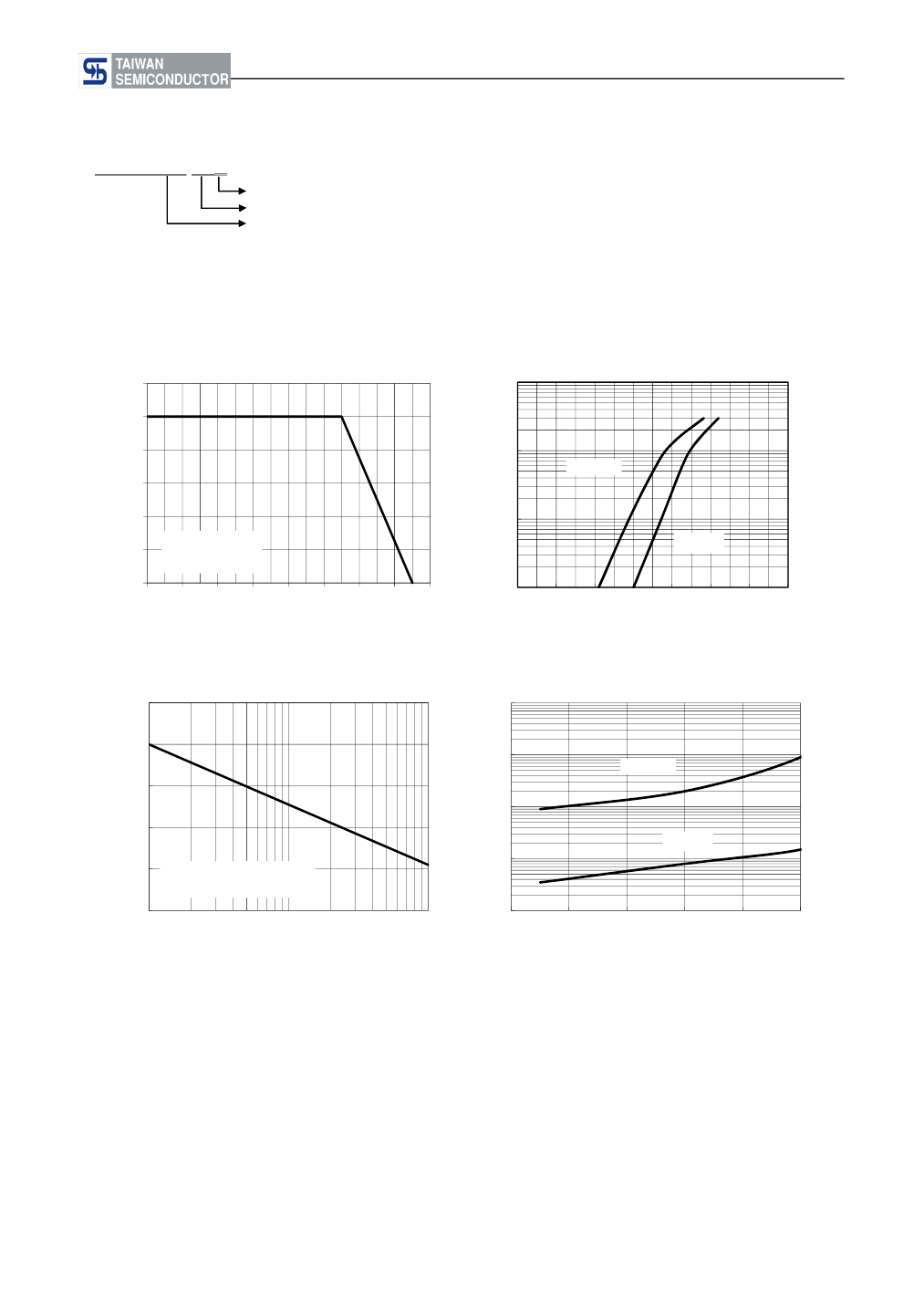

FIG.1 MAXIMUM DERATING CURVE FOR OUTPUT
CURRENT
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
100
18
AVERAGE FORWARD CURRENT (A)
15
12
9
6
3
0
0
10
T
J
=125°C
1
T
J
=25°C
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
20
40
60
80
100
120
140
160
0.1
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
CASE TEMPERATURE (
o
C)
INSTANTANEOUS FORWARD VOLTAGE (A)
FIG. 3 MAXIMUM SURGE CURRENT
PEAK FORWARD SURG CURRENT (A)
250
100
INSTANTANEOUS REVERSE
A
CURRENT (μA)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
200
10
T
J
=125°C
1
T
J
=25°C
0.1
150
100
50
8.3ms Single Half Sine Wave
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1411010
Version: D15

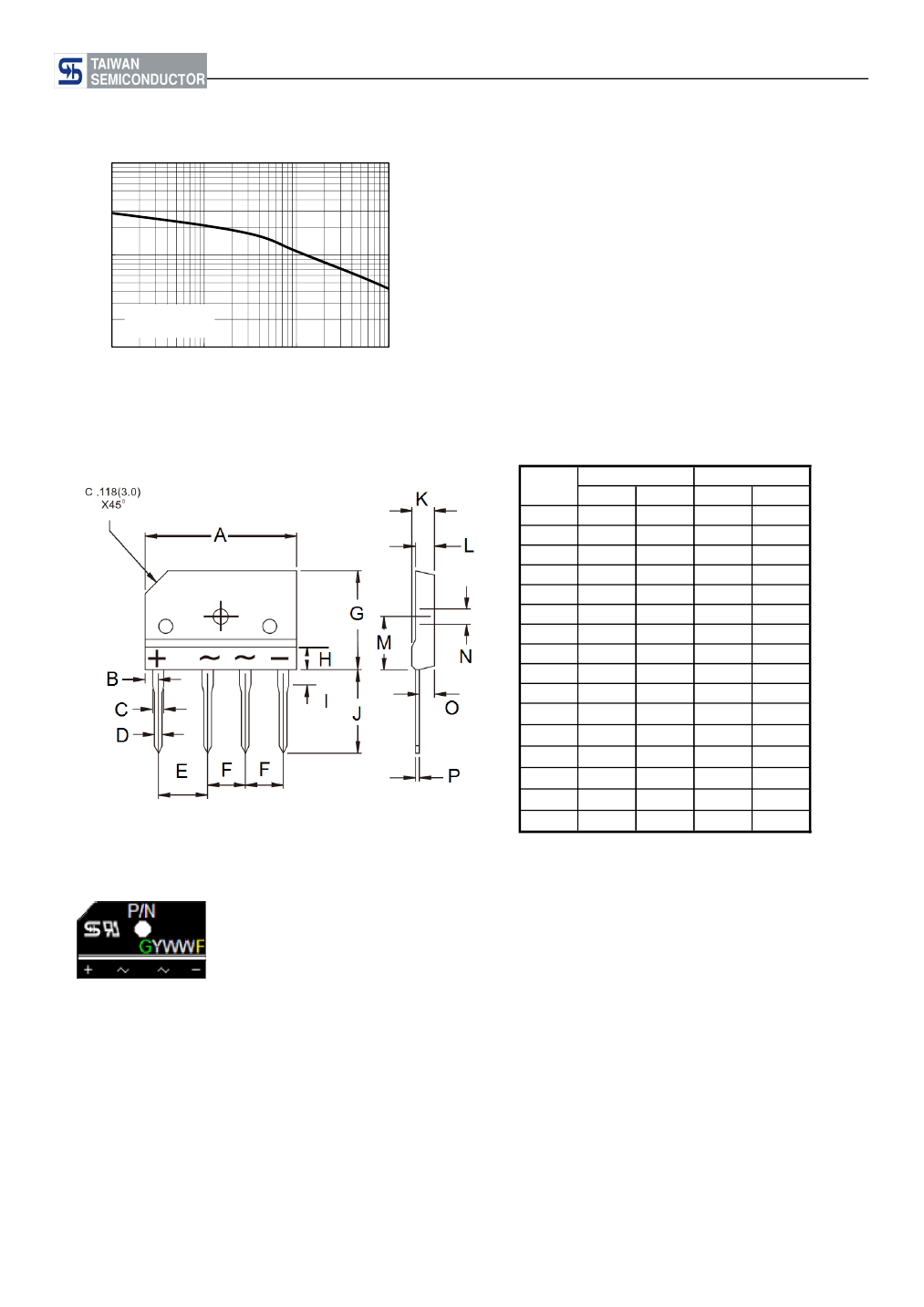

TS15PL05G - TS15PL06G
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1411010
Version: D15
