TS40P05G thru TS40P07G
Taiwan Semiconductor
CREAT BY ART

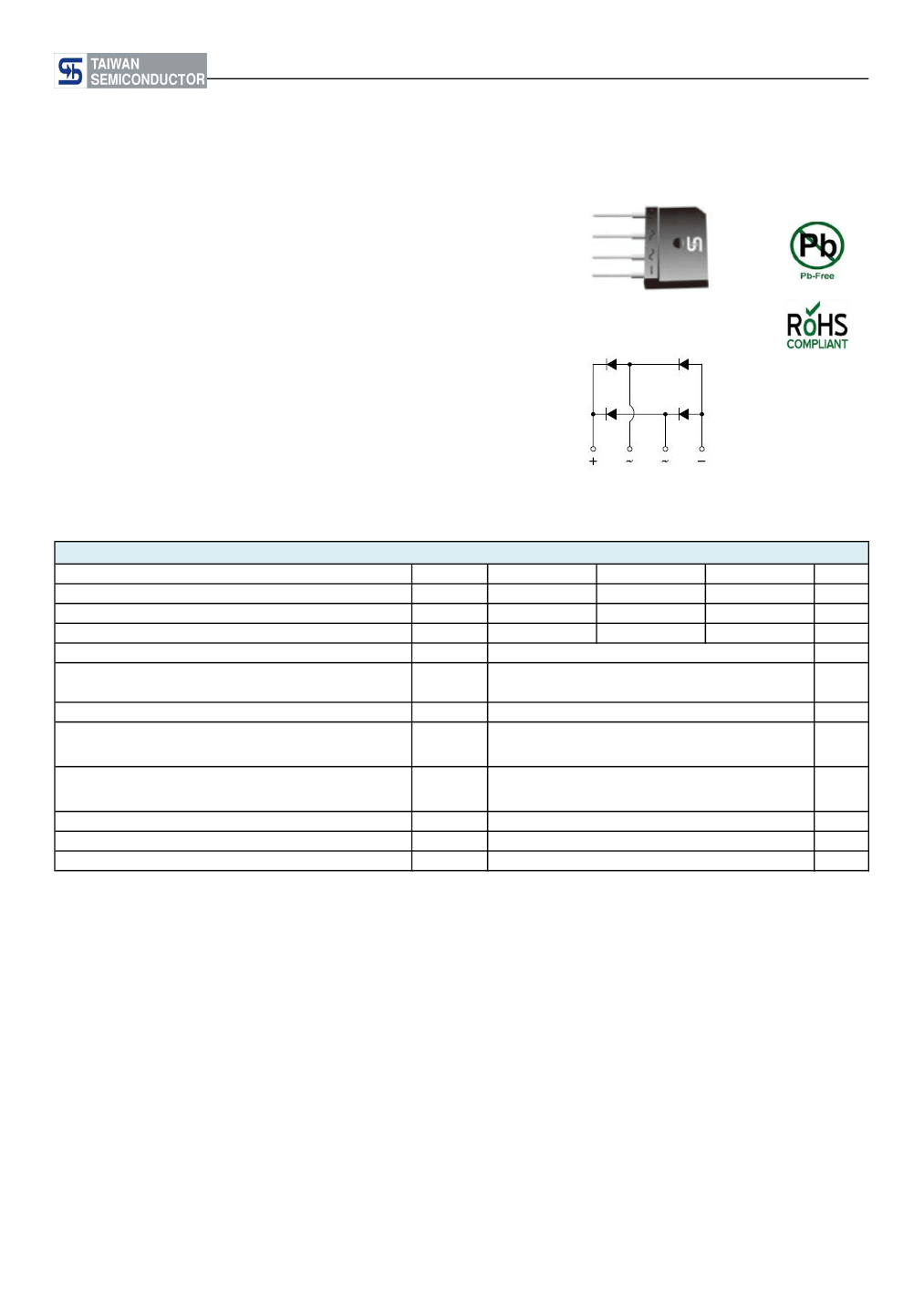

FEATURES
- Glass passivated junction
- Ideal for printed circuit board
- Typical IR less than 0.1μA
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Glass Passivated Bridge Rectifiers
TS-6P
MECHANICAL DATA
Case:
TS-6P
Molding compound, UL flammability classification rating 94V-0
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
Polarity as marked on the body
Mounting torque:
8.17 in-lbs maximum
Weight:
7.15 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 20 A
Maximum DC reverse current
at rated DC blocking voltage
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
R
θJC
T
J
T
STG
TS40P05G
600
420
600
TS40P06G
800
560
800
40
400
664
1.1
10
500
0.57
- 55 to +150
- 55 to +150
TS40P07G
1000
700
1000
Unit
V
V
V
A
A
A
2
s
V
μA
°C/W
°C
°C
Document Number: DS_D1411008
Version: D15
TS40P05G thru TS40P07G
Taiwan Semiconductor
ORDER INFORMATION (EXAMPLE)
TS40P05G D2G
Green compound code
Packing code
Part no.

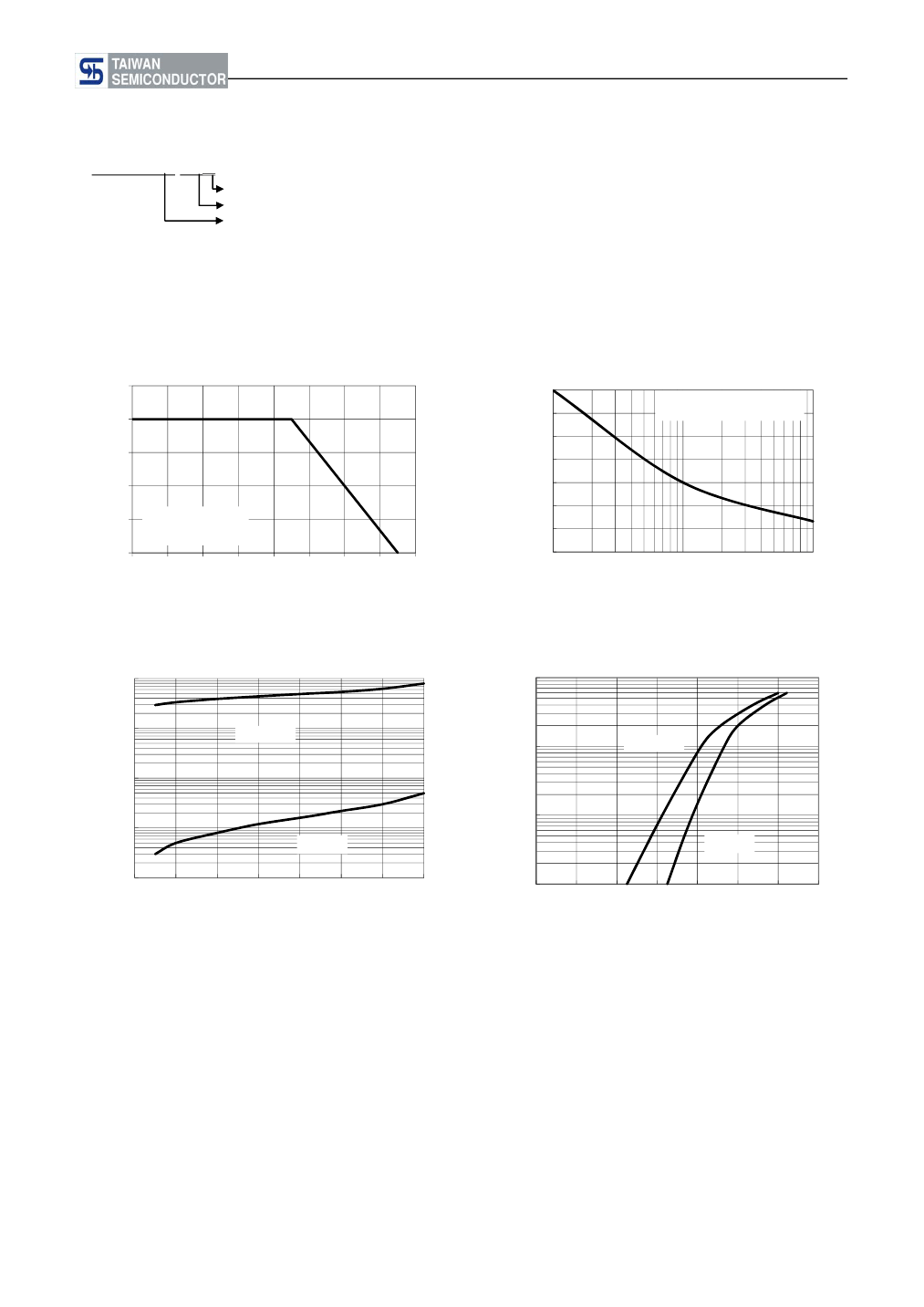

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
PEAK FORWARD SURGE CURRENT (A)
AVERAGE FORWARD CURRENT (A)
50
40
30
20
10
0
0
20
40
60
80
100
120
140
160
CASE TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
400
350
300
250
200
150
100
50
1
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
8.3ms Single Half Sine Wave
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 TYPICAL REVERSE CHARACTERISTICS
PER LEG
100
INSTANTANEOUS REVERSE
A
CURRENT (μA)
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
PER LEG
10
T
J
=125°C
INSTANTANEOUS FORWARD
A
CURRENT (A)
10
T
J
=125°C
1
0.1
T
J
=25℃
1
T
J
=25℃
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
INSTANTANEOUS FORWARD VOLTAGE (V)
Document Number: DS_D1411008
Version: D15
TS40P05G thru TS40P07G
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
PER LEG
1000
JUNCTION CAPACITANCE (pF)
A
100
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
100
REVERSE VOLTAGE (V)

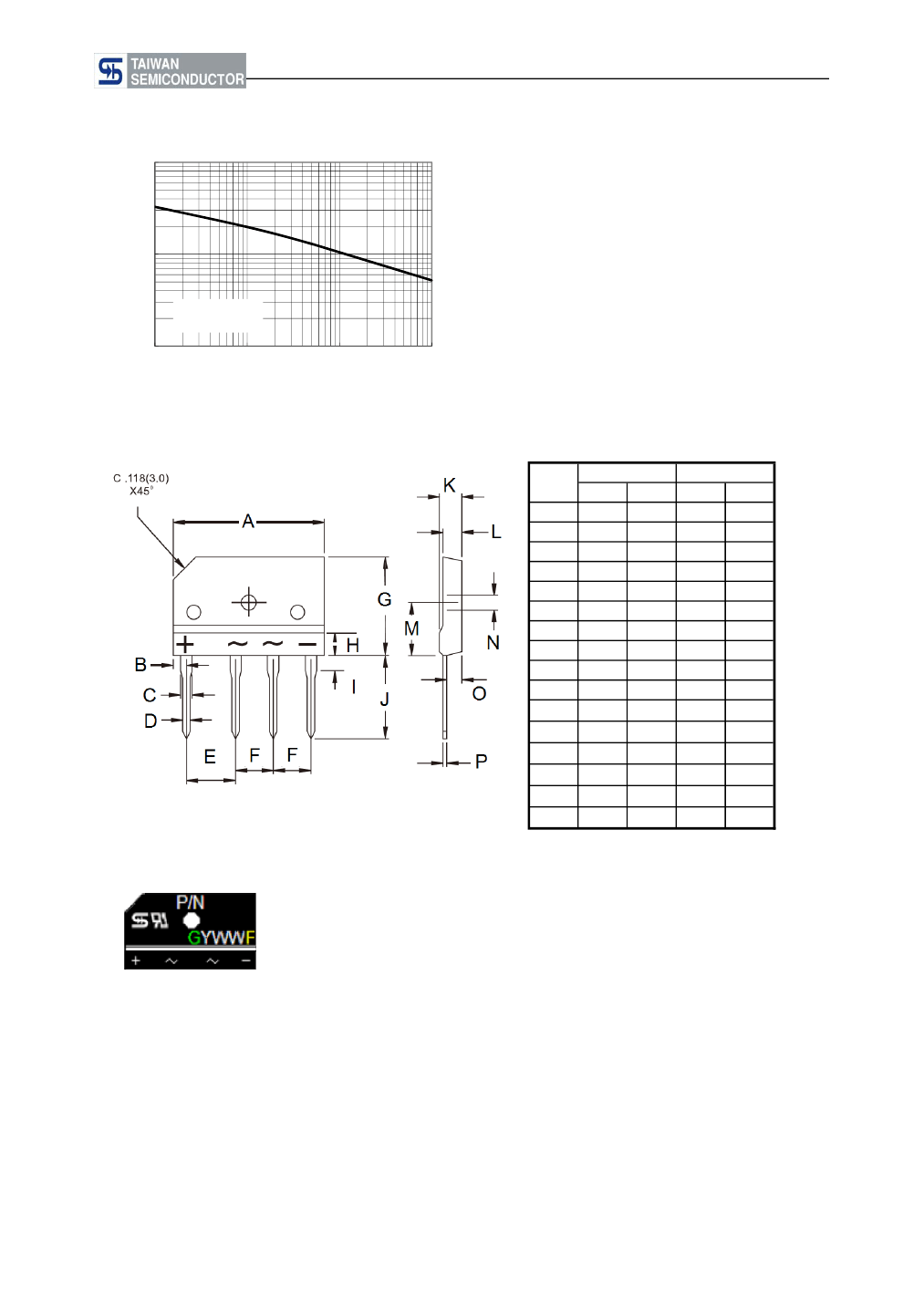

PACKAGE OUTLINE DIMENSIONS
TS-6P
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Unit (mm)
Min
29.70
2.30
2.00
0.90
9.80
7.30
19.70
-
3.80
17.00
4.40
3.40
10.80
3.10
2.50
0.65
Max
30.30
2.70
2.40
1.10
10.20
7.70
20.30
4.80
4.20
18.00
4.80
3.80
11.20
3.40
2.90
0.75
Unit (inch)
Min
1.169
0.091
0.079
0.035
0.386
0.287
0.776
-
0.150
0.669
0.173
0.134
0.425
0.122
0.098
0.026
Max
1.193
0.106
0.094
0.043
0.402
0.303
0.799
0.189
0.165
0.709
0.189
0.150
0.441
0.134
0.114
0.030
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1411008
Version: D15
TS40P05G thru TS40P07G
Taiwan Semiconductor
CREAT BY ART
