BAT42W/BAT43W
Taiwan Semiconductor
Small Signal Product

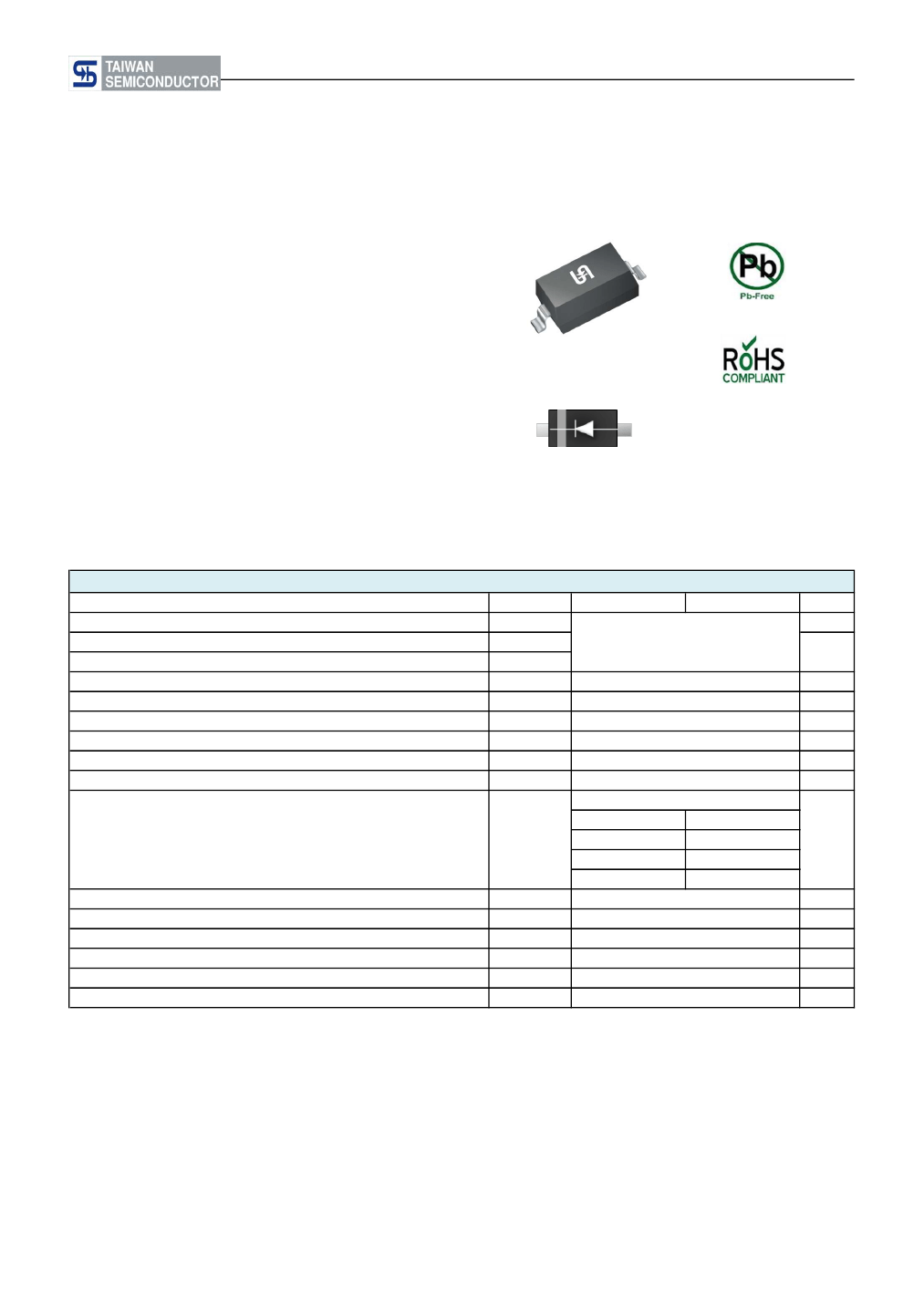

Surface Mount, Switching Schottky Barrier Diode
FEATURES
- Low forward voltage drop
- Surface mount device type
- Moisture sensitivity level (MSL): 1
- Packing code with suffix "G" means
green compound (halogen-free)
SOD-123
MECHANICAL DATA
- Case: Bend lead SOD-123 small outline plastic package
- Terminal: Matte tin plated, lead free,
solderable per MIL-STD-202, Method 208 guaranteed
- High temperature soldering guaranteed : 260°C/10s
- Polarity: Indicated by cathode band
- Weight: 0.01 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continue Current
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge Current
Repetitive Peak Forward Surge Current
Power Dissipation
(Note 1)
I
F
=200mA
I
F
=2mA
Maximum Forward Voltage
I
F
=10mA
I
F
=15mA
I
F
=50mA
Peak Reverse Current
Junction Capacitance
Reverse Recovery Time
Thermal Resistance Junction to Ambient Air
Operating Temperature Range
Storage Temperature Range
Notes: 1. Valid provided that terminals are kept at ambient temerature.
2. Reverse recovery test conditions : I
F
=10mA, I
R
=10mA, R
L
=100Ω, I
RR
=1mA
@ V
R
=25V & T
J
=25 C
V
R
=1V, f=1.0MHz
(Note 2)
(Note 1)
o
SYMBOL
V
RRM
V
RWM
V
R
V
R(RMS)
(Note 1)
@ t
＜
1.0s
@ t
＜
1.0 ms
I
FM
I
FM
I
FSM
I
FRM
P
d
BAT42W
30
21
200
500
4
500
200
1.0
-
BAT43W
UNIT
V
V
V
mA
mA
A
mA
mW
0.33
-
0.45
-
500
10
5
625
-55 to +125
-55 to +125
nA
pF
ns
o
o
o
V
F
0.40
-
0.65
V
I
R
C
j
T
rr
R
θJA
T
J
T
STG
C
C
C
Document Number: DS_S1412009
Version: E14
BAT42W/BAT43W
Taiwan Semiconductor
Small Signal Product

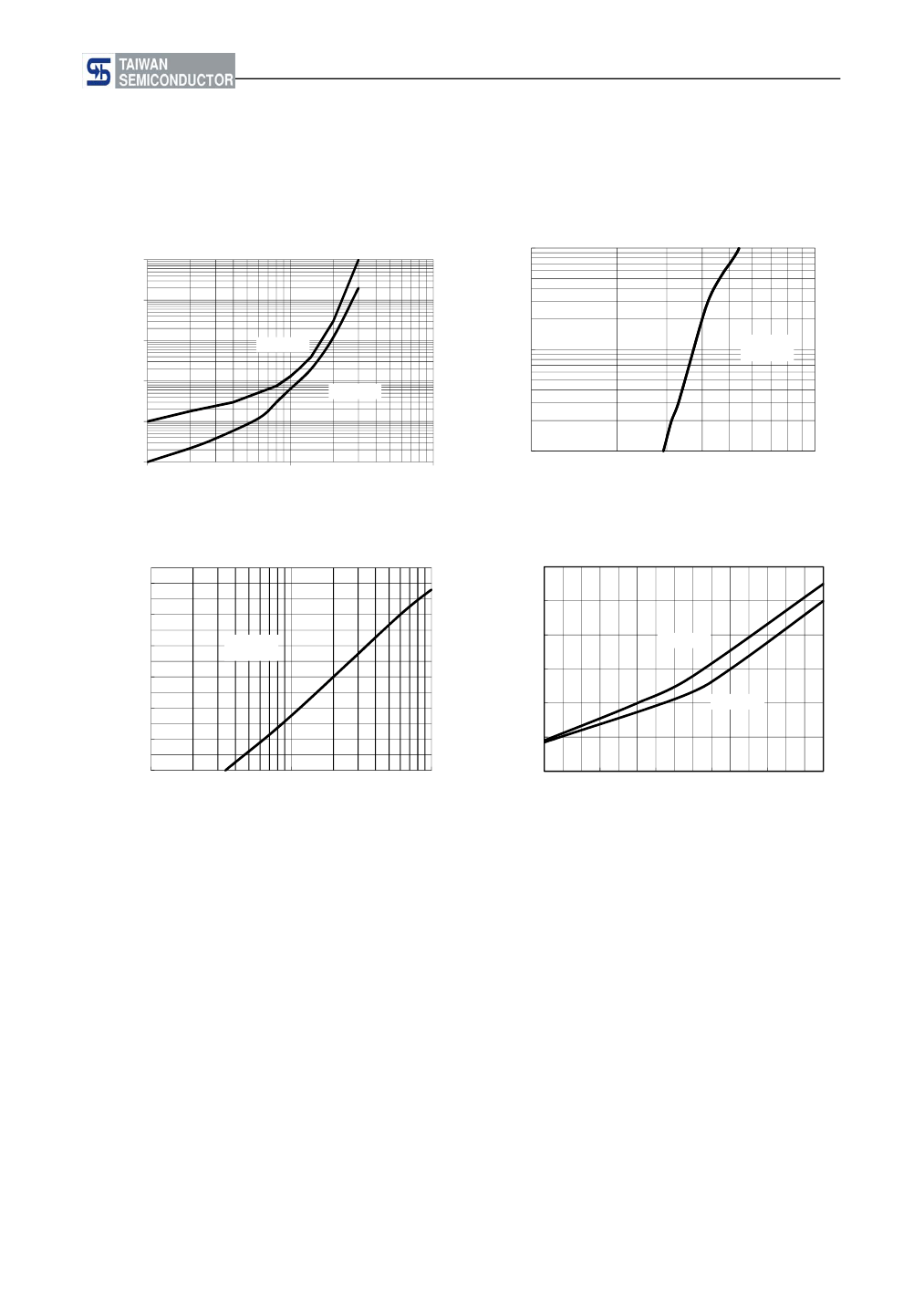

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25℃ unless otherwise noted)
Fig.1 Typical Forward Characteristics
1000
Instantaneous Forward Current (uA)
Fig. 2 Typical Forward Characteristics
100
10
Forward Current (mA)
100
BAT43W
10
BAT42W
BAT43W
1
BAT42W
0.1
1
10
100
Instantaneous Forward Voltage (mV)
1000
100
Forward Voltage (mV)
1000
0.01
Fig. 3 Typical Reverse Characteristics
120
15.5
Reverse Leakage Current (nA)
100
14.5
Reverse Current (nA)
13.5
12.5
11.5
10.5
9.5
10
100
Reverse Voltage (mV)
1000
BAT42W
BAT43W
80
60
40
20
0
2
Fig. 4 Typical Reverse Characteristics
BAT43W
BAT42W
8
14
20
26
32
Reverse Voltage (V)
Document Number: DS_S1412009
Version: E14
BAT42W/BAT43W
Taiwan Semiconductor
Small Signal Product
ORDERING INFORMATION
PART NO.
BAT4xW
(Note 1)
PART NO.
SUFFIX
(Note 2)
-xx
PACKING
CODE
RP
RF
PACKING CODE
SUFFIX
G
PACKAGE
SOD-123
PACKING
3,000 / 7" Reel
Note 1: "x" is Device Code from "2" thru "3".
Note 2: Part No. Suffix „-xx “ would be used for special requirement
EXAMPLE
PREFERRED P/N
BAT42W RP
PART NO.
BAT42W
PART NO.
SUFFIX
PACKING CODE
RP
PACKING CODE
SUFFIX
DESCRIPTION
Multiple manufacture
source
G
Multiple manufacture
source
Green compound
Define manufacture
source
Green compound
Define manufacture
source
Green compound
BAT42W RPG
BAT42W
RP
BAT42W-M0 RPG
BAT42W
-M0
RP
G
BAT42W-D0 RFG
BAT42W
-D0
RF
G
Document Number: DS_S1412009
Version: E14
BAT42W/BAT43W
Taiwan Semiconductor
Small Signal Product

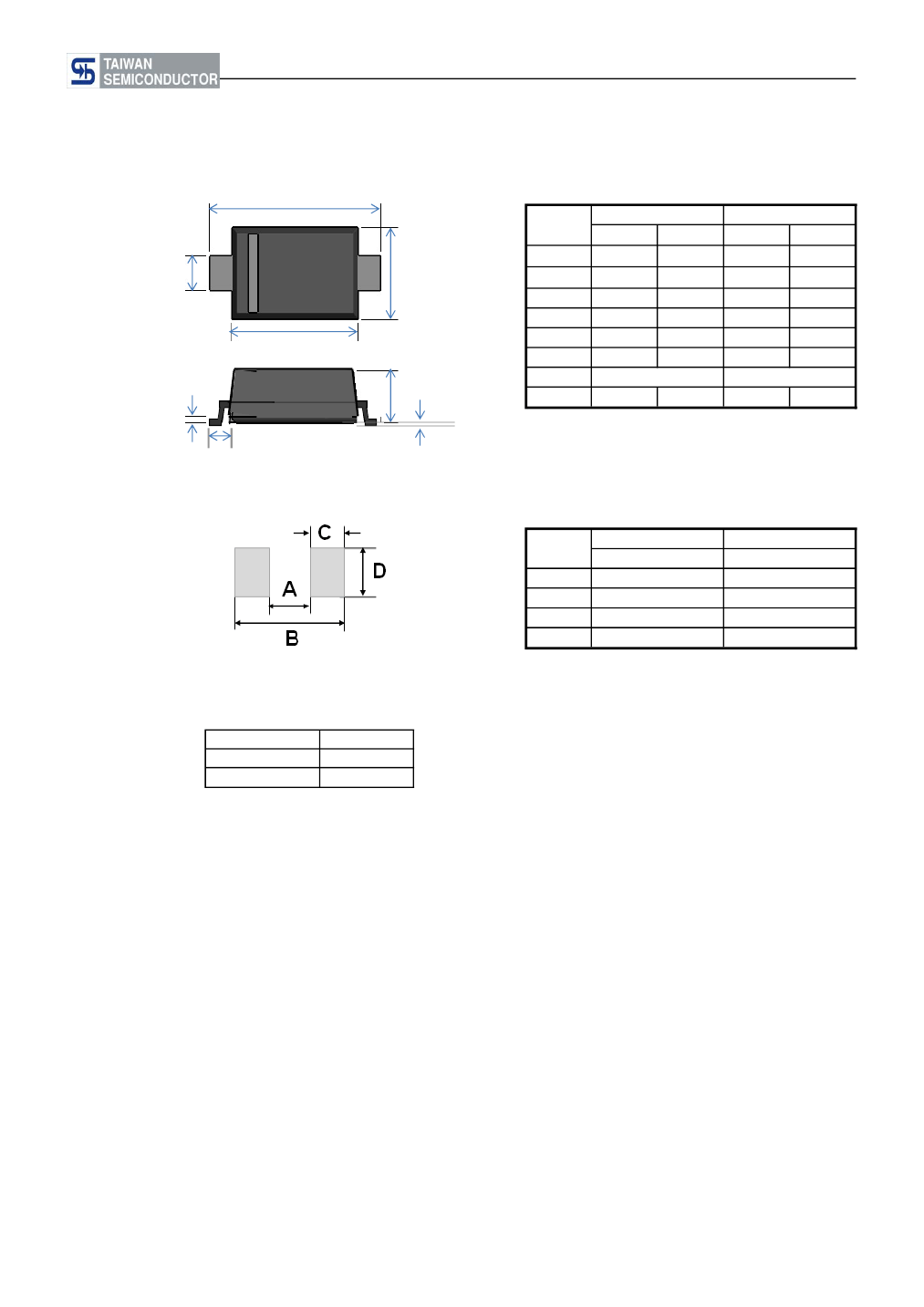

PACKAGE OUTLINE DIMENSIONS
B
DIM.
A
C
A
B
C
D
D
E
F
G
E
F
G
H
H
-
Unit (mm)
Min
1.40
3.55
0.45
2.55
0.95
0.05
Max
1.80
3.85
0.70
2.85
1.35
0.15
0.10
Unit (inch)
Min
0.055
0.140
0.018
0.100
0.037
0.002
-
Max
0.071
0.152
0.028
0.112
0.053
0.006
0.004
0.50 REF
0.02 REF
SUGGEST PAD LAYOUT
DIM.
A
B
C
D
Unit (mm)
Typ.
2.36
4.19
0.91
1.22
Unit (inch)
Typ.
0.093
0.165
0.036
0.048
MARKING
Part No.
BAT42W
BAT43W
Marking
S7
S8
Document Number: DS_S1412009
Version: E14
BAT42W/BAT43W
Taiwan Semiconductor
Small Signal Product
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_S1412009
Version: E14
