APT13005S

450V NPN HIGH VOLTAGE POWER TRANSISTOR

Features



BV

CEO

> 450V

BV

CES

> 700V

BV

EBO

> 9V

I

C

= 3.2A high Continuous Collector Current

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data



Case: TO126, TO251 or TO220F-3

Case Material: Molded Plastic, "Green" Molding Compound; UL

Flammability Classification Rating 94V-0

Terminals: Matte Tin Finish; Solderable per MIL-STD-202,

Method 208

Weight: TO126:

TO251:

400mg (Approximate)

340mg (Approximate)

Applications

Low power AC-DC SMPS for:



Battery Chargers for Mobile Phone / Tablets / Smartphones

Power Supply for DVD / STB

LED lighting

TO126

TO251

TO220F-3: 1500mg (Approximate)

TO220F-3

Isolated

C

B

E

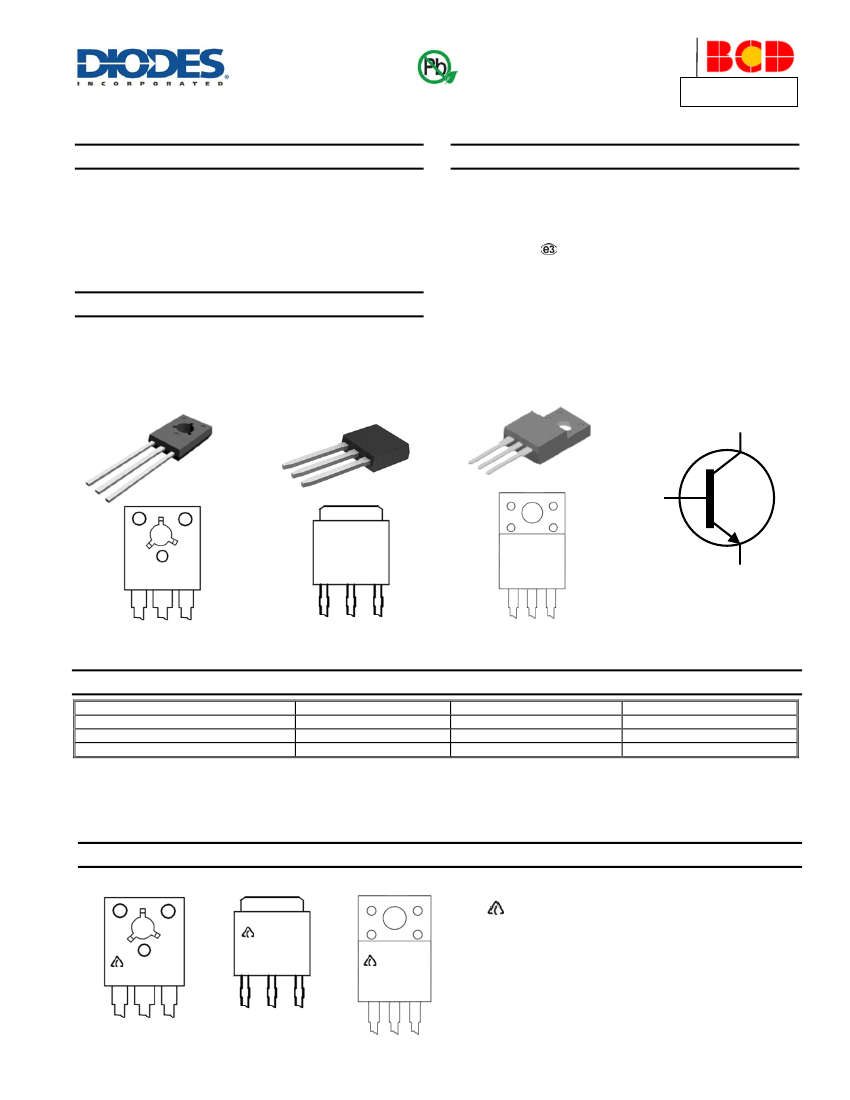

Device Schematic

B C E

Front Face View

Pin-Out

B C E

Front Face View

Pin-Out

B C E

Front Face View

Pin-Out

Ordering Information

(Note 4)

Product

APT13005SU-G1

APT13005SI-G1

APT13005STF-G1

Notes:

Package

TO126

TO251

TO220F-3

Marking

GU13005S

APT13005SI-G1

APT13005STF-G1

Quantity

4,000 Bulk, Loose per Box

3,600 per Box in Tubes

1,000 per Box in Tubes

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

TO126

TO251

TO220F-3

= Manufacturers’ code marking

For TO126: GU13005S = Product Type Marking ID

For TO251: APT13005SI-G1 = Product Type Marking ID

For TO220F-3: APT13005STF-G1 = Product Type Marking ID

YWW = Date Code Marking

e.g. 312 = Year 2013, Week 12.

8 = Assembly site code

XX = Batch Number

GU13005S

YWW8XX

APT13005S

I-G1

YWW8XX

APT13005S

TF-G1

YWW8XX

APT13005S

Datasheet Number: DS36309 Rev.1 - 2

1 of 8

www.diodes.com

July 2013

A Product Line of

Diodes Incorporated

APT13005S

Absolute Maximum Ratings

(@T

A

= +25°C, unless otherwise specified.)

Characteristic

Collector-Emitter Voltage (V

BE

= 0V)

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Pulse Collector Current

Continuous Base Current

Peak Pulse Base Current

Symbol

V

CES

V

CEO

V

EBO

I

C

I

CM

I

B

I

BM

Value

700

450

9

3.2

6.4

1.6

3.2

Unit

V

A

Thermal Characteristics

(@T

A

= +25°C, unless otherwise specified.)

Characteristic

For TO126 @T

C

= +25°C

Power Dissipation

For TO251 @T

C

= +25°C

For TO220F-3 @T

C

= +25°C

For TO126

Thermal Resistance, Junction to Case

Operating and Storage Temperature Range

For TO251

For TO220F-3

R

θJC

T

J,

T

STG

P

D

Symbol

Value

20

25

28

6.25

5.0

4.5

-65 to +150

C/W

C

W

Unit

ESD Ratings

(Note 5)

Characteristic

Electrostatic Discharge - Human Body Model

Electrostatic Discharge - Machine Model

Note:

5. Refer to JEDEC specification JESD22-A114 and JESD22-A115.

Symbol

ESD HBM

ESD MM

Value

≥

8,000

≥

400

Unit

V

JEDEC Class

3B

C

APT13005S

Datasheet Number: DS36309 Rev.1 - 2

2 of 8

www.diodes.com

July 2013

A Product Line of

Diodes Incorporated

APT13005S

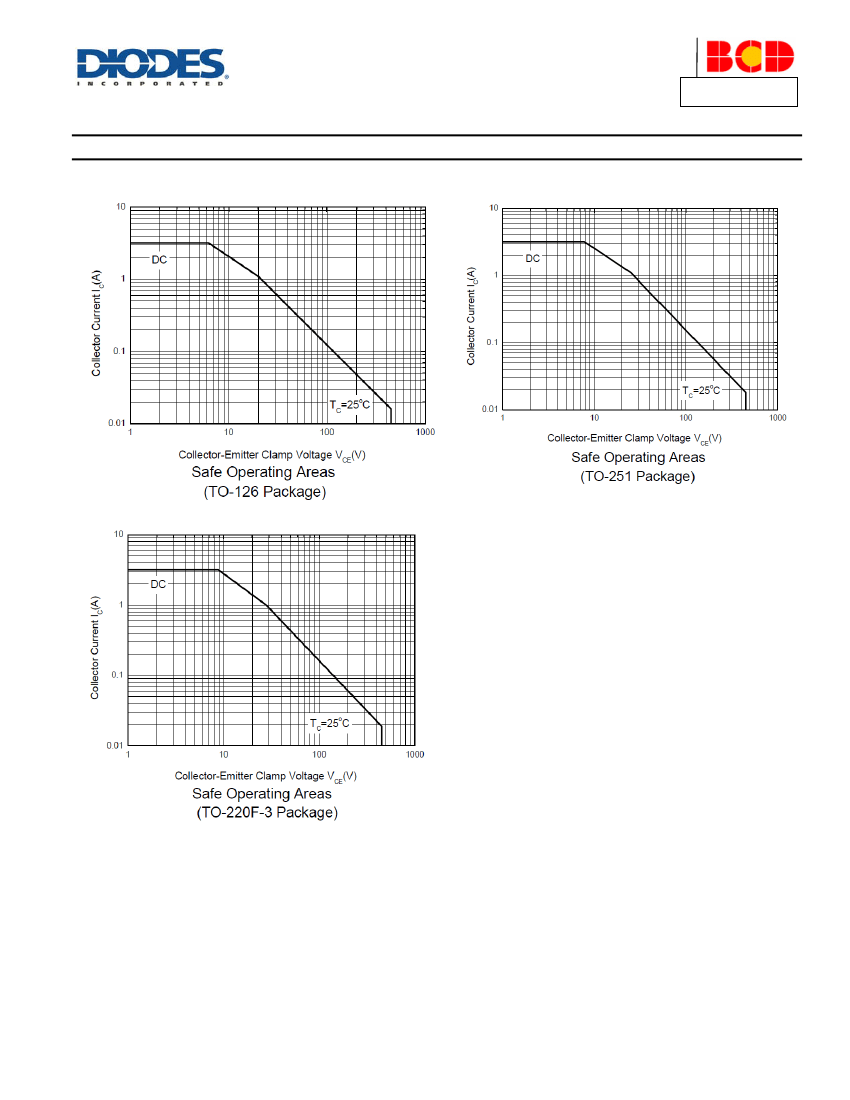

Safe Operating Areas

(@T

A

= +25°C, unless otherwise specified.)

APT13005S

Datasheet Number: DS36309 Rev.1 - 2

3 of 8

www.diodes.com

July 2013

A Product Line of

Diodes Incorporated

APT13005S

Electrical Characteristics

(@T

A

= +25°C, unless otherwise specified.)

Characteristic

Collector-Emitter Breakdown Voltage

Emitter-Base Breakdown Voltage

Collector Cutoff Current

DC current transfer Static ratio (Note 6)

Symbol

BV

CES

BV

CEO

BV

EBO

I

CEV

h

FE

Min

700

450

9

—

15

8

—

Typ

—

Max

—

10

35

0.3

0.6

1.0

1.2

1.4

Unit

V

µA

—

Test Condition

I

C

= 100µA, V

BE

= 0V

I

C

= 100µA

I

E

= 100µA

V

CE

= 700V, V

BE

= -1.5V

I

C

= 1A, V

CE

= 5V

I

C

= 2A, V

CE

= 5V

I

C

= 1A, I

B

= 0.2A

I

C

= 2A, I

B

= 0.5A

I

C

= 3A, I

B

= 0.75A

I

C

= 1A, I

B

= 0.2A

I

C

= 2A, I

B

= 0.5A

V

CB

= 10V, f = 0.1MHz

I

C

= 0.5A, V

CE

= 10V

I

C

= 2A, V

CC

= 125V,

I

B1

= -I

B2

= 0.4A

Collector-Emitter Saturation Voltage (Note 6)

V

CE(sat)

—

35

—

V

Base-Emitter Saturation Voltage (Note 6)

Output Capacitance

Transition Frequency

Turn-on Time with Resistive Load

Storage Time with Resistive Load

Fall Time with Resistive Load

Note:

V

BE(sat)

C

ob

f

T

t

on

t

s

t

f

V

pF

MHz

µs

—

4

—

0.7

4.5

0.8

6. Measured under pulsed conditions. Pulse width

≤

300μs. Duty cycle

≤

2%.

APT13005S

Datasheet Number: DS36309 Rev.1 - 2

4 of 8

www.diodes.com

July 2013

A Product Line of

Diodes Incorporated

APT13005S

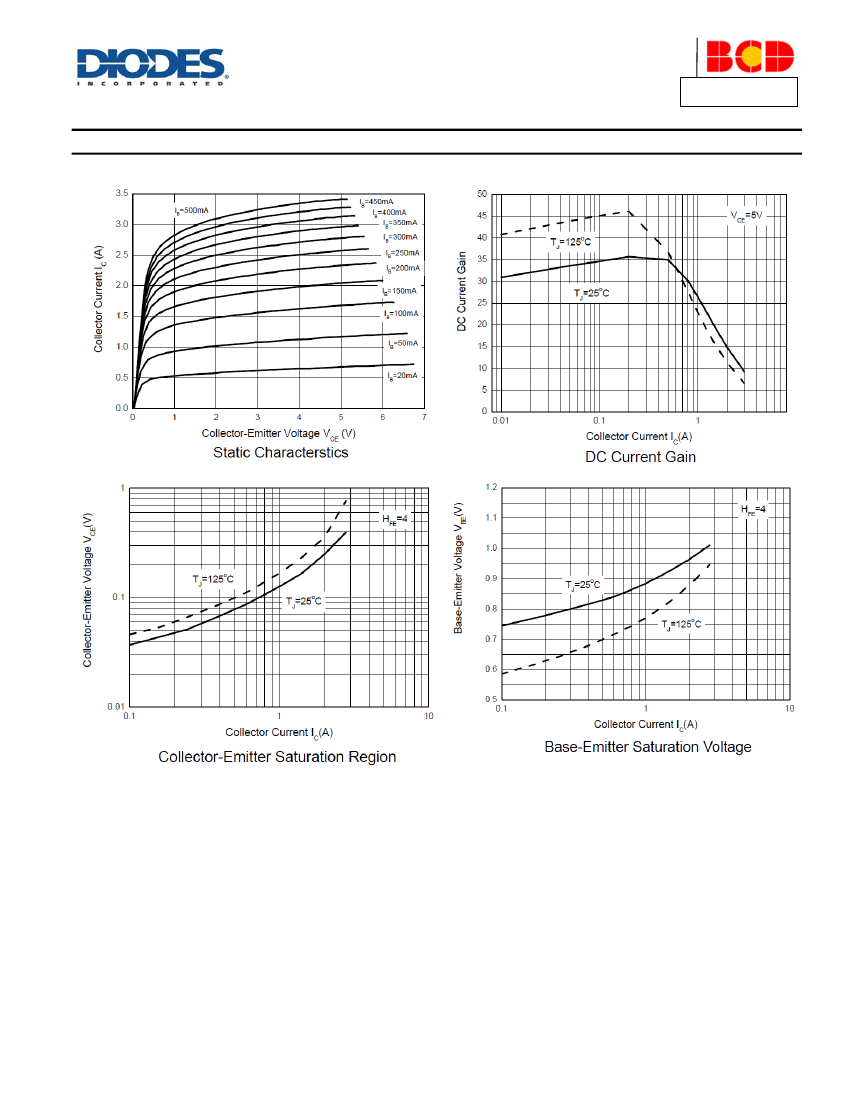

Typical Electrical Characteristics

(@T

A

= +25°C, unless otherwise specified.)

APT13005S

Datasheet Number: DS36309 Rev.1 - 2

5 of 8

www.diodes.com

July 2013
