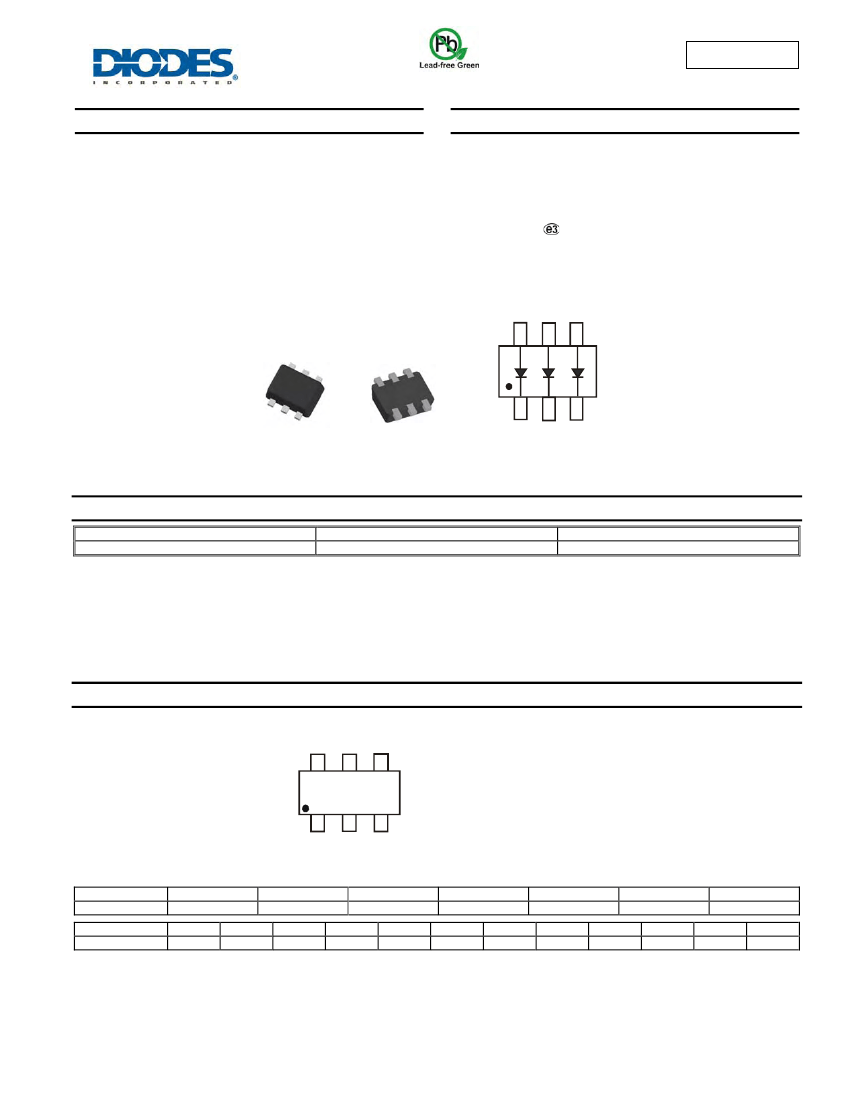

BAS16VV
SURFACE MOUNT SWITCHING DIODE ARRAY
Features
•
•
•
•
•
•
•
•
•
Fast Switching Speed
Low Forward Voltage: Maximum of 0.715V at 1mA
Fast Reverse Recovery: Maximum of 4ns
Low Capacitance: Maximum of 1.5pF
Low Leakage Current
Ultra-Small Surface Mount Package
Thermally Efficient Copper Alloy leadframe for High Power
Dissipation
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
•
•
•
•
Case: SOT563
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Copper Alloy
leadframe (Lead Free Plating). Solderable per MIL-STD-202,
Method 208
Weight: 0.003 grams (approximate)
SOT563
Top View
Bottom View
Top View
Ordering Information
(Note 4)
Part Number
BAS16V V-7
Notes:
Case
SOT563
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
KJP
YM
KJP = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2012
Z
Jan
1
Feb
2
2013
A
Mar
3
Apr
4
2014
B
May
5
Jun
6
2015
C
Jul
7
2016
D
Aug
8
Sep
9
2017
E
Oct
O
Nov
N
2018
F
Dec
D
BAS16VV
Document number: DS35791 Rev. 3 - 2
1 of 4
www.diodes.com
June 2012
© Diodes Incorporated
BAS16VV

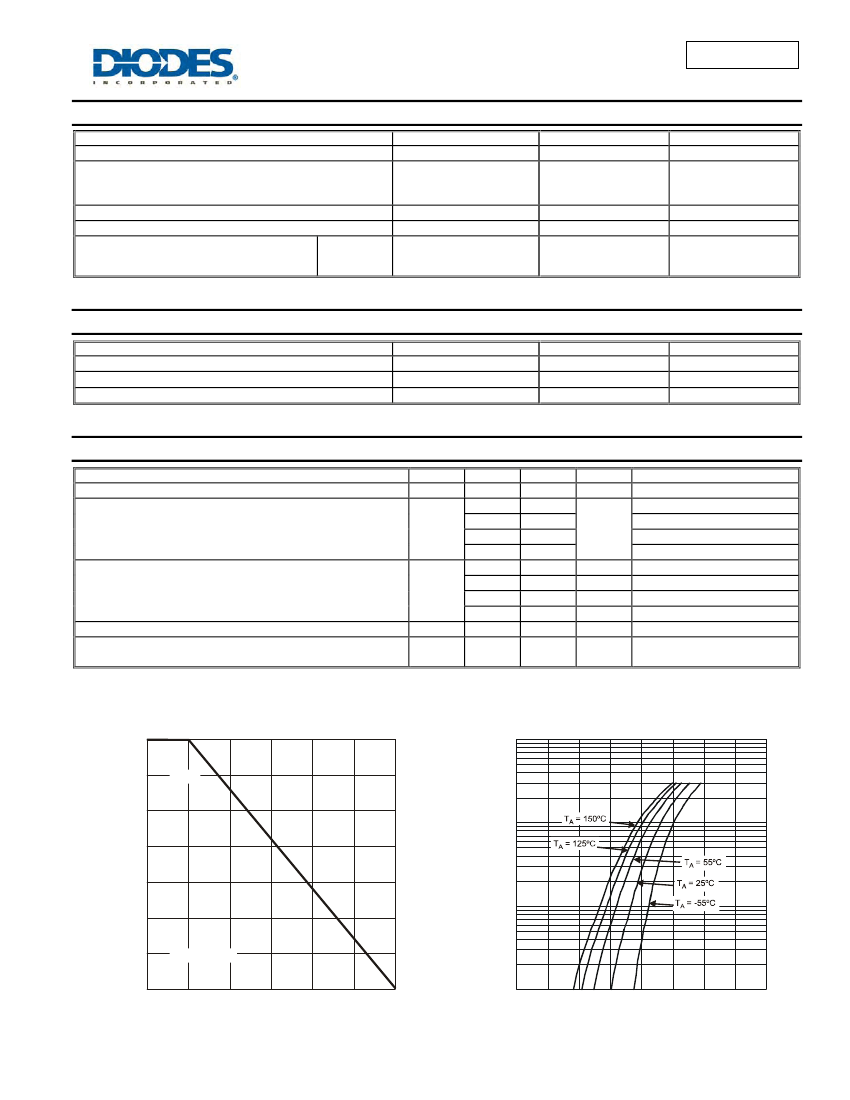

Maximum Ratings
(@T
A
= 25°C unless otherwise specified.)
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 5)
Non-Repetitive Peak Forward Surge Current
@ t = 1.0μs
@ t = 1.0ms
@ t = 1.0s
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FSM
Value
100
100
71
200
4.0
1.0
0.5
Unit
V
V
V
mA
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance Junction to Ambient Air (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
350
357
-55 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= 25°C unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 6)
Symbol
V
(BR)R
V
F
Min
100
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Max
⎯
0.715
0.855
1.0
1.25
0.5
50
30
30
1.5
4.0
Unit
V
Test Condition
I
R
= 100μA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 80V
V
R
= 80V, T
J
= 150°C
V
R
= 25V, T
J
= 150°C
V
R
= 25V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Forward Voltage
V
μA
μA
μA
nA
pF
ns
Leakage Current (Note 6)
I
R
C
T
t
rr
Total Capacitance
Reverse Recovery Time
Notes:
5. Device mounted on FR-4 PCB, on minimum recommended, 2oz copper pad layout.
6. Short duration pulse test used to minimize self-heating effect.
300
P
D
, POWER DISSIPATION (mW)
250
200
150
100
50
0
0
Note 5
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
350
1
0.1
0.01
R
θ
JA
= 357°C/W
0.001
0
0.4
0.8
1.2
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

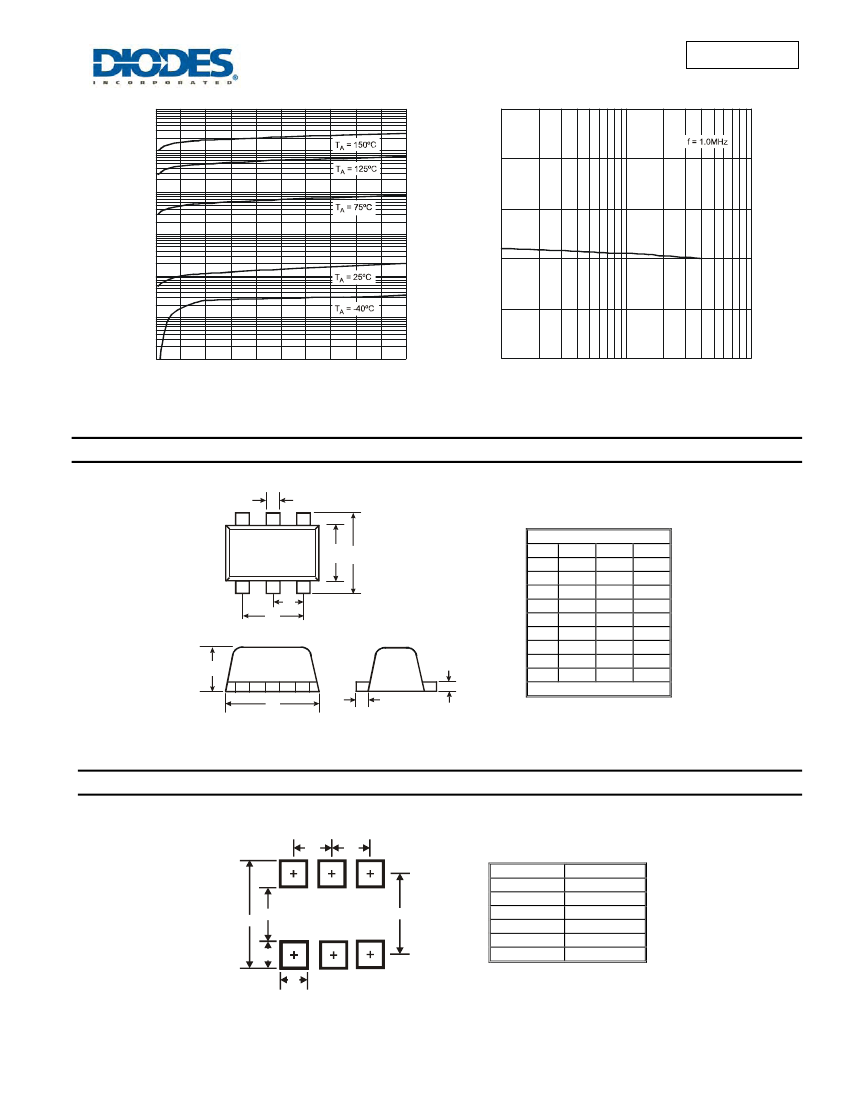

Fig. 2 Typical Forward Characteristics, Per Element
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 1 Power Derating Curve, Total Package
150
BAS16VV
Document number: DS35791 Rev. 3 - 2
2 of 4
www.diodes.com
June 2012
© Diodes Incorporated
BAS16VV
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
100,000
1.0
1,000
C
T
, TOTAL CAPACITANCE (pF)
A
10,000
0.8
0.6
100
0.4
10
1
0.2
0.1
0
60
80
100
20
40
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, Per Element
10
100
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage, Per Element
0
1
Package Outline Dimensions
B
C
D
G
K
M
SOT563
Dim Min
Max
Typ
A
0.15 0.30 0.20
B
1.10 1.25 1.20
C
1.55 1.70 1.60
D
-
-
0.50
G
0.90 1.10 1.00
H
1.50 1.70 1.60
K
0.55 0.60 0.60
L
0.10 0.30 0.20
M
0.10 0.18 0.11
All Dimensions in mm
H
L
Suggested Pad Layout
C2
C2
Z
G
C1
Y
X
Dimensions Value (in mm)
Z
2.2
G
1.2
X
0.375
Y
0.5
C1
1.7
C2
0.5
BAS16VV
Document number: DS35791 Rev. 3 - 2
3 of 4
www.diodes.com
June 2012
© Diodes Incorporated
BAS16VV
