BAS21TM_15 Overview

0.2 A, 250 V, 3 ELEMENT, SILICON, SIGNAL DIODE

BAS21TM_15 Parametric

Parameter Name	Attribute value
Number of terminals	6
Number of components	3
Processing package description	GREEN, PLASTIC PACKAGE-6
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
terminal coating	MATTE Tin
Terminal location	pair
Packaging Materials	Plastic/Epoxy
structure	SEPARATE, 3 ELEMENTS
Diode component materials	silicon
Maximum power consumption limit	0.3000 W
Diode type	Signal diode
Maximum reverse recovery time	0.0500 us
Maximum repetitive peak reverse voltage	250 V
Maximum average forward current	0.2000 A

Preview

Download Datasheet

View All

BAS21TM

SURFACE MOUNT HIGH VOLTAGE SWITCHING DIODE ARRAY

Features



Fast Switching Speed: max. 50ns

Continuous Reverse Voltage: max. 200V

Repetitive Peak Reverse Voltage: max. 250V

Repetitive Peak Forward Current: max. 1A

Small Surface Mount Package

For General Purpose Switching Applications

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

An Automotive-Compliant Part is Available Under Separate

Datasheet (BAS21TMQ)

Mechanical Data



Case: SOT26

Case Material: Molded Plastic, "Green" Molding Compound,

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish Annealed over Copper Alloy

Leadframe (Lead Free Plating). Solderable per MIL-STD-202,

Method 208

Orientation: See Diagram

Weight: 0.009 grams (Approximate)

ADVANCE INFORMATION



SOT26

Top View

Internal Schematic

Ordering Information

(Note 4)

Part Number

BAS21TM-7

Notes:

Compliance

AEC-Q101

Case

SOT26

Packaging

3,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3).compliant.

2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and

Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

XJJ

XJJ = Product Type Marking Code

YM = Date Code Marking

Y =Year (ex: F = 2018)

M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

2011

Jan

Feb

2012

Mar

2013

Apr

…

May

2018

Jun

Jul

2019

Aug

2020

Sep

2021

Oct

2022

Nov

2023

Dec

BAS21TM

Document number: DS35388 Rev. 6 - 2

1 of 4

www.diodes.com

February 2018

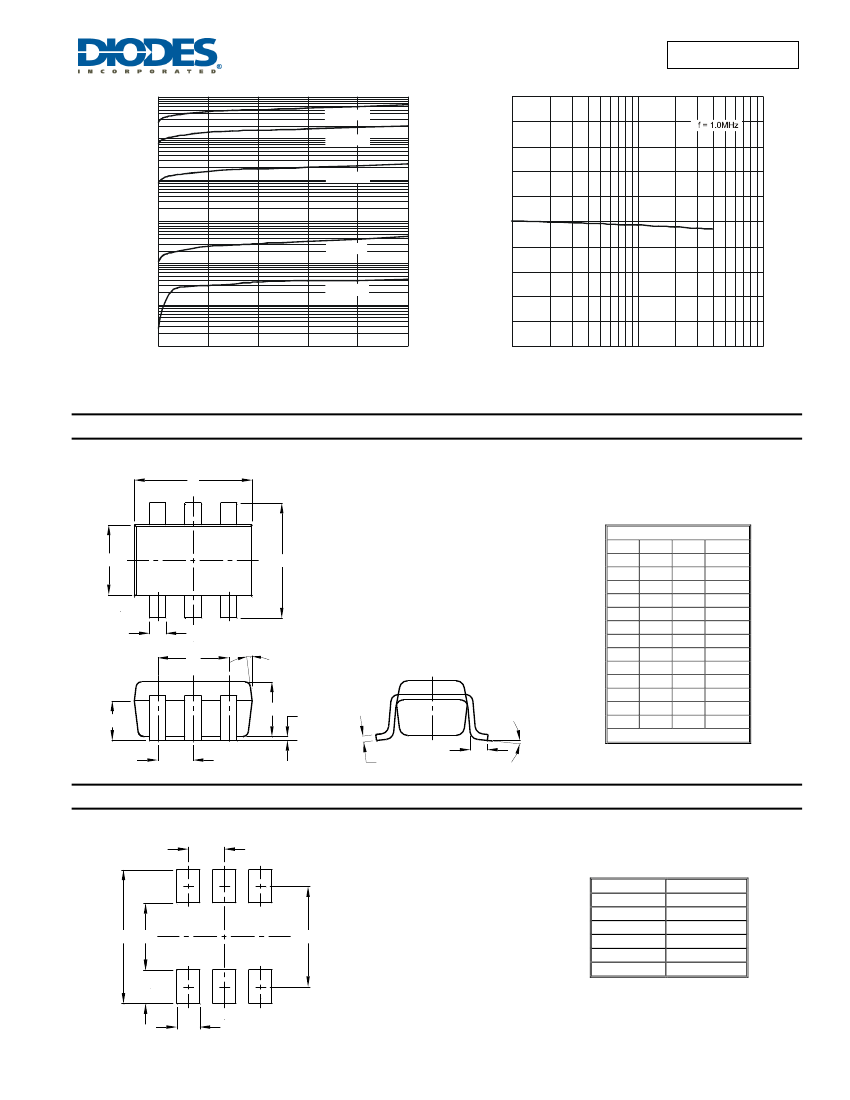

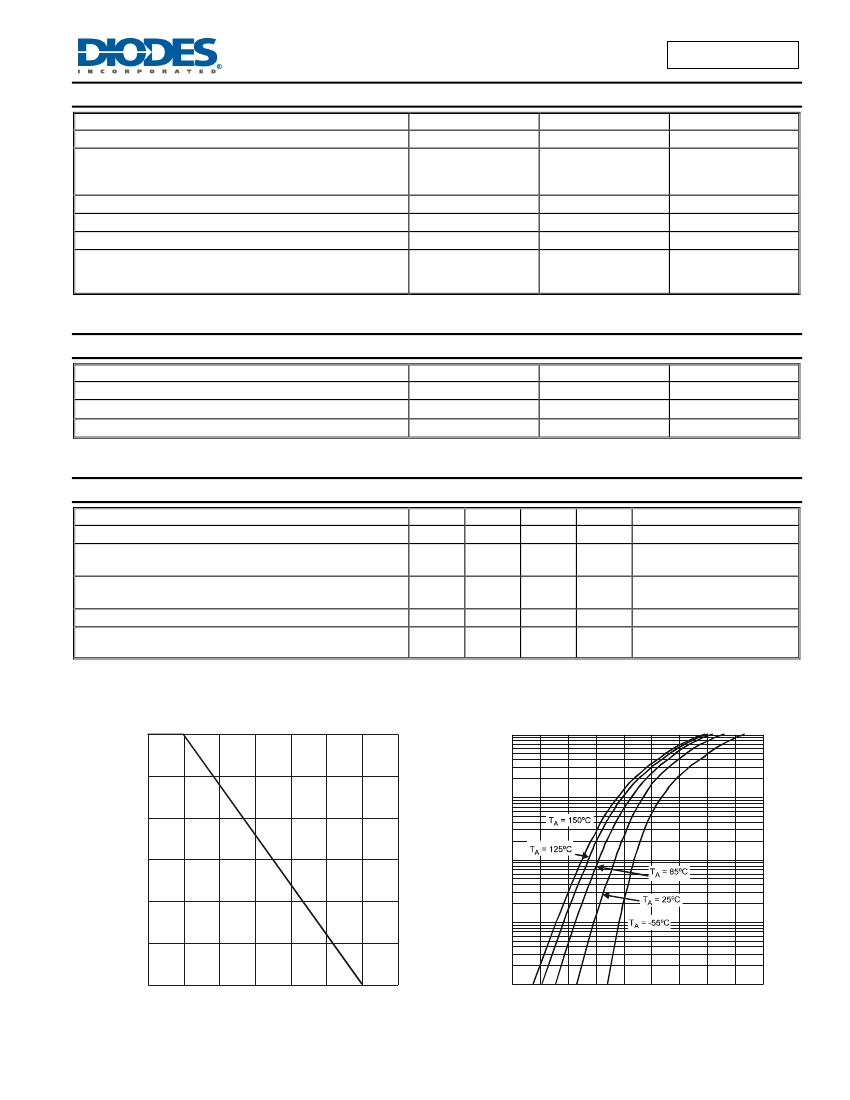

BAS21TM

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

ADVANCE INFORMATION

BAS21TM

Document number: DS35388 Rev. 6 - 2

4 of 4

www.diodes.com

February 2018
