Product Data Sheet
STW8B12G – Mid-Power LED
Achieving the best system cost in Mid/High Power
Mid-Power LED – 3020 Series
STW8B12G (Cool, Neutral, Warm)
RoHS
Product Brief

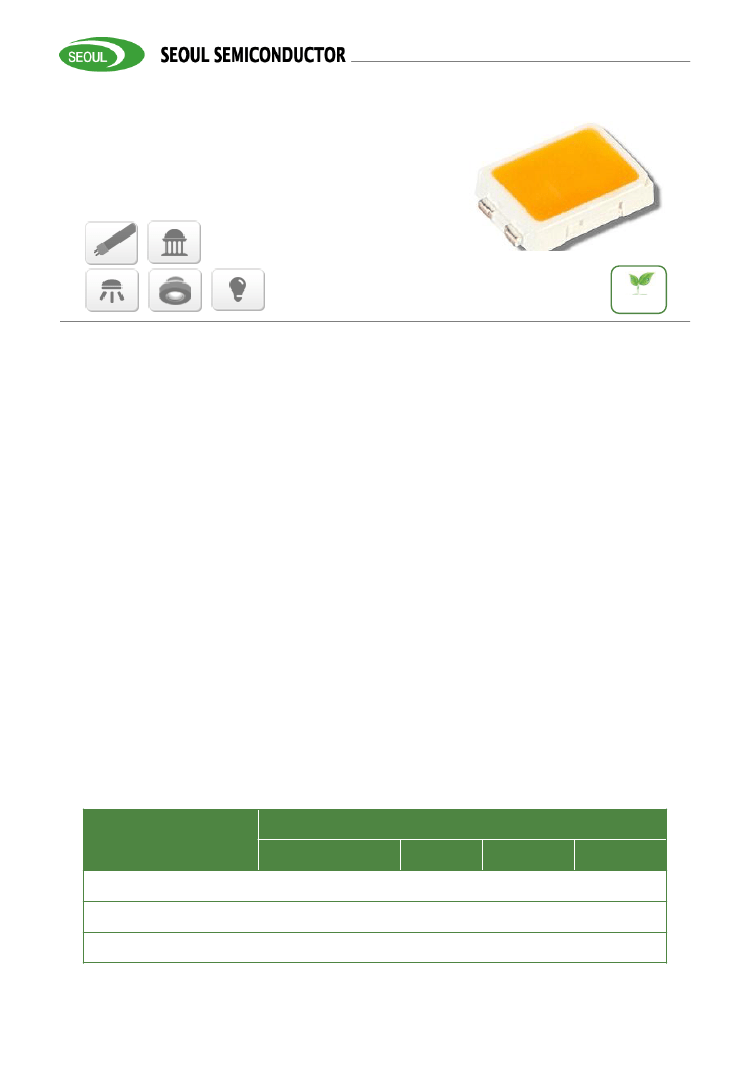

Description
•
This White Colored surface-mount LED
comes in standard package dimension.
Package Size : 3.0x2.0x0.6mm
It has a substrate made up of a molded
plastic reflector sitting on top of a lead
frame.
The die is attached within the reflector
cavity and the cavity is encapsulated by
silicone.
The package design coupled with
careful selection of component materials
allow these products to perform with
high reliability.
Features and Benefits
•
•
•
•
•
•
Thermally Enhanced Package Design
Mid Power (up to 0.13W)
Max. Driving Current 40mA
Compact Package Size
High Color Quality with CRI Min. 80(R9>0)
ROHS compliant
•
•
Key Applications
•
•
•
•
Interior lighting
General lighting
Indoor and Outdoor displays
Architectural and Decorative lighting
•
Table 1. Product Selection Table
CCT
Part Number
Color
STW8B12G
STW8B12G
STW8B12G
Cool white
Neutral White
Warm White
Min.
4700K
3700K
2600K
Typ.
5600K
4200K
3000K
Max.
7000K
4700K
3700K
1
www.seoulsemicon.com
Product Data Sheet
STW8B12G – Mid-Power LED
Table of Contents
Index
•
•
•
•
•
Product Brief
Table of Contents
Performance Characteristics
Color Bin Structure
Packaging Information
•
•
Product Nomenclature (Labeling Information)
Recommended Solder Pad
•
•
•
•
Reflow Soldering Characteristics
Handling of Silicone Resin for LEDs
Precaution For Use
Company Information
2
www.seoulsemicon.com
Product Data Sheet
STW8B12G – Mid-Power LED
Performance Characteristics
Table 2. Product Selection Guide,
I
F
=30mA
,
T
a
=25ºC, RH30%
Part Number
CCT (K)
[1]
Typ.
K5
6500
L0
L5
K5
5600
L0
L5
K5
L0
5000
L5
M0
K5
4500
L0
3.5
4.0
2.5
3.0
4.0
4.5
3.0
3.5
10.2
11.6
7.3
9.0
11.6
13.0
8.7
10.2
80
80
80
80
RANK
Luminous Intensity
[2]
I
V
(cd)
Min
2.5
3.0
3.5
2.5
3.0
3.5
2.5
3.0
Max
3.0
3.5
4.0
3.0
3.5
4.0
3.0
3.5
Luminous Flux
[3]
Ф
V
(lm)
Min
7.3
9.0
10.2
7.3
9.0
10.2
7.3
9.0
Max
8.7
10.2
11.6
8.7
10.2
11.6
8.7
10.2
CRI
R
a
Min.
80
80
80
80
80
80
80
80
STW8B12G
L5
K5
4000
L0
L5
K5
3500
L0
L5
K5
3000
L0
L5
K5
3.5
2.5
3.0
3.5
2.5
3.0
3.5
2.5
3.0
3.5
2.5
4.0
3.0
3.5
4.0
3.0
3.5
4.0
3.0
3.5
4.0
3.0
10.2
7.3
9.0
10.2
7.3
9.0
10.2
7.3
9.0
10.2
7.3
11.6
8.7
10.2
11.6
8.7
10.2
11.6
8.7
10.2
11.6
8.7
80
80
80
80
80
80
80
80
80
80
80
2700
L0
L5
3.0
3.5
3.5
4.0
9.0
10.2
10.2
11.6
80
80
Notes :
(1) Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
Color coordinate :
0.007
(2) Seoul Semiconductor maintains a tolerance of
7%
on Intensity and power measurements.
The luminous intensity IV was measured at the peak of the spatial pattern which may not be
aligned with the mechanical axis of the LED package.
(3) Calculated performance values are for reference only.
3
www.seoulsemicon.com
Product Data Sheet
STW8B12G – Mid-Power LED
Performance Characteristics
Table 3. Characteristics,
I
F
=30mA
,
T
a
=25ºC, RH30%
Value
Parameter
Symbol
Min.
Forward Current
Forward Voltage
Luminous Intensity
(4,200~7,000 K)
Luminous Intensity
(2,600~4,200 K)
Color Rendering Index
Viewing Angle
[2]
[1]
Unit
Typ.
30
Max.
40
3.2
3.65
(10.58)
3.29
(9.54)
-
120
-
-
- 40
- 40
-
128
-
-
-
28
125
+ 85
+ 100
-
mW
ºC
ºC
ºC
℃/W
-
mA
V
cd
(lm)
cd
(lm)
-
I
F
V
F
(30mA)
I
v
(30mA)
-
2.8
-
I
v
(30mA)
Ra
2Θ
1/2
P
d
T
j
T
opr
T
stg
Rθ
J-S
-
80
-
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Thermal resistance (J to S)
[3]
ESD Sensitivity(HBM)
[4]
-
-
-
5000
V
Notes :
(1) Tolerance is
2.0
on CRI measurements.
(2) 2Θ
1/2
is the off-axis where the luminous intensity is 1/2 of the peak intensity
(3) Thermal resistance: Rth
JS
(Junction to Solder)
(4) A zener diode is included to protect the product from ESD.
•
LED’s properties might be different from suggested values like above and below tables if
operation condition will be exceeded our parameter range. Care is to be taken that power
dissipation does not exceed the absolute maximum rating of the product.
All measurements were made under the standardized environment of Seoul Semiconductor.
•
4
www.seoulsemicon.com
Product Data Sheet
STW8B12G – Mid-Power LED

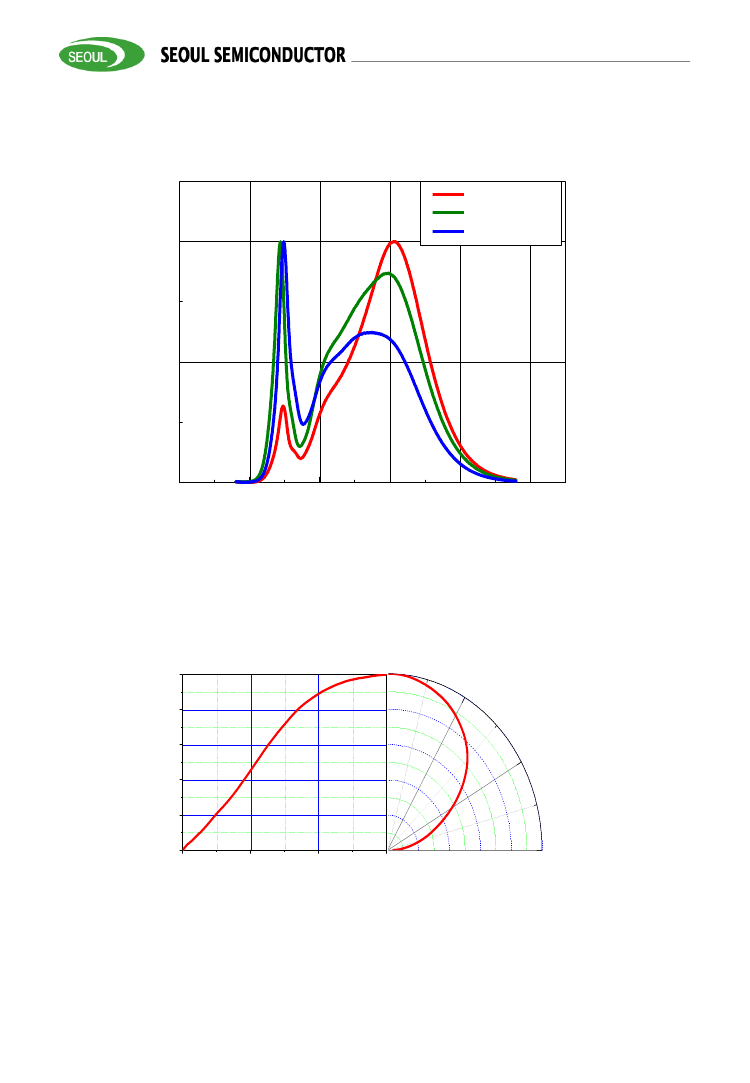

Relative Spectral Distribution
Fig 1. Color Spectrum, T
a
=25℃, RH30%
I
F
=30mA
Relative Emission Intensity
1.0
2600~3700K
3700~4700K
4700~8200K
0.5
0.0
300
400
500
600
700
800
Wavelength [nm]
Fig 2. Viewing Angle Distribution
I
F
=30mA
1.0
1.0
0.8
0.8
0.6
0.6
0.4
0.4
0.2
0.2
0.0
0.0
-90
0
30
60
90
-60
-30
0
0.2
0.4
0.6
0.8
1.0
5
www.seoulsemicon.com
