V30100C, VF30100C, VB30100C & VI30100C
Vishay General Semiconductor
Dual High-Voltage Trench MOS Barrier Schottky Rectifier
Ultra Low V
F
= 0.455 V at I
F
= 5 A
TMBS
TO-220AB
®

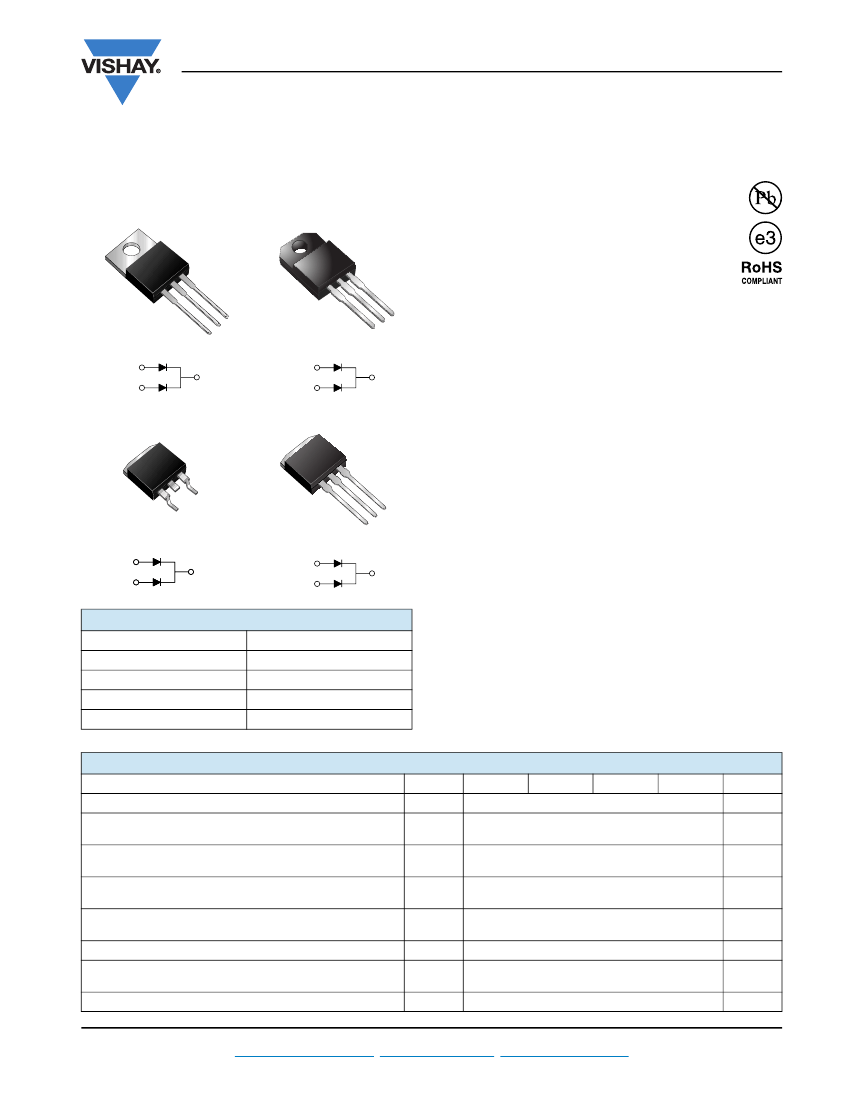

FEATURES
ITO-220AB
• Trench MOS Schottky technology
• Low forward voltage drop, low power
losses
• High efficiency operation
• Low thermal resistance
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 245 °C (for TO-263AB package)
• Solder bath temperature 275 °C maximum, 10 s,
per JESD 22-B106 (for TO-220AB, ITO-220AB and
TO-262AA package)
• Compliant to RoHS directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in high frequency converters, switching power
supplies, freewheeling diodes, OR-ing diode, dc-to-dc
converters and reverse battery protection.
1
2
3
2
V30100C
PIN 1
PIN 3
PIN 2
CASE
3
1
VF30100C
PIN 1
PIN 3
PIN 2
2
3
1
TO-263AB
K
K
TO-262AA
2
1
VB30100C
PIN 1
PIN 2
K
HEATSINK
MECHANICAL DATA
Case:
TO-220AB, ITO-220AB, TO-263AB and
TO-262AA
Molding compound meets UL 94 V-0 flammability
rating
Base P/N-E3 - RoHS compliant, commercial grade
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
As marked
Mounting Torque:
10 in-lbs maximum
VI30100C
PIN 1
PIN 3
PIN 2
K
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
at I
F
= 15 A
T
J
max.
2 x 15 A
100 V
160 A
0.63 V
150 °C
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum average forward rectified current (fig. 1)
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load per diode
Non-repetitive avalanche energy
at T
J
= 25 °C, L = 60 mH per diode
Peak repetitive reverse current at t
p
= 2 µs, 1 kHz,
T
J
= 38 °C ± 2 °C per diode
Voltage rate of change (rated V
R
)
Isolation voltage (ITO-220AB only)
from terminal to heatsink t = 1 min
Operating junction and storage temperature range
per device
per diode
SYMBOL
V
RRM
I
F(AV)
I
FSM
E
AS
I
RRM
dV/dt
V
AC
T
J
, T
STG
V30100C
VF30100C
VB30100C
VI30100C
UNIT
V
A
A
mJ
A
V/µs
V
°C
100
30
15
160
210
1.0
10 000
1500
- 40 to + 150
Document Number: 89010
Revision: 24-Jun-09
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
1
New Product
V30100C, VF30100C, VB30100C & VI30100C
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Breakdown voltage
TEST CONDITIONS
I
R
= 1.0 mA
I
F
= 5 A
I
F
= 7.5 A
I
F
= 15 A
I
F
= 5 A
I
F
= 7.5 A
I
F
= 15 A
V
R
= 70 V
Reverse current per diode
(2)
V
R
= 100 V
Notes
(1)
Pulse test: 300 µs pulse width, 1 % duty cycle
(2)
Pulse test: Pulse width
≤
40 ms
T
A
= 25 °C
T
A
= 25 °C
V
F
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
T
A
= 25 °C
T
A
= 125 °C
0.455
0.522
0.627
7.2
8.0
I
R
65
20
-
-
0.68
-
-
500
35
µA
mA
µA
mA
SYMBOL
V
BR
TYP.
100 (minimum)
0.516
0.576
0.734
MAX.
-
-
-
0.80
UNIT
Instantaneous forward voltage
per diode
(1)
V
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance per diode
SYMBOL
R
θJC
V30100C
2.5
VF30100C
5.5
VB30100C
2.5
VI30100C
2.5
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AB
ITO-220AB
TO-263AB
TO-263AB
TO-262AA
PREFERRED P/N
V30100C-E3/4W
VF30100C-E3/4W
VB30100C-E3/4W
VB30100C-E3/8W
VI30100C-E3/4W
UNIT WEIGHT (g)
1.88
1.75
1.39
1.39
1.46
PACKAGE CODE
4W
4W
4W
8W
4W
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
35
Resistive or Inductive Load
14
D = 0.3
12
VF30100C
25
VB(I)30100C
20
15
10
5
0
0
25
50
75
100
125
150
V30100C
D = 0.2
D = 0.1
D = 1.0
8
6
T
4
2
0
0
2
4
6
8
10
12
14
16
18
D = 0.5
D = 0.8
Average Forward Current (A)
30
Average Power Loss (W)
10
D = t
p
/T
t
p
Case Temperature (°C)
Average Forward Current (A)
Figure 1. Forward Current Derating Curve
Figure 2. Forward Power Loss Characteristics Per Diode
www.vishay.com
2
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 89010
Revision: 24-Jun-09
New Product
V30100C, VF30100C, VB30100C & VI30100C
Vishay General Semiconductor
100
10
Transient Thermal Impedance (°C/W)
Instantaneous Forward Current (A)
T
A
= 150 °C
T
A
= 125 °C
10
Junction to Case
1
0.1
1
T
A
= 25 °C
0.01
V(B,J)30100C
0.001
0.01
0.1
1
10
100
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
Instantaneous Forward
Voltage
(V)
t - Pulse Duration (s)
Figure 3. Typical Instantaneous Forward Characteristics Per Diode
Figure 6. Typical Transient Thermal Impedance Per Diode
100
10
Transient Thermal Impedance (°C/W)
Instantaneous Reverse Current (mA)
T
A
= 150 °C
10
T
A
= 125 °C
1
Junction to Case
0.1
T
A
= 25 °C
0.01
VF30100C
1
0.01
0.1
1
10
100
0.001
10
20
30
40
50
60
70
80
90
100
Percent of Rated Peak Reverse
Voltage
(%)
t - Pulse Duration (s)
Figure 4. Typical Reverse Characteristics Per Diode
Figure 7. Typical Transient Thermal Impedance Per Diode
10 000
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
1000
Junction Capacitance (pF)
100
10
0.1
1
10
100
Reverse
Voltage
(V)
Figure 5. Typical Junction Capacitance
Document Number: 89010
Revision: 24-Jun-09
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
3
New Product
V30100C, VF30100C, VB30100C & VI30100C
Vishay General Semiconductor

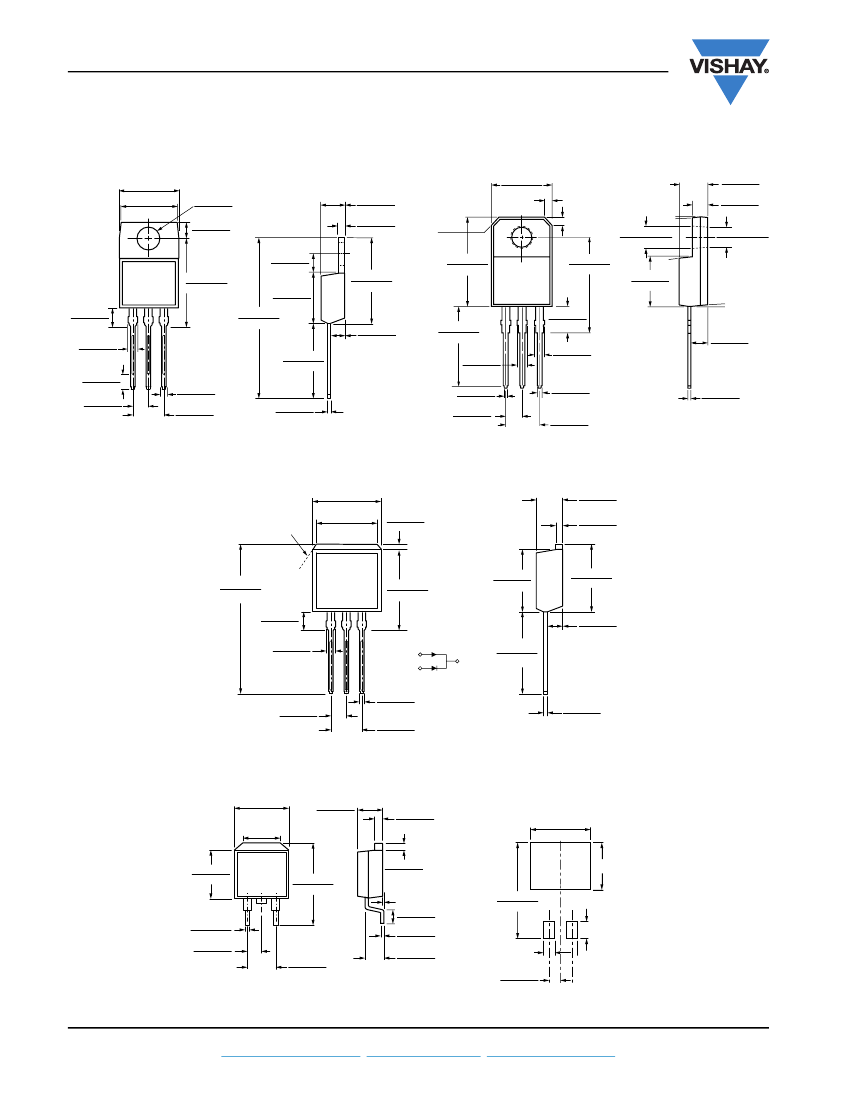

PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
TO-220AB
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91)
0.148 (3.74)
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
3
0.603 (15.32)
0.573 (14.55)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.035 (0.90)
0.028 (0.70)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
45° REF.
0.404 (10.26)
0.384 (9.75)
0.076 (1.93) REF.
0.076 (1.93) REF.
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
0.135 (3.43) DIA.
0.122 (3.08) DIA.
ITO-220AB
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
0.600 (15.24)
0.580 (14.73)
PIN
0.671 (17.04)
0.651 (16.54)
7° REF.
0.350 (8.89)
0.330 (8.38)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
0.104 (2.65)
0.096 (2.45)
PIN
2
1
2
3
7° REF.
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.025 (0.64)
0.015 (0.38)
0.105 (2.67)
0.095 (2.41)
0.191 (4.85)
0.171 (4.35)
0.110 (2.79)
0.100 (2.54)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.028 (0.71)
0.020 (0.51)
TO-262AA
0.411 (10.45) MAX.
0.250 (6.35) MIN.
K
0.055 (1.40)
0.047 (1.19)
0.185 (4.70)
0.175 (4.44)
0.055 (1.40)
0.045 (1.14)
30° (TYP.)
(REF.)
0.950 (24.13)
0.920 (23.37)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
PIN
2
0.510 (12.95)
0.470 (11.94)
3
0.350 (8.89)
0.330 (8.38)
0.401 (10.19)
0.381 (9.68)
0.110 (2.79)
0.100 (2.54)
PIN 1
PIN 3
PIN 2
HEATSINK
0.560 (14.22)
0.530 (13.46)
0.104 (2.65)
0.096 (2.45)
0.035 (0.90)
0.028 (0.70)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.35)
TO-263AB
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.670 (17.02)
0.591 (15.00)
0.15 (3.81) MIN.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.33 (8.38) MIN.
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) MIN.
0.624 (15.85)
0.591 (15.00)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
www.vishay.com
4
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
Document Number: 89010
Revision: 24-Jun-09
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Revision: 12-Mar-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
