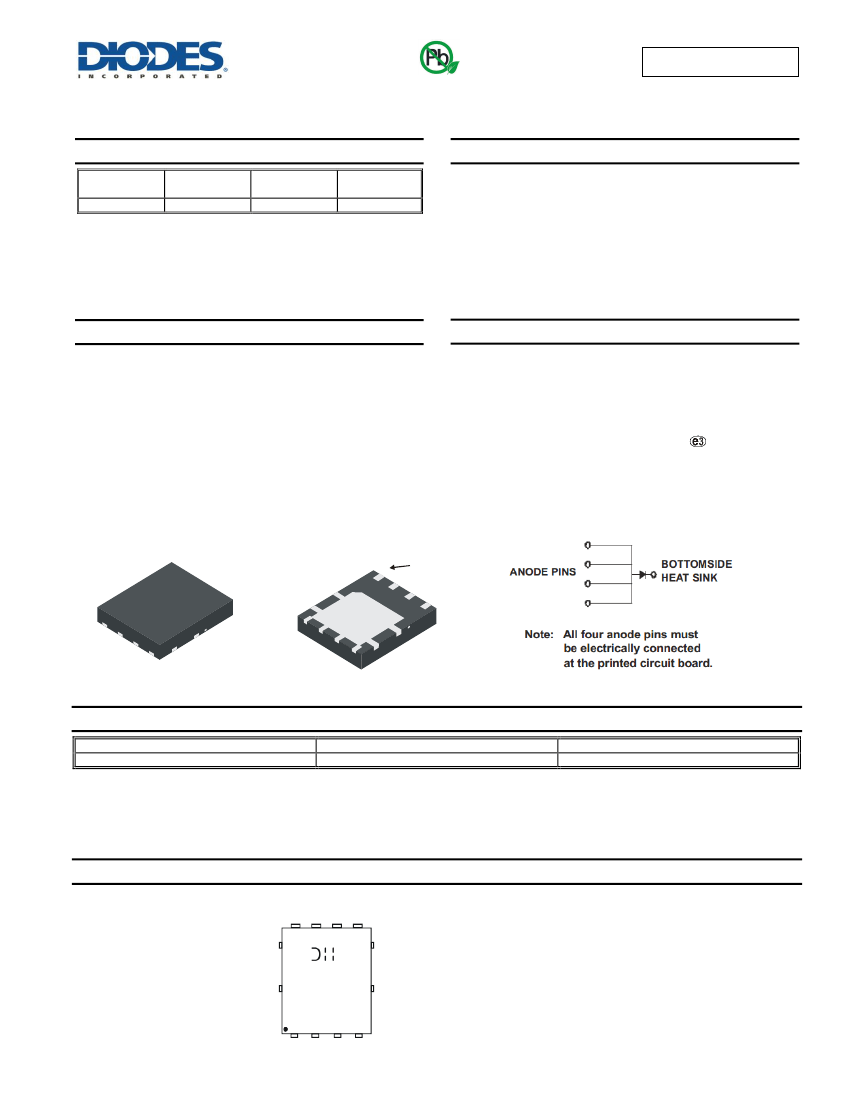

SBRT25U60SLP
Green
25A TrenchSBR
TRENCH SUPER BARRIER RECTIFIER
®
POWERDI 5060
Product Summary
V
RRM
(V)
60
I
O
(A)
25
V
F(MAX)
(V)
@ +25°C
0.55
I
R(MAX)
(mA)
@ +25°C
0.4
Features and Benefits
Reduced ultra-low forward voltage drop (V
F
); Better efficiency
and cooler operation
Reduced high temperature reverse leakage; Increased reliability
against thermal runaway failure in high temperature operation
Less than 1.1mm package profile – ideal for thin applications
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
ADVANCEDPRODUCT
NEW INFORMATION
Description and Applications
Packaged in the compact thermally efficient POWERDI5060-8
package, the SBRT25U60SLP provides very low V
F
and excellent
reverse leakage stability at high temperatures. It is ideal for use as a
rectifier, freewheel diode or blocking diode in:
DC-DC Converters
AC-DC Adaptors
Mechanical Data
Case: POWERDI5060-8
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: See Below
Weight: 0.097 grams (Approximate)
POWERDI5060-8
Top View
Bottom View
Pin
A 1
A
A
A
Top View
C
C
C
Bottom View
C
Ordering Information
(Note 4)
Part Number
SBRT25U60SLP-13
Notes:
Case
POWERDI5060-8
Packaging
2,500/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
POWERDI5060-8
SBRT25U60
YY WW
SBRT25U60 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 15 = 2015)
WW = Week (01-53)
POWERDI are registered trademarks of Diodes Incorporated.
SBRT25U60SLP
Document number: DS36714 Rev. 6 - 2
1 of 5
www.diodes.com
April 2015
© Diodes Incorporated
SBRT25U60SLP
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
Value
60
25
220
Unit
V
A
A
ADVANCEDPRODUCT
NEW INFORMATION
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Thermal Characteristics
Characteristic
Typical Thermal Resistance Junction to Ambient (Note 5)
Typical Thermal Resistance Junction to Case (Note 5)
Operating and Storage Temperature Range
Symbol
R
θJA
R
θJC
T
J,
T
STG
Value
10
0.5
-55 to +150
Unit
°C/W
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Forward Voltage Drop (Note 6)
Symbol
V
F
Min
—
—
—
—
Typ
0.40
0.49
0.48
0.17
—
Max
0.45
0.55
—
0.40
80
Unit
V
Test Condition
I
F
= 12.5A, T
J
= +25°C
I
F
= 25A, T
J
= +25°C
I
F
= 25A, T
J
= +125°C
V
R
= 60V, T
J
= +25°C
V
R
= 60V, T
J
= +125°C
Leakage Current (Note 6)
Notes:
I
R
mA
5. Device with additional heatsink, (Al substrate with copper pad 30mm*30mm + Black Aluminum 80mm*48mm*35mm).
6. Short duration pulse test used to minimize self-heating effect.
POWERDI are registered trademarks of Diodes Incorporated.
SBRT25U60SLP
Document number: DS36714 Rev. 6 - 2
2 of 5
www.diodes.com
April 2015
© Diodes Incorporated
SBRT25U60SLP
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
14
12
100
P
D
, POWER DISSIPATION (W)
10
8
6
4
2
0
0
10
15
20
25
30
I
F(AV)
AVERAGE FORWARD CURRENT (A)

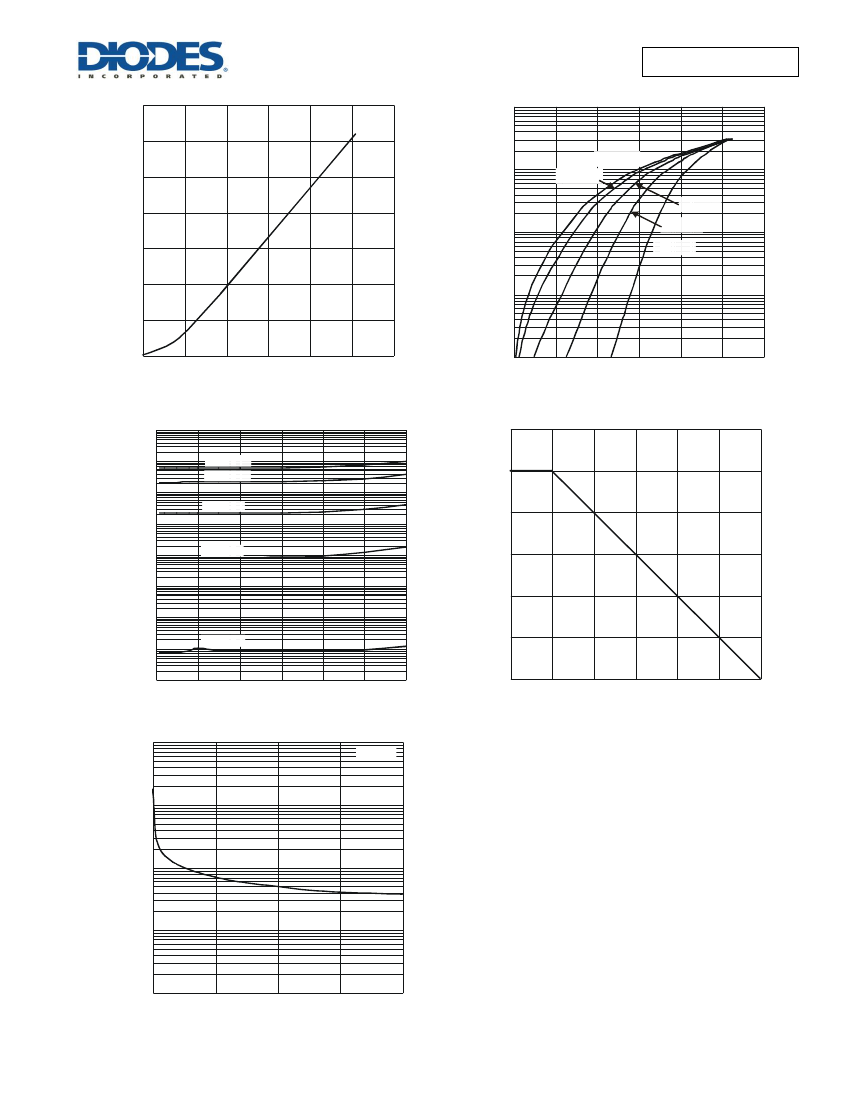

Figure 1 Forward Power Dissipation
5
10
T
A
= 150°C
T
A
= 125°C
T
A
= 85°C
ADVANCEDPRODUCT
NEW INFORMATION
1
T
A
= 25°C
T
A
= -55°C
0.1
0.01
0
100
200
300
400
500
600
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
1000000
100000
10000
T
A
= 85°C
T
A
= 150°C
30
Note 5
1000
100
10
1
0.1
0.01
0
T
A
= -55°C
T
A
= 25°C
I
F
, FORWARD CURRENT (A)
T
A
= 125°C
25
20
15
10
5
0
10
20
30
40
50
60
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 3 Typical Reverse Characteristics
f = 1MHz
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)
Figure 4 Forward Current Derating Curve
100000
C
T
, TOTAL CAPACITANCE (pF)
10000
1000
100
10
0
10
20
30
40
V
R
, DC REVERSE VOLTAGE (V)
Figure 5 Total Capacitance vs. Reverse Voltage
POWERDI are registered trademarks of Diodes Incorporated.
SBRT25U60SLP
Document number: DS36714 Rev. 6 - 2
3 of 5
www.diodes.com
April 2015
© Diodes Incorporated
SBRT25U60SLP

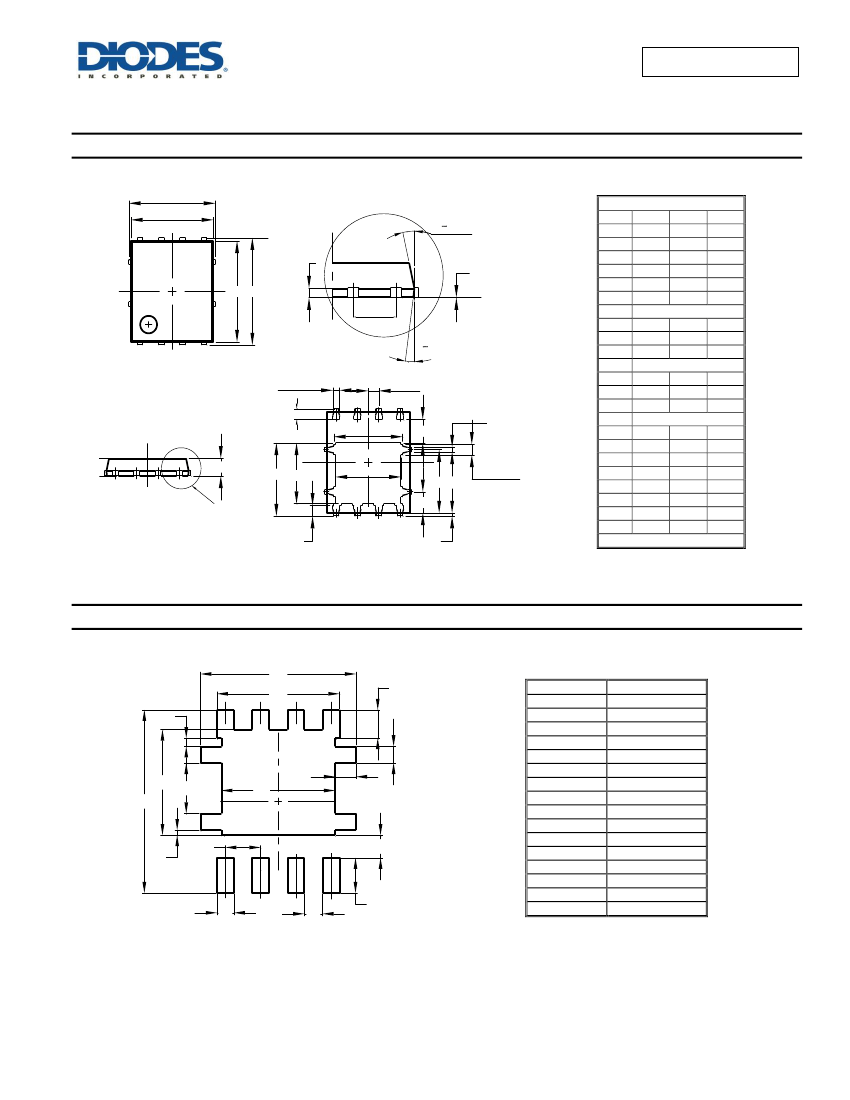

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
ADVANCEDPRODUCT
NEW INFORMATION
D
D1
Detail A
O (4X)
c
E1 E
e
O (4X)
b (8X)
1
A1
1
e/2
b2 (4X)
D3
K
L
A
E3 E2
D2
M
M1
G
L1
b3 (4X)
Detail A
POWERDI5060-8
Dim Min
Max Typ
A
0.90 1.10 1.00
A1
0.00 0.05
—
b
0.33 0.51 0.41
b2
0.200 0.350 0.273
b3
0.40 0.80 0.60
c
0.230 0.330 0.277
D
5.15 BSC
D1
4.70 5.10 4.90
D2
3.70 4.10 3.90
D3
3.90 4.30 4.10
E
6.15 BSC
E1
5.60 6.00 5.80
E2
3.28 3.68 3.48
E3
3.99 4.39 4.19
e
1.27 BSC
G
0.51 0.71 0.61
K
0.51
—
—
L
0.51 0.71 0.61
L1
0.100 0.20 0.175
M
3.235 4.035 3.635
M1
1.00 1.40 1.21
Θ
10°
12°
11º
Θ1
6°
8°
7º
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X4
X3
Y3
Y2
Y1
Y5
Y7
X2
Y4
X1
Y6
C
G1
X
G
Y(4x)
Dimensions
C
G
G1
X
X1
X2
X3
X4
Y
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Value (in mm)
1.270
0.660
0.820
0.610
4.100
0.755
4.420
5.610
1.270
0.600
1.020
0.295
1.825
3.810
0.180
6.610
