DFLS1200Q
1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
PowerDI
®
123
Product Summary
V
R
(V)
200
I
F
(A)
1.0
V
F MAX
(V)
@ +25°C
0.85
I
R MAX
(mA)
@ +25°C
0.1
Features and Benefits
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Patented Interlocking Clip Design for High Surge Current
Capacity
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
stringent requirements of Automotive Applications. It is ideally suited
to use as:
Polarity Protection Diode
Re-circulating Diode
Switching Diode
Mechanical Data
Case: PowerDI 123
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish – Matte Tin annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (approximate)
®
Top View
Ordering Information
(Note 5)
Part Number
DFLS1200Q-7
Notes:
Compliance
Automotive
Case
®
PowerDI 123
Packaging
3000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
F08 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
F08
Date Code Key
Year
Code
Month
Code
2014
B
Jan
1
Feb
2
2015
C
Mar
3
2016
D
Apr
4
YM
2017
E
May
5
Jun
6
2018
F
Jul
7
2019
G
Aug
8
2020
H
Sep
9
Oct
O
2021
I
Nov
N
2022
J
Dec
D
PowerDI is a registered trademark of Diodes Incorporated.
DFLS1200Q
Document number: DS37057 Rev. 1 - 2
1 of 4
www.diodes.com
March 2014
© Diodes Incorporated
DFLS1200Q
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F(AV)
I
FSM
Value
200
141
1.0
40
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Thermal Resistance Junction to Ambient (Note 6)
Thermal Resistance Junction to Soldering Point (Note 7)
Operating and Storage Temperature Range
Symbol
R
θJA
R
θJS
T
J
, T
STG
Typ
132
-55 to +150
Max
7
Unit
°C/W
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 8)
Forward Voltage
Leakage Current (Note 8)
Total Capacitance
Notes:
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
(BR)R
V
F
I
R
C
T
Min
200
Typ
23
Max
0.85
100
Unit
V
V
μA
pF
Test Condition
I
R
= 8μA
I
F
= 1.0A
V
R
= 200V, T
A
= +25°C
V
R
= 5VDC, f = 1MHz
6. Part mounted on FR-4 board with 2 oz., minimum recommended copper pad layout, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf. T
A
= +25°C
7. Theoretical R
θJS
calculated from the top center of the die straight down to the PCB/cathode tab solder junction.
8. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
1
0.1
0.01
0.001
0.0001
0
0.2
0.4
0.6
0.8
1
1.2
1.4
0
20
40
60
80 100 120 140 160 180 200
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

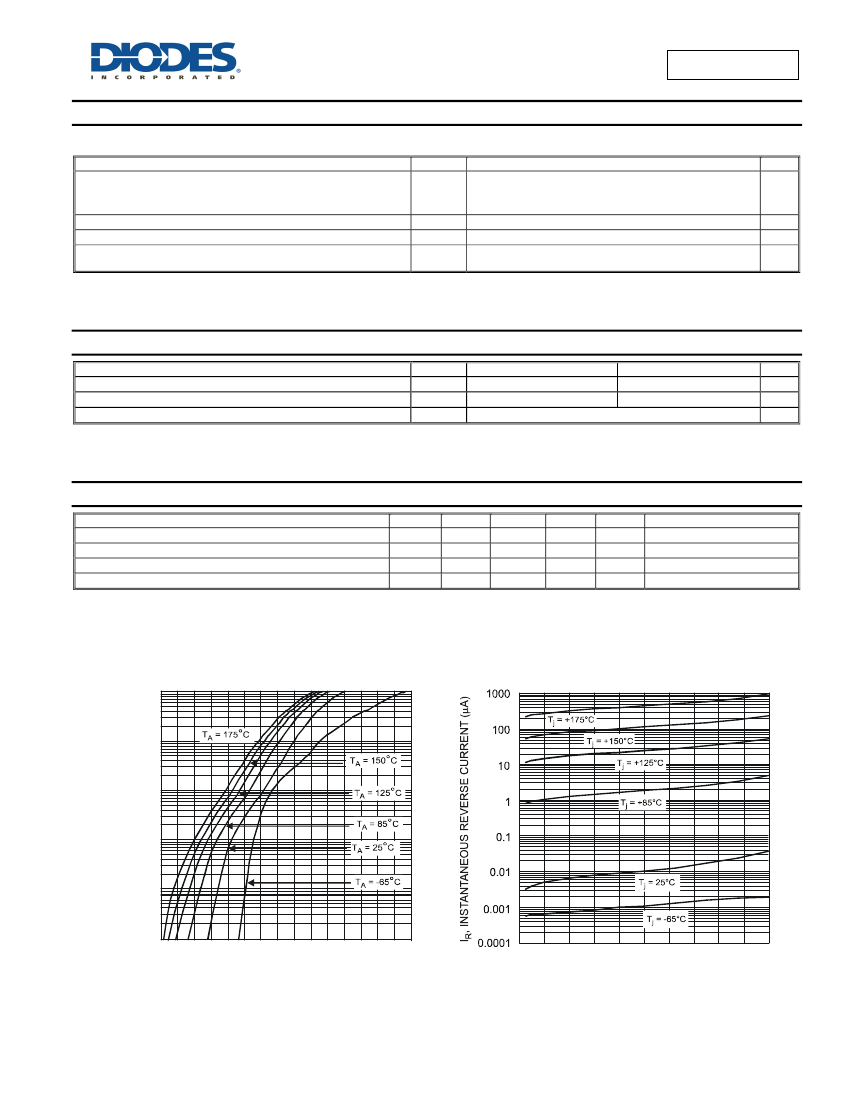

Fig. 1, Typical Forward Characteristics
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2, Typical Reverse Characteristics
PowerDI is a registered trademark of Diodes Incorporated.
DFLS1200Q
Document number: DS37057 Rev. 1 - 2
2 of 4
www.diodes.com
March 2014
© Diodes Incorporated
DFLS1200Q
2
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
25
50
75 100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (ºC)
Fig. 4, Forward Current Derating Curve
Note: 6
C
T
, TOTAL CAPACITANCE (pF)
10
15
20
V
R
, DC REVERSE VOLTAGE (V)

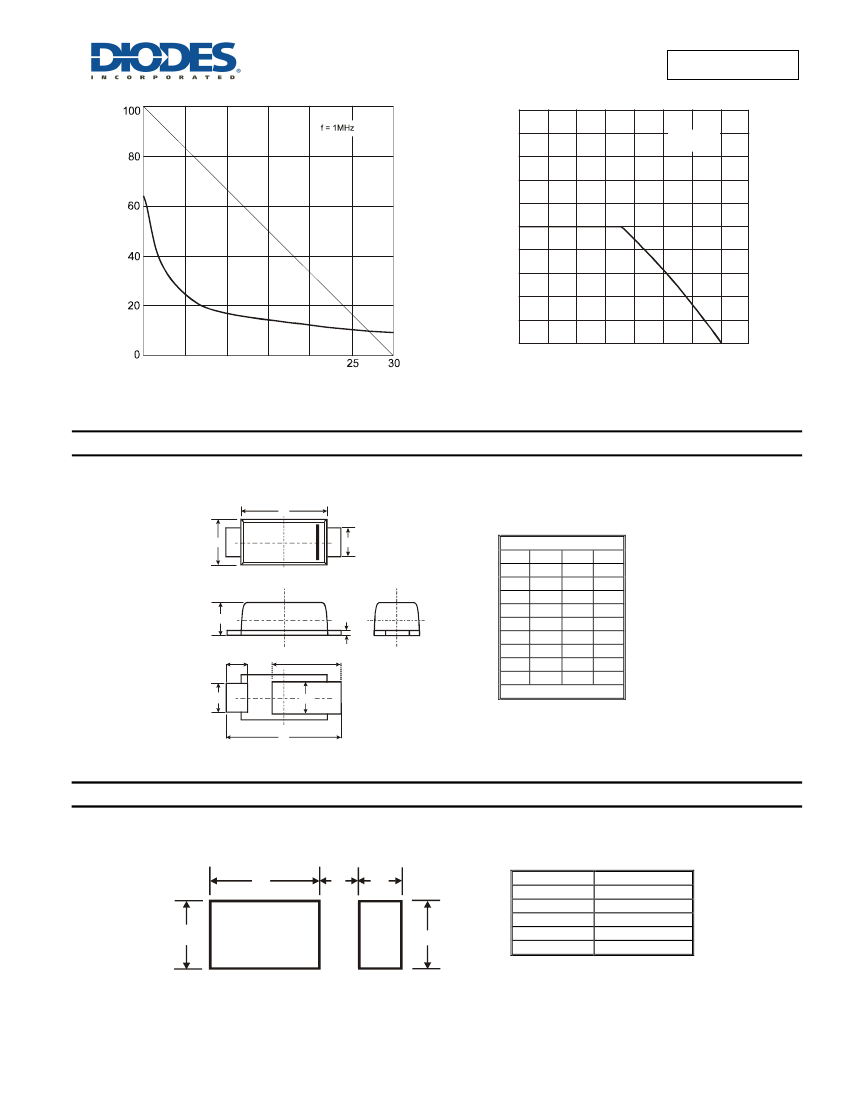

Fig. 3, Typical Total Capacitance vs. Reverse Voltage
0
5
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
B
C
E
D
H
L
L1
E
L2
PowerDI 123
Dim Min Max Typ
A
3.50 3.90 3.70
B
2.60 3.00 2.80
C
1.63 1.93 1.78
D
0.93 1.00 0.98
E
0.85 1.25 1.00
H
0.15 0.25 0.20
L
0.55 0.75 0.65
L1
1.80 2.20 2.00
L2
0.95 1.25 1.10
All Dimensions in mm
®
A
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X1
G
X2
Y2
Y1
Dimensions
G
X1
X2
Y1
Y2
Value (in mm)
1.0
2.2
0.9
1.4
1.4
PowerDI is a registered trademark of Diodes Incorporated.
DFLS1200Q
Document number: DS37057 Rev. 1 - 2
3 of 4
www.diodes.com
March 2014
© Diodes Incorporated
DFLS1200Q
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2014, Diodes Incorporated
www.diodes.com
PowerDI is a registered trademark of Diodes Incorporated.
DFLS1200Q
Document number: DS37057 Rev. 1 - 2
4 of 4
www.diodes.com
March 2014
© Diodes Incorporated
