LESHAN RADIO COMPANY, LTD.
EGP15A thru EGP15G
1.FEATURES
* Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
* High temperature metallurgically
bonded construction
* Cavity-free glass passivated junction
* Capable of meeting environmental standards
of MIL-S-19500
* For use in high frequency rectifier circuits
* Fast switching for high efficiency
* High temperature soldering guaranteed:
260°C/10 seconds
* 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension

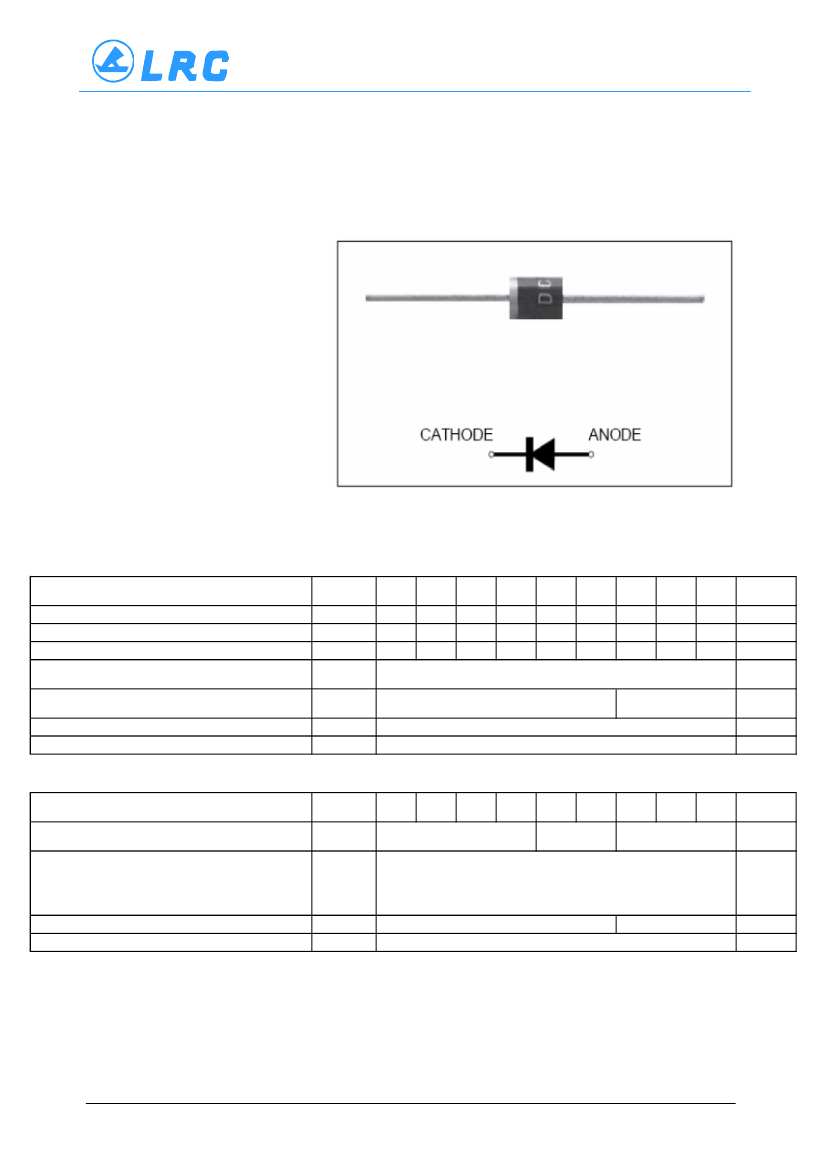

Glass Passivated Junction
Ultra Fast Rectifiers
Reverse Voltage 50 to 1000V
Forward Current 1.5A
2.Mechanical Data
Case:
JEDEC DO-15, molded plastic over glass body
Terminals:
Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.015 oz., 0.41 g
Handling precautin:None
We declare that the material of product
compliance with RoHS requirements.
3.Electrical Characteristic
Maximum Ratings & Thermal Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Parameter Symbol
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at TA = 55°C
Peak forward surge current 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Typical thermal resistance (Note 2)
Operating junction and storage temperature range
symbol
V
RRM
V
RMS
V
DC
IF(AV)
I
FSM
RθJA
TJ, TSTG
50
40
–50to +150
EGP
15A
50
35
50
EGP
15B
100
70
100
EGP
15C
150
105
150
EGP
15D
200
140
200
EGP
15F
300
210
300
1.5
45
EGP
15G
400
280
400
EGP
15J
600
420
600
EGP
15K
800
560
800
EGP
15M
1000
700
1000
Unit
V
V
V
A
A
°C/W
°C
Electrical Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Parameter Symbol
Maximum Instantaneous Forward Voltage
(IF = 1.5 Amps, TJ = 25°C)
Maximum full load reverse current, full cycle
average,0.375"(9.5mm) lead lengths
(Rated dc Voltage, TJ = 25°C)
(Rated dc Voltage, TJ = 125°C)
Typical reverse recovery time (Note 1)
Typical junction capacitance at 4.0V, 1MHz
symbol
V
F
EGP
15A
EGP
15B
EGP
15C
EGP
15D
EGP
15F
EGP
15G
EGP
15J
EGP
15K
1.70
EGP
15M
Unit
V
1.00
1.25
IR
5.0
200
50
35
75
µA
trr
CJ
ns
PF
NOTES:
1. IF = 0.5A, IR = 1.0A, IRR = 0.25A
2. Thermal resistance from junction to ambient at 0.375" (9.5mm) lead length, P.C.B. mounted
1/3
LESHAN RADIO COMPANY, LTD.
4.Ratings and Characteristic Curves
Fig. 1
–
Forward Current Derating Curve
Average Forward Rectified Current (A)
60 Hz
Resistive or
Inductive Load
( TA = 25°C unless otherwise noted )
Average Forward Rectified Current (A)
200
Fig. 2
–
Maximum Non-repetitive Peak
Forward Surge Current
TJ = TJ max
8.3ms Single Half Sine-wave
(JEDEC Method)
3.0
100
1.5
EGP15J---M
EGP15A---G
0.375" (9.5mm) Lead Length
0
0
25
50 75 100 125 150 175
Ambient Temperature, °C
10
1
10
Number of Cycles at 60Hz
100
Instantaneous Forward Current (A)
10
Instantaneous Reverse Current (µA)
100
Fig 3.
–
Typical Instantaneous Forward
Characteristics
Fig 4.
–
Typical Reverse Characteristics
1000
100
Tj=125℃
1.0
10
0.1
TJ = 25°C
Pulse width = 300µs
1% Duty Cycle
1.0
Tj=25℃
0.01
0.4
0.6
0.8
1.0
1.2
1.4
Instantaneous Forward Voltage (V)
Fig 5.
–typical
transient thermal
impedance
Junction Capacitance (pF)
0.1
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Fig 6.
–
Typical Junction Capacitance
Transient thermal impedance(°C/W)
100
200
100
TJ = 25°C
f = 1.0 MHz
Vsig = 50mVp-p
10
1.0
0.1
0.01
0.1
1.0
10
t,Pulse duration,sec
100
10
0.1
1
10
Reverse Voltage (V)
100
2/3
