Luckylight
3mm Round With Flange Type
Blue LED
Technical Data Sheet
Part No.: LL-304BC4B-B4-2GD
Spec No: B323 X435
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/17/2009
Drawn: Yao
Page: 1 OF 7
Lucky Light Electronics Co., Ltd.
http://www.luckylightled.com
Luckylight
Features:
◇
Choice of
various viewing angles.
◇
Choice of
various color.
◇
Available on
tape and reel.
◇
Available on
tape and reel.
◇
Reliable and
robust.
◇
Reliable and
robust.
◇
The product
itself will remain within RoHS compliant Version.
◇
The product
itself will remain within RoHS compliant Version.
Descriptions:
◇
The series
is specially designed
applications requiring higher brightness
◇
The series
is specially designed for
for applications requiring higher brightness
◇
The LED lamps
are available with different colors, intensities.
◇
The LED lamps
are available with different colors, intensities.
Applications:
◇
TV set.
◇
TV set.
◇
Monitor.
◇
Monitor.
◇
Telephone.
◇
Telephone.
◇
Computer.
◇
Computer.
◇
Circuit board.
◇
Circuit board.
Spec No: B323 X435
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/17/2009
Drawn: Yao
Page: 2 OF 7
Lucky Light Electronics Co., Ltd.
http://www.luckylightled.com
Luckylight
Package Dimension:
Part No.
LL-304BC4B-B4-2GD
Chip Material
InGaN
Lens Color
Water Clear
Source Color
Blue
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.25 (.010〞) mm unless otherwise noted.
3. Protruded resin under flange is 1.0 mm (.04〞) max.
4. Specifications are subject to change without notice.
Spec No: B323 X435
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/17/2009
Drawn: Yao
Page: 3 OF 7
Lucky Light Electronics Co., Ltd.
http://www.luckylightled.com
Luckylight
Absolute Maximum Ratings at Ta=25℃
Parameters
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[4mm (.157″) From Body]
Symbol
PD
IFP
IF
VR
Topr
Tstg
Tsld
Max.
90
100
25
5
-40℃ to +85℃
-40℃ to +100℃
260℃ for 5 Seconds
Unit
mW
mA
mA
V
Electrical Optical Characteristics at Ta=25℃
Parameters
Luminous Intensity
*
Viewing Angle
*
Peak Emission Wavelength
Dominant Wavelength
Spectral Line Half-Width
Forward Voltage
Reverse Current
Symbol
IV
2θ
1/2
λp
λd
△λ
VF
IR
Min.
2200
---
---
---
---
2.80
---
Typ.
3800
30
462
468
25
3.20
---
Max.
---
---
---
---
---
3.60
10
Unit
mcd
Deg
nm
nm
nm
V
µA
Test Condition
IF=20mA (Note 1)
IF=20mA (Note 2)
IF=20mA
IF=20mA (Note 3)
I
F
=20mA
IF=20mA
V
R
=5V
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and
represents the single wavelength which defines the color of the device.
Spec No: B323 X435
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Sep/17/2009
Drawn: Yao
Page: 4 OF 7
Lucky Light Electronics Co., Ltd.
http://www.luckylightled.com
Luckylight

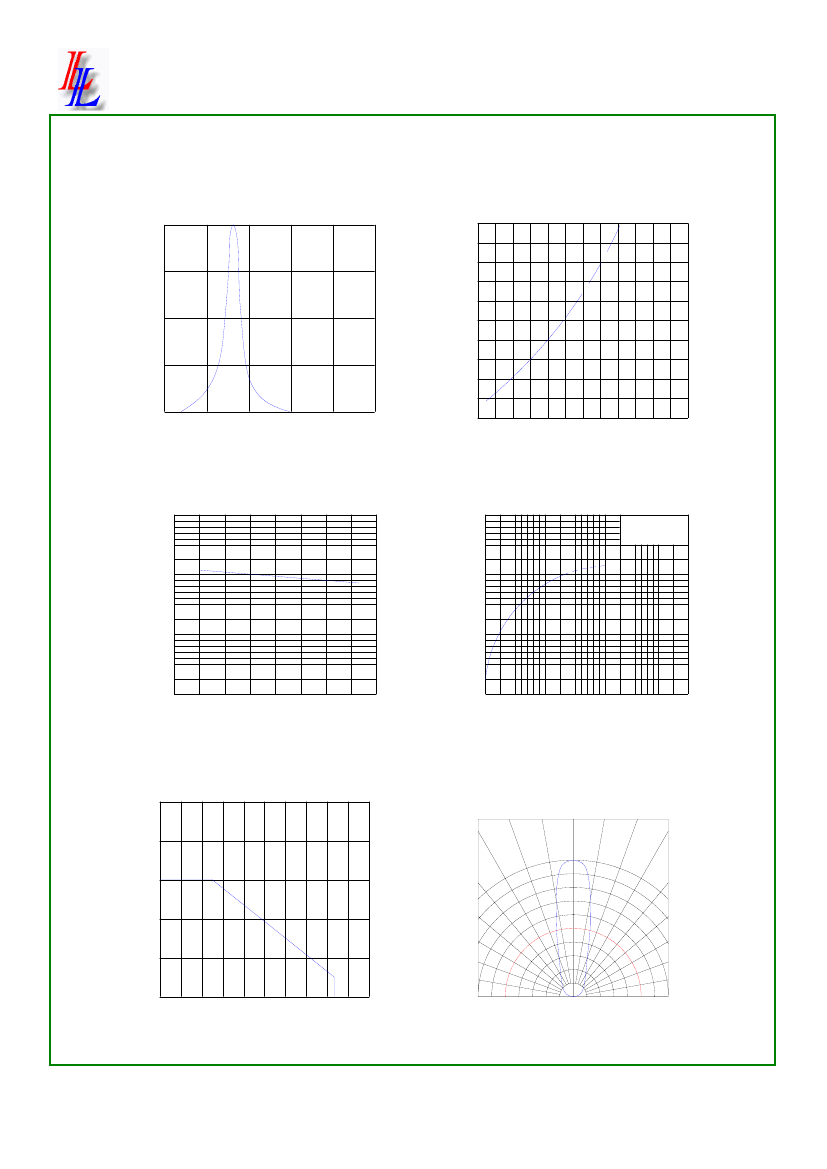

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Spectrum Distribution
Relative Luminous Intensity (%)
100
75
50
25
0
300
Forward Current & Forward Voltage
Ta=25
℃
Ta=25
℃
Forward Current IF (mA)
400 500 600 700
Wavelength
λ
p (nm)
800
50
40
30
20
10
0
2.8 3.0 3.2 3.4 3.6 3.8 4.0
Forward Voltage VF (V)
Relative Luminous Intensity (%)
1000
Relative Luminous Intensity (%)
Luminous Intensity &
Ambient Temperature
Luminous Intensity & Forward Current
Ta=25
℃
1000
f=1KHz
Duty=1/10
100
100
10
10
1
-60 -40 -20 0 20 40 60 80 100
Ambient Temperature Ta (
℃
)
1
0
10
10
10
10
Forward Current IF (mA)
1
2
3
Forward Current Derating Curve
Forward Current IF (mA)
50
40
30
25
20
10
0
0
20
40
60
80 100
Ambient Temperature Ta (
℃
)
Radiation Diagram
0
o
10
o
Ta=25
℃
20
o
30
40
o
o
1.0
0.9
0.8
0.7
0.5 0.3 0.1 0 0.2 0.4 0.6
50
o
o
60
o
70
o
80
o
90
