B330LA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B330LA

B330LA: Description3 A, 30 V, SILICON, RECTIFIER DIODE, DO-214AA; CategoryDiscrete semiconductor diode; File Size444KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

B330LA Overview

3 A, 30 V, SILICON, RECTIFIER DIODE, DO-214AA

B330LA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.5 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	65 A
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	3 A
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

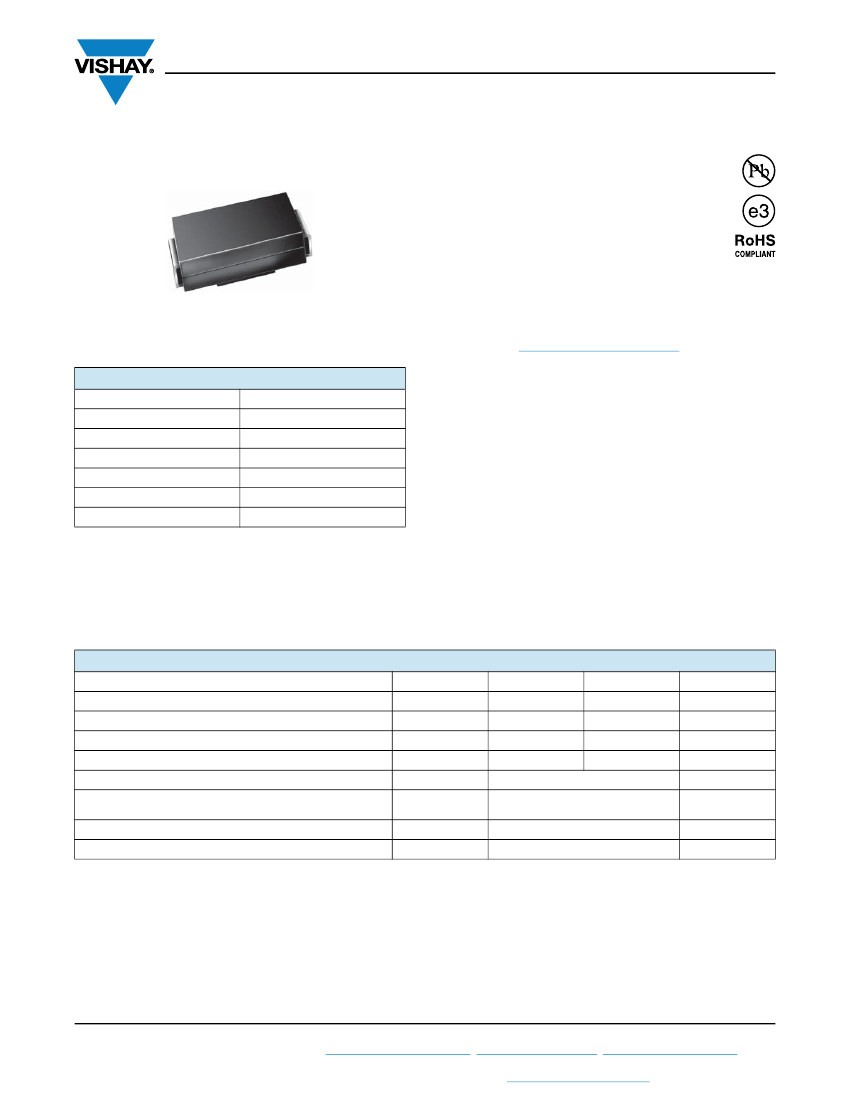

B330LA, B340A

www.vishay.com

Vishay General Semiconductor

High Current Density Surface Mount Schottky Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Guardring for overvoltage protection

• Low power losses, high efficiency

• Low forward voltage drop

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

DO-214AC (SMA)

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Diode variations

3.0 A

30 V, 40 V

65 A

0.50 V, 0.55 V

150 °C

DO-214AC (SMA)

Single

TYPICAL APPLICATIONS

For use in low voltage, high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

Note

• These devices are not AEC-Q101 qualified

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Terminals:

Matte tin plated

J-STD-002 and JESD 22-B102

leads,

solderable

per

E3 suffix meets JESD 201 class 2 whisker test

Polarity:

Color band denotes cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

(fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Operating junction and storage temperature range

RRM

RMS

F(AV)

FSM

dV/dt

, T

STG

SYMBOL

B330LA

B33

3.0

10 000

- 65 to + 150

B340A

B34

V/μs

°C

UNIT

Revision: 02-Aug-13

Document Number: 88896

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000

B330LA Related Products

	B330LA	B340A	B330LA_15
Description	3 A, 30 V, SILICON, RECTIFIER DIODE, DO-214AA	3 A, 40 V, SILICON, RECTIFIER DIODE	3 A, 40 V, SILICON, RECTIFIER DIODE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	rectifier diode
Maximum non-repetitive peak forward current	65 A	100 A	100 A
Number of components	1	1	1
Maximum repetitive peak reverse voltage	30 V	40 V	40 V
surface mount	YES	YES	Yes
Is it Rohs certified?	incompatible	incompatible	-
Maker	Vishay	Vishay	-
Reach Compliance Code	unknow	unknow	-
ECCN code	EAR99	EAR99	-
Configuration	SINGLE	SINGLE	-
Maximum forward voltage (VF)	0.5 V	0.55 V	-
JESD-609 code	e0	e0	-
Maximum operating temperature	150 °C	150 °C	-
Maximum output current	3 A	3 A	-
technology	SCHOTTKY	SCHOTTKY	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
application	-	GENERAL PURPOSE	GENERAL PURPOSE
Diode component materials	-	SILICON	silicon
Phase	-	1	1
Number of terminals	-	2	2
Terminal form	-	C BEND	C BEND
Terminal location	-	DUAL	pair
