Three Terminals SMD Low
Leakage Switching Diode
BAS116/BAW156/BAV170/BAV199
Three Terminals SMD Low Leakage Switching Diode
Features
•
•
•
•
Surface mount package ideally suited for automatic insertion
Very low leakage current
Low capacitance
RoHS Compliant
SOT-23
Mechanical Data
Case:
Terminals:
Weight:
SOT-23, Plastic Package
Solderable per MIL-STD-202G, Method 208
Approx. 0.008 gram
Maximum Ratings*
Symbol
Pinout Figure
Marking Code
(T
Ambient
=25ºC unless noted otherwise)
BAS116
1
PA
BAW156
5
P4
75
100
0.2
2.0
250
500
-55 to +150
BAV170
4
P3
BAV199
3
PB
V
V
A
A
mW
° C/W
°C
Note 1
Note 1
Unit
Conditions
Description
V
R
V
RRM
I
F(AV)
I
FSM
P
D
R
thJA
T
J,
T
STG
Reverse Voltage
Peak Reverse Voltage
Average Rectified Continuous
Forward Current
Non-Repetitive Peak Forward Surge
Current at t=1µS
Power Dissipation FR-5 Board
Thermal Resistance, Junction to
Ambient
Operating Junction and Storage
Temperature Range
Note:
1: FR-5=1.0X0.75X0.062”
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. B/CH
Page 1 of 4
Three Terminals SMD Low Leakage Switching Diode
BAS116/BAW156/BAV170/BAV199
Electrical Characteristics
Symbol
Description
Reverse Breakdown Voltage
(T
Ambient
=25ºC unless noted otherwise)
Min.
75
Typ.
-
Max.
-
0.9
1.0
Unit
V
Conditions
V
R
I
R
=100μA
I
F
=1.0mA
I
F
=10mA
V
F
Forward Voltage
-
-
1.1
1.25
0.002
5
V
I
F
=50mA
I
F
=150mA
V
R
=75V
nA
I
R
C
T
T
rr
Reverse Current
-
8.0
80
2.0
3.0
V
R
=75V,
T
J
=150° C
pF
µS
Total Capacitance
Reverse Recovery Time
-
-
-
-
V
R
=0V,
f
=1MHz
I
F=
I
R
=10mA,
R
L
=100Ω
Typical Characteristics Curves
Fig.1- Instantaneous Forward Characteristics
Instantaneous Forward Current (mA)
Fig.2- Reverse Characteristics
Instantaneous Forward Voltage (V)
Reverse Leakage Current (nA)
Junction Temperature (° C)
Rev. B/CH
www.taitroncomponents.com
Page 2 of 4
Three Terminals SMD Low Leakage Switching Diode
BAS116/BAW156/BAV170/BAV199

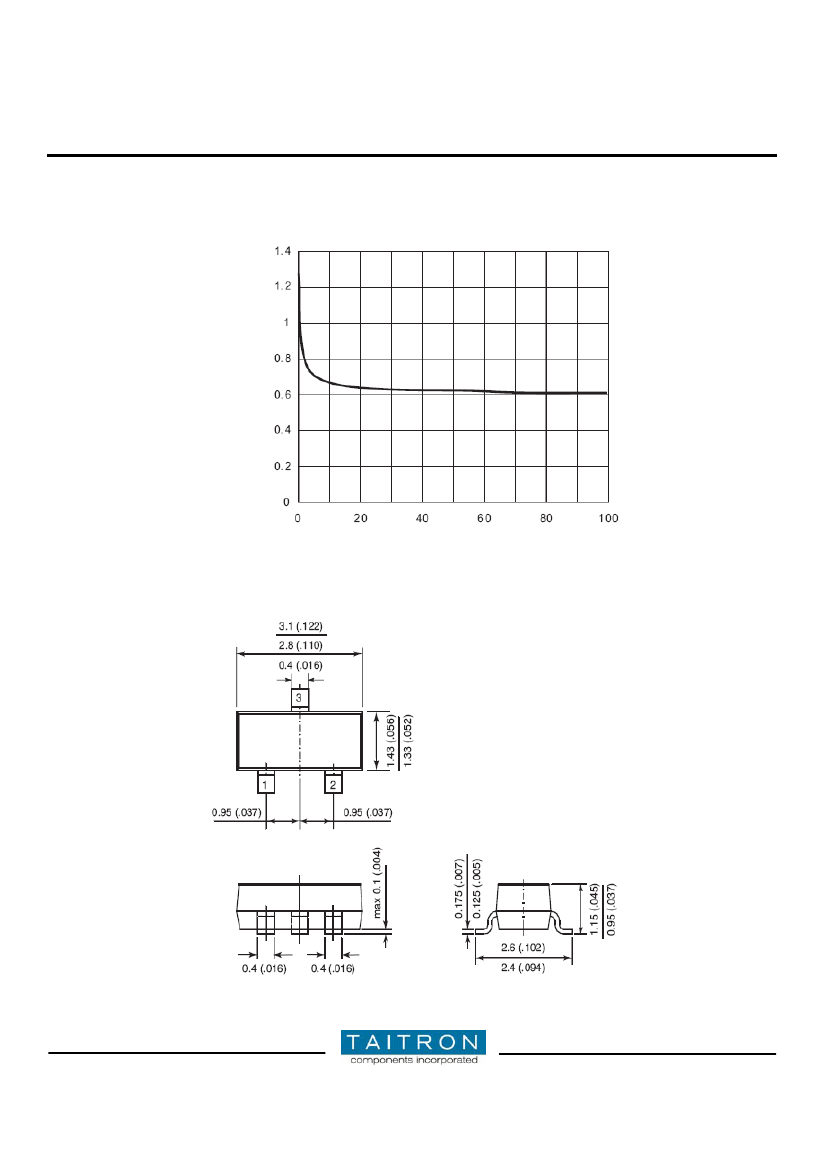

Fig.3- Junction Capacitance
Capacitance (pF)
Reverse Voltage (V)
Dimensions in mm (inch)
SOT-23
Rev. B/CH
www.taitroncomponents.com
Page 3 of 4
Three Terminals SMD Low Leakage Switching Diode
BAS116/BAW156/BAV170/BAV199
Mounting Pad Layout in mm (inch)
