BRS-02-LPA-46-GD-SMCP datasheet, PDF

Datasheet> All Categories > The connector> The connector> BRS-02-LPA-46-GD-SMCP

BRS-02-LPA-46-GD-SMCP: DescriptionBoard Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size163KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BRS-02-LPA-46-GD-SMCP Overview

Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

BRS-02-LPA-46-GD-SMCP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.157 inch
subject depth	0.087 inch
body length	1.811 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	BRS-02-LPA
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.207 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	46

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulation material:

Insulation resistance:

Withstanding:

Operating temperature:

2 amps

Phosphor bronze

Tin, gold flash, gold

20 milliohms max.

Polyester, Nylon 6T, UL94V-0

1,000 megohms min.

500VAC for 1 min.

-40°C to +105°C

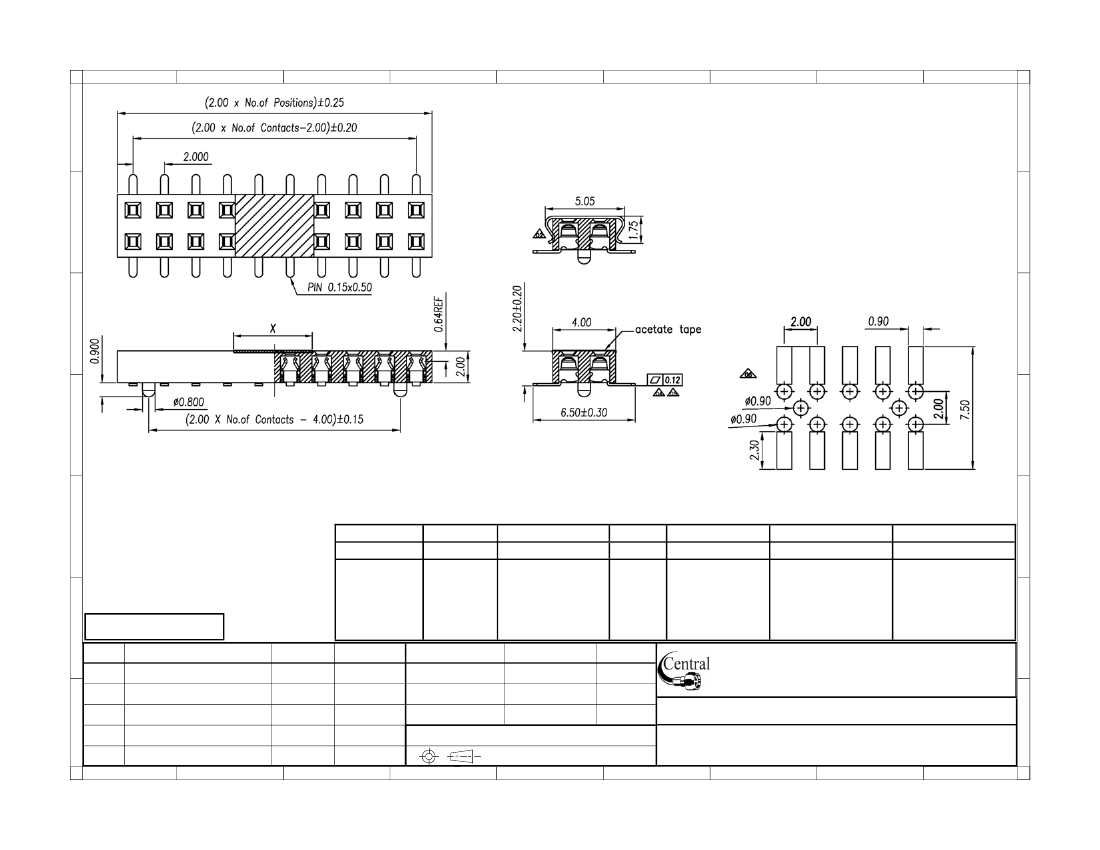

Recommended PC Board Layout

RoHS compliant

Rev.

Description

Date

Series

Rows

Profile

BRS

LPX

2mm connector 02=Dual row LPA=2.2mm

LPB=4.3mm

LPC=4.5mm

LPG=7.8mm

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Positions

Plating

Surface mount

6-80

TN=Tin

SM=surface mount

GD=Gold flash

SMCP=surface mount

GD10=10µ” gold with locating peg

GD15=150µ” gold

GD30=30µ” gold

Date

07/26/07

07/26/07 Part No.:

Options

[blank]=None

PPL=Pick & place pad

TR=Tape & reel

TB=Tube

FLM=Film

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BRS-02-LPA-XX-XX-SMCP

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Female header, 2mm pitch, dual rows, SMT type hous-

ing
