SMD LED LAMP
BL-LS1608B0E1
Features:
Ø
Ø
Ø
Ø
Ø
Ø
Ø
1.6mmx0.8mm SMD, 0.8mm THICKNESS
Mono-color type
Compatible with automatic placement equipment
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
PACKAGE: 4KPCS/REEL
RoHs Compliance
n
Electrical-optical characteristics: (Ta=25°
C)
Chip
(Test Condition: IF=20mA)
Luminous
Intensity
(Iv)
Unit:mcd
Part Number
Emitted Color
Material
λ
P
(nm)
Lens
Type
Forward
Voltage(VF)
Unit:V
Viewi
ng
Angle
2?1/2
(deg)
Typ
BL-LS1608B0E1HC
BL-LS1608B0E1SRC
BL-LS1608B0E1LRC
BL-LS1608B0E1URC
BL-LS1608B0E1EC
BL-LS1608B0E1YC
BL-LS1608B0E1GC
BL-LS1608B0E1VC
Red
Super Red
Super Red
Ultra Red
Red
Yellow
Green
Purple
GaP
AlGaAs
AlGaAs
AlGaAs
GaAsP
GaAsP
GaP
700
660
660
660
640
583
568
405
Water
Clear
2.2
1.85
1.85
1.95
2.10
2.15
2.30
3.2
Max
2.7
2.30
2.30
2.50
2.70
2.70
2.70
3.6
Min.
0.3
5
10
20
1
1
6
2
Typ.
1.0
13
28
45
130
6
6
15
4
GaN
n
Absolute maximum ratings (Ta=25°
C)
H
30
65
5
100
Parameter
Forward Current I
F
Power Dissipation P
d
Reverse Voltage V
R
Peak Forward Current I
PF
(Duty 1/10 @1KHZ)
Operation Temperature T
OPR
Storage Temperature T
STG
Lead Soldering Temperature
T
SOL
SR
30
78
5
100
LR
30
78
5
100
UR
30
78
5
100
E
30
65
5
100
Y
30
65
5
100
G
30
65
5
100
V
30
90
5
100
Unit
mA
mW
V
mA
°
C
°
C
-30 to +80
-40 to +85
Max.260±5°C for 3 sec Max.
(1.6mm from the base of the epoxy bulb)
°
C
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 1 of 6
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SMD LED LAMP
BL-LS1608B0E1
n
Electrical-optical characteristics: (Ta=25°
C)
Chip
(Test Condition: IF=20mA)
Luminous
Intensity
(Iv)
Unit:mcd
Part Number
Emitted Color
Material
λ
P
(n
m)
Lens
Type
Forward
Voltage(VF)
Unit:V
Viewi
ng
Angle
2?1/2
(deg)
Typ
BL-LS1608B0E1UDR
BL-LS1608B0E1UHR
BL-LS1608B0E1UEC
BL-LS1608B0E1UHD
BL-LS1608B0E1UYO
BL-LS1608B0E1UYC
BL-LS1608B0E1UGC
BL-LS1608B0E1PGC
BL-LS1608B0E1BGC
BL-LS1608B0E1DNB
BL-LS1608B0E1UBC
BL-LS1608B0E1UWC
Ultra Red
Ultra Red
Ultra Red
Ultra Red
Ultra Amber
Ultra Yellow
Ultra Green
Ultra Pure Green
Ultra Bluish Green
Blue
Ultra Blue
Ultra White
AlGaAs
AlGaAs
AlGaAs
AlGaAs
AlGaInP
AlGaInP
AlGaInP
InGaN
InGaN
InGaN
InGaN
InGaN
655
645
630
618
610
593
575
525
505
470
470
/
Water
Clear
2.10
2.10
2.10
2.10
2.10
2.10
2.20
3.50
3.50
3.50
3.50
3.50
Max
2.50
2.60
2.50
2.60
2.60
2.60
2.70
4.20
4.20
4.20
4.20
4.20
Min.
22
30
30
50
30
25
10
50
50
10
10
40
Typ.
55
80
80
110
80
70
40
100
110
33
30
200
130
n
Absolute maximum ratings (Ta=25°
C)
UDR
UHR
Unit
Parameter
UE
UHD
UYO
UY
UG
PG
BG
DNB
UB
UW
Forward Current I
F
Power Dissipation P
d
Reverse Voltage V
R
Peak Forward Current I
PF
(Duty 1/10 @1KHZ)
Operation Temperature T
OPR
Storage Temperature T
STG
Lead Soldering Temperature
T
SOL
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
30
78
5
100
mA
mW
V
mA
°
C
°
C
-30 to +80
-40 to +85
Max.260±5 ° for 3 sec Max.
C
(1.6mm from the base of the epoxy bulb)
°
C
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 2 of 6
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SMD LED LAMP
BL-LS1608B0E1
n
Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 3 of 6
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
SMD LED LAMP
BL-LS1608B0E1
n

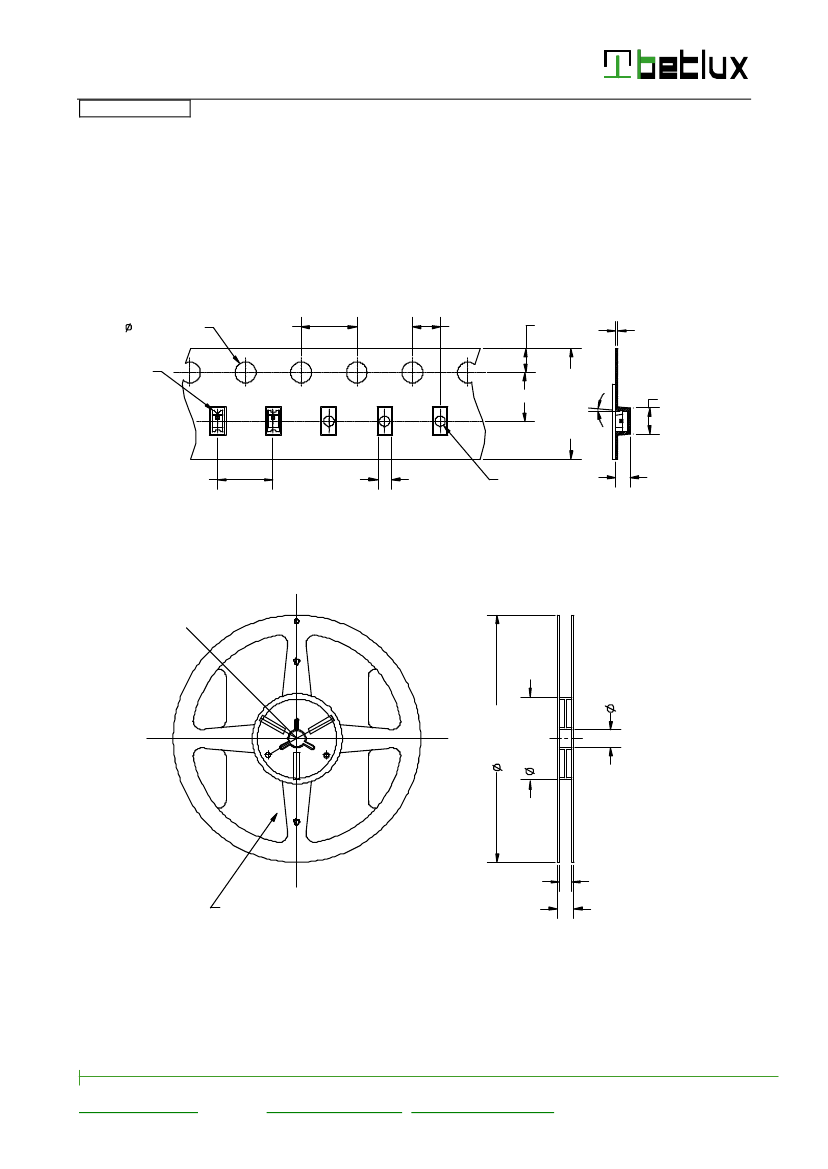

Tape Specifications
Ｕ½½½：½½
Ｔ½½½½½½½½：±０．１
１．５０＋０．１０／－０
４．００±０．１０
２．００±０．０５
１．７５±０．１０
０．２３±０．０５
８．００±０．２０
Ｃ½½½½½½ ½½½½
３．５０±０．０５
５
３．５±０．１０
４．００±０．１０
０．９５±０．１０
１．００±０．１０
０．８７±０．１０
９
６０＋０．５／－０
１７８±１．０
９．０±０．５
Ｌ½½½½ ½½½½½½½½ ½½½½½½½½
１２．０±０．１５
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 4 of 6
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
１３．５±０．５
ＰＳ
SMD LED LAMP
BL-LS1608B0E1
n
1.0

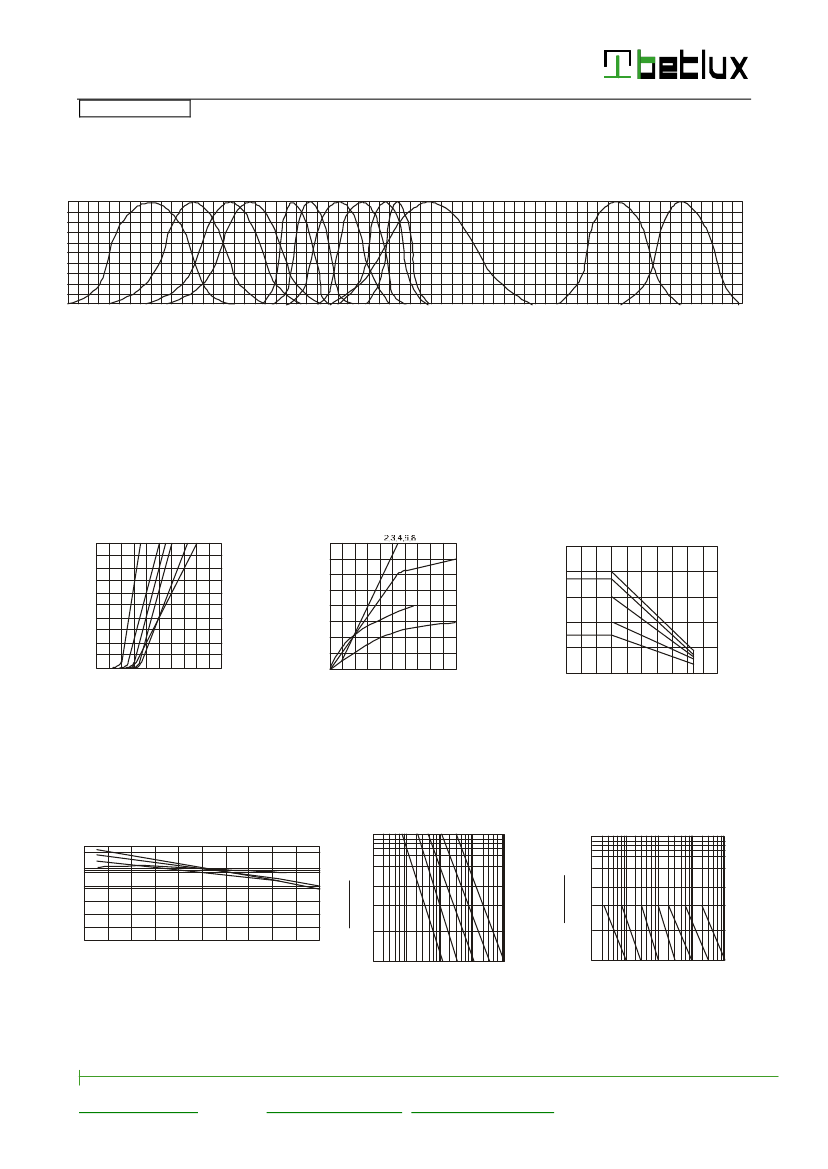

Typical electrical-optical characteristics curves:
(A)
(B)
(C)
(D)
(2)
(3)
(8)
(4)
(1) (6)
(5)
(9)
(10)
0.5
0
350
400
450
500
550
600
650
700
750
800
850
900
950
1000
Wavelength(nm)
RELATIVE INTENSITY Vs WAVELENGTH(? p )
(1) - GaAsP/GaAs 655nm/Red
(2) - GaP 570nm/Yellow Green
(3) - GaAsP/GaP 585nm/Yellow
(4) - GaAsp/GaP 635nm/Orange & Hi-Eff Red
(5) - GaP 700nm/Bright Red
(6) - GaAlAs/GaAs 660nm/Super Red
(8) - GaAsP/GaP 610nm/Super Red
(9) - GaAlAs 880nm
(10) - GaAs/GaAs & GaAlAs/GaAs 940nm
(A) - GaN/SiC 430nm/Blue
(B) - InGaN/SiC 470nm/Blue
(C) - InGaN/SiC 505nm/Ultra Green
(D) - InGaAl/SiC 525nm/Ultra Green
50
FORWARD CURRENT(mA)
REL ATIVE LUMIN OU S IN TENSITY
3
2
1
0.5
0.2
0.1
-30
-20
-10
1
8
64 5
2 3
4.0
1
3.0
FORWARD CURRENT(mA)
50
40
30
20
10
0
RELATIVE LUMINOUS INTENSITY
40
30
20
10
0
1.2
1
6
2,4,8,A
3
5
2.0
5
B
1.0
0
20
40
60
80
100
1.6
2.0
2.4
2.6
3.0
20
40
60
80
100
FORWARD VOLTAGE (Vf)
FORWARD CURRENT VS.
FORWARD VOLTAGE
FORWARD CURRENT (mA)
RELATIVE LUMINOUS
INTENSITY VS. FORWARD
CURRENT
AMBIENT TEMPERATURE Ta(
℃
)
FORWARD CURRENT VS. AMBIENT
TEMPERATURE
1
5
4
2
3
3KHz
300KHz
1KHz
100KHz F-REFRESH RATE
10 10KHz
9
8
7
6
5
Ipeak M AX.
IDC MAX.
4
3
2
0
10
20
30
40
50
60
70
1
AMBIENT TEMPERATURE Ta(
℃
)
1
10
100
1000
tp-PULSE DURATION uS
(1,2,3,4,6,8,B.D.J.K)
10,000
Ipeak MAX.
IDC MAX.
30KHz
3KHz
300Hz
100KHz
10KHz 1KHz
100Hz
10
9
8
7
6
5
4
3
2
1
1
10
100
1000
tp-PULSE DURATION uS
(5)
10,000
NOTE:25
℃
free air temperature unless otherwise specified
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 5 of 6
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
