5341-2141 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5341-2141

5341-2141: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

5341-2141 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle

5341-2141 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.331 inch
body length	1.455 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5341
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

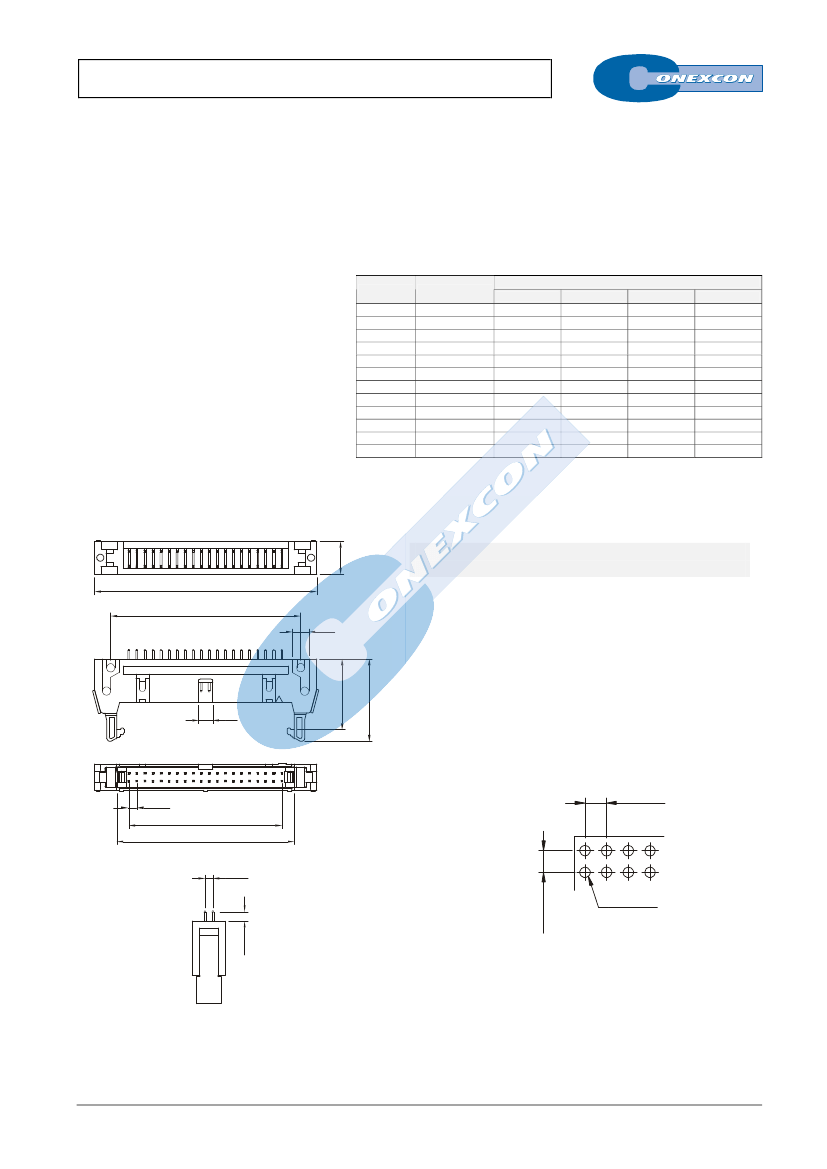

2.54mm STRAIGHT SHROUDED HEADER

5341 SERIES.

2.54 x 2.54mm(0.100 x 0.100”). With Eject Latch Levers

Features





Available in 10, 14, 16, 20, 26, 30, 34, 40, 50, 60 and 64

Circuits

Insulator Material: P.B.T UL 94V-0

Contact Material: 0.64mm square pin in copper alloy



Mates with 5440 and 5435 series I.D.C connector

Short and long latches available

Fully shrouded. Provides fast connection / disconnection of

flat cable assembly

Ordering and Dimensional Information

DIMENSIONES

10,16(0,400)

15,24(0,600)

17,78(0,700)

22,86(0,900)

27.94(1.100)

30,48(1,200)

35,56(1,400)

40,64(1,600)

48,26(1,900)

60,96(2,400)

73,66(2,900)

78,74(3,100)

31.88 (1.255)

36.96 (1.455)

39.50 (1.555)

44.58 (1.755)

49.66 (1.955)

52.20 (2.053)

57.28 (2.255)

62.36 (2.455)

69.98 (3.255)

82.68 (3.255)

95.38 (3.755)

100.46 (3.955)

18.10 (0.713)

23.18 (0.912)

25.72 (1.126)

30.80 (1.216)

35.88 (1.413)

38.42 (1.513)

43.50 (1.713)

48.58 (1.923)

56.20 (2.213)

68.90 (2.713)

81.60 (3.213)

86.68 (3.413)

21.66 (0.852)

26.67 (1.050)

29.30 (1.154)

34.38 (1.353)

39.46 (1.533)

42.00 (1.654)

47.08 (1.854)

52.16 (2.056)

59.78 (2.354)

72.48 (2.854)

85.18 (3.354)

90.26 (3.554)

Dimensional Information

CIRCUITOS

CÓDIGO

5341-T10B

5341-T14B

5341-T16B

5341-T20B

5341-T24B

5341-T26B

5341-T30B

5341-T34B

5341-T40B

5341-T50B

5341-T60B

5341-T64B

T = Contact Plating

8.4

.331



T =

Tin plated.

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

5.2

.205

B = Latch type



4.1

.161

27.5

1.083

B =

Short. For use without strain relief (H = 18.40 mm.)

B =

Long. For use with strain relief (H = 22.00 mm.)

RECOMMENDED HOLE PATTERN

2.54

.100

2.54±0.05

2.54

.100

.100±0.02

2.54±0.05

.100±0.02

ø1.2±0.05

.047±0.02

FULL LINE CATALOGUE

3.2

.126

H-XX

5341-2141 Related Products

	5341-2141	5341-2501	5341-2101	5341-2341	5341-2201	5341-2401	5341-2301	5341-2641	5341-2241	5341-2261
Description	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch	0.331 inch
body length	1.455 inch	3.255 inch	1.255 inch	2.455 inch	1.755 inch	2.755 inch	2.255 inch	3.955 inch	1.955 inch	2.055 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5341	5341	5341	5341	5341	5341	5341	5341	5341	5341
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	14	50	10	34	20	40	30	64	24	26
Evacuation force-minimum value	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N	.7784 N
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maker	-	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-	-	-
