Part Number

Search

5627-15061

Description
USB Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking
CategoryThe connector    The connector
File Size59KB,1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric View All

5627-15061 Overview

USB Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking

5627-15061 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.331 inch
subject depth0.638 inch
body length0.531 inch
Connector typeUSB CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
Durability1500 Cycles
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of ports1
PCB contact patternRECTANGULAR
PCB contact row spacing2.6924 mm
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts6
STRAIGHT CONNECTOR PCB IEEE1394
5627 SERIES.
Features
For PCB Solder.
Contacts Gold plated for function above 1500 cycles
Polarized shell with positive lock for perfect mating.
Prepared for operationg in cycles above 400 Mbps
Available in 6 circuits
With fixing post/ / Grounding tap to PCB
Complete metalicl shell for ESD protection
Plastic Insulation resistant against high temperatures

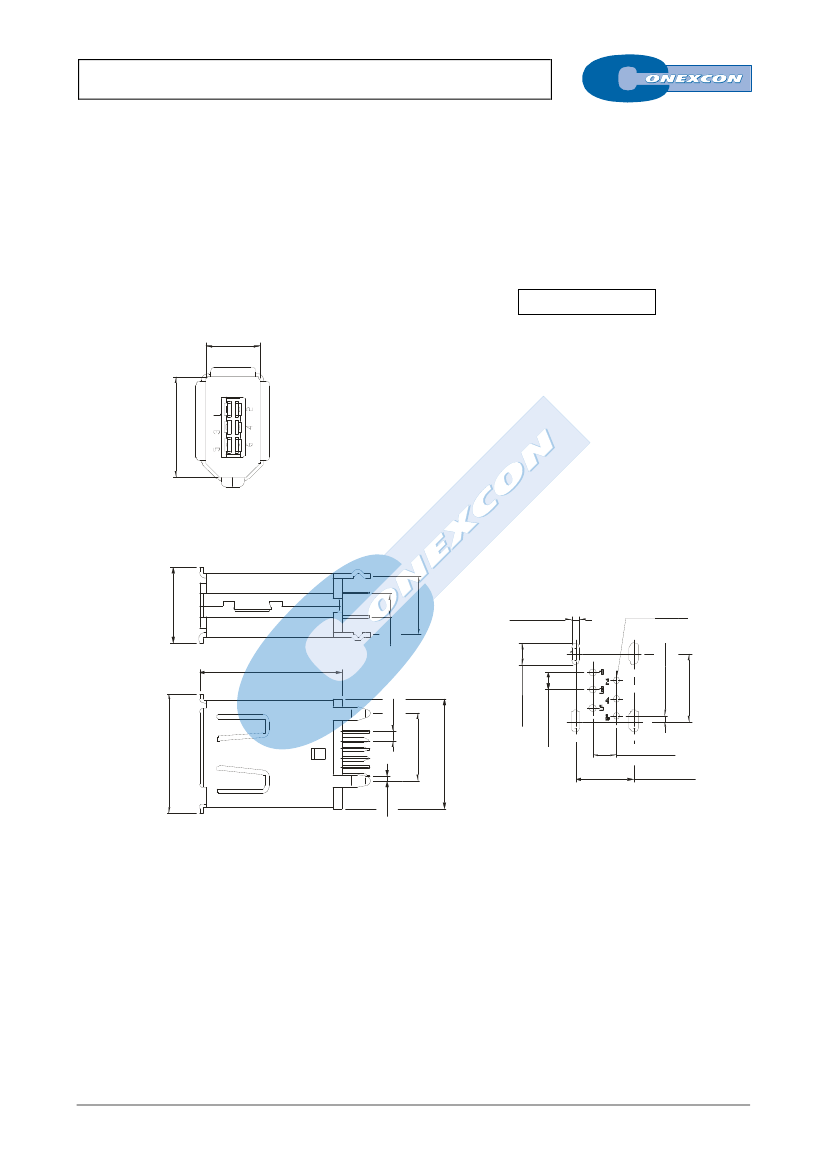

Dimensional Information
Ordering and Dimensional Information
Part No:
5627-15061
6.2
.244
11.3
.445
8.4
.331
6.6
.260
2.7
.106
1.0±0.05
.039±.002
ø0.8±0.08
.031±.003
0.55±0.05
.022±.002
7.6±0.1
.299±.004
2.7±0.1
.106±.004
6.6±0.1
.260±.004
K-XX
0.55
.022
7.6
.299
12.3
.484
13.5
.531
FULL LINE CATALOGUE
2.5±0.05
.098±.002
2.0±0.05
.078±.002
16.2
.638
1.0
.039
RECOMMENDED PCB LAYOUT
