5751-2051: DescriptionBoard Connector, 5 Contact(s), Male, Straight, Press Fit Terminal, Locking; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5751-2051 Overview

Board Connector, 5 Contact(s), Male, Straight, Press Fit Terminal, Locking

5751-2051 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.172 inch
subject depth	0.39 inch
body length	0.709 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P5
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	5751
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Termination type	PRESS FIT
Total number of contacts	5

Preview

Download Datasheet

View All

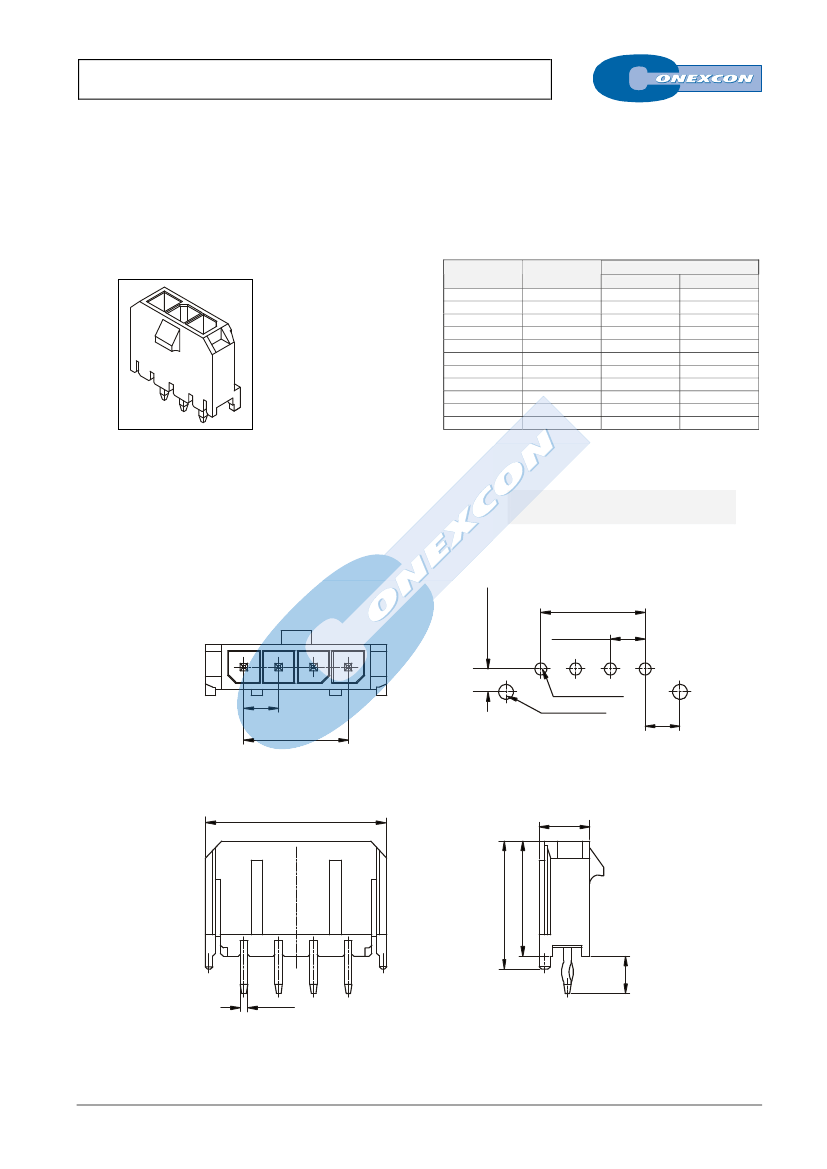

3.00mm MICRO POWER STRAIGHT HEADER

5751 SERIES.

Features

3.00mm(0.118”). For High Current / High Density



Mates with 5750 series housing

Positive lock

Current Rating: 5 A max.

Ordering and Dimensional Information

Dimensions

A

3.00 (.118)

6.00 (.236)

9.00 (.354)

12.00 (.472)

15.00 (.591)

18.00 (.709)

21.00 (.827)

24.00 (.945)

27.00 (1.063)

30.00 (1.181)

33.00 (1.299)

B

9.00 (.354)

12.00 (.472)

15.00 (.591)

18.00 (.709)

21.00 (.827)

24.00 (.945)

27.00 (1.063)

30.00 (1.181)

33.00 (1.299)

36.00 (1.417)

39.00 (1.535)



Available in 2 a 12 circuits in single row

Material: Nylon 9T UL 94V-0

Tin plated brass pin

Dimensional Information

Circuit Size

2

3

4

5

6

7

8

9

10

11

12

Part Number

5751 – 2021

5751 – 2031

5751 – 2041

5751 – 2051

5751 – 2061

5751 – 2071

5751 – 2081

5751 – 2091

5751 – 2101

5751 – 2111

5751 – 2121

T = Contact Plating



1.96±0.05

T =

2.

Tin plated

T =

3.

Gold flash over 50µ” nickel.

Recommended Finish

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

A±0.05

3.00±0.05

3.00±0.10

A±0.20

1

ø1.02±0.05

ø1.27±0.05

3.00±0.05

MECANIZADO RECOMENDADO

B±0.25

4.37±0.25

11.00±0.25

9.90

0.64

FULL LINE CATALOGUE

3.20

L-XX
