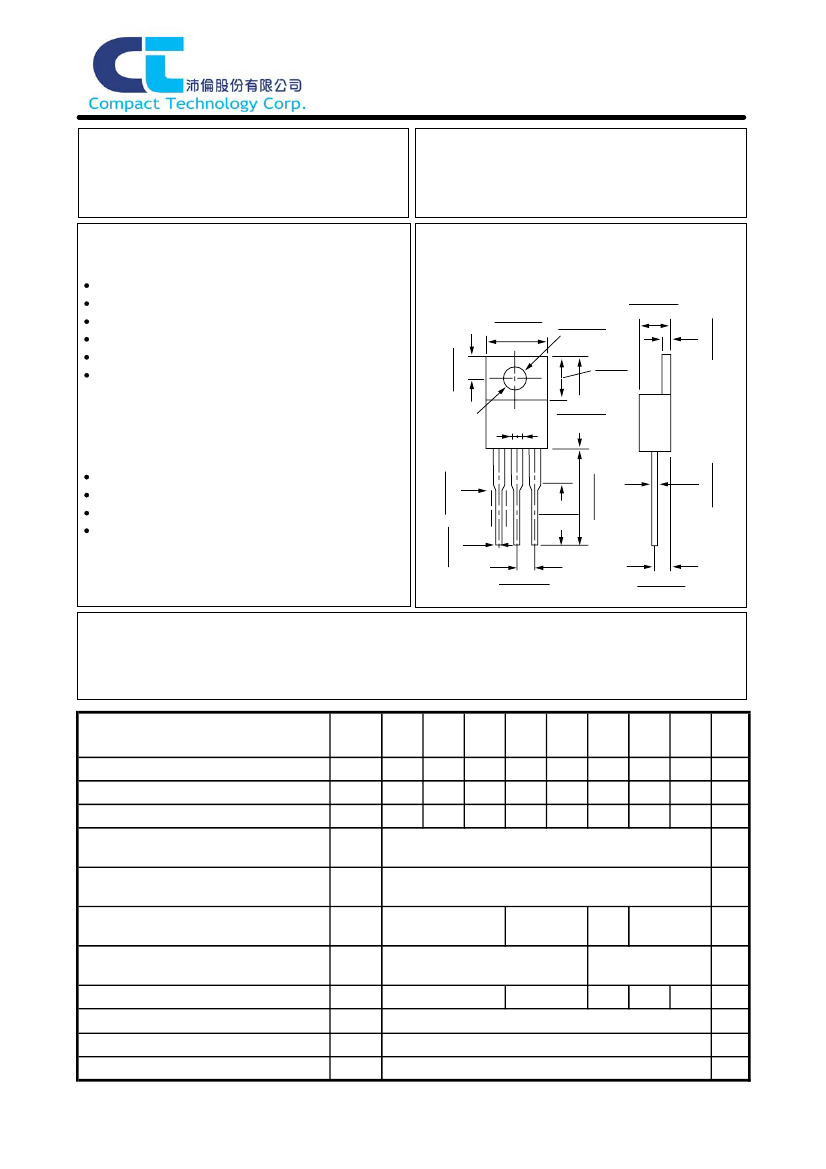

S16C20C
thru
S16C200C
SCHOTTKY BARRIER RECTIFIERS
REVERSE VOLTAGE -
20
to
200
Volts
FORWARD CURRENT -
16.0
Amperes
FEATURES
Metal-Semiconductor junction with guard ring
Epitaxial construction
Low forward voltage drop
High current capability
The plastic material carries UL recognition 94V-0
For use in low voltage,high frequency inverters,free
wheeling,and polarity protection applications
TO-220AB
.189(4.82)
.173(4.4)
.055(1.4)
.043(1.1)
.026(0.68)
.403(10.26)
.385(9.8)
.129(3.3)
.1(2.54)
.153(3.9)
.145(3.7)
.251(6.4)
.228(5.8)
.624(15.87)
.578(14.7)
.036(0.92)
.028(0.72)
Case : TO-220AB molded plastic
Polarity : Color band denotes cathode
Weight : 1.948 grams
Mounting position : Any
.051(1.3)
.045(1.16)
.388(9.87)
.250(6.35)
.101(2.59)
.098(2.49)
.114(2.92)
.080(2.05)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Per leg
Peak forward surge current, 8.3ms single
half sine-wave superim posed on rated load
Maximum instantaneous I
F
=8A@25℃
@100℃
Maximum DC Reverse Current @TA=25℃
at Rated DC Blocking Voltage @TA=100℃
Typical Junction Capacitance(Note1)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
SYMBOL
S16C
20C
S16C
40C
S16C
45C
S16C
50C
S16C
60C
S16C
100C
S16C
150C
S16C
UNIT
200C
200
140
200
V
V
V
A
A
VRRM
VRMS
VDC
I
F
I
FSM
V
F
I
R
C
J
R
θJC
T
J
T
STG
20
14
20
40
28
40
45
32
45
50
35
50
16.0
8.0
60
42
60
100
70
100
150
105
150
125.0
0.55
0.52
0.5
50.0
450
320
3
-55 to +125
-55 to +150
240
0.7
0.65
0.85
0.8
0.92
0.85
0.2
15.0
200
170
.014(0.36)
MECHANICAL DATA
.549(13.96)
.499(12.7)
V
mA
pF
℃/W
℃
℃
1
of 2
S16C20C
thru
S16C200C
S16C20C
thru
S16C200C

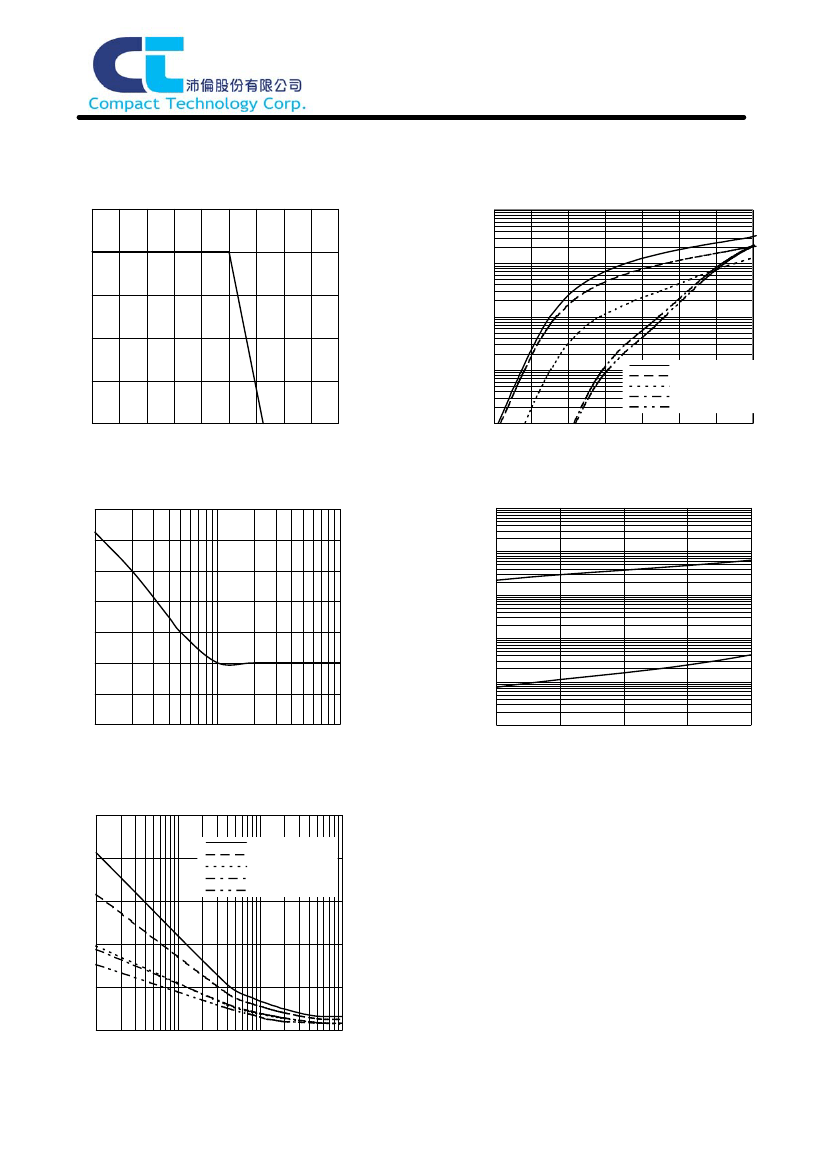

FIG. 1-TYPICAL FORWARD CURRENT DERATING CURVE
20
INSTANTANEOUS FORWARD CURRENT (A)
100.00
FIG. 2-TYPICAL FORWARD CHARACTERISTICS
AVERAGE FORWARD CURRENT,(A)
16
10.00
12
1.00
8
0.10
4
S16C20C~S16C45C
S16C50C~S16C60C
S16C100C~S16C100C
S16C150C
S16C200C
0.2
0.3
0.4
0.5
0.6
0.7
FORWARD VOLTAGE (V)
0.8
0.9
0
0
20
40
60
80
100
120
140
160
180
AMBIENT TEMPERATURE(℃)
0.01
FIG. 3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT
140
100.00
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
PEAK FORWARD SURGE CURRENT (A)
120
REVERSE LEAKAGE CURRENT (mA)
10.00
100
100℃
1.00
80
60
0.10
40
0.01
25℃
20
0
1
10
NUMBER OF CYCLES AT 60Hz
100
0.00
20%
40%
60%
80%
100%
PERCENTAGE RATED PEAK REVERSE VOLTAGE (%)
FIG. 5-TYPICAL JUNCTION CAPACITANCE
1500.0
S16C20C~S16C45C
S16C50C~S16C60C
S16C100C
S16C150C
S16C200C
JUNCTION CAPACITANCE (pF)
1200.0
900.0
600.0
300.0
0.0
0
1
10
REVERSE VOLTAGE (V)
100
2
of 2
S16C20C-S16C200C
