SB3100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> SB3100

SB3100: Description3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD; Categorysemiconductor Discrete semiconductor; File Size90KB，2 Pages; ManufacturerCTC [Compact Technology Corp.]

Download Datasheet Parametric Compare View All

SB3100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SB3100	-	-	View	Buy Now

SB3100 Overview

3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD

SB3100 Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	ROHS COMPLIANT, PLASTIC PACKAGE-2
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	round
Package Size	LONG FORM
Terminal form	Wire
terminal coating	tin
Terminal location	AXIAL
Packaging Materials	Plastic/Epoxy
Craftsmanship	SCHOTTKY
structure	single
Shell connection	isolation
Diode component materials	silicon
Diode type	rectifier diode
application	EFFICIENCY
Phase	1
Maximum repetitive peak reverse voltage	100 V
Maximum average forward current	3 A
Maximum non-repetitive peak forward current	80 A

Preview

Download Datasheet

View All

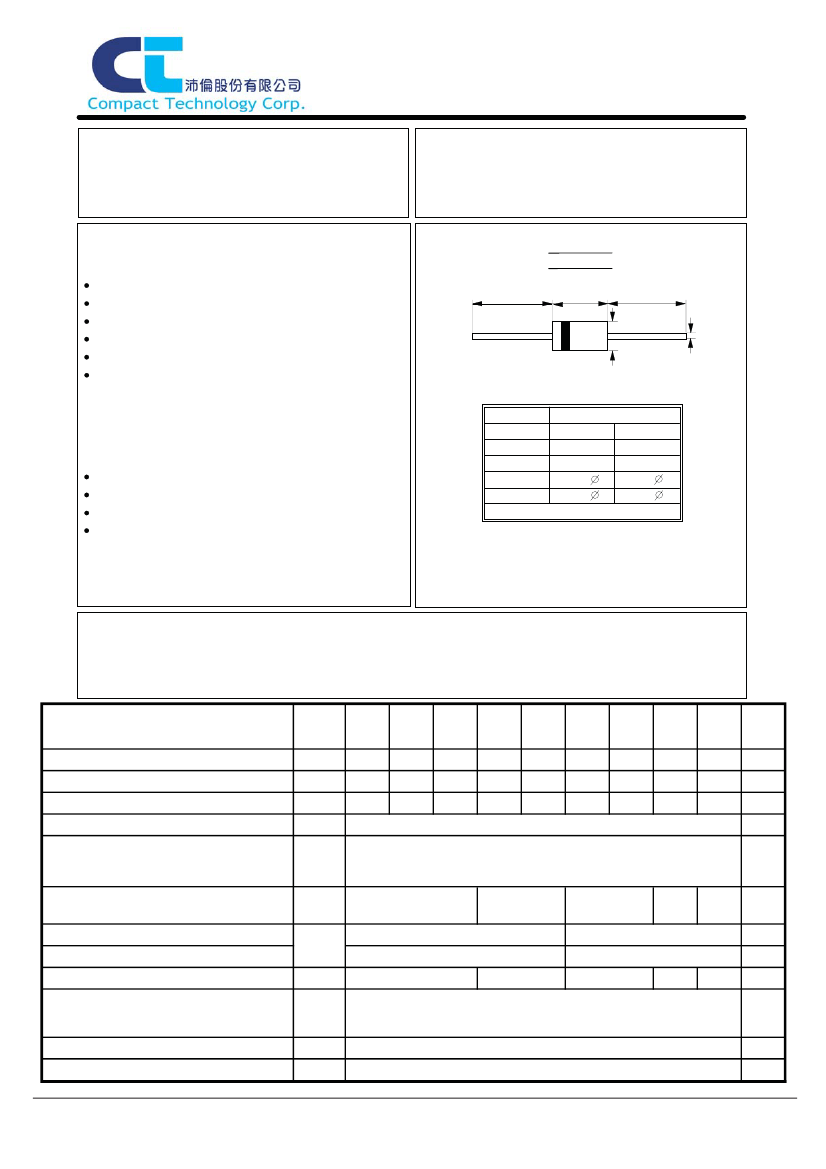

SB320 thru SB3200

SCHOTTKY BARRIER RECTIFIERS

REVERSE VOLTAGE -

200

Volts

FORWARD CURRENT -

3.0

Amperes

FEATURES

Metal-Semiconductor junction with guard ring

Epitaxial construction

Low forward voltage drop

High current capability

The plastic material carries UL recognition 94V-0

For use in low voltage,high frequency inverters,free

wheeling,and polarity protection applications

DO-201AD

MECHANICAL DATA

Case : JEDEC DO-201AD molded plastic

Polarity : Color band denotes cathode

Weight : 1.071grams

Mounting position : Any

Dim.

DO-201AD

Min.

Max.

25.4

8.50

1.20

9.50

1.30

5.60

5.0

Dimensions in millimeters

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 ambient temperature unless otherwise specified.

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

CTC0165 Ver.

6.0

of 2

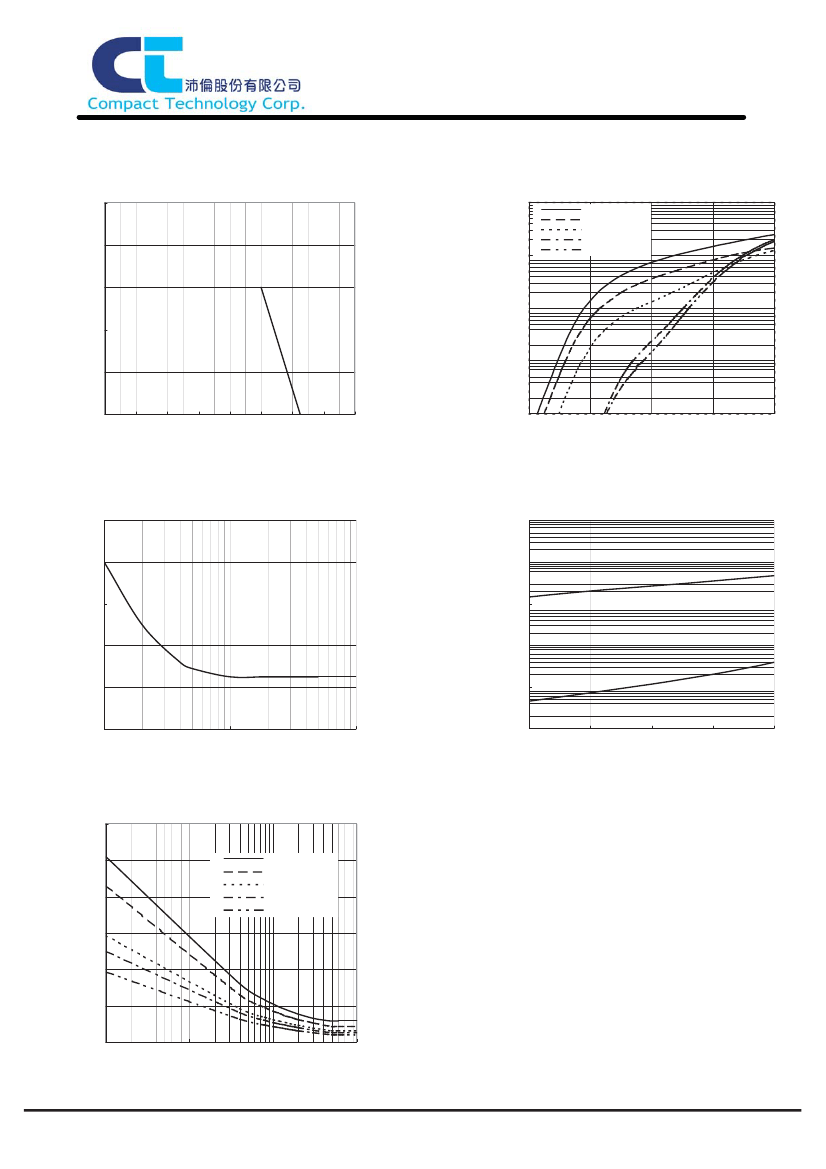

SB320 thru SB3200

SB3100 Related Products

	SB3100	SB320_15	SB3200	SB330	SB350	SB380	SB3150	SB340	SB360
Description	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 30 V, SILICON, RECTIFIER DIODE, DO-201AD	POWER CONNECTOR	3 A, 80 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 150 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 40 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, SILICON, BRIDGE RECTIFIER DIODE
Number of terminals	2	2	2	2	-	-	-	2	-
Number of components	1	1	1	1	-	-	-	1	-
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	-	-	-	DISCONTINUED	-
packaging shape	round	round	round	round	-	-	-	ROUND	-
Package Size	LONG FORM	LONG FORM	LONG FORM	LONG FORM	-	-	-	LONG FORM	-
Terminal form	Wire	Wire	Wire	Wire	-	-	-	WIRE	-
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	-	-	-	AXIAL	-
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	-	-	-	PLASTIC/EPOXY	-
Craftsmanship	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	-	-	-	SCHOTTKY	-
structure	single	single	single	single	-	-	-	SINGLE	-
Shell connection	isolation	isolation	isolation	isolation	-	-	-	ISOLATED	-
Diode component materials	silicon	silicon	silicon	silicon	-	-	-	SILICON	-
Diode type	rectifier diode	rectifier diode	rectifier diode	rectifier diode	-	-	-	RECTIFIER DIODE	-
application	EFFICIENCY	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-	EFFICIENCY	-
Phase	1	1	1	1	-	-	-	1	-
Maximum repetitive peak reverse voltage	100 V	30 V	30 V	30 V	-	-	-	40 V	-
Maximum average forward current	3 A	3 A	3 A	3 A	-	-	-	3 A	-
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A	-	-	-	80 A	-
