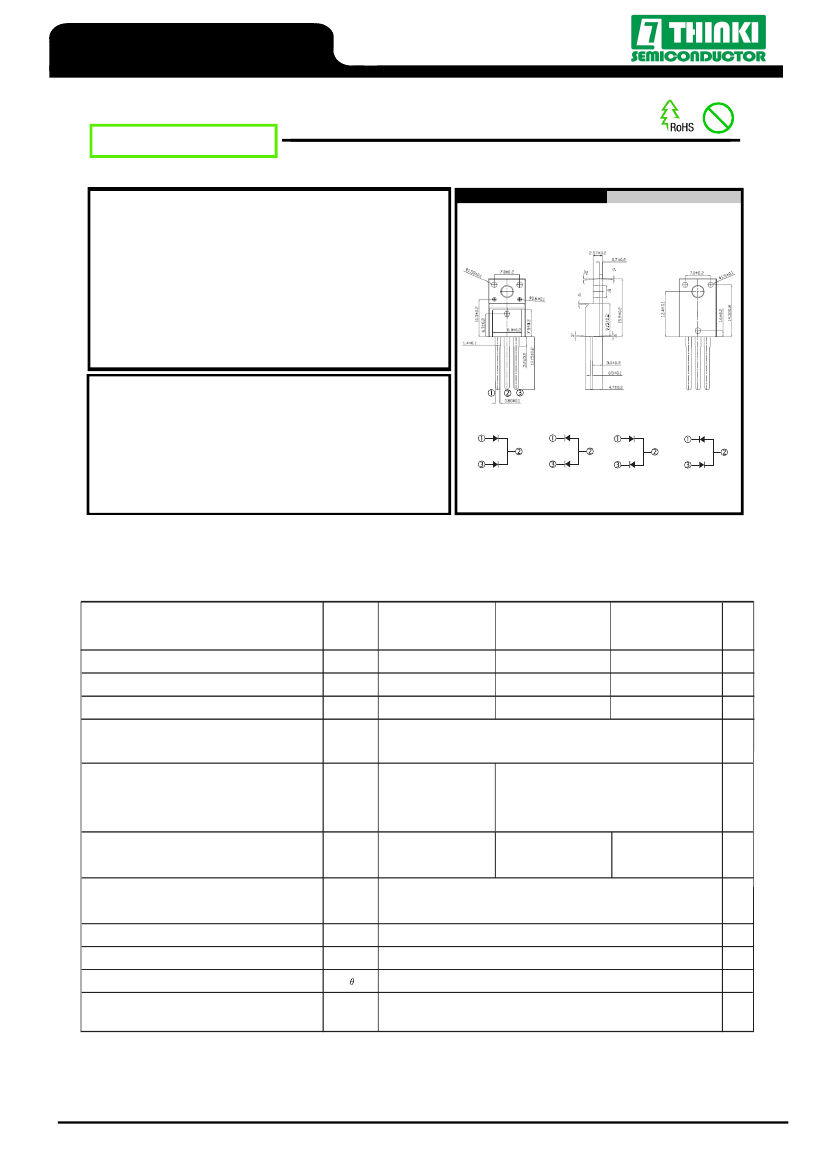

UFF160-02AT thru UFF160-06AT
®
Pb
UFF160-02AT thru UFF160-06AT
Pb Free Plating Product
16 Ampere Dual Common Anode Ultra Fast Recovery Half Bridge Rectifier
Features
Latest GPP technology with super fast recovery time
Low forward voltage drop
High current capability
Low reverse leakage current
High surge current capability
Application
ITO-220AB
Unit:mm
Automotive Inverters and Solar Inverters
Plating Power Supply,SMPS and UPS
Car Audio Amplifiers and Sound Device Systems
Mechanical Data
Case: Fully Insulated TO-220FP FullPak Plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Solderable per MIL-STD-202
method 208
Polarity: As marked on diode body
Mounting position: Any
Weight: 2.1 gram approximately
Case
Case
Case
Case
Negative
Positive
Common Cathode Common Anode
Suffix "AT"
Suffix "CT"
Doubler
Tandem Polarity
Suffix "DT"
Reverse Doubler
Tandem Polarity
Suffix "ST"
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
C
ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified
Current T
C
=100
C
Peak Forward Surge Current, 8.3ms single
Half sine-wave superimposed on rated load
(JEDEC method)
Maximum Instantaneous Forward Voltage
@ 8.0 A
Maximum DC Reverse Current @T
J
=25
C
At Rated DC Blocking Voltage @T
J
=125
C
Maximum Reverse Recovery Time (Note 1)
Typical junction Capacitance (Note 2)
Typical Thermal Resistance (Note 3)
Operating Junction and Storage
Temperature Range
o
o
o
o
UFF160-02AT UFF160-04AT UFF160-06AT
UNIT
200
140
200
400
280
400
16.0
600
420
600
V
V
V
A
V
RRM
V
RMS
V
DC
IF
(AV)
I
FSM
175
150
A
V
F
0.98
1.3
5.0
250
35
90
2.2
-55 to + 150
1.7
V
uA
uA
nS
pF
o
I
R
Trr
C
J
R
JC
T
J
, T
STG
CW
o
C
NOTES : (1) Reverse recovery test conditions IF = 0.5A, I = 1.0A, Irr = 0.25A.
R
(2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts DC.
(3) Thermal Resistance junction to case.
Rev.05
© 2006 Thinki Semiconductor Co.,Ltd.
Page 1/2
http://www.thinkisemi.com/
UFF160-02AT thru UFF160-06AT
®

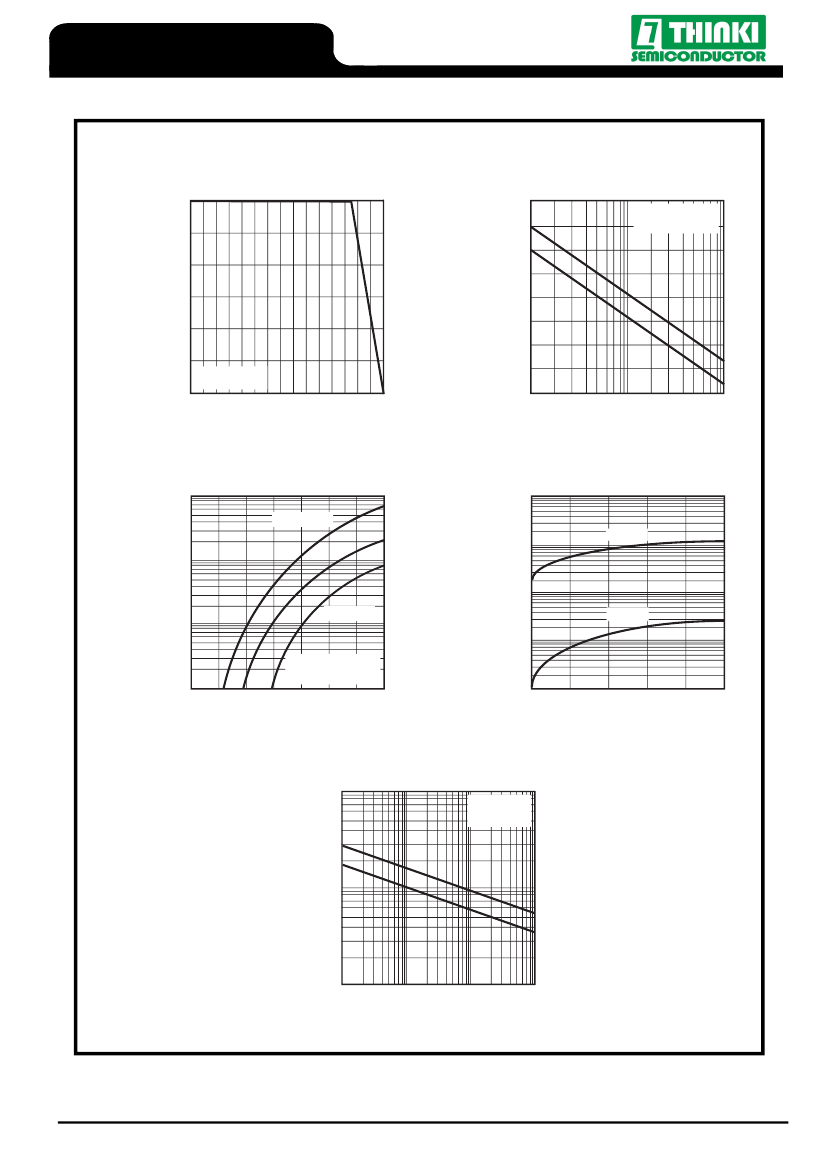

FIG.1 - FORWARD CURRENT DERATING CURVE
16
FIG.2 - MAXIMUM NON-REPETITIVE
PEAK FORWARD SURGE CURRENT
200
PEAK FORWARD SURGE CURRENT,
AMPERES
AVERAGE FORWARD RECTIFIED
CURRENT, AMPERES
13
175
150
125
100
75
50
25
0
Pulse Width 8.3ms
Single Half-Sire-Wave
(JEDEC Method)
10
8
6
4
60 Hz Resistive or
Inductive load
0
0
50
100
o
150
1
10
100
CASE TEMPERATURE, C
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
IINSTANTANEOUS FORWARD CURRENT,
AMPERES
80
UFF160-02AT
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
1000
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
UFF160-04AT
8.0
100
T
J
=125 C
o
10
T
J
=25 C
1
o
UFF160-06AT
0.1
0.01
0.2
0.4
0.6
0.8
T
J
=25 C
PULSE WIDTH=300uS
1% DUTY CYCLE
1.0
1.2
1.4
1.6
o
0.1
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
PERCENT OF RATED PEAK REVERSE VOLTAGE,%
FIG.5 - TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE, pF
T
J
= 25 C
f = 1.0 MHZ
Vsig = 50mVp-p
o
100
10
0.1
1.0
4.0
10
100
REVERSE VOLTAGE, VOLTS
Rev.05
© 2006 Thinki Semiconductor Co.,Ltd.
Page 2/2
http://www.thinkisemi.com/
