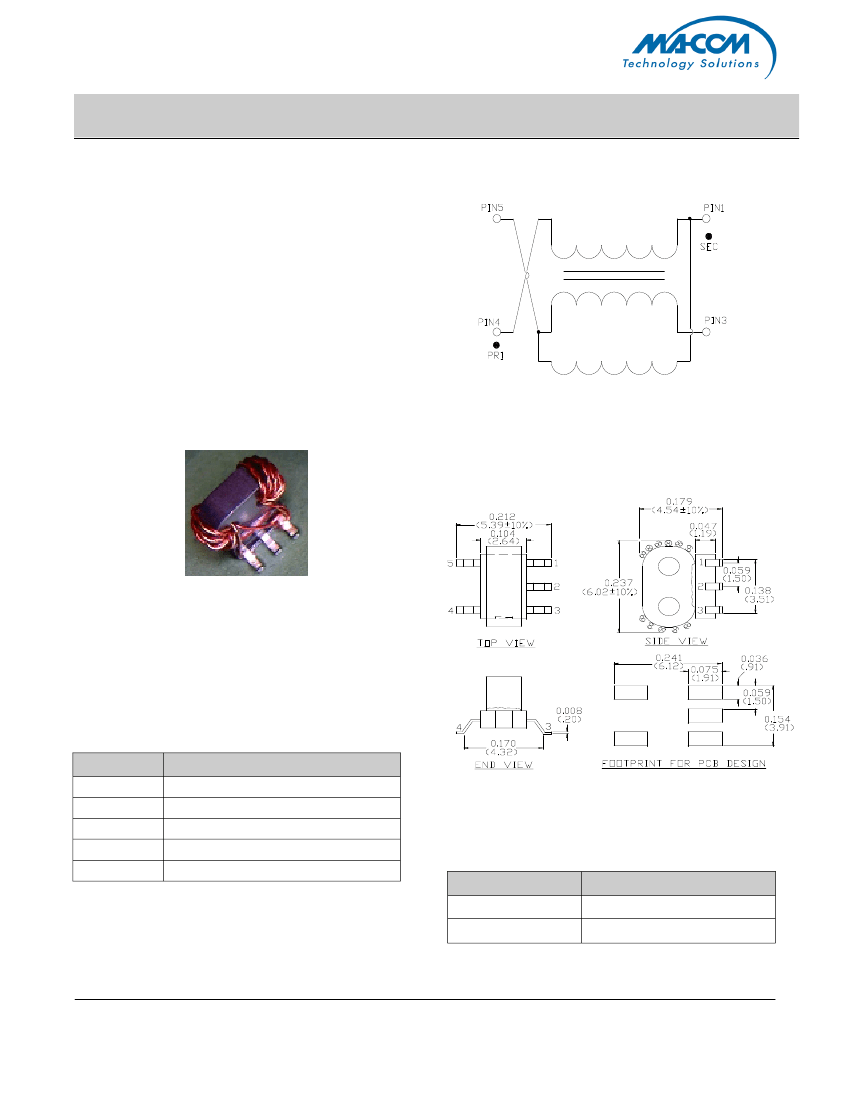

MABACT0069
1:1 Transmission Line Transformer with tertiary winding
50-1200MHz
Features
•
•
•
•
•
•
Surface Mount
1:1 Impedance
Excellent amplitude and phase balance
260°C Reflow Compatible
RoHS* Compliant
Available on Tape and Reel.
Rev. V2
Schematic
Description
M/A-COM Technology Solutions MABACT0069 is a
1:1 RF transmission line transformer with tap in a
low cost, surface mount package. Ideally suited for
high volume CATV applications.
Case Style: SM-158
Pin Configuration
Pin No.
1
2
3
4
5
Function
Output 1: Through (Secondary dot)
Ground, not used
Output 2: Coupled (Secondary)
Input (Primary dot)
Ground (Primary)
Dimensions in inches [mm] Tolerance: .xx ± .02, .xxx ± .010
Ordering Information
Part Number
MABACT0069
MABA-008509-CT69TB
Description
1500 piece reel
Customer test board
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABACT0069
1:1 Transmission Line Transformer with tertiary winding
50-1200MHz
Rev. V2
Electrical Specifications: T
A
= 25°C, Z
0
= 75Ω, P
in
= 0dBm
Ω
Parameter
Insertion Loss 1: Pin 4-1 (Through)
Test Conditions
50 - 600 MHz
600-1000 MHz
1000-1200 MHz
50 - 600 MHz
600-1200 MHz
50 - 600 MHz
600-1200 MHz
50 - 870 MHz
870-1000 MHz
1000-1200 MHz
5 - 1200 MHz
Units
dB
dB
dB
dB
dB
dB
dB
º
º
º
dB
Min
-
-
-
-
-
-
-
-
-
-
12
Typ
0.4
0.8
1.2
0.5
0.5
±0.1
±0.4
±1.0
±1.5
±4.5
16
Max
0.8
1.1
1.5
0.7
1.0
± 0.3
± 0.9
±3.0
±5.0
±10.0
-
Insertion Loss 2: Pin 4-3 (Coupled)
Amplitude Unbalance (Nominal 0dB)
Phase Unbalance (Nominal 180º)
Input Return Loss
Recommended Maximum Ratings
Application Circuit
Parameter
Max Input Power
DC current
Operating Temperature
Storage Temperature
Value
250mW
30mA
-40°C to +85°C
-55°C to +100°C
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MABACT0069
1:1 Transmission Line Transformer with tertiary winding
50-1200MHz
Typical Performance Curves: T
A
= 25°C, Z
0
= 75Ω, P
in
= 0dBm
Ω
Insertion Loss 1 (Through pin 4 to pin 1)
0.00
-0.25
-0.50
Rev. V2
Insertion Loss 2 (Coupled pin 4 to pin 3)
0.00
-0.25
-0.50
dB
dB
50
280
510
740
970
1200
-0.75
-1.00
-1.25
-1.50
-0.75
-1.00
-1.25
-1.50
50
280
510
740
970
1200
Frequency (MHz)
Amplitude Unbalance
Phase Balance
190
185
Frequency (MHz)
1.0
0.5
degree
50
280
510
740
970
1200
dB
0.0
-0.5
-1.0
Frequency (MHz)
180
175
170
50
280
510
740
970
1200
Frequency (MHz)
Input Return Loss
0
-5
-10
dB
-15
-20
-25
-30
50
280
510
740
970
1200
Frequency (MHz)
3
