System Reset IC
KODENSHI
BMR-0301
BMR–0301 is the low reset type of IC that guarantee to set againmicro
DIMENSIONS
computers or logic systems by detecting the intermittent of fluctuating
power supply voltage during normal use or switching on/off of
theequipments.
A comparator type of hysteresis transistor developed by KODENSHI is
built in the IC,so that BMR–0301 is very cost effective components.
And,BMR–0301 is a super–low consumption electric current system
reset IC which has been developed with using high resistance
process.
(Unit : mm)
FEATURES
•Super low current consumption
–
•Low operation voltage
•High current of output transistor
•Hysteresis circuit built in
•It has on delay function to supplement the constant of outer
C and R
•Micro computer circuits in mobile phones,word processors,
TVs,VCRs etc.
•General logic circuits
•Detection of voltage drop in batteries of note personal
computers mobile phones
•Switching to backup power supply
APPLICATIONS
MAXIMUM RATINGS
Item
Supply voltage
Power dissipation
Operating temp.
Storage temp.
Soldering temp.
*1
(Ta=25℃)
Symbol
V
CC
P
D
Topr.
Tstg
Tsol.
Rating
-0.3~+10.0
200
-20~+75
-40~+125
260
Unit
V
mW
℃
℃
℃
(V
C C
=5V, Ta=25℃)
*1.5sec at location of 2mm away from lead bottom.
ELECTRO-OPTICAL CHARACTERISTICS
Item
BMR-0301C
BMR-0301D
BMR-0301E
BMR-0301F
BMR-0301G
BMR-0301H
BMR-0301I
BMR-0301J
BMR-0301K
BMR-03 01L
Symbol
Conditions
Min.
4.3
4.0
3.7
3.4
3.1
2.9
2.75
2.55
2.35
2.15
40
-
-
-
-
-
10
5
-
-
Typ.
4.5
4.2
3.9
3.6
3.3
3.1
2.9
2.7
2.5
2.3
100
±0.01
0.1
100
1.0
1.4
20
-
100
10
Max.
4.7
4.4
4.1
3.8
3.5
3.3
3.05
2.85
2.65
2.45
300
-
0.4
180
2.5
1.6
-
-
500
20
Unit.
Detecting Voltage
V
S
R
L
=470 Ω,V
CC
=H →L,V
OL
≦0.4V
V
Hysteresis voltage
Temperature coefficient of detecting voltage
Low level output voltage
Circuit current at ON
Circuit current at OFF
Threshold operating voltage
Output current at ON 1
Output current at ON 2
Transmission delay time
Transmission delay time
△V
S
V
S
/△T
V
OL
I
CCL
I
CCH
V
OPL
I
OL
1
I
OL
2
t
PLH
t
PHL
R
L
=470 Ω,V
CC
=L →H →L
R
L
=470 Ω,Ta=–20 ~75 ℃
R
L
=470 Ω,V
CC
=V
S
Min.
R
L
=∞Ω,V
CC
=V
S
Min.
R
L
=∞Ω,V
CC
=V
S
Max+0.1V
R
L
=4.7k Ω,V
OL
≦0.4V
R
L
=0 Ω,V
CC
=V
S
Min.
R
L
=0 Ω,Ta=–20 ~75 ℃
R
L
=4.7k Ω,C
L
=100pF
R
L
=4.7k Ω,C
L
=100pF
mV
%/℃
V
μ
A
μ
A
V
mA
mA
μsec
μsec
- 1-
System Reset IC
BMR-0301

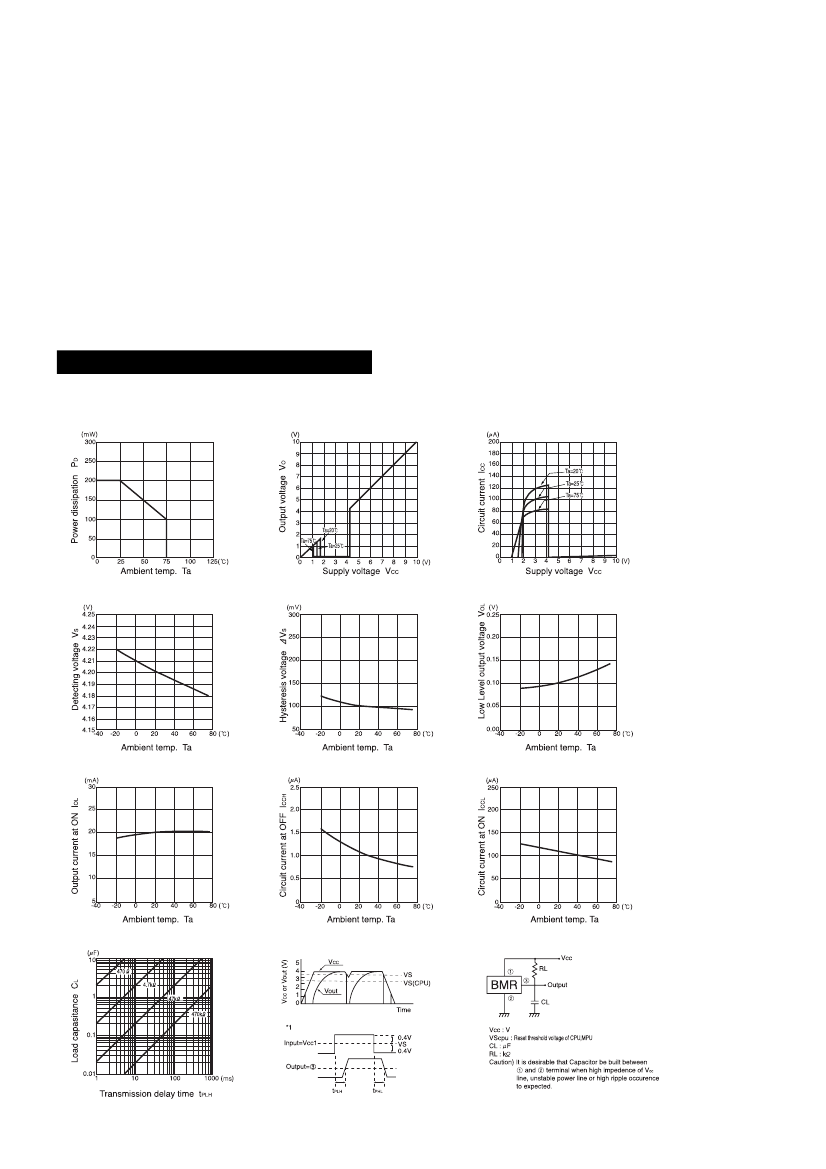

Power dissipation Vs.
Ambient temp
Output voltage Vs.
Supply voltage
Citcuit current Vs.
Supply voltage
Detecting voltage Vs.
Ambient temp.
Hysteresis voltage Vs.
Ambient temp.
Low Level output voltage Vs.
Ambient temp.
Output current at ONVs.
Ambient temp.
Circuit current at OFF Vs.
Ambient temp.
Circuit current at ON Vs.
Ambient temp.
Load capasitance Vs.
Transmission delay time
Timing chart
- 2-
