part number:
description:
50-00158
Connector, 5P mini DIN male, molding style,
brass, nickel plating
date:
April 23, 2012
rev:
A1
page:
1 of 2
Materials:
shell
insulator
pin
rating
insulation resistance
dielectric strength
operating temperature
Notes:
RoHS compliant
brass, nickel-plated, 3 μm min.
PBT
brass, silver-plated
100 Vac, 1 A max., or 12 Vdc, 2 A max,
50 mOhms min @ 250 Vdc
250 Vac/1 minute
-55°C to + 85°C

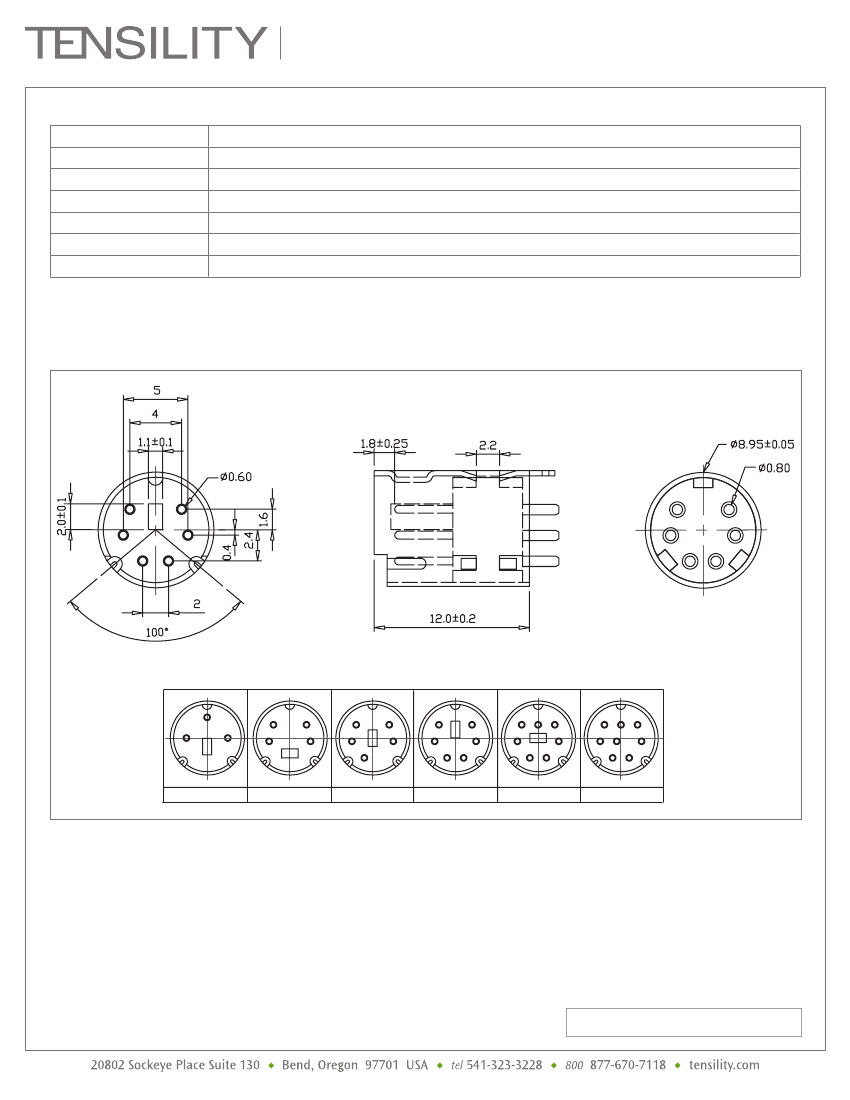

Mechanical drawing:
50-00156
50-00157
50-00158
50-00159
50-00160 50-00161
Units: mm
MD 3 PIN
MD 4 PIN
MD 5 PIN
MD 6 PIN
MD 7 PIN
MD 8 PIN
tolerance
X: ±0.5 mm
.X: ±0.3 mm
.XX: ±0.05 mm
applicable unless otherwise indicated in specification or on drawings
Initial
Date
part number:
description:
50-00158
Connector, 5P mini DIN male, molding style,
brass, nickel plating
date:
April 23, 2012
rev:
A1
page:
2 of 2
Revision notes:
Rev
Date
Description
A
A1
November 29, 2011
April 23, 2012
initial release
updated to 50-00158 only
Specification Approval
Spec sign-off verifies that you have reviewed the entire specification, tested a sample of the product, and confirm that it meets your
requirements. This specification reflects the part as it will be ordered. Orders will not be processed until the specification pages have
been initialed and the approval page has been signed. This specification is confidential and is not to be transmitted without prior
approval from Tensility.
Signature
Name
Company
Title
Date
Branch
