part number:
description:
50-00172
Connector, 5P standard DIN male, molding
style, brass, nickel plating, 180°
date:
April 23, 2012
rev:
A1
page:
1 of 2
Materials:
shell
insulator
pin
rating
insulation resistance
dielectric strength
operating temperature
Notes:
RoHS compliant
brass, nickel-plated, 4 μm min.
PBT
brass, nickel-plated
100 Vac, 1 A max., or 12 Vdc, 2 A max,
50 mOhms min @ 250 Vdc
250 Vac/1 minute
-55°C to + 85°C

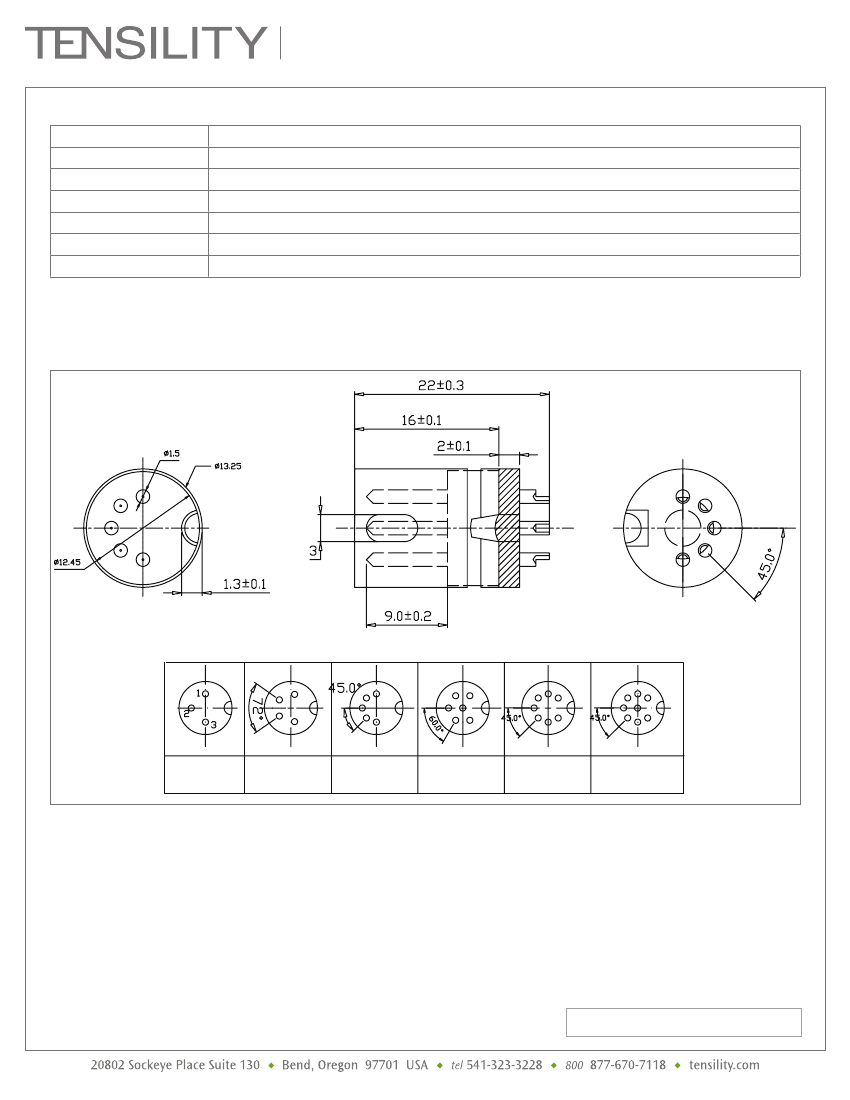

Mechanical drawing:
50-00170
50-00171
50-00172
50-00173
50-00174
50-00175
DIN 3 PIN
Units: mm
180°
DIN 4 PIN
210°
DIN 5 PIN
180°
DIN 6 PIN
240°
DIN 7 PIN
270°
DIN 8 PIN
270°
tolerance
X: ±0.5 mm
.X: ±0.3 mm
.XX: ±0.05 mm
applicable unless otherwise indicated in specification or on drawings
Initial
Date
part number:
description:
50-00172
Connector, 5P standard DIN male, molding
style, brass, nickel plating, 180°
date:
April 23, 2012
rev:
A1
page:
2 of 2
Revision notes:
Rev
Date
Description
A
A1
November 29, 2011
April 23, 2012
initial release
updated to 50-00172 only
Specification Approval
Spec sign-off verifies that you have reviewed the entire specification, tested a sample of the product, and confirm that it meets your
requirements. This specification reflects the part as it will be ordered. Orders will not be processed until the specification pages have
been initialed and the approval page has been signed. This specification is confidential and is not to be transmitted without prior
approval from Tensility.
Signature
Name
Company
Title
Date
Branch
Mobile and portable
